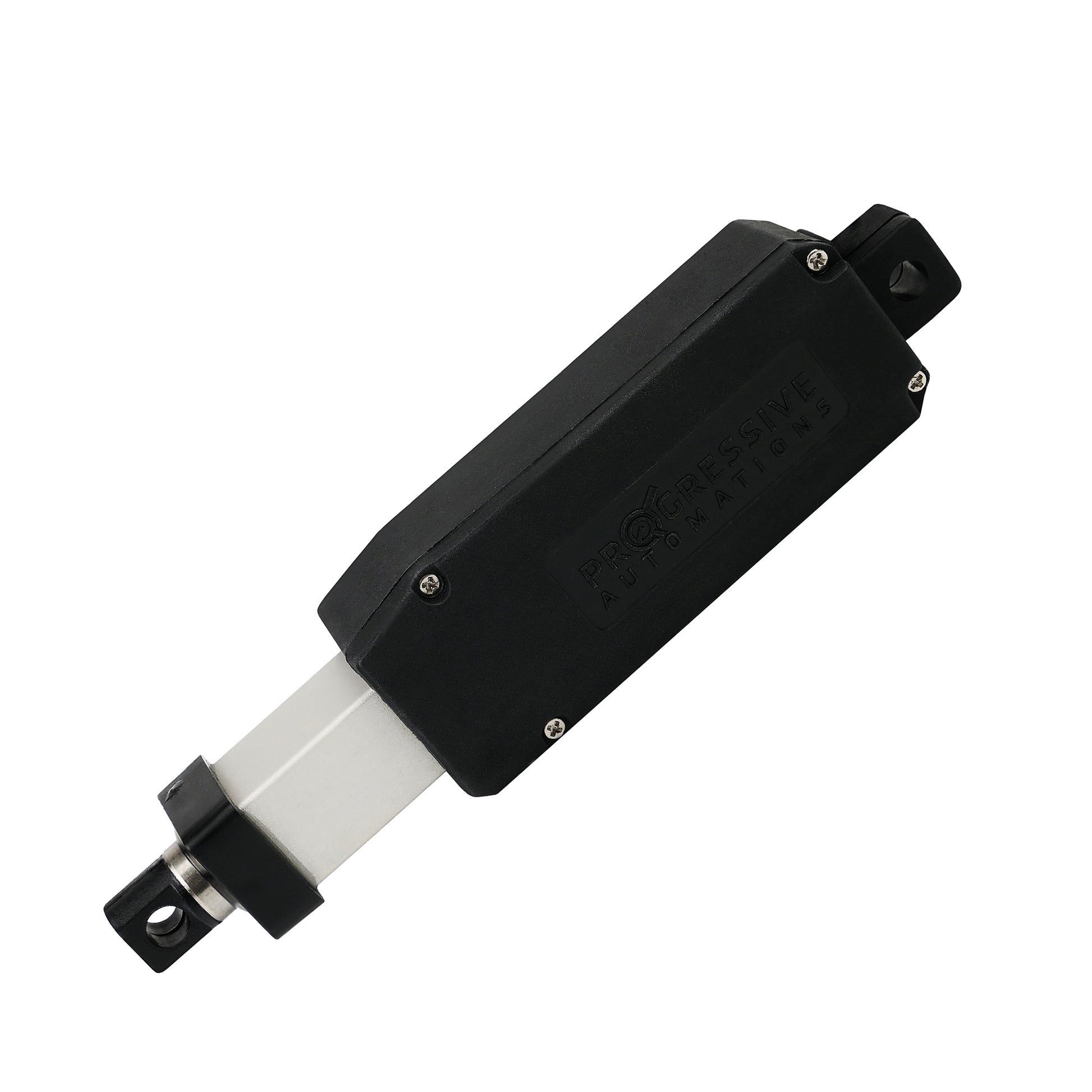

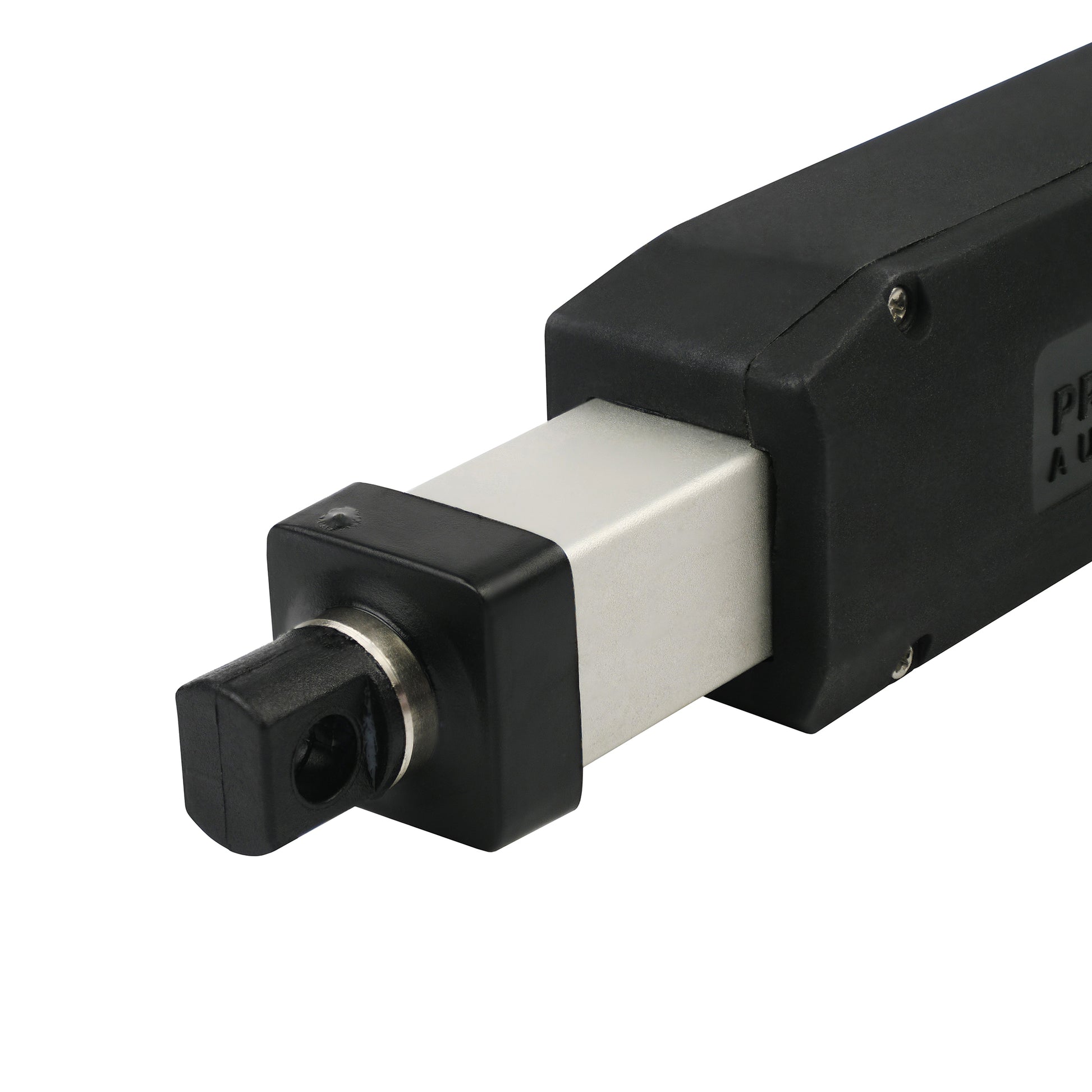

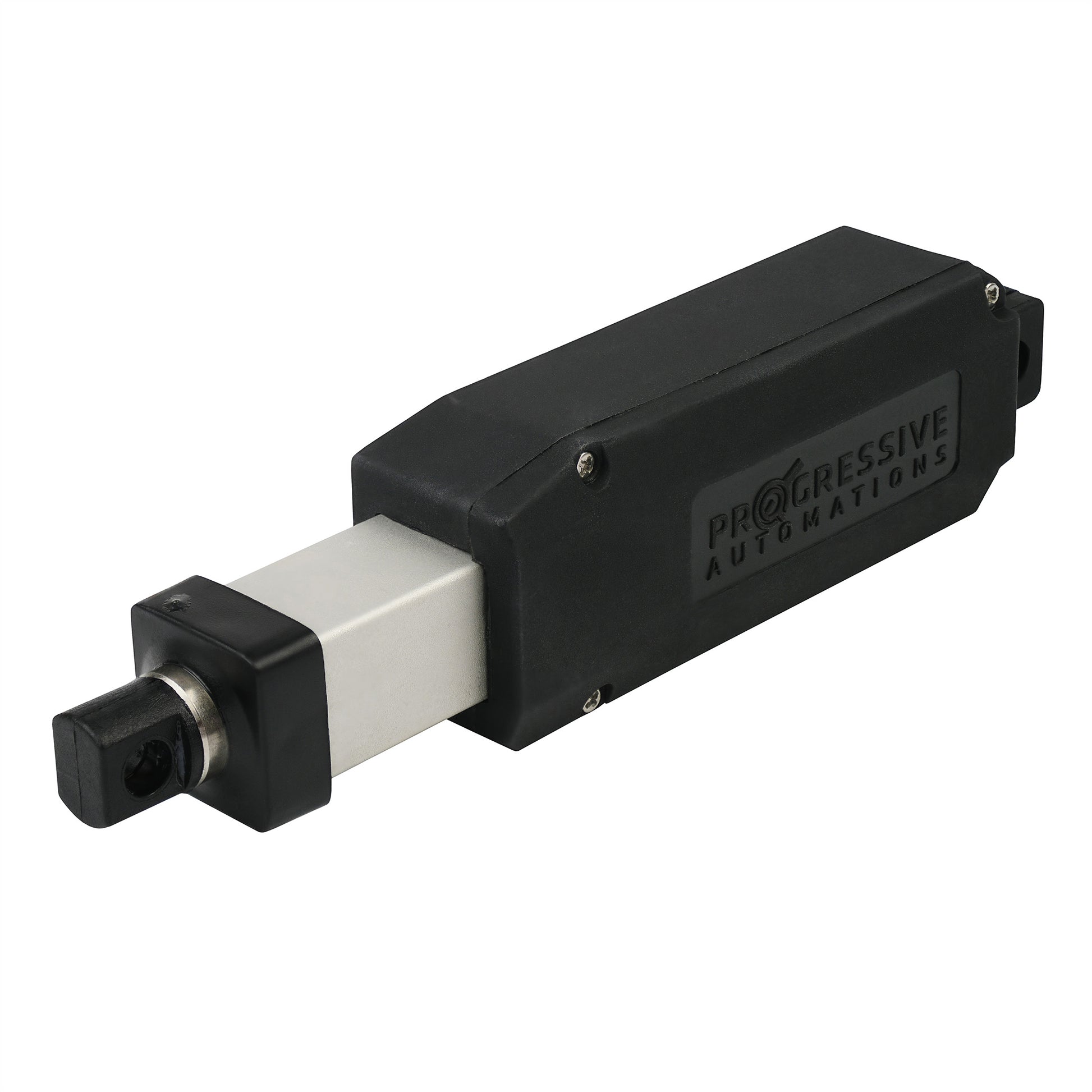

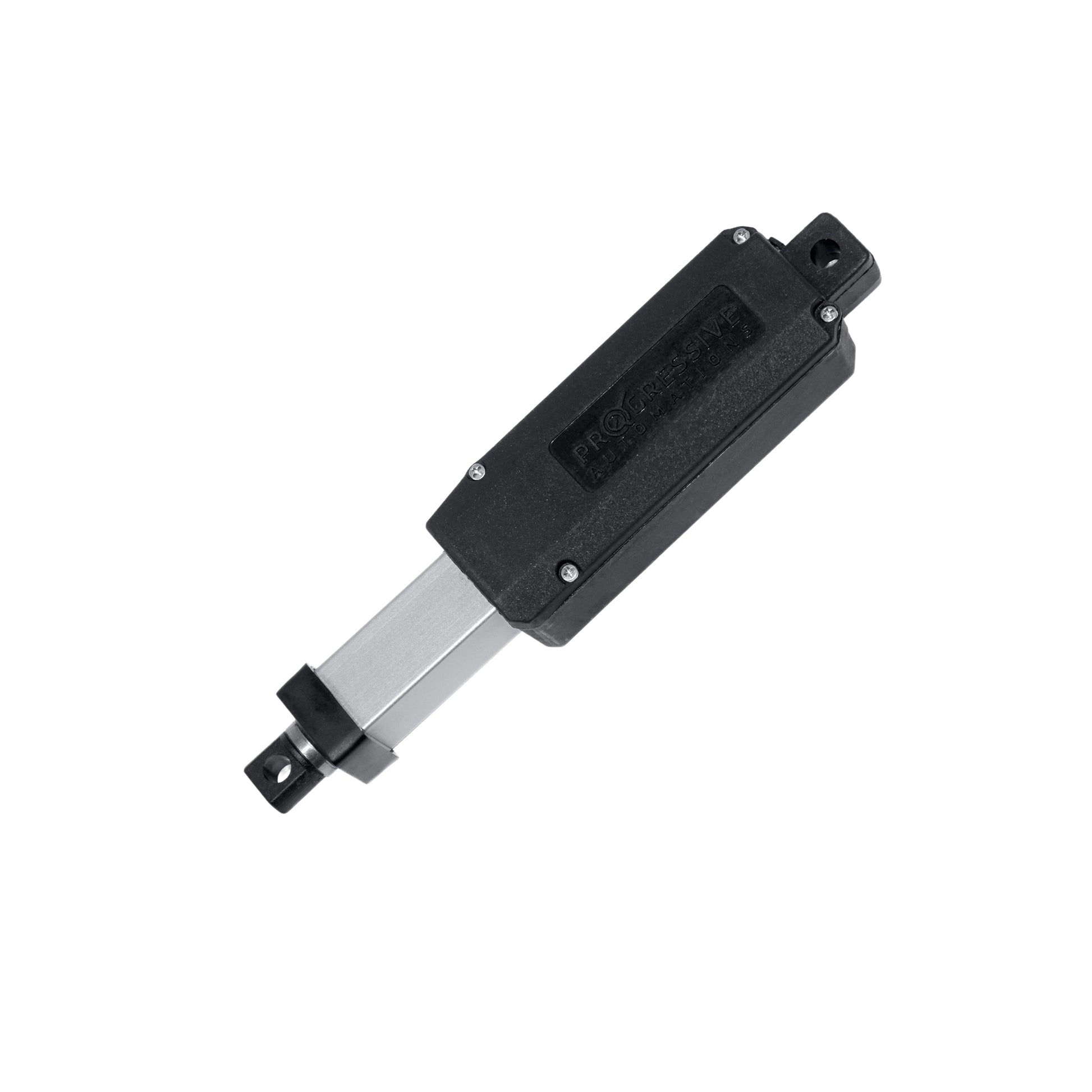

Micro Linear Actuator
Model: PA-07
In stock
Ships within 24 hours
Micro Linear Actuator
Micro Linear Actuator
Micro Linear Actuator
Micro Linear Actuator
Micro Linear Actuator
Micro Linear Actuator
Micro Linear Actuator
Micro Linear Actuator
Micro Linear Actuator
Micro Linear Actuator
In stock
Ships within 24 hours

Micro Linear Actuator

Model: PA-07
Instant Quote
Regular price
$87.49
Sale price
$87.49
7-9 units
10-19 units
20–49 units
Stroke *
Force *
Speed *
Quantity
-
+

Specifications

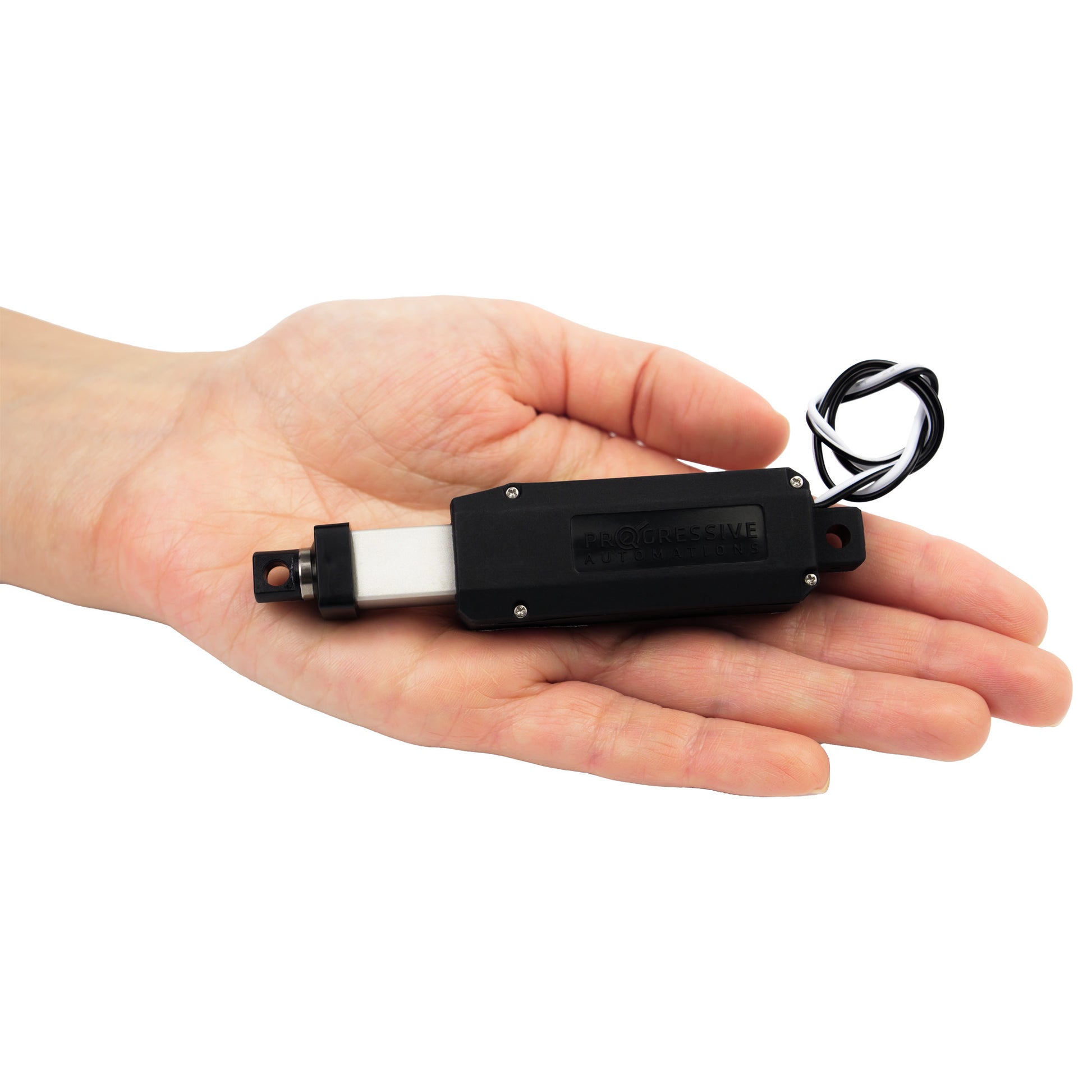

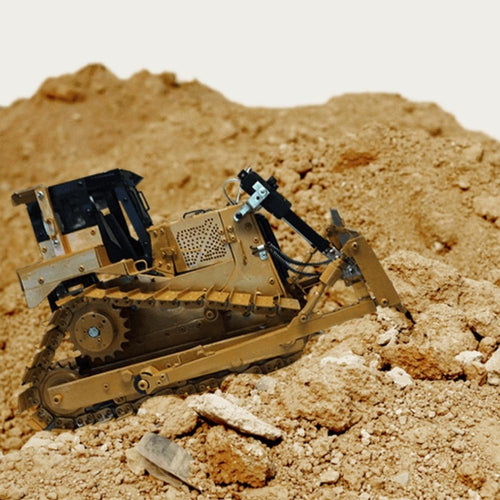

The PA-07 Micro Linear Actuator has the smallest footprint in our selection, making it ideal for those projects that require limited space and minimal force. The low current requirement makes implementation with existing systems seamless. The versatile nature of the micro actuator and its environmental-protection rating provides opportunities for integration across multiple applications and industries such as robotics, remote controls (RC), and home automation. For a full list of specifications, and dimensional drawings, please see our PA-07 Data Sheet.

MOUNTING OPTIONS:

The BRK-07 bracket set, designed for our micro electric actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.

CONTROL SYSTEMS:

The low current draw allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page

BROWSE MORE ACTUATORS

PA-07 Specifications
Input Voltage:
12 VDC
Stroke:
0.5-12 inches
Force:
5 lbs
Speed:
0.59"/sec
Protection Class: i
IP66
Feedback:
No
Operational Temperature:
0ºC to 50ºC
Noise: i
db<45(A)
Duty Cycle: i
10%
Limit Switch:
Built In, Non-Adjustable
Current (full load):
0.24A
Mounting Holes:
0.16"
Motor Type:
Brushed DC Motor
Screw Type:
ACME
Housing Type:
Plastic and Aluminum Alloy
Fully Retracted:
3.81" + stroke, 3.18" for stroke 2" and under
Fully Extended:
3.81" + stroke + stroke, 3.18" for stroke 2" and under
Certifications:
CE and RoHS
Unit Weight:
0.15 lbs
Warranty:
18 Months

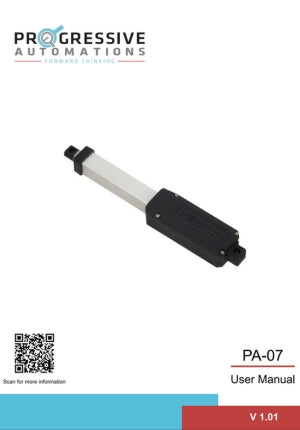

Data Sheet
Data Sheet

PA-07 Data Sheet

3D Models
Video
Video

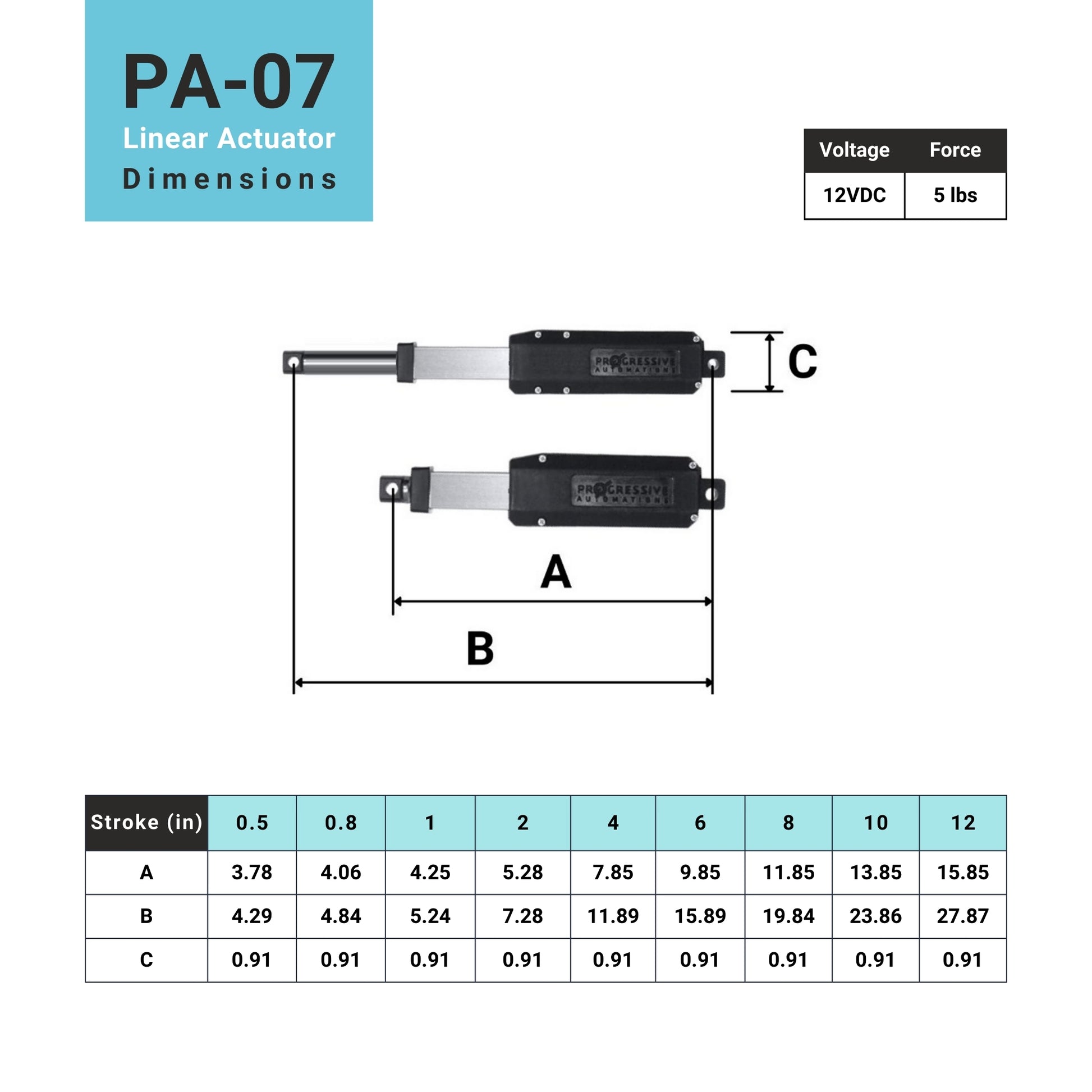

Dimensional Drawing
Dimensional Drawing

Warranty
Warranty

We at Progressive Automations are committed to manufacturing and selling products of the highest quality. Each of our products are manufactured at our state-of-the-art facility and undergo rigorous quality control procedures and checks throughout the production process and prior to being shipped to the customer.

Depending on the product you purchase the warranty period may vary. Our Mounting Brackets and Table Lifts come with a 60-month warranty, while the rest of our products are available for an 18-month warranty period. If a product becomes defective within the warranty period and is used within its rated parameters and environmental conditions, we will replace or repair the product at no cost.
