12 VDC Control Box - 1 Channel - 20A - Wireless Remote
12 VDC Control Box - 1 Channel - 20A - Wireless Remote
Model: PA-31
Couldn't load pickup availability

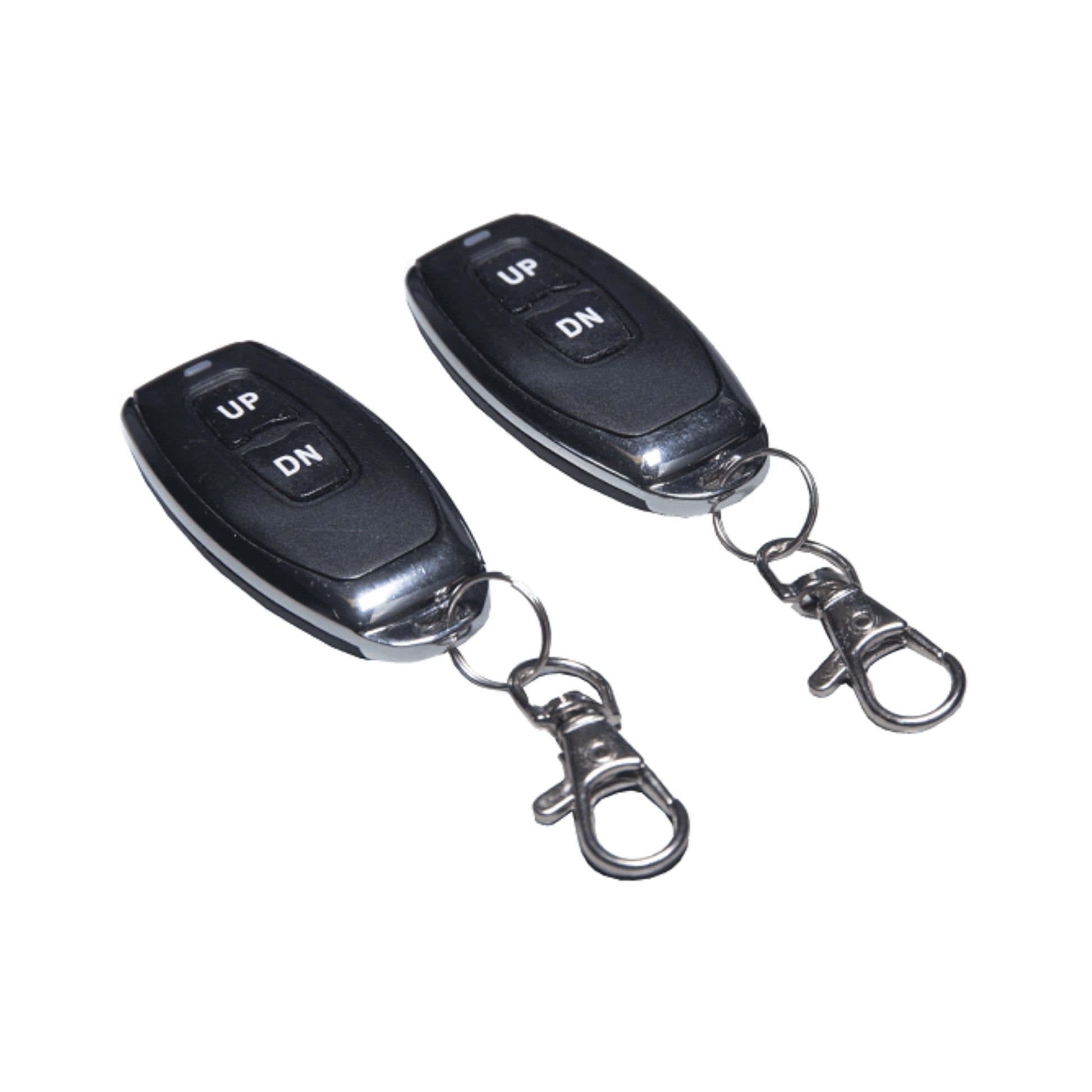

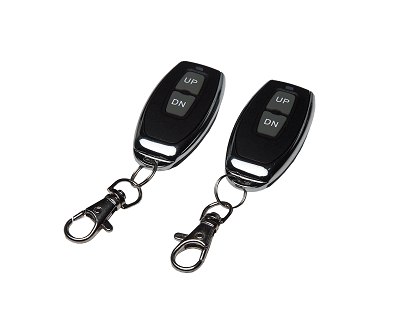

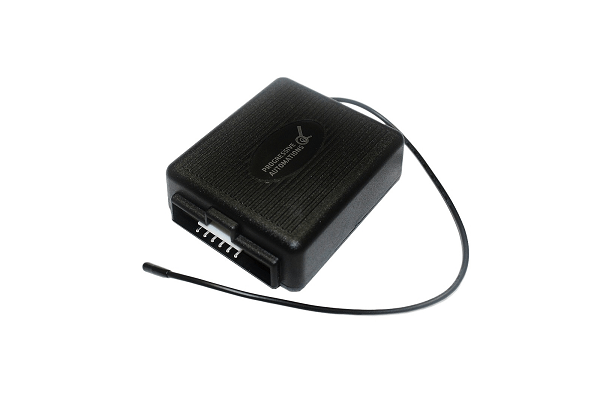

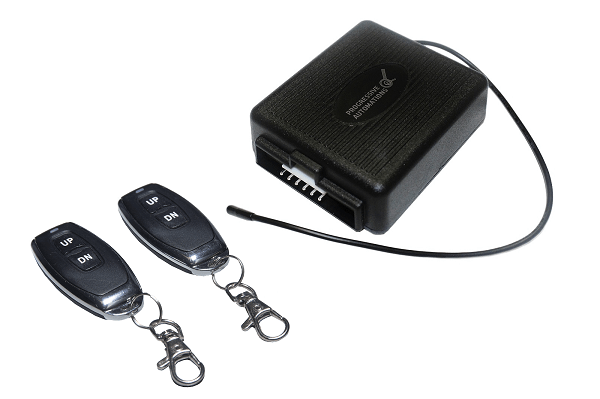

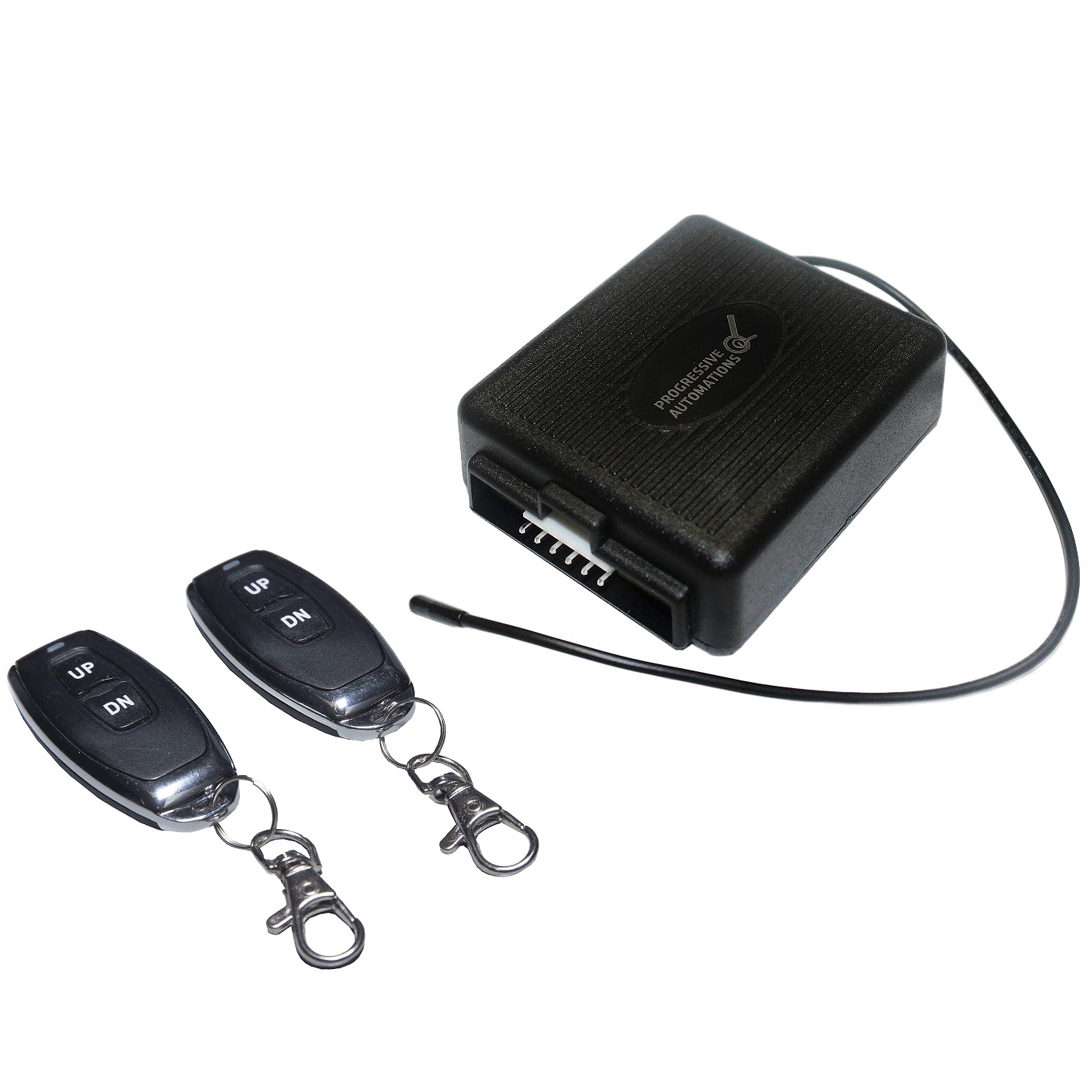

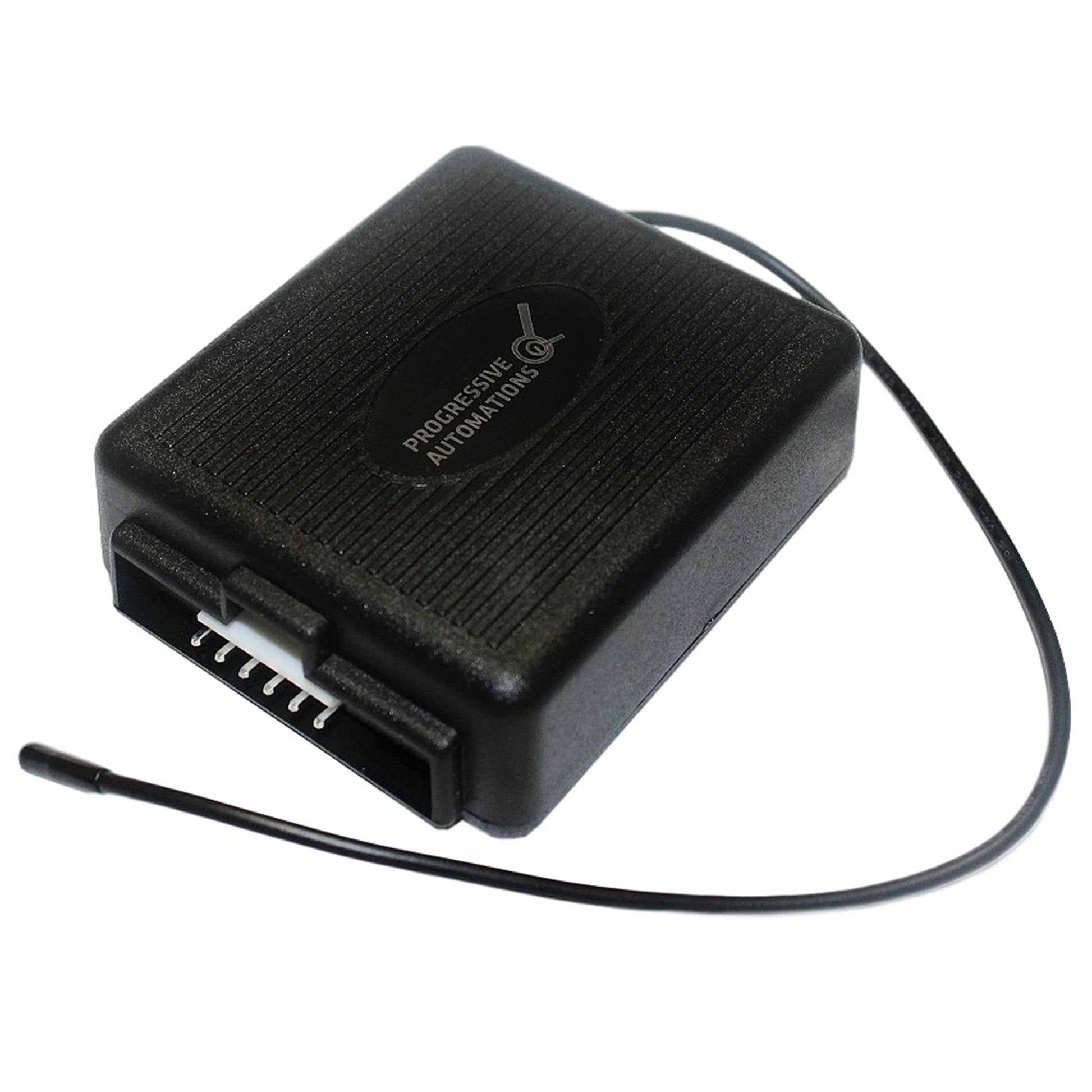

The PA-31 is our most popular control box for controlling linear actuator(s). Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 30-50 feet away (open air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

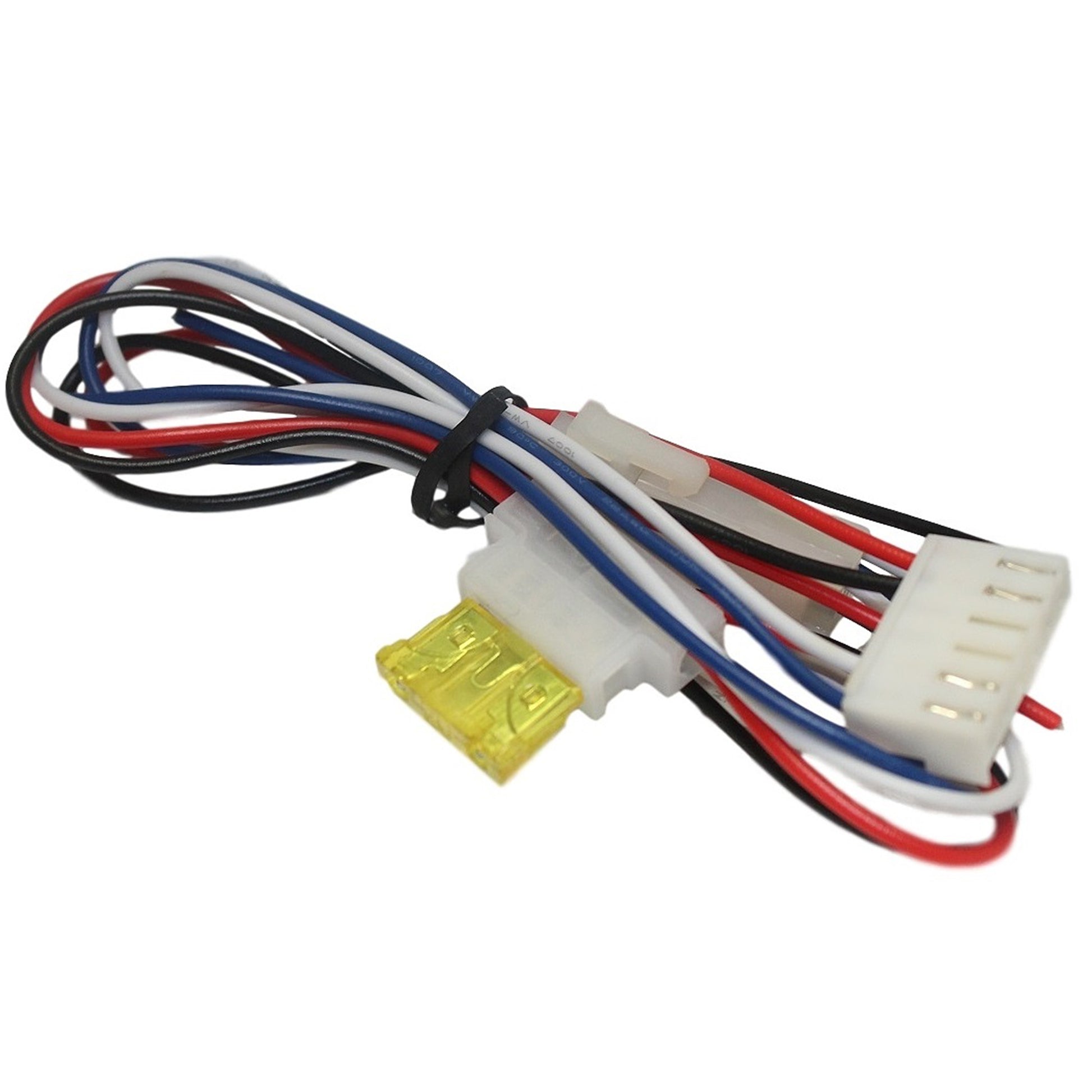

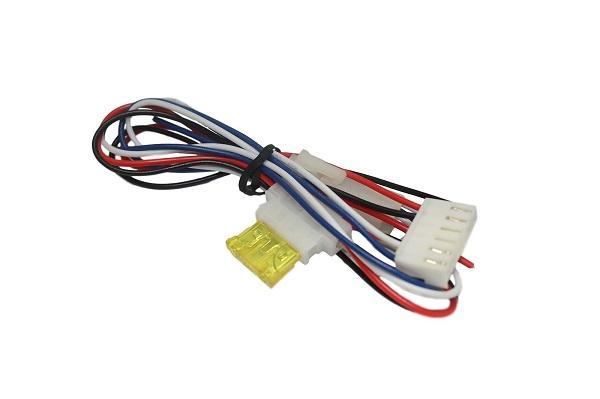

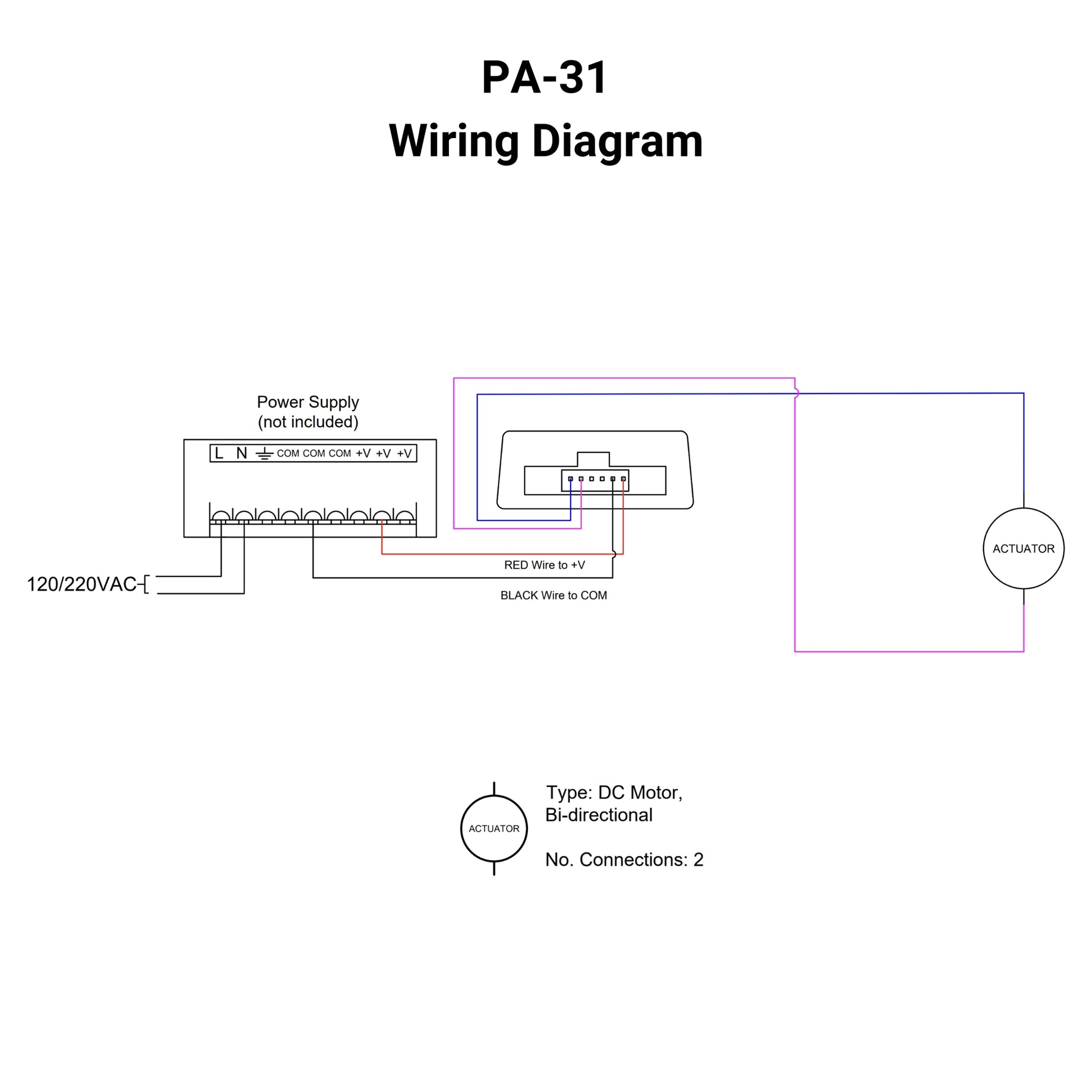

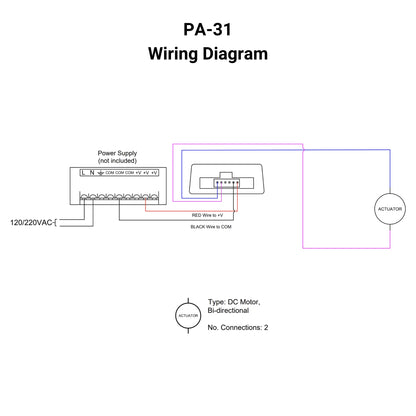

Using the included wire harness, connect the linear actuator(s) to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-31 is designed to handle a maximum of 20A.

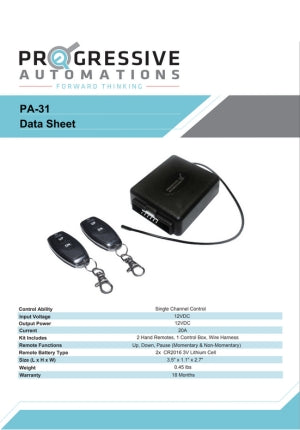

Please see the PA-31 Data Sheet for information about controls, wiring, and troubleshooting. This unit is compatible with all of our linear actuators, however, for actuators with a higher than 12A current rating, modifying the wiring harness to a thicker gauge is recommended.
* For 12 VDC actuators with a higher than 12A current rating, using relays or modifying the wiring harness to a thicker gauge is recommended.
The PA-31 is our most popular control box for controlling linear actuator(s). Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 30-50 feet away (open air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.
Using the included wire harness, connect the linear actuator(s) to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-31 is designed to handle a maximum of 20A.
Please see the PA-31 Data Sheet for information about controls, wiring, and troubleshooting. This unit is compatible with all of our linear actuators, however, for actuators with a higher than 12A current rating, modifying the wiring harness to a thicker gauge is recommended.
* For 12 VDC actuators with a higher than 12A current rating, using relays or modifying the wiring harness to a thicker gauge is recommended.
