LG-02 Modular Lifting Columns with Remote Control Selection

LG-02 Modular Lifting Columns with Remote Control Selection

Model: LG-02-3RM-25-180-HS-24V

In stock
Ships within 24 hours
Volume Discount
1-6 units 161.0
7-9 units 152.95
10–19 units 144.9
20–49 units 136.85
Step 1: Color - Black
Step 3: Compatible Control Box
Step 4: Select Remote
Add Optional Accessories
Table Lift Wire Extender - 4.5 ft
Add a Table Lift Wire Extender - 4.5 ft
$15.00 CAD
  • Linear Actuator Calculator
  • Get Free Actuator Guide
  • Created with Fabric.js 1.7.22 You may also need these
View full details
Description
LG-02-3RM-25-180-HS-24V Specifications

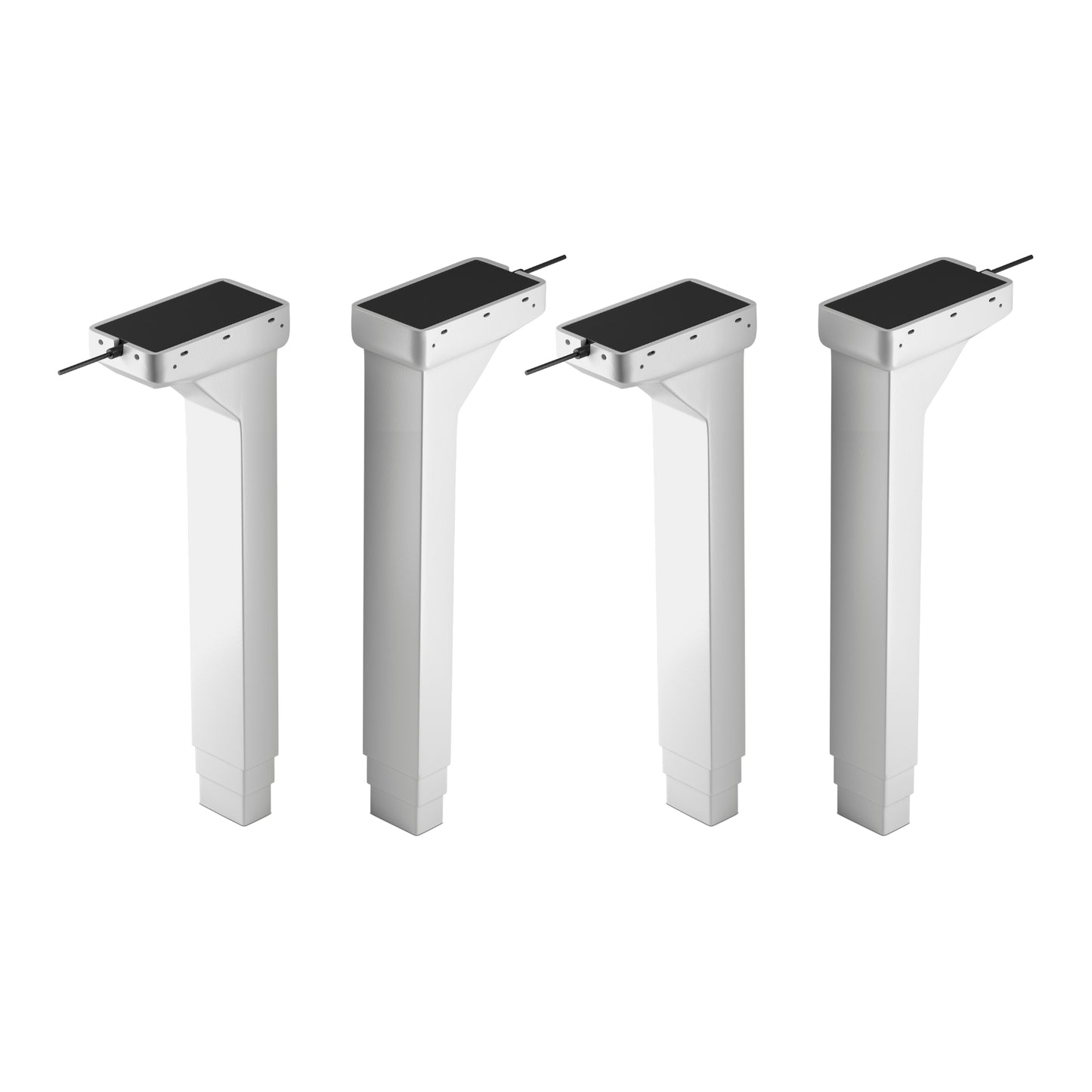

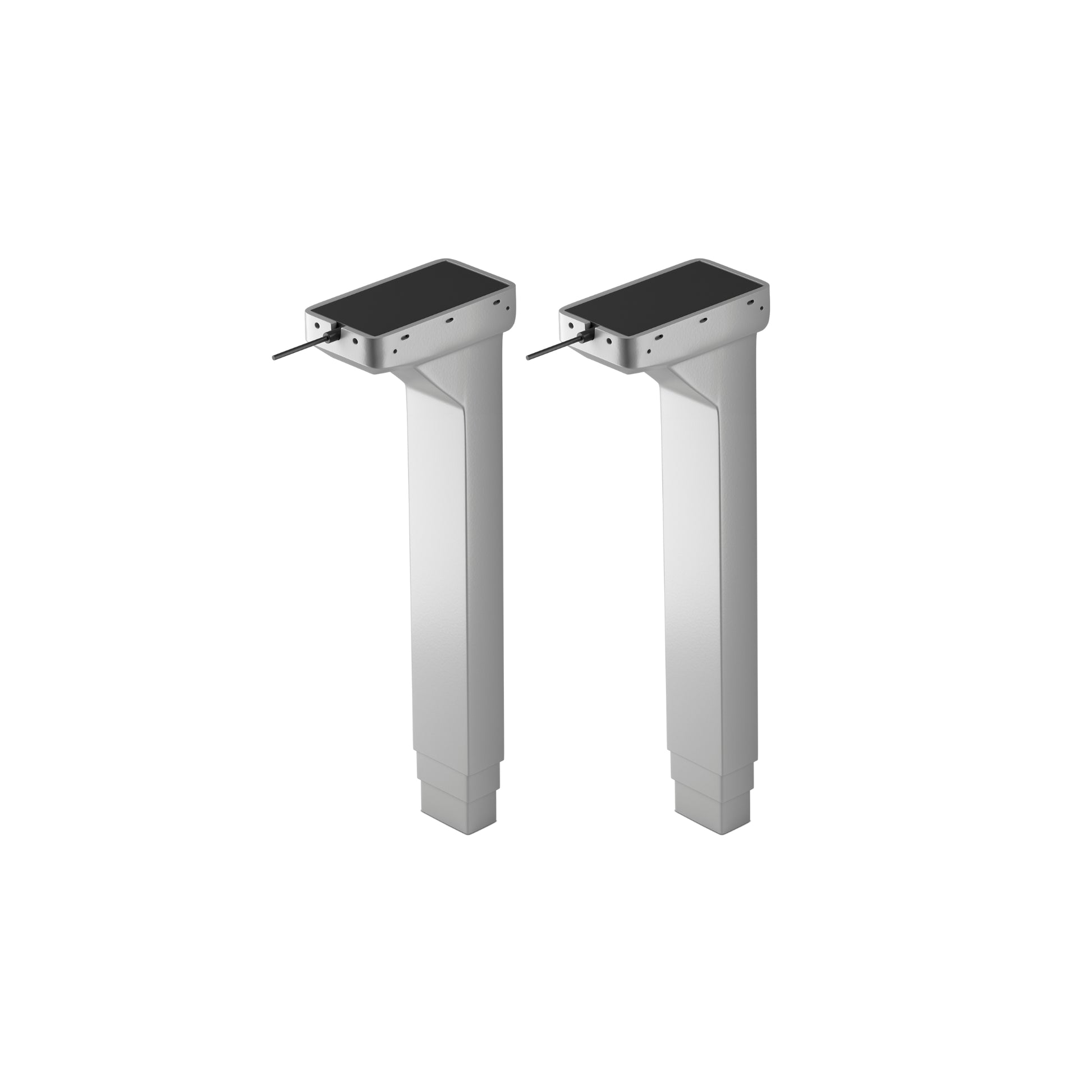

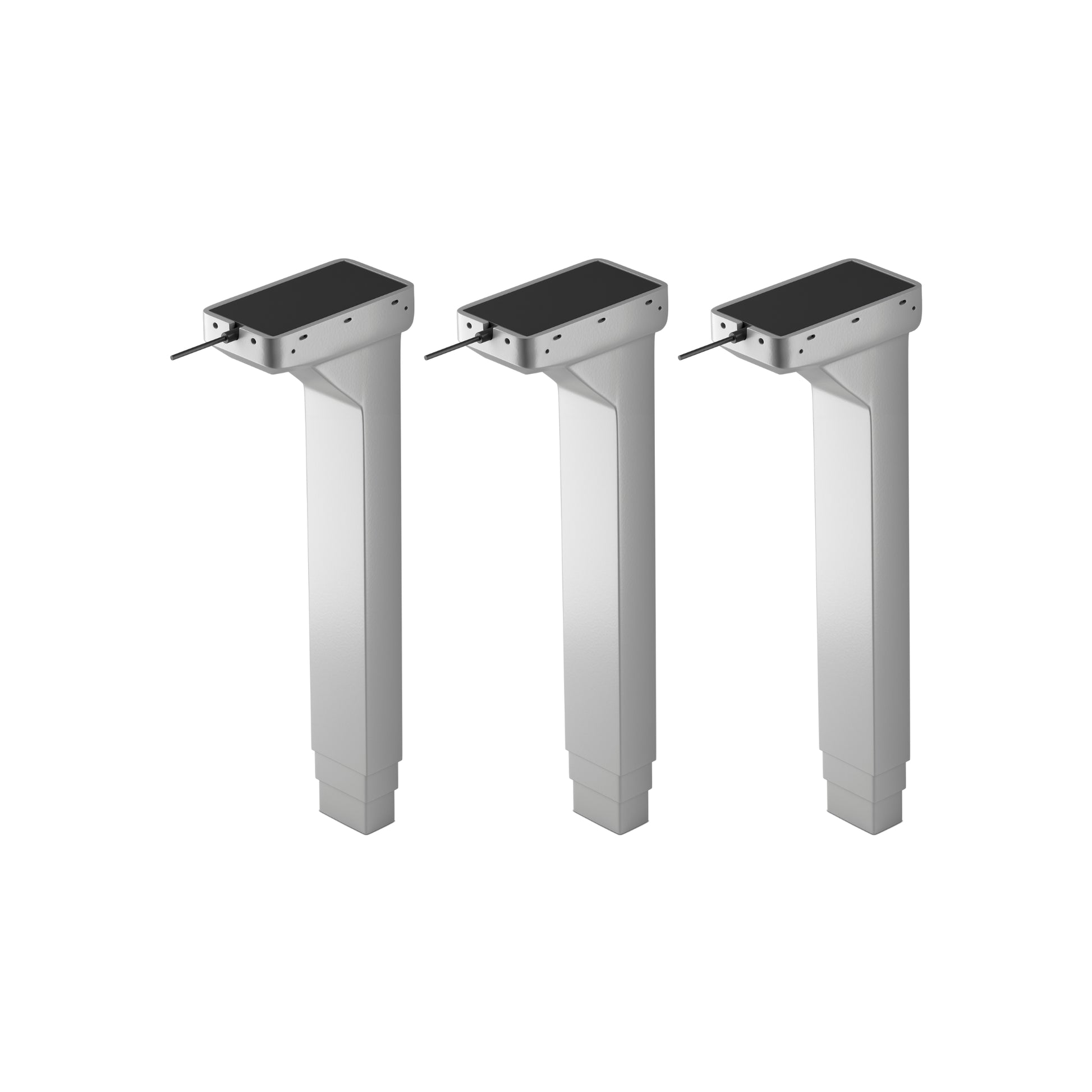

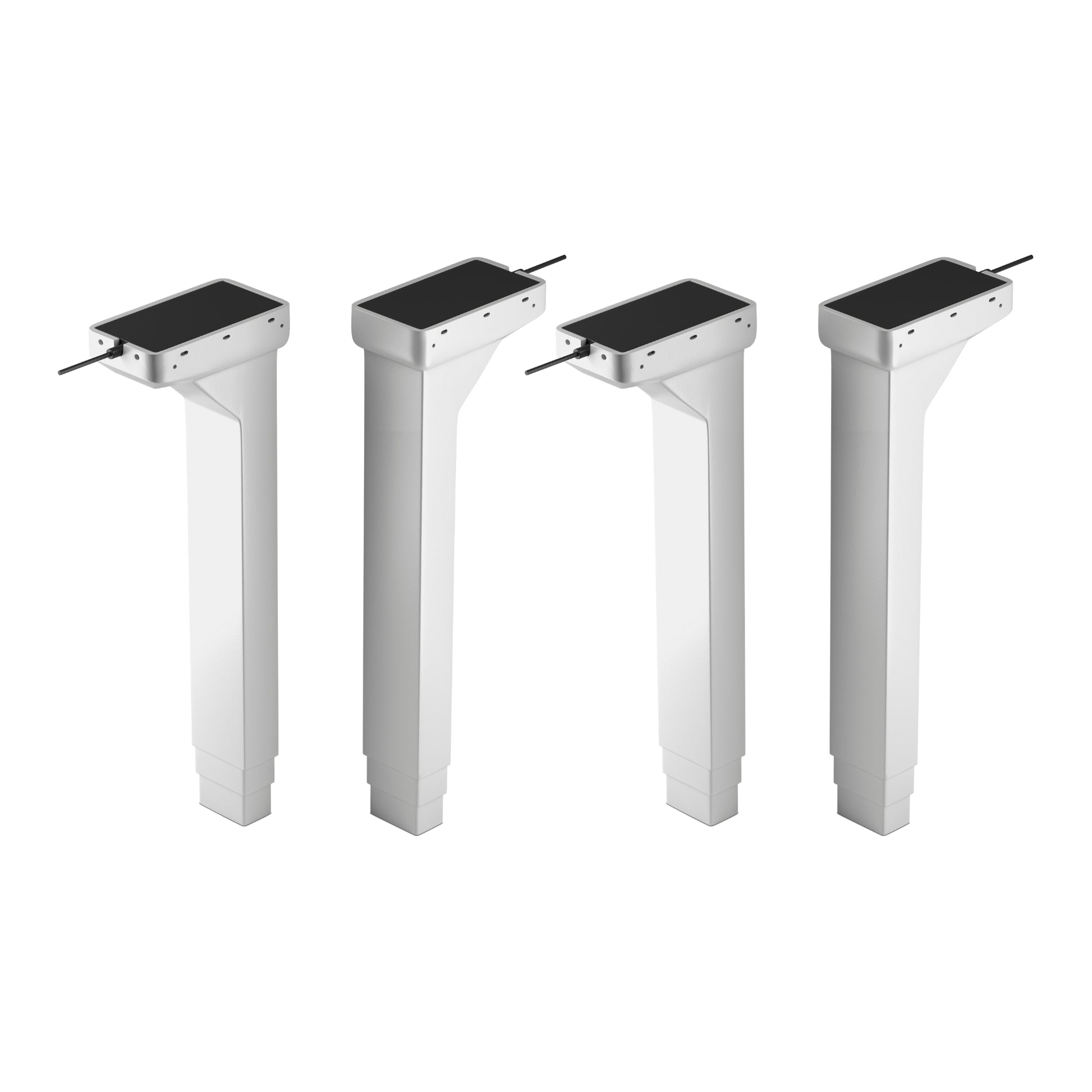

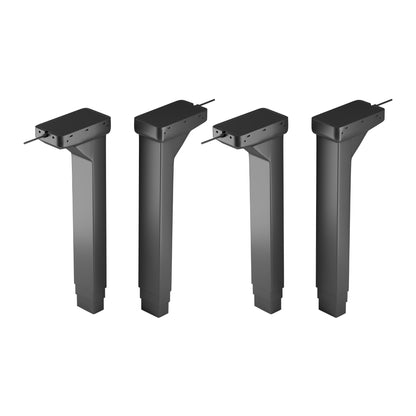

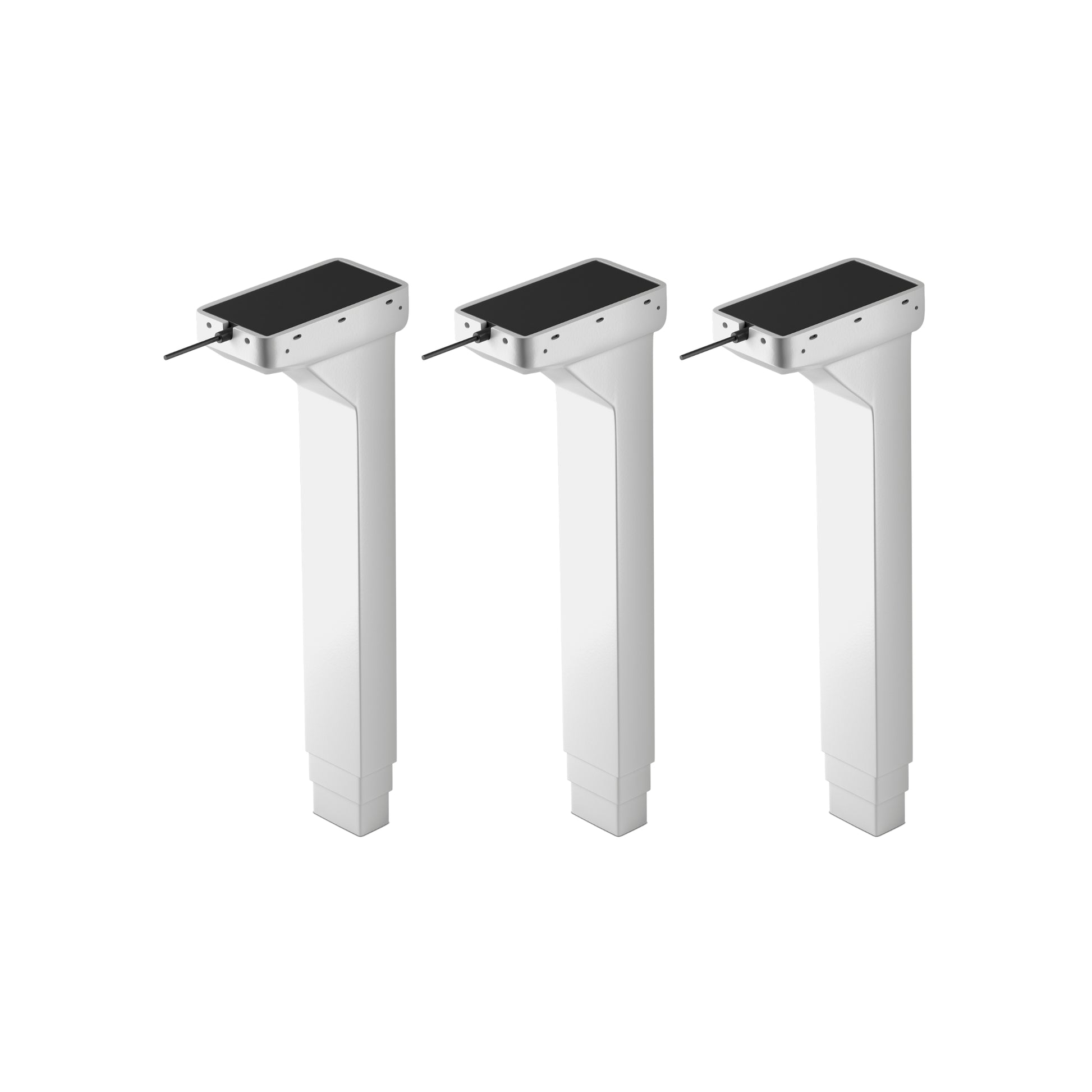

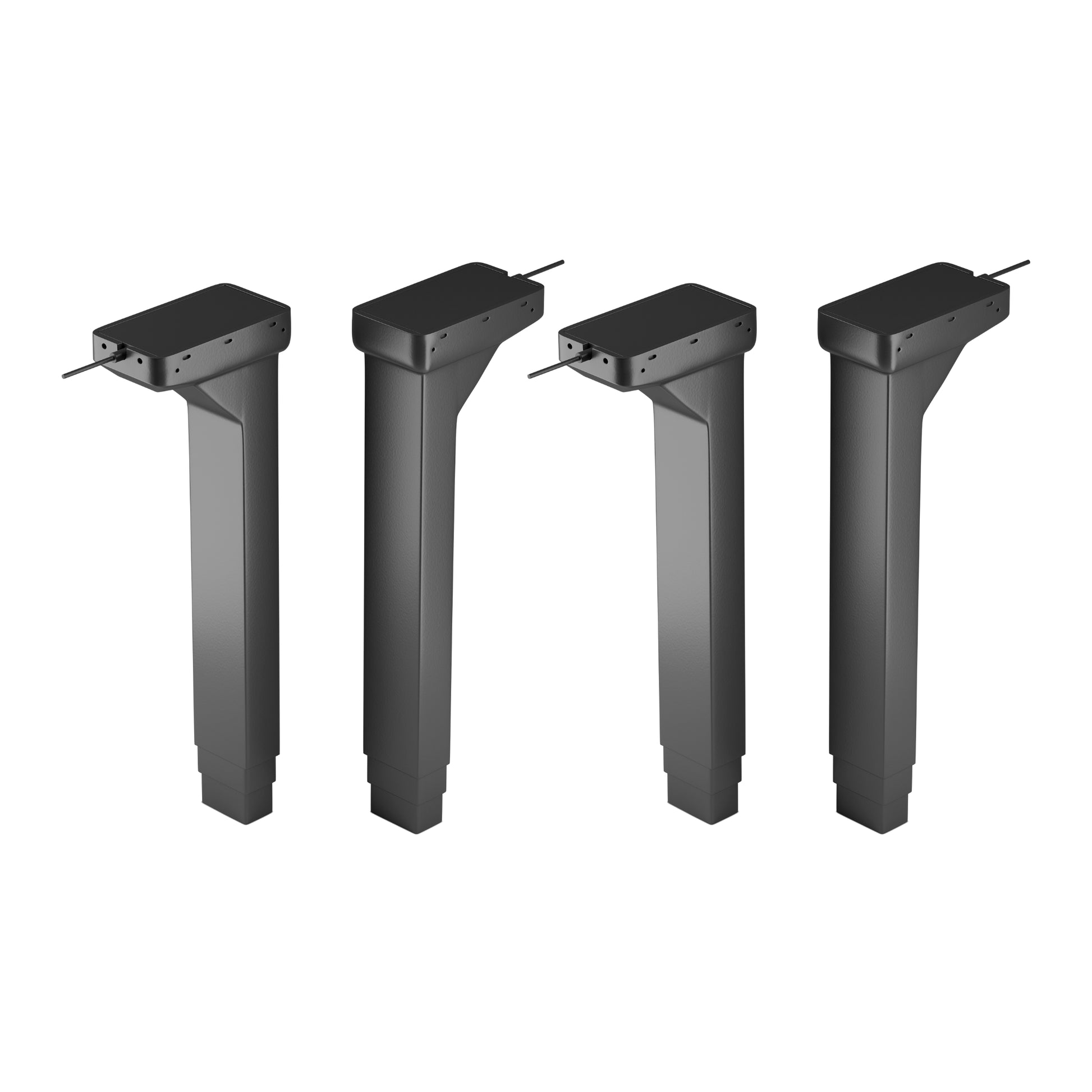

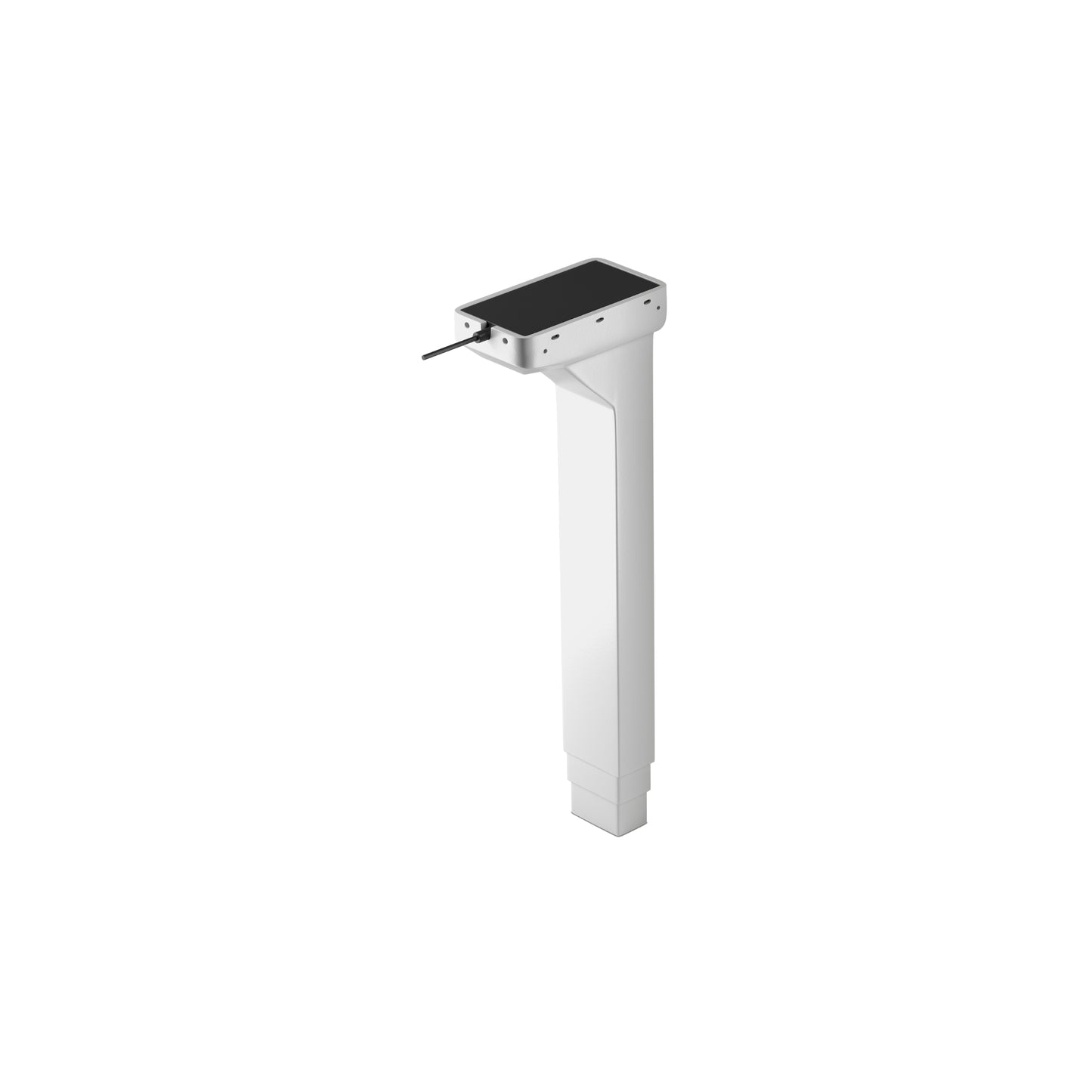

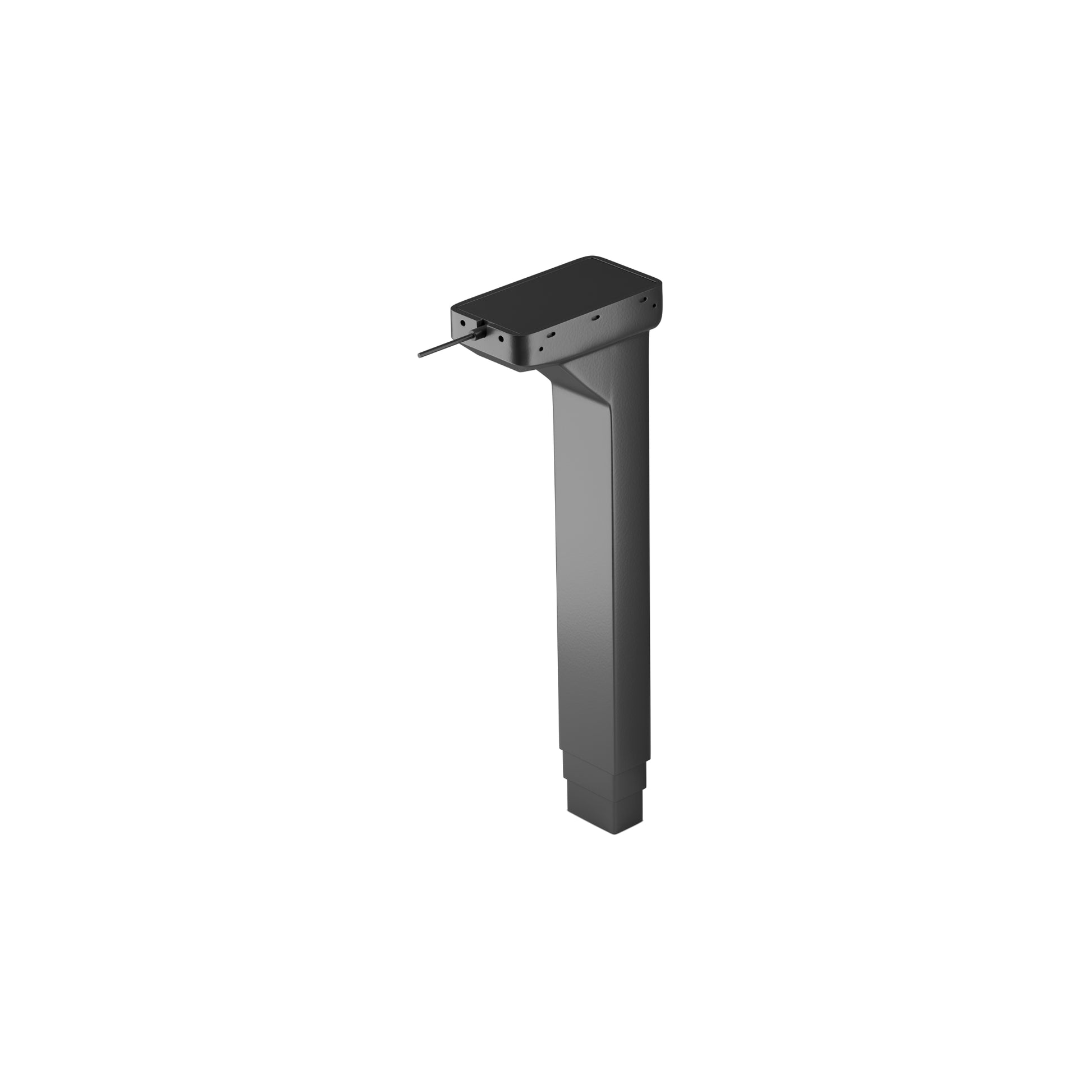

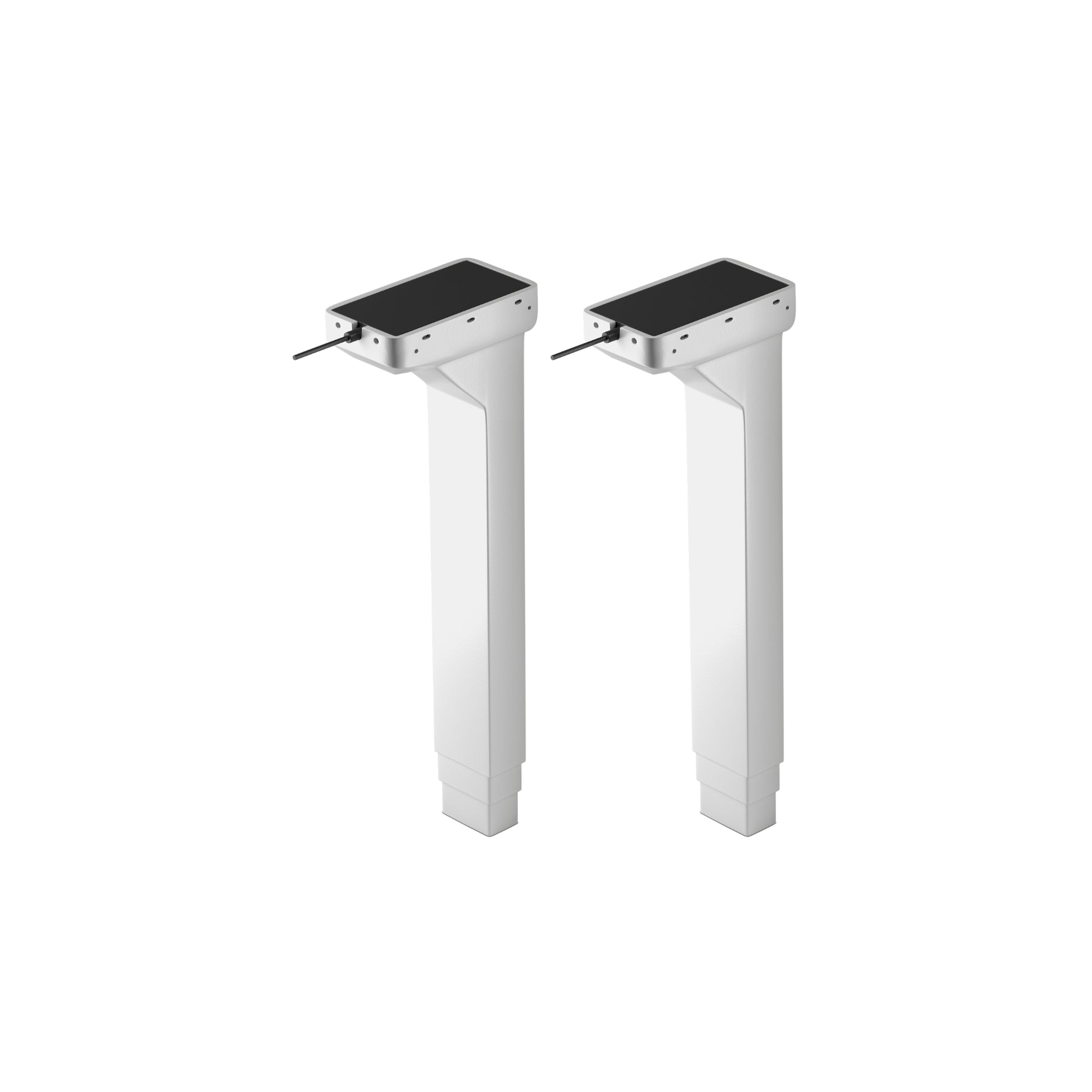

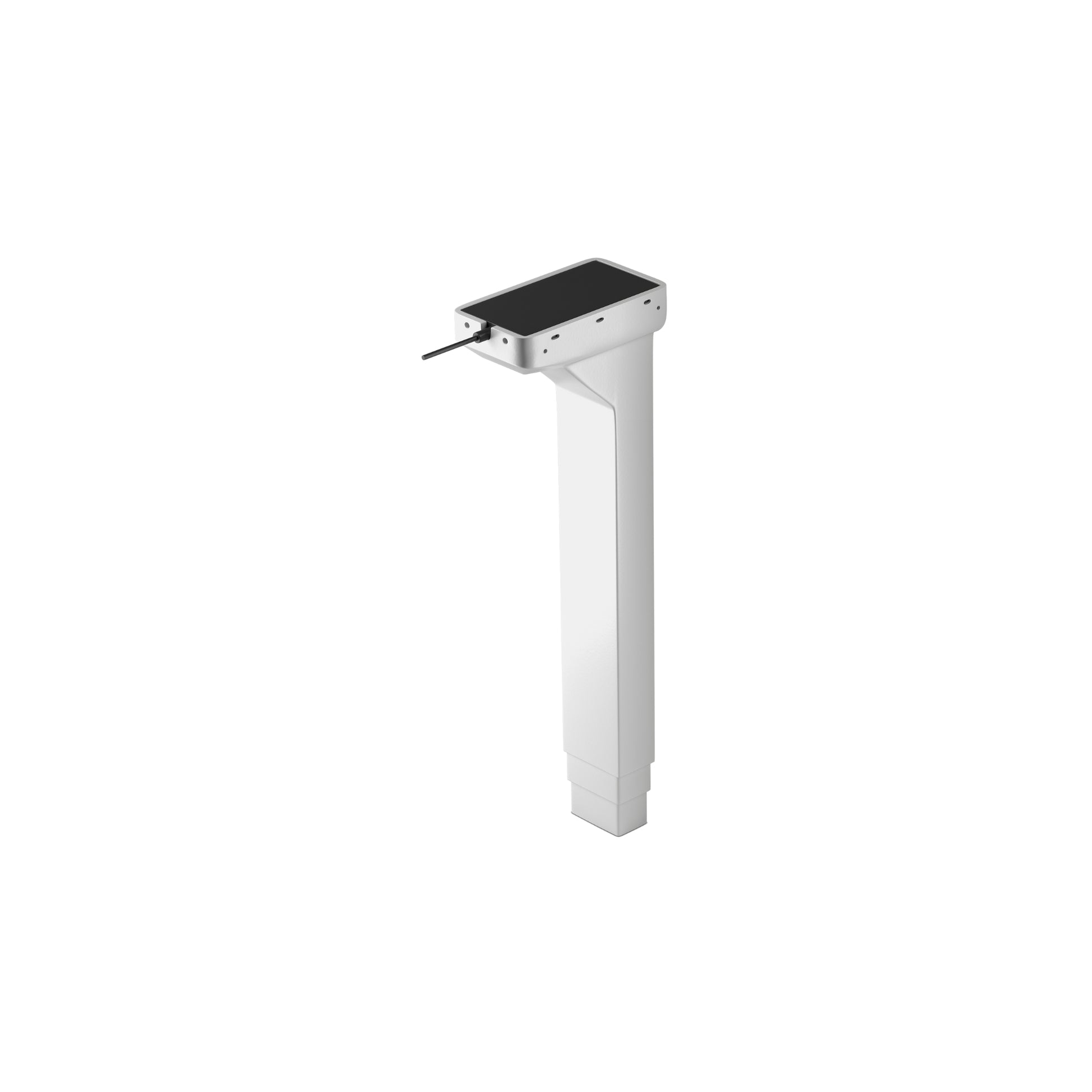

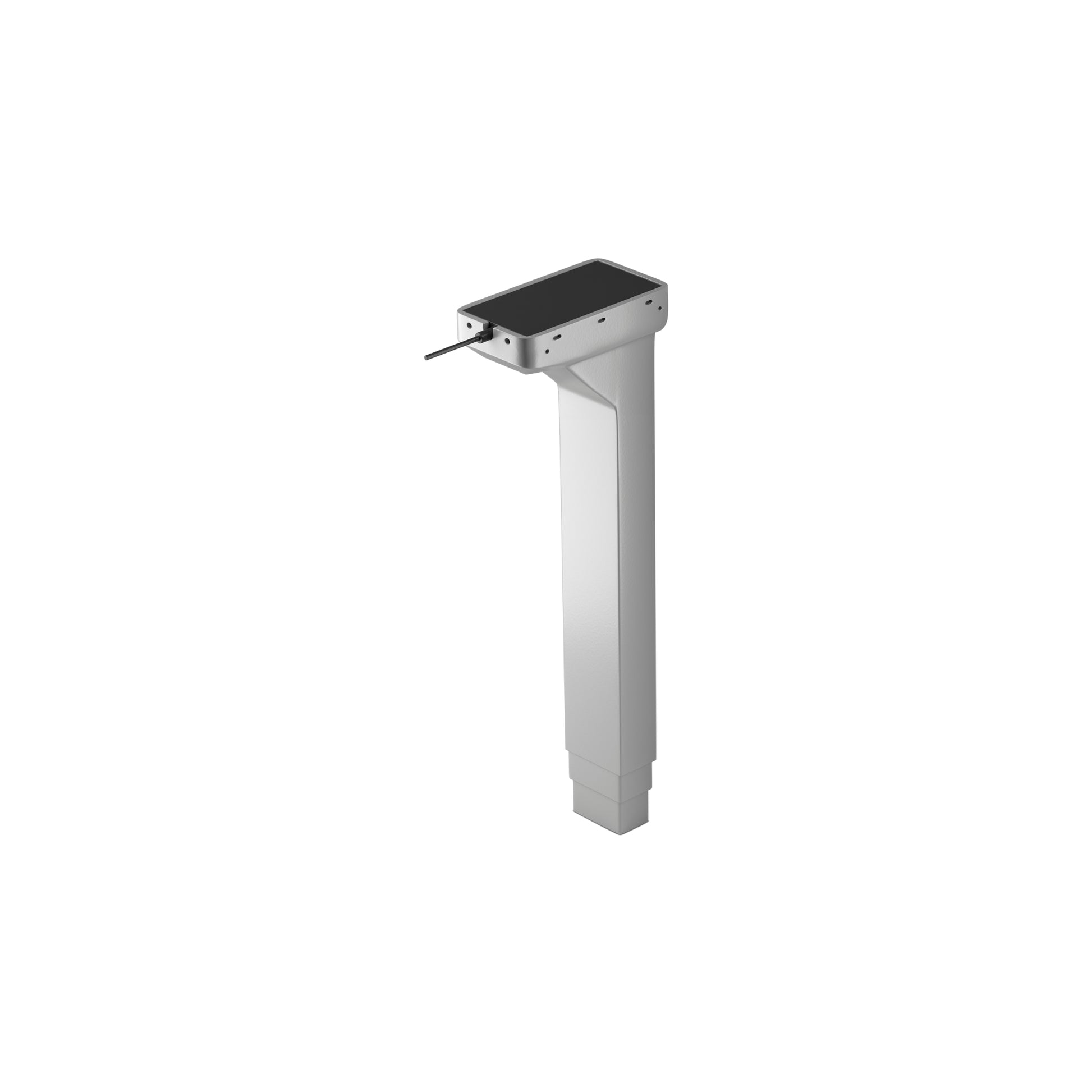

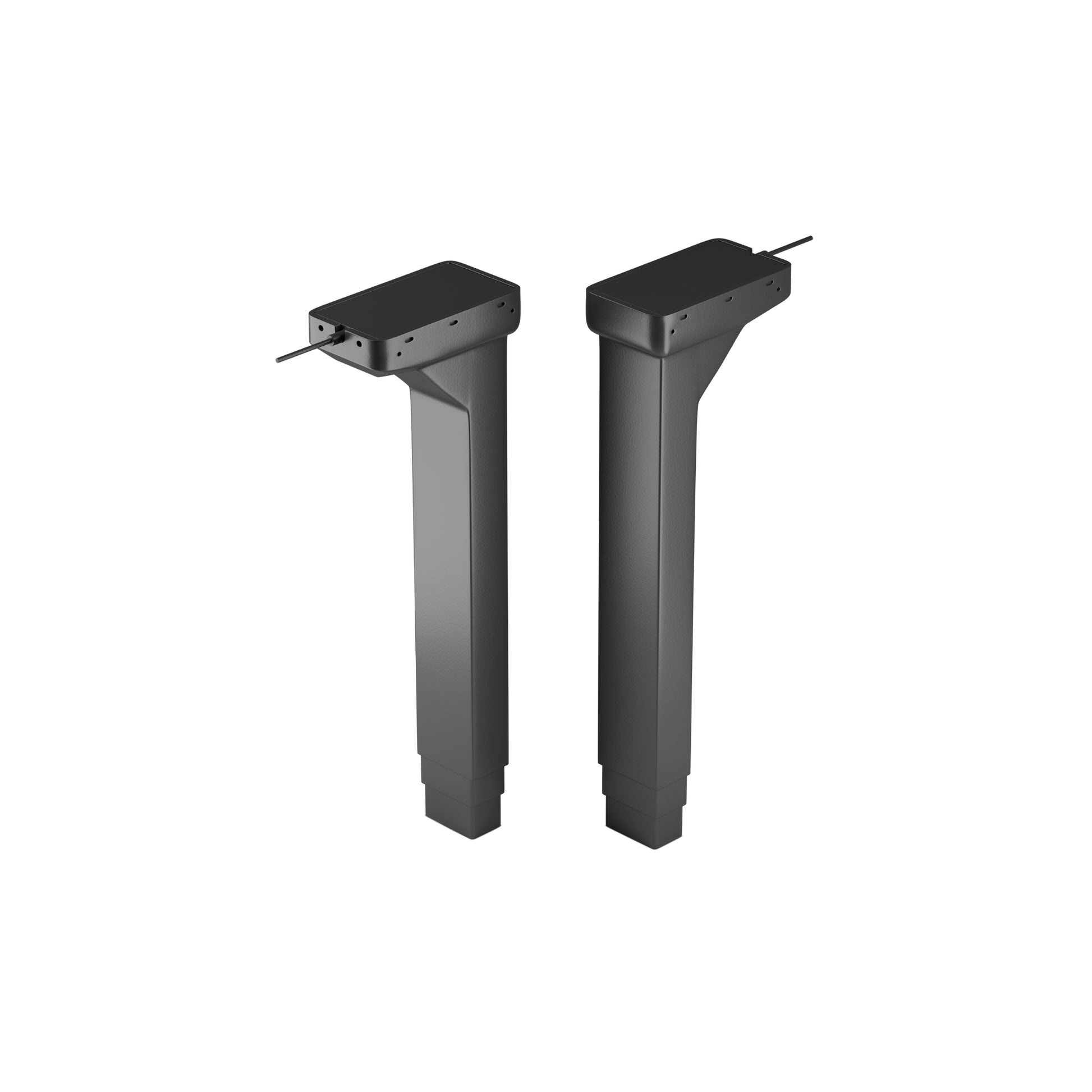

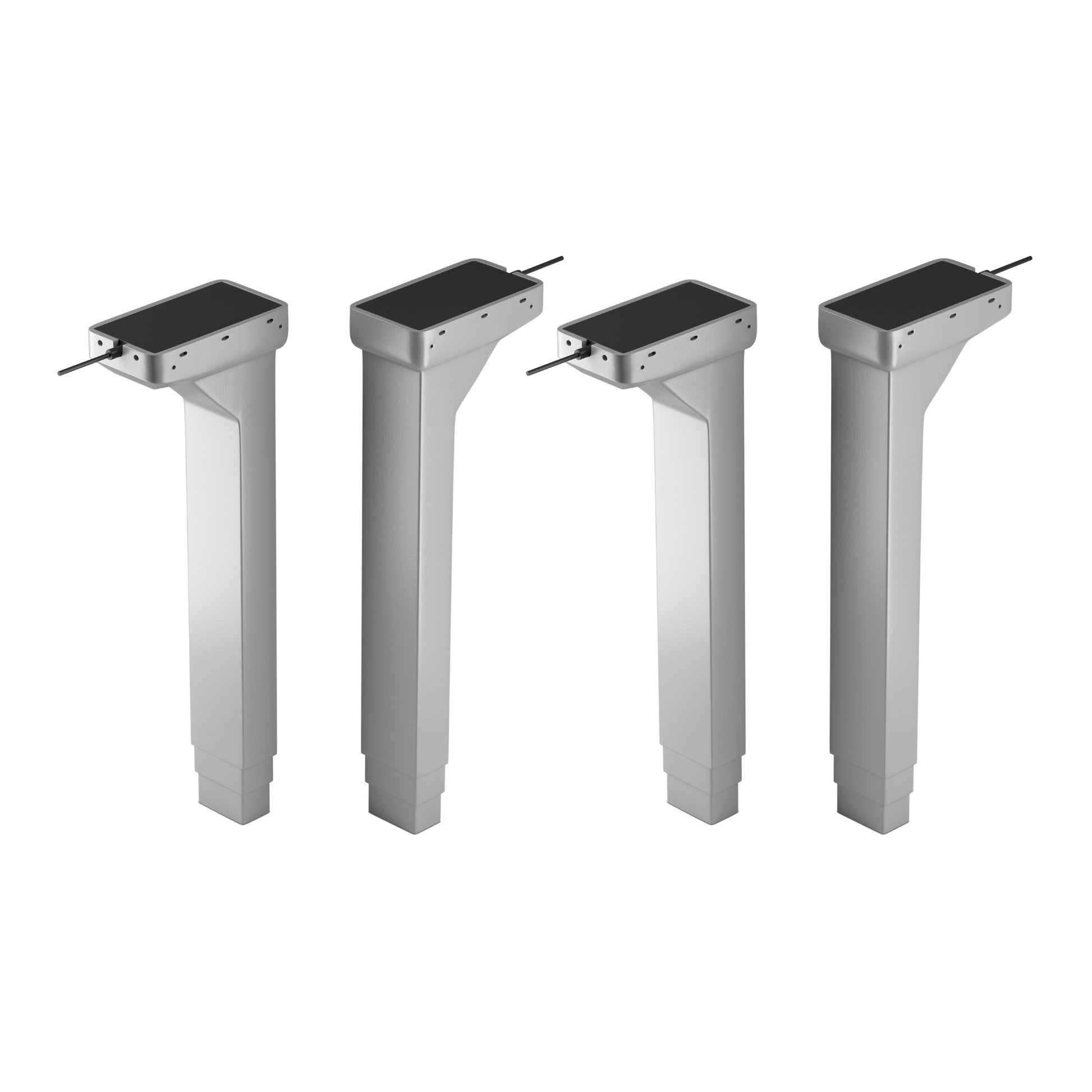

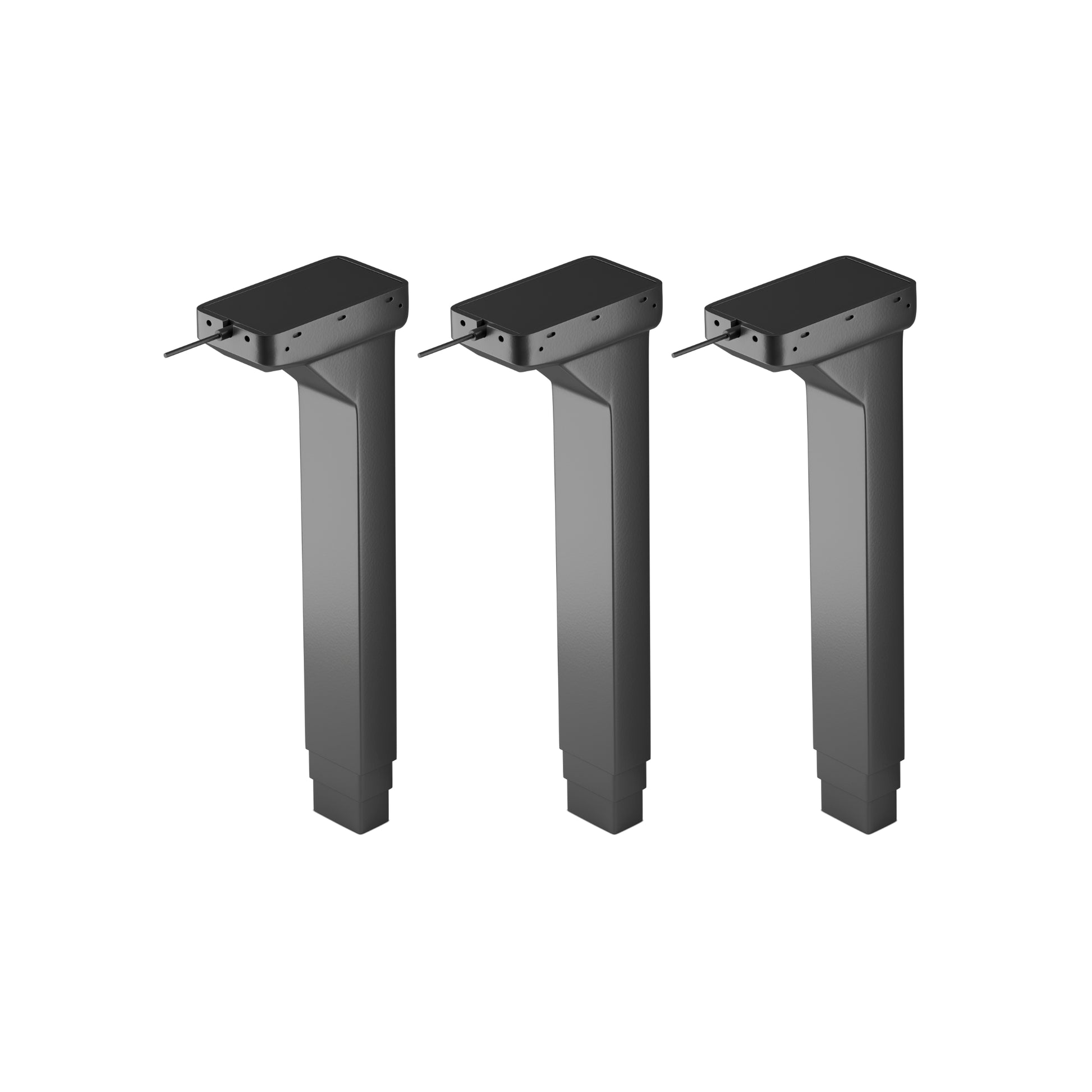

The LG-02-3RM-25-180-HS-24V are single unit modular lifting columns that can be paired with our remotes and FLTCON series of control boxes that can handle up to 4 legs in a single control system. This column is capable of producing up to 180 lbs of force, allowing for the flexibility to handle a variety of different setups. These customizable leg configurations can also be chosen in black, white, or gray color.

Select from our large range of remote options and enjoy all the unique features of our different programmable wired remotes that can be used together with wireless remotes for extra convenience. Designed with a rectangle column shape, this 3 stage model also has a height range from 23.5" to 49". Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes important technical information like the reset procedure and how to operate it as well as a set-up diagram.

Overview
LG-02-3RM-25-180-HS-24V Specifications

The LG-02-3RM-25-180-HS-24V are single unit modular lifting columns that can be paired with our remotes and FLTCON series of control boxes that can handle up to 4 legs in a single control system. This column is capable of producing up to 180 lbs of force, allowing for the flexibility to handle a variety of different setups. These customizable leg configurations can also be chosen in black, white, or gray color.

Select from our large range of remote options and enjoy all the unique features of our different programmable wired remotes that can be used together with wireless remotes for extra convenience. Designed with a rectangle column shape, this 3 stage model also has a height range from 23.5" to 49". Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes important technical information like the reset procedure and how to operate it as well as a set-up diagram.

Product Specifications
Input Voltage24VDC
Travel Distance25.5"
Height Range23.5" to 49"
Lifting Capacity180lbs
Speed1.57"/s
No Load Speed1.57"/s
Stages3
ShapeRectangular
Number of Remote OptionsVarious (with Progressive Automations Control Box)
Frame MaterialSteel
FinishPowder Coat - White, Black, Gray
Duty Cycle10% (2 minutes on, 18 minutes off)
Noise Level< 50 dB
Protection LevelIP51
Warranty18 Months
Unit Weight18.74 lb
Energy Saving ModeMore Info
Programmable Memory PresetsMore Info
Charging PortMore Info
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Read More

Data Sheets

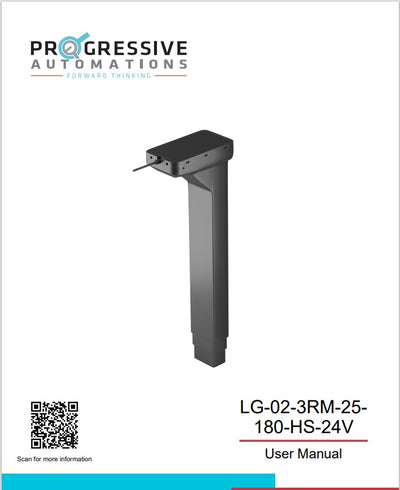

LG-02 Data sheet

Data sheet for LG-02
