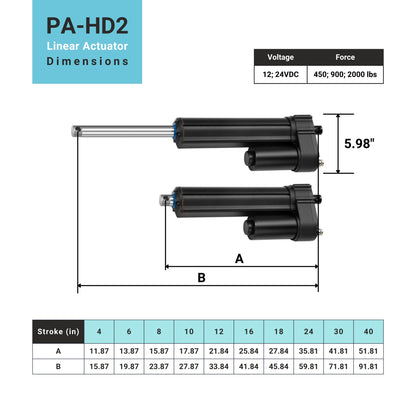

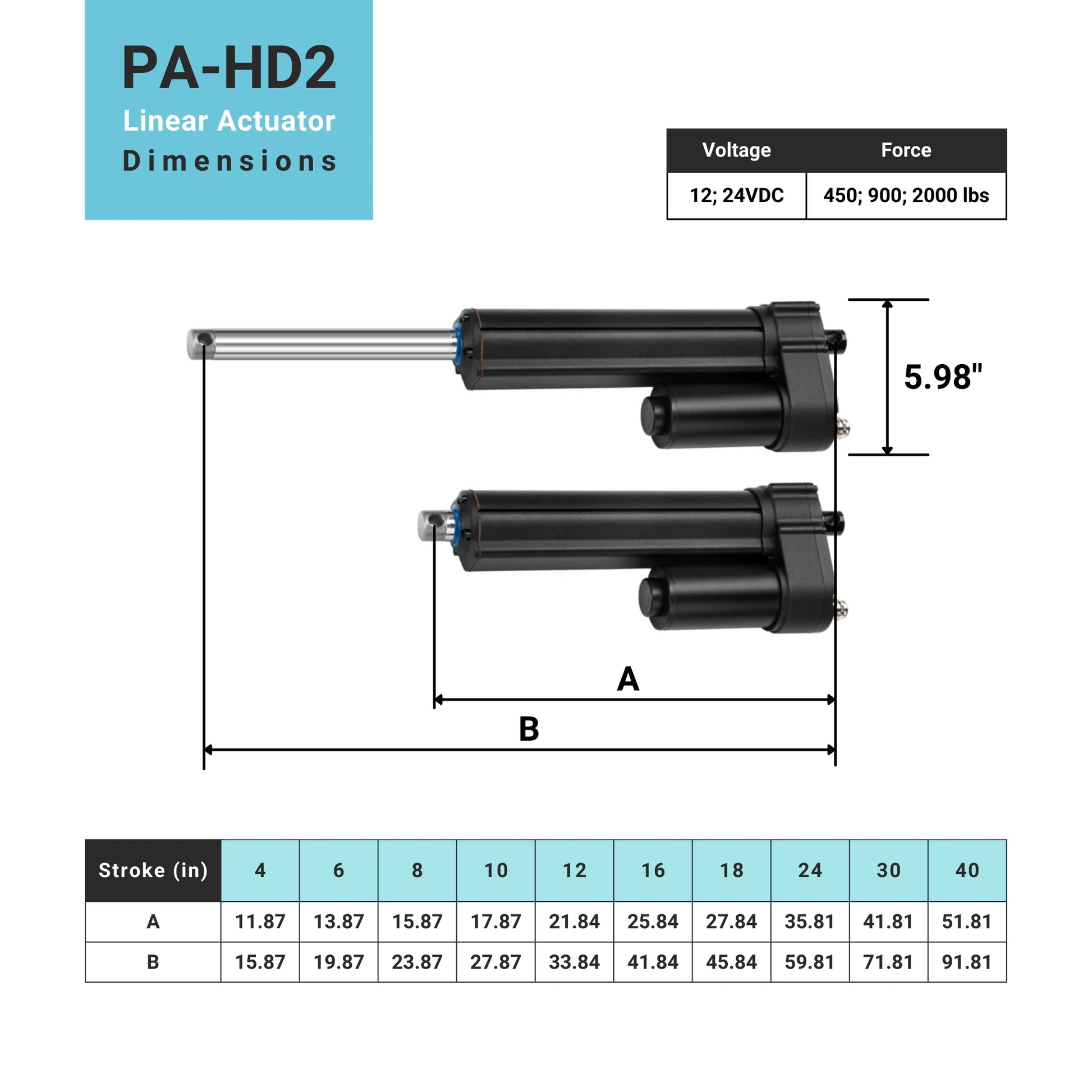

  • High Load Linear Actuator New Generation- Optional Feedback Dimensions
  • High Load Linear Actuator New Generation Application
1 8
High Force
High Force
Water-resistant
Water-resistant
Overload Protection
Overload Protection
CE & RoHS Certified
CE & RoHS Certified
  • Datasheet
  • Replacement chart
  • Actuator Comparison Tool

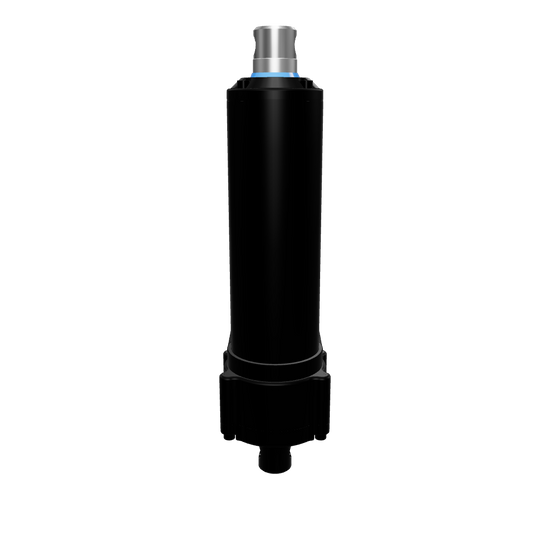

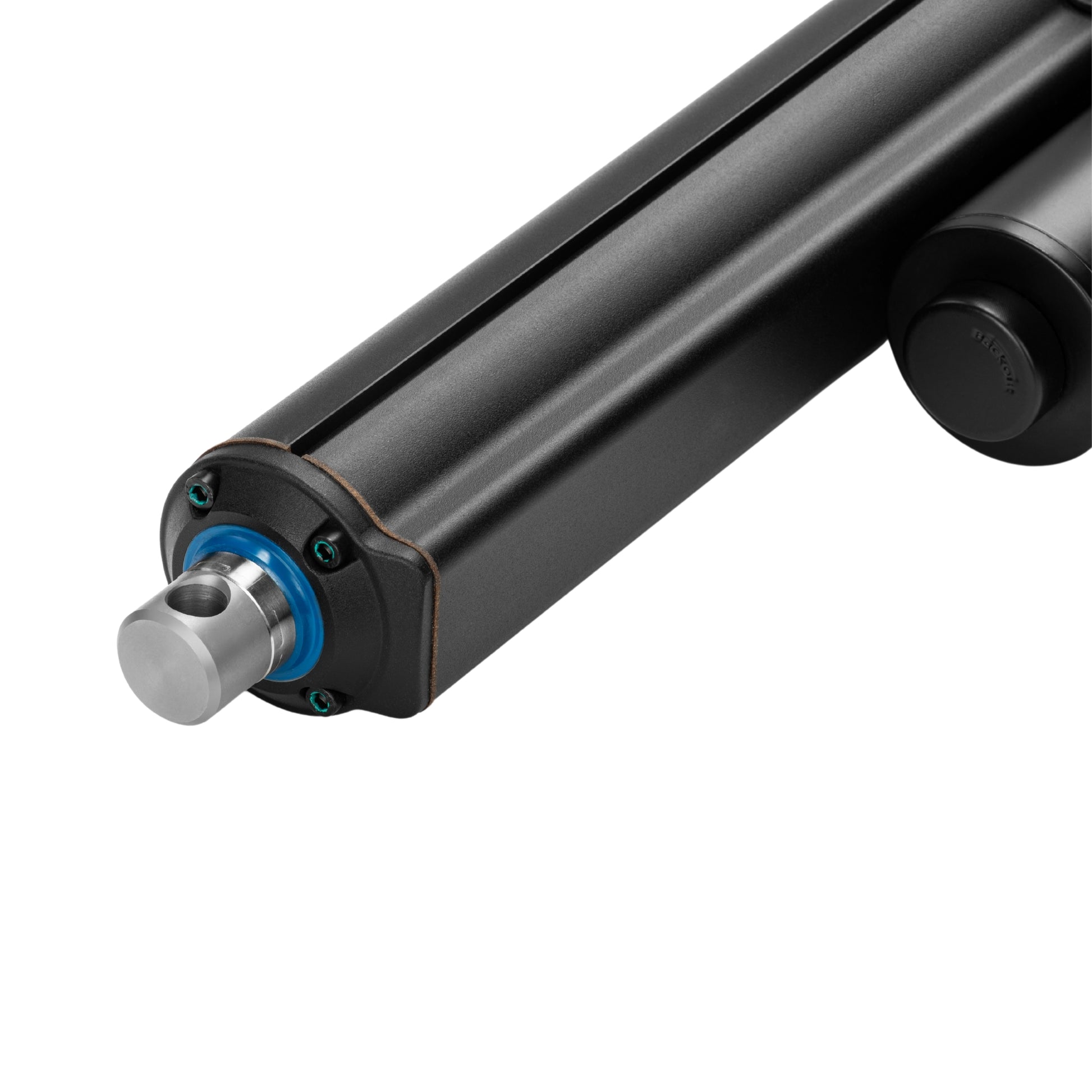

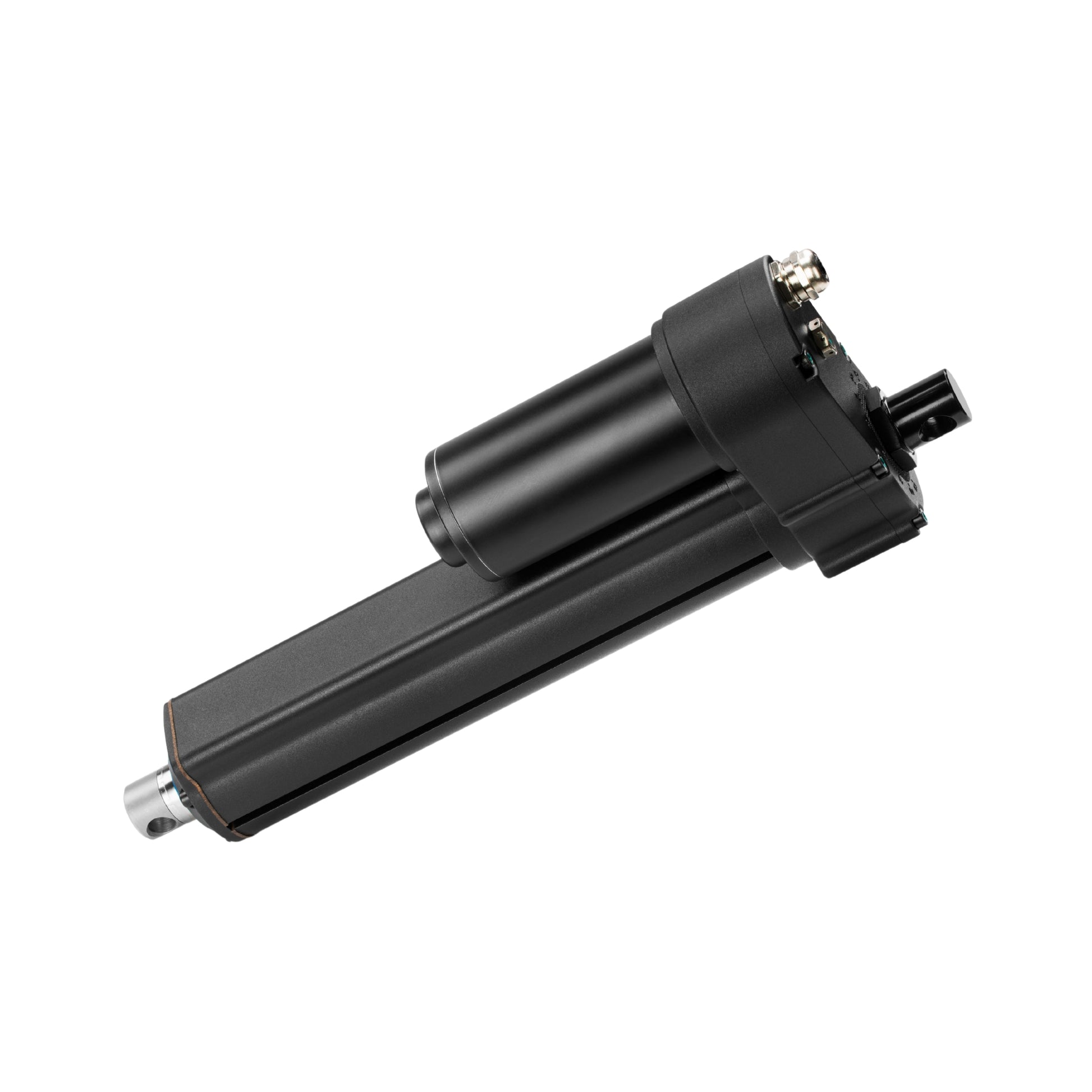

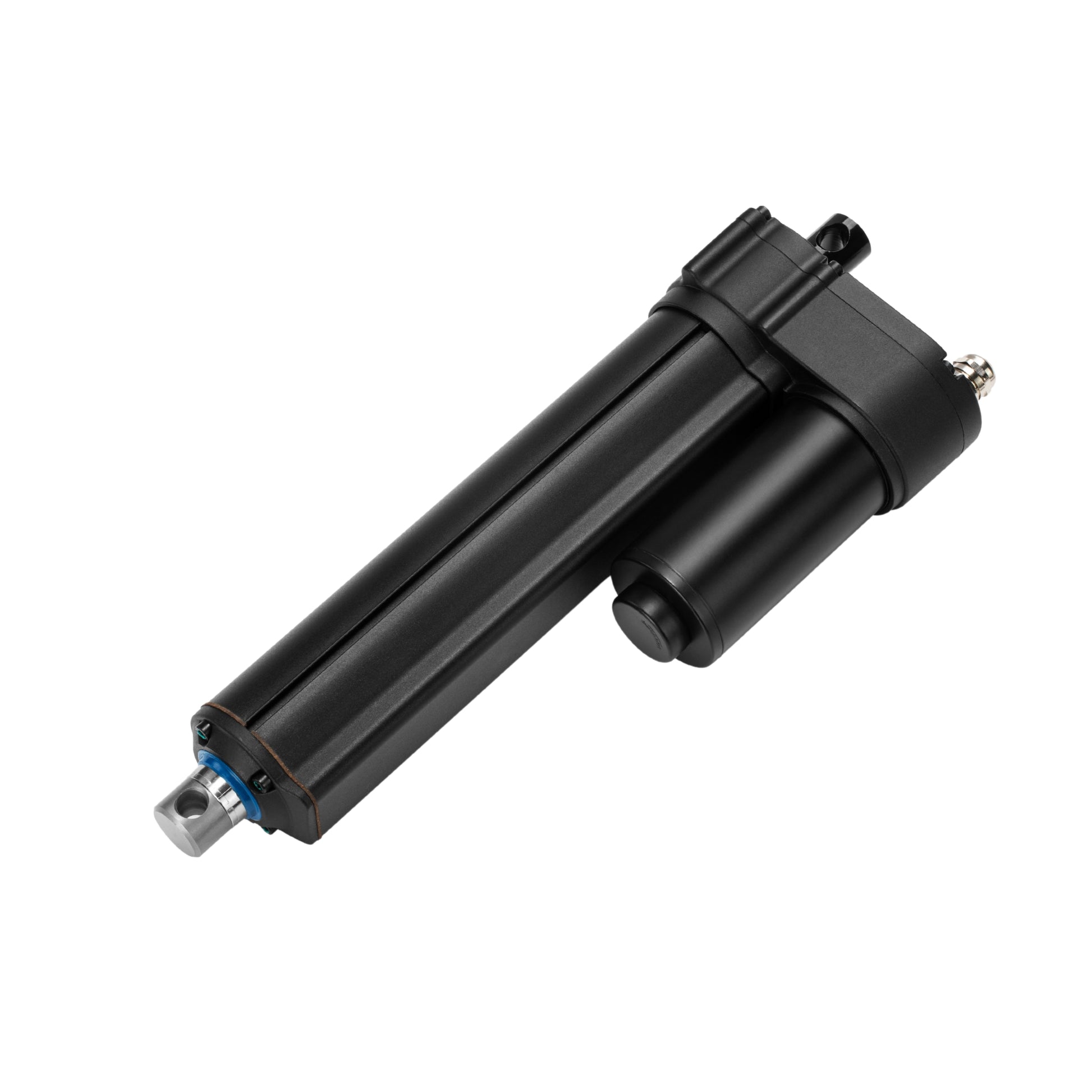

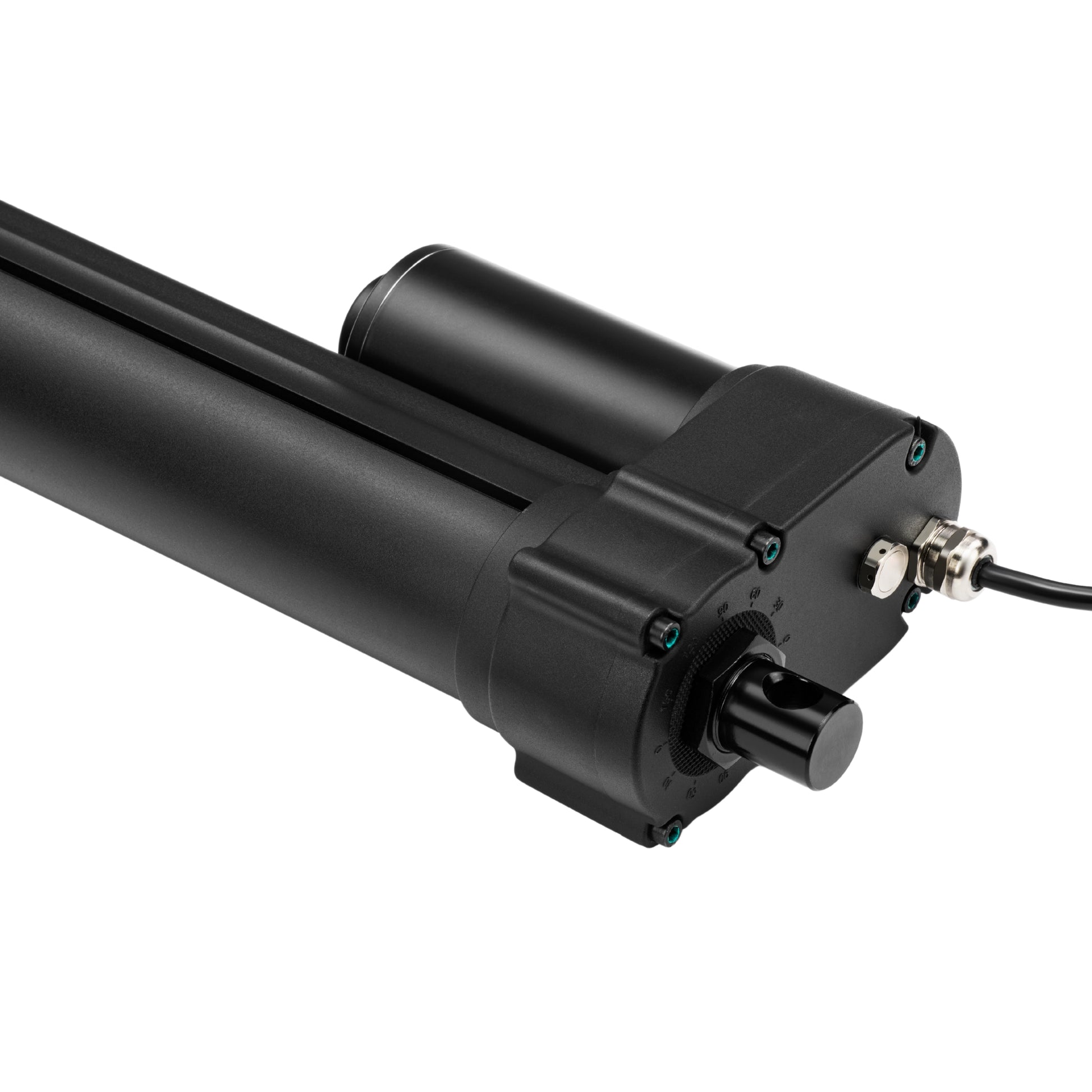

IP67 High Load Linear Actuator - Optional Feedback - New Generation

Model: PA-HD2

Low stock
Ships within 24 hours

The PA-HD2 is a sealed heavy duty linear actuator pushing up to 2,023 lbs and holding 2,698 lbs, rated IP67 for temporary submersion. A rugged Mega-Fit connector keeps this waterproof linear actuator secure under vibration in exposed heavy-duty service.

Feedback - No
Voltage - 12 VDC
Stroke - 4 inch
Force - 450 lbs
Select 12 VDC Control Box (optional)
See collection
Ensure you select the correct quantities of control boxes and actuators for your setup. Review the specs or contact support for assistance.
Select 24 VDC Control Box (optional)
See collection
Select Remote:
See collection
Select Compatible Bracket (optional)
See collection
Select Compatible Power Supply (optional)
See collection
Select Compatible Wiring Kit (optional)
See collection
Volume Discount
1-6 units $396.99 CAD
7-9 units $377.14 CAD
10-19 units $357.29 CAD
20+ units $317.59 CAD
50+ Get a Quote
Quantity

Select Your Protection Plan

Price per Unit --
Note: Guarantee is not available for quantities over 49. contact us for bulk orders.
View full details
High Force
High Force
Water-resistant
Water-resistant
Overload Protection
Overload Protection
CE & RoHS Certified
CE & RoHS Certified
  • Datasheet
  • Replacement chart
  • Actuator Comparison Tool

$396.99 CAD

Overview

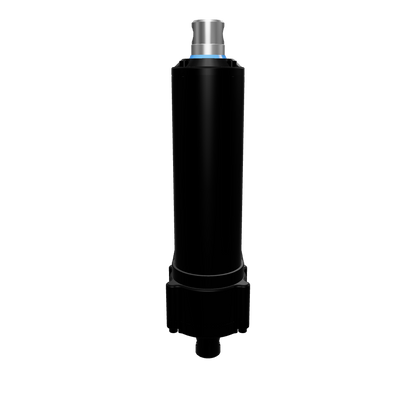

[PA-HD2]

The PA-HD2 Heavy Duty Industrial Actuator is designed for applications that require high force, durable construction, and dependable performance in harsh environments. Its SUS304 stainless steel shaft and metal gears deliver up to 2,023 lbs of push and pull force and up to 2,698 lbs of static holding force. An IP67 ingress protection rating provides protection against dust and water submersion while the actuator is static, making the PA-HD2 suitable for demanding industrial and outdoor applications. A Hall Effect feedback version is also available for projects that require position feedback.

Technology

Survives the dunk

Survives the dunk

Sealed to IP67 — keeps working after temporary submersion.
Survives the dunk logo

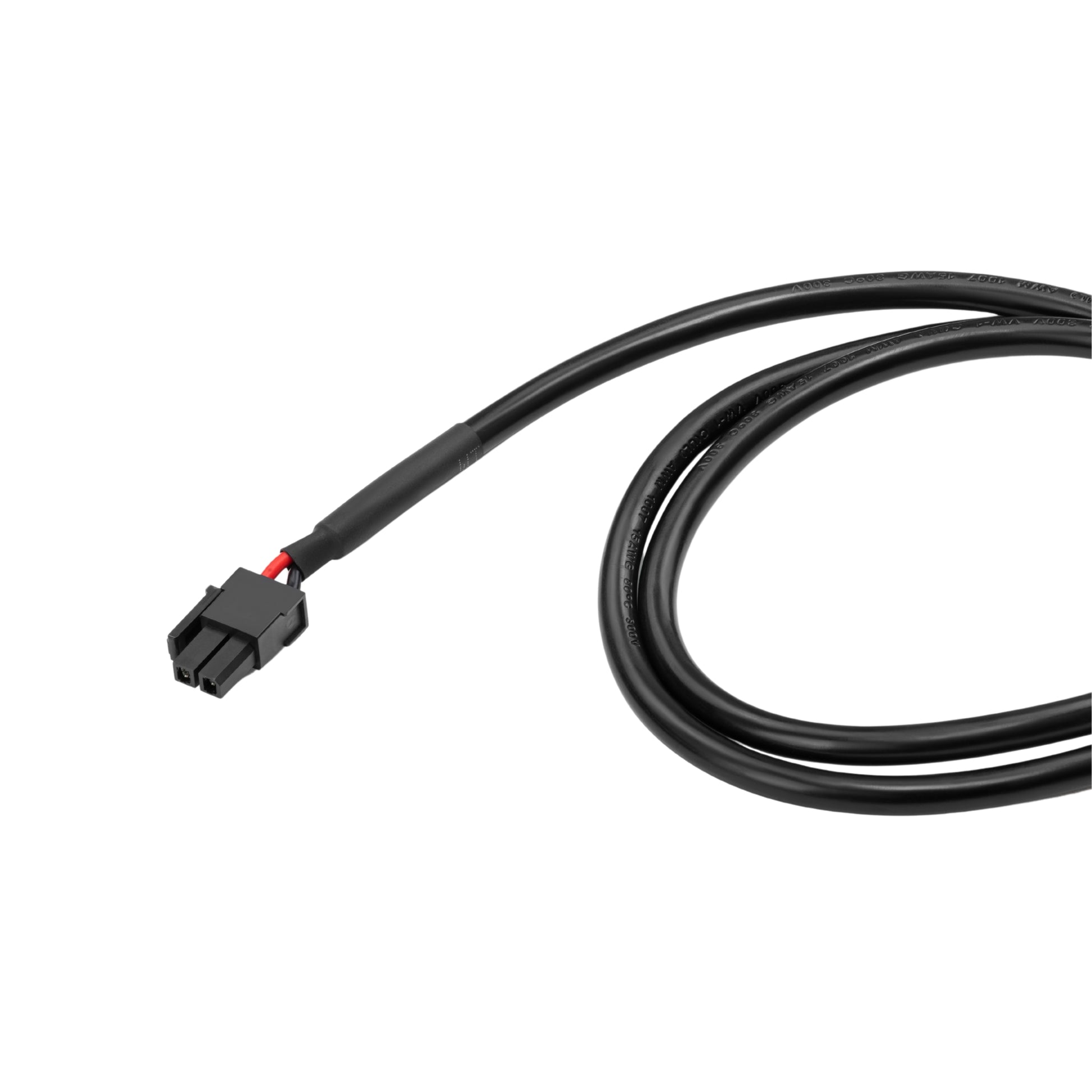

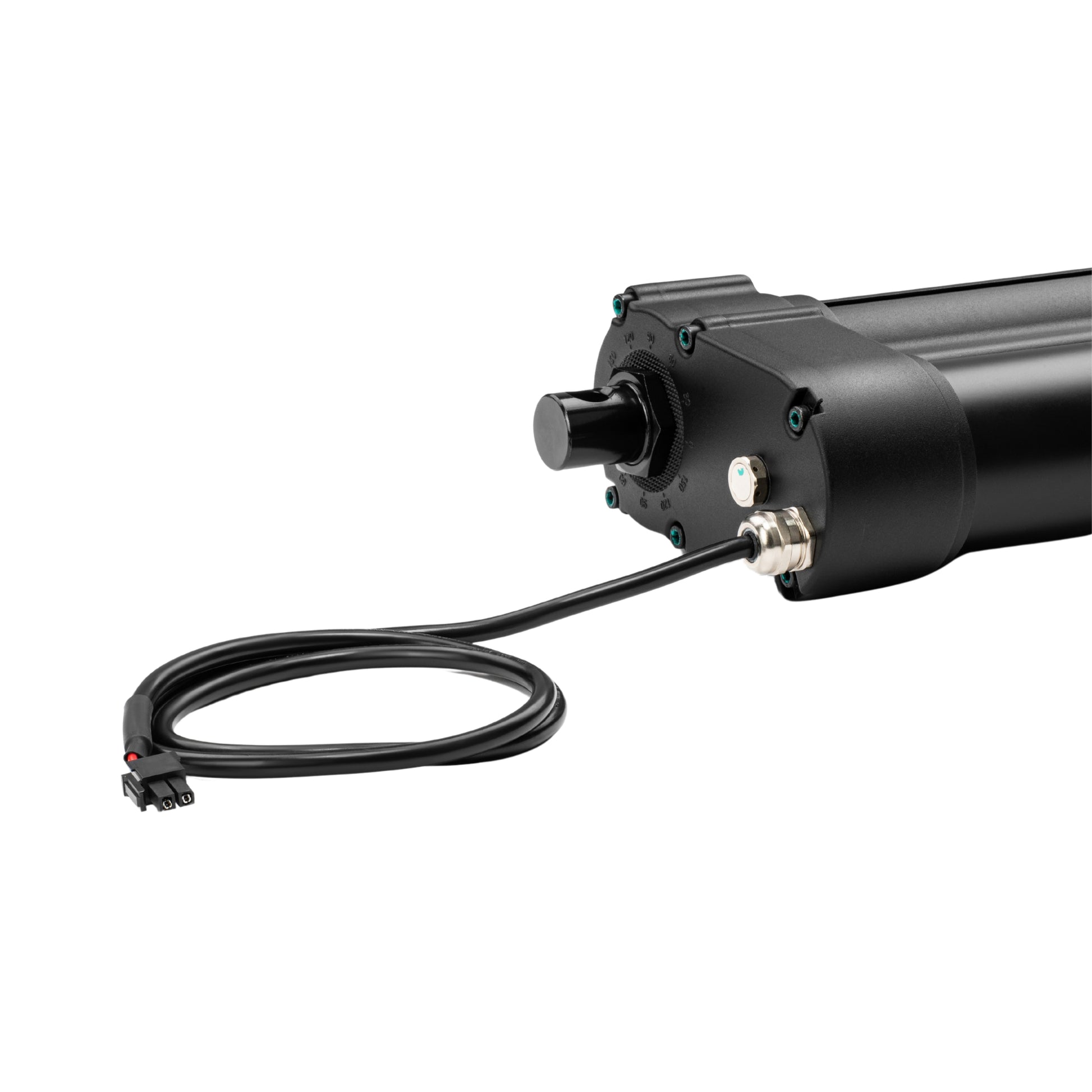

Will not shake lose

Will not shake lose

Stays secure under vibration and stress — connected by a heavy-duty Mega-Fit plug.
Will not shake lose logo
The next level up

The next level up

Pushes 2,023 lbs, holds 2,698 — headroom beyond the HD1.
The next level up logo
Force for bold builds

Force for bold builds

Heavy force for one-of-a-kind builds — from custom platforms to moving structures.
Force for bold builds logo
Control under pressure

Control under pressure

Position precisely under heavy load — with the Hall effect version.
Control under pressure logo

Specifications

Force, Speed & Current

The PA-HD2 Heavy Duty Industrial Actuator combines high-force performance with robust construction for demanding automation projects. This heavy duty linear actuator is commonly used in manufacturing, machinery, agriculture, and industrial automation.

*Please note that the PA-HD2 is not rated for shock or pulse loads.



Force Selection Label on Website450 lbs899 lbs2023 lbs450 lbs899 lbs2023 lbs
Voltage12 VDC12 VDC12 VDC24 VDC24 VDC24 VDC
Dynamic Force450 lbs899 lbs2023 lbs450 lbs899 lbs2023 lbs
Static Force899 lbs1349 lbs2698 lbs899 lbs1349 lbs2698 lbs
Speed - No Load1.75 "/sec0.79 "/sec0.26 "/sec1.75 "/sec0.79 "/sec0.26 "/sec
Speed - Full Load1.5 "/sec0.71 "/sec0.24 "/sec1.5 "/sec0.71 "/sec0.24 "/sec
Current - No Load2.5 A2.5 A2.0 A1.5 A1.5 A1.0 A
Current - Full Load18.0 A17.0 A14.0 A9.0 A8.5 A7.0 A
Product Specifications

The PA-HD2 Heavy Duty Industrial Actuator is designed for integration into systems where high force, durability, and environmental protection are important. Its SUS304 stainless steel shaft, metal gears, and IP67 static ingress protection support dependable operation in demanding applications. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, materials, stroke options, and other technical specifications.

Product Specifications
Length & Weight
Compatible Accessories

Complete your PA-HD2 Heavy Duty Industrial Actuator system with compatible mounting and control components. Due to the actuator's high-force and current requirements, selecting appropriately rated components is important for reliable operation.

MOUNTING BRACKETS:

The PA-HD2 Heavy Duty Industrial Actuator is compatible with the BRK-17 mounting bracket, designed to provide a secure mounting solution for heavy-duty applications. Refer to the corresponding product page for additional specifications and installation information.

CONTROL SYSTEMS:

The PA-HD2 Heavy Duty Industrial Actuator is compatible with a range of Progressive Automations controllers and control boxes, provided the selected components meet the actuator's voltage and current requirements. Refer to the compatibility tables to select the appropriate controller and supporting components, or visit our control systems page for additional options.

Brackets Compatibility
Control Boxes Compatibility
Technical Documentation

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality Assured

Data Sheets

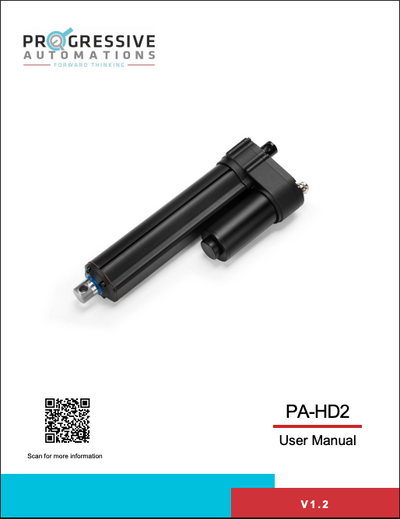

PA-HD2 Data Sheet
PA-HD2 Data Sheet

Data Sheet for PA-HD2

View

2D/3D models

PA-HD2 3D Models

2D/3D models

i

Different stroke lengths of models are available upon request, please email us at: sales@progressiveautomations.com

Part Change Notifications
Knowledge base Knowledge base
ISO Quality ISO Quality
FAQ
What is the maximum load capacity of the PA-HD2 actuator and how does it compare to the PA-HD1?

The PA-HD2 high force actuator is rated for up to 2023 lbs of dynamic force, while the highest dynamic force for the PA-HD1 heavy duty linear actuator is 1574 lbs.

What level of environmental protection does the IP67 rating offer for the PA-HD2?

Its IP67 actuator rating ensures complete dust resistance and protection as a submersible actuator while static, making it a suitable actuator for harsh environments.

What types of feedback options are available for the PA-HD2 model?

The PA-HD2 is available as a hall effect sensor actuator, which enables advanced control capabilities with the compatible controllers, such as synchronous motion, preset positions, and enhanced precision movement.

What mounting brackets are recommended for the PA-HD2 and what are the installation considerations?

The BRK-17 bracket is the recommended heavy duty actuator mounting for the PA-HD2, providing secure mounting for the front and rear ends with the flexibility to have a full 180-degree rotation.

Is the PA-HD2 actuator compatible with various control systems and how is it integrated into industrial setups?

Yes, the PA-HD2 can integrate with compatible control boxes, wiring, and relays that are rated to handle the high current draw for actuator control integration.

Applications

UTVs & ATVs
UTVs & ATVs
Snowmobiles
Snowmobiles
Amphibious Vehicles
Amphibious Vehicles
Fire-Trucks
Fire-Trucks
Target Shooting
Target Shooting
Dock Levelers
Dock Levelers
Compact Floor Cranes
Compact Floor Cranes
Site Dumpers
Site Dumpers
Compact Excavators
Compact Excavators
Power-Assisted Wheelbarrows
Power-Assisted Wheelbarrows
Belt Loaders
Belt Loaders
Compactors
Compactors
