Overview

Essential Wiring Solutions

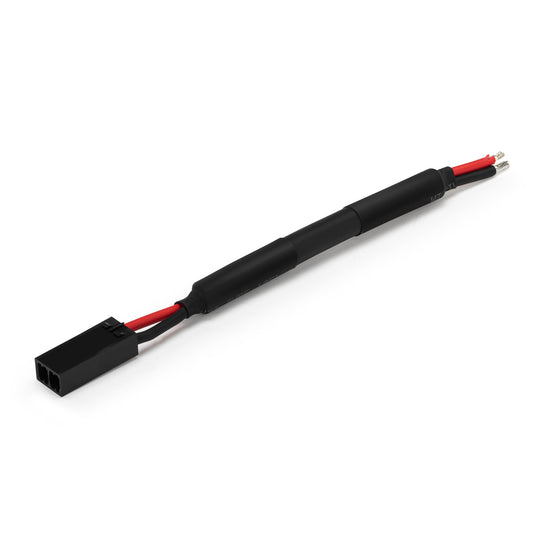

Our wiring components include a wide selection of wiring connectors, wire adapters, and actuator extensions built to simplify motion system wiring. Each product is engineered for easy integration with Progressive Automations' actuators, offering compatibility across various voltage and control configurations. From standard 2-pin Molex connectors to 6-pin linear actuator cables for feedback, every connection is optimized for consistent signal transmission and long-lasting performance.

Our Wiring Connector Range

We offer a comprehensive range of linear actuator connectors and wiring accessories designed to simplify installation and ensure reliable performance across all our actuator systems—from micro actuator setups to high-load industrial applications.

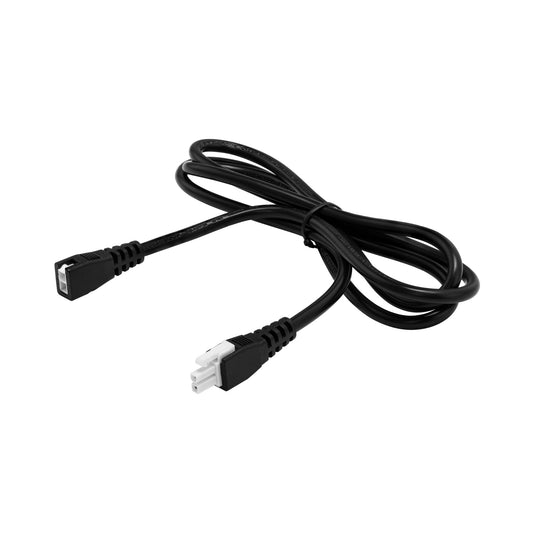

  • Actuator adapters and extension cables for flexible installation and cable length management.
  • Molex plugs and multi-pin connectors for heavy-duty or feedback-enabled actuators and control systems.
  • Adapter and extension cables to ensure power supply and control box cross compatibility.

Each of our wiring accessories and actuator components is made from high-quality materials and built for tight, secure connections, ensuring a dependable connection even in demanding environments.

Compatibility Across Actuator Models

Our plug-and-play wiring accessories are designed to cover a wide range of actuator models, including Micro, Feedback, High-Load, and Industrial actuators. All connectors and extensions utilize the suitable gauge wires and pins to ensure proper electrical current ratings and actuator compatibility with our range of control boxes and power supplies. Whether you’re wiring feedback cables to actuators for precise position control or a standard unit for basic movement, these connectors make setup fast and dependable.

Features

Reliable Plug-and-Play Design

Forget about soldering or complex wire installations—our plug-and-play actuator wiring system allows for quick installation with no specialized tools required. Each connector offers a tight, reliable connection that prevents disconnection under vibration or heavy use. The robust cable insulation and quality materials ensure high wiring durability and long-lasting performance.

Connector Types and Applications

These wiring solutions use trusted connector systems for secure connections, consistent power delivery, and signal reliability:

  • Molex Mega-Fit connectors – Ideal for heavy-duty actuators requiring high current flow and robust contact retention.
  • Mini-Fit Jr connectors – Best suited for mini, standard, or feedback actuator models where compact design and quick assembly are needed.
  • 2.54mm Connectors – Commonly used in micro actuator and custom automation setups, offering secure locking and easy disconnect.
  • Hirose Connectors – Deliver superior electrical performance in controllers and power supplies, featuring secure locking and excellent resistance to shock and environmental stress.

Each type is chosen to ensure seamless plug-and-play compatibility between your chosen actuators, power supplies, and control boxes.

Choosing the Right Adapter or Connector

Selecting the correct adapter or connector depends on your actuator’s model, electrical current rating, and controller ports. For example, high-current applications may require Molex Mega-Fit connectors, while standard or feedback-equipped actuators may pair better with Mini-Fit Jr style connectors.

FAQ

What types of wiring connectors are compatible with Progressive Automations actuators?

Our actuators support Molex Mega-Fit, Mini-Fit Jr, and MATE-N-LOK connectors, depending on the model and electrical current rating.

How do I choose the right adapter for my actuator model?

Match your actuator type and electrical current ratings to the compatible connector system listed in its datasheet that has the suitable wire gauge for the power draw, or contact our support team for confirmation.

What is the difference between Molex Mega-Fit and MATE-N-LOK connectors?

Mega-Fit connectors handle higher currents and are more compact, while MATE-N-LOK connectors offer easy plug-in assembly for lighter-duty systems.

Can I use wire extensions with all actuator models?

Our wire extensions are available for most actuator types and include compatible connectors for direct plug-in use.

Do wiring connectors require any special tools for installation?

No special tools are required. All our connectors are plug-and-play, designed for quick installation without soldering.
