IP65 Mini Linear Actuator - Optional Feedback
IP65 Mini Linear Actuator - Optional Feedback

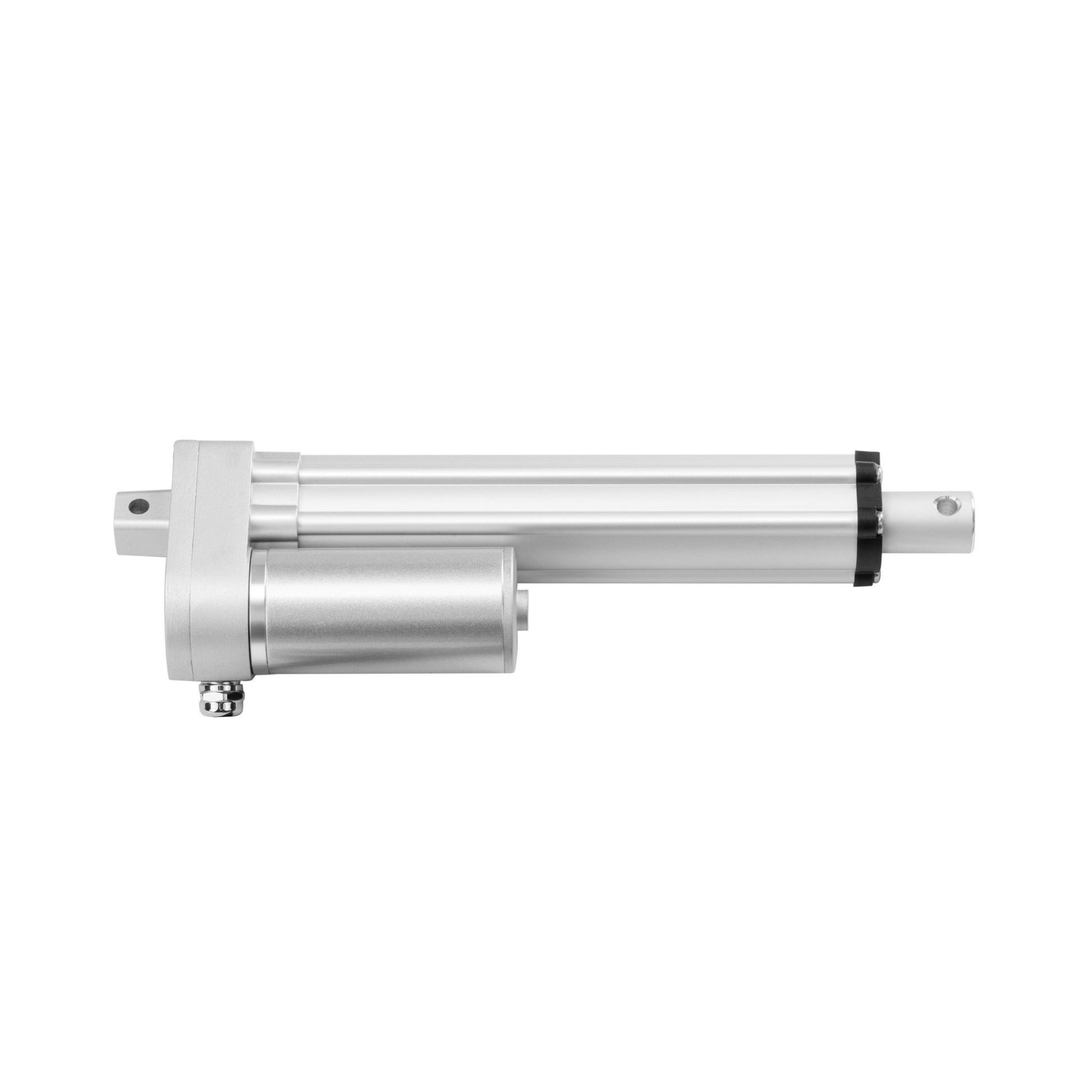

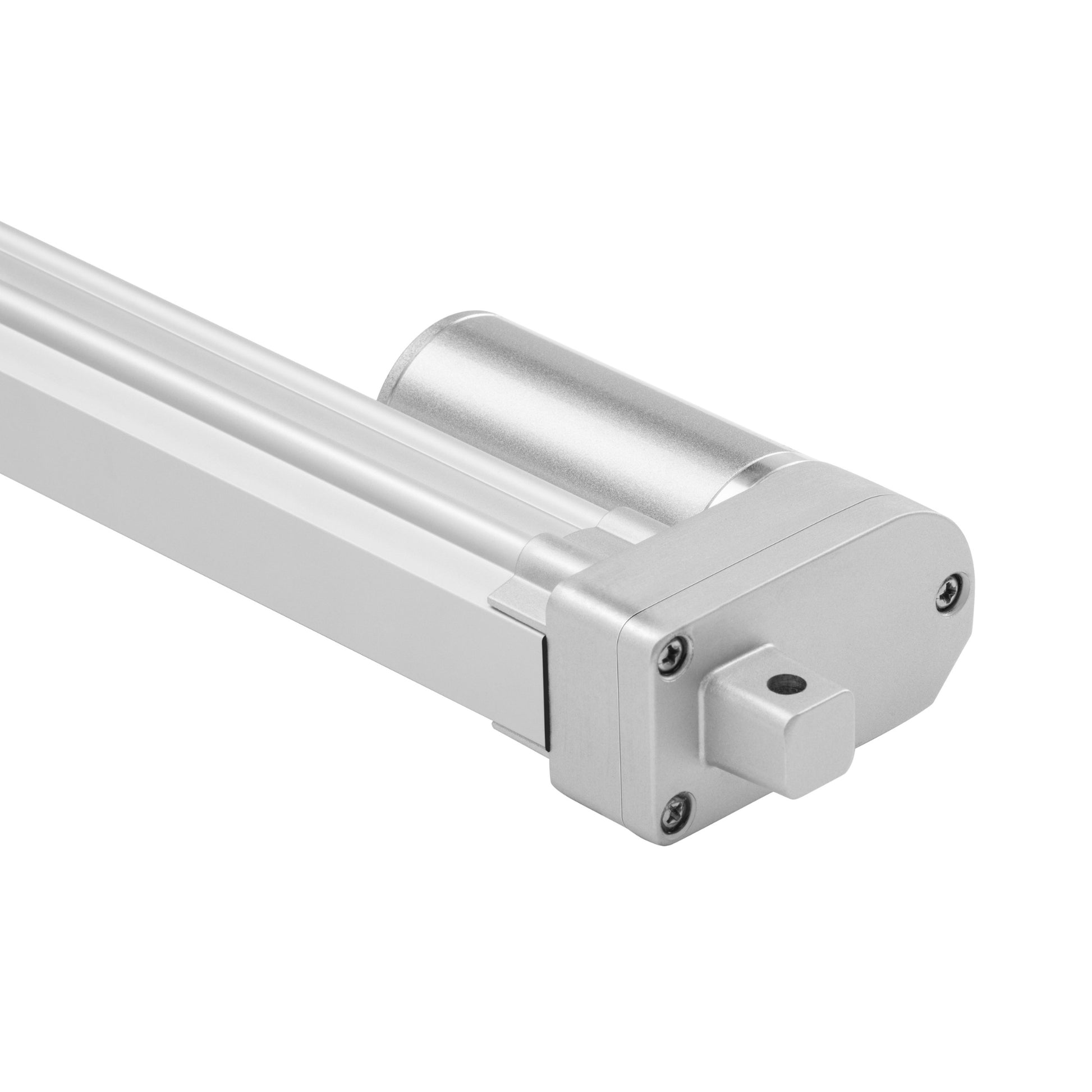

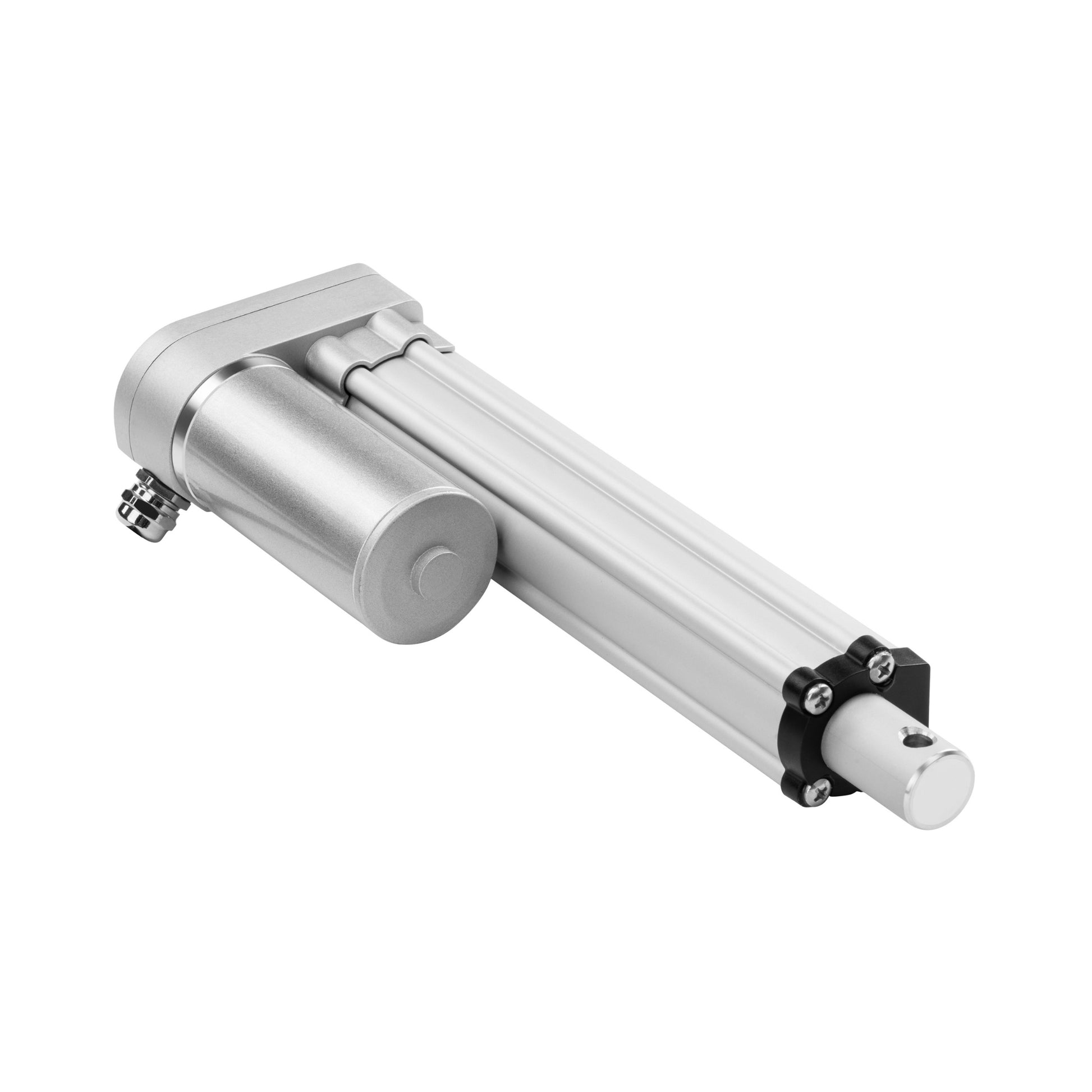

Model: PA-01
Couldn't load pickup availability

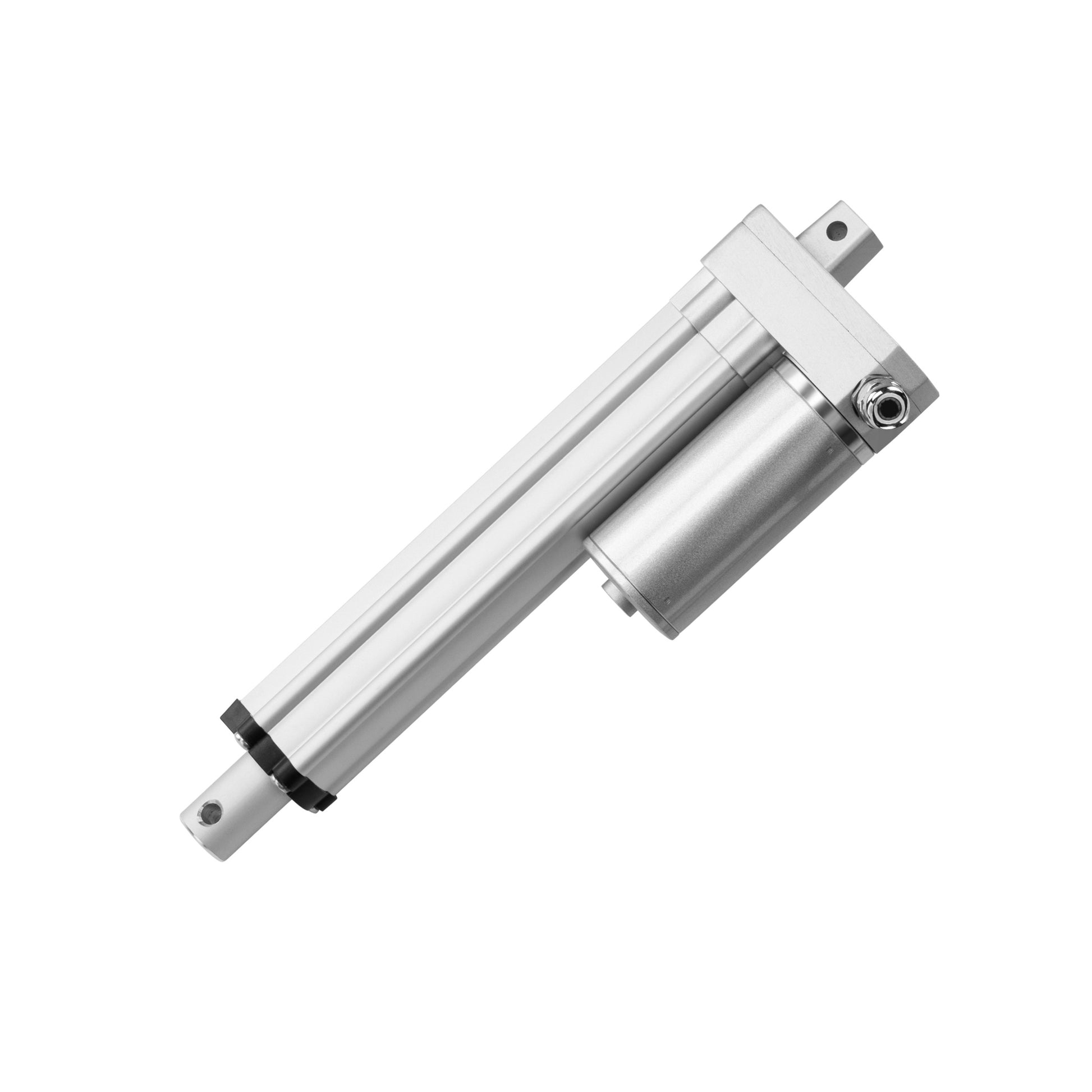

The PA-01 is available in 12VDC and 24VDC options for their voltage compatibility and offers a wide stroke range from 1” to 40” off the shelf. High-quality materials such as the stainless steel stroke rod and aluminum alloy housing combined with an IP65 rated ingress protection ensure durability and longevity in various environments against dust and water ingress. The PA-01 features a standard 2-Pin Molex Mini-Fit Jr connector and options for a 6-Pin connector for Potentiometer or Hall sensor feedback, simplifying installation and integration into existing systems.

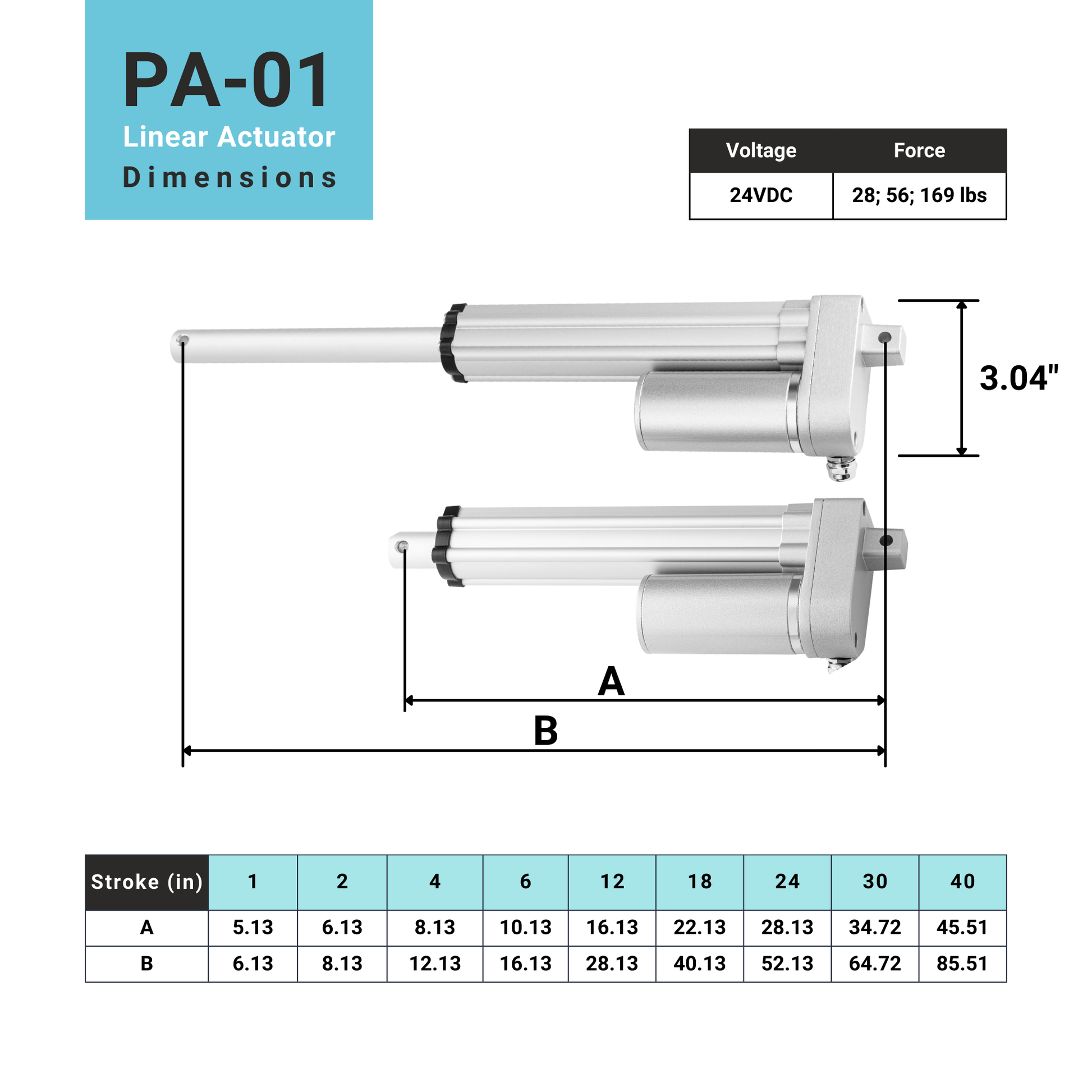

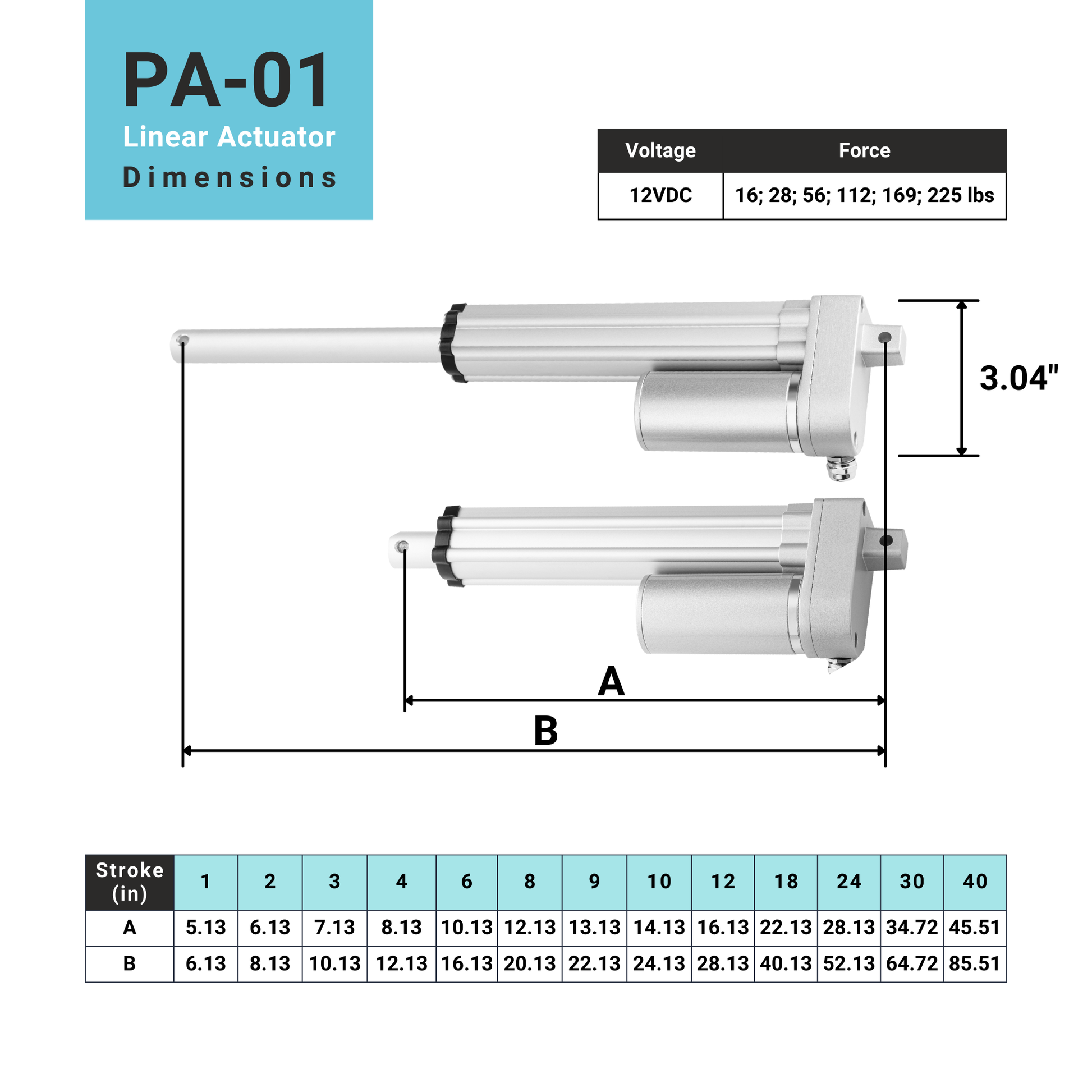

Compact in size with medium force capabilities, this actuator has a low current draw ideal for industries such as food and beverages, home automation, general automation, and medical industries. For a full list of specifications, customization options, and dimensional drawings, please see our PA-01 Data Sheet.
*Product housing may vary from images based on available inventory for the selected force and stroke length at the time of order.
MOUNTING OPTIONS:
The BRK-14 bracket, designed for the Mini Linear Actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.
GAS SPRING OPTIONS:
The GS-01 gas spring can be paired with our BRK-14 mounting brackets to work seamlessly alongside the PA-01 mini linear actuator, enhancing its performance in upward load-pushing tasks.
CONTROL SYSTEMS:
The low current draw allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.
Custom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
