120 VAC - 12/24 VDC Control Box - 4 Channel - Wired Remote
Model: PA-CB1-4-12VDC

120 VAC - 12/24 VDC Control Box - 4 Channel - Wired Remote

Model: PA-CB1-4-12VDC
Volume Discount
1-6 units 208.00
7-9 units 197.60
10–19 units 187.20
20–49 units 166.40
Regular price
$208.00 CAD
Sale price
$208.00 CAD
Voltage *
Quantity
-
+

Created with Fabric.js 1.7.22 You may also need these
Description
Specifications

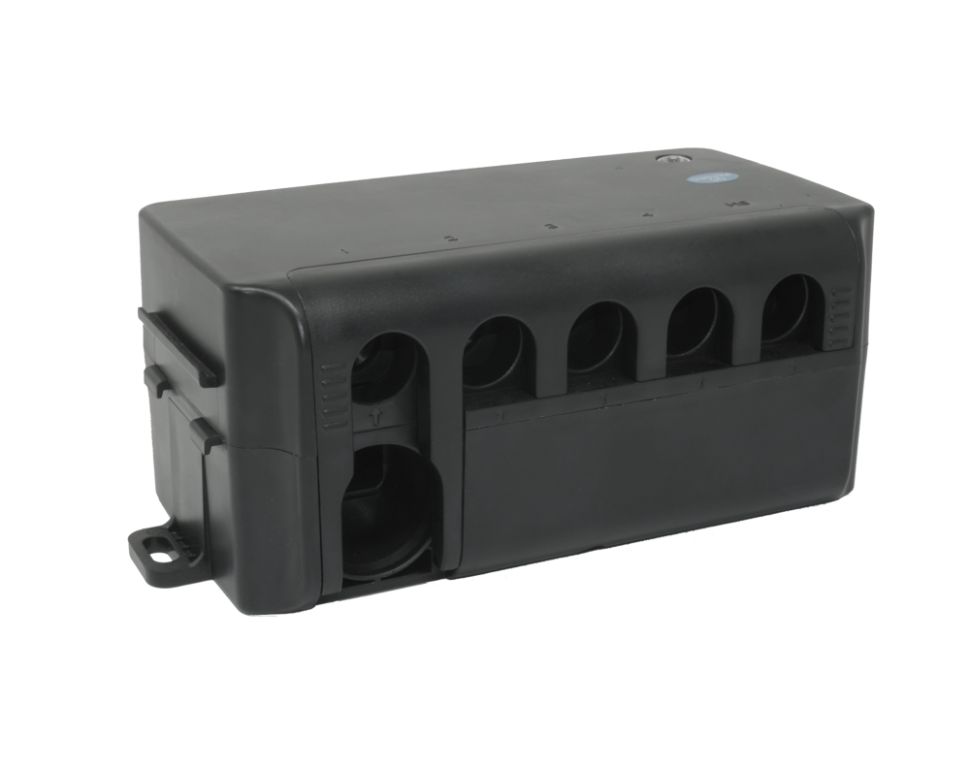

The PA-CB1-4 is a four-channel control box that is a plug-and-play solution to individually control up to 4 actuators on a single remote. Featuring an AC input voltage, an additional power supply is not needed to control your 12/24 VDC linear actuators. Mount the control box to your application by using the mounting holes on either side of the control box. Equipped with overcurrent protection that triggers when any channel exceeds 11A.

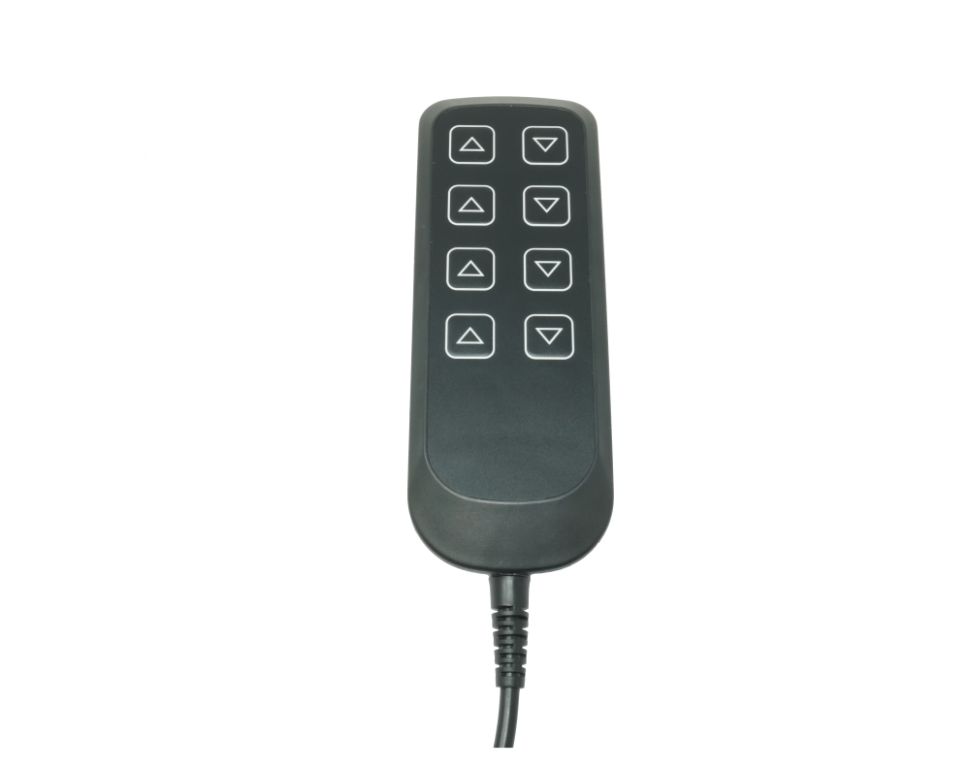

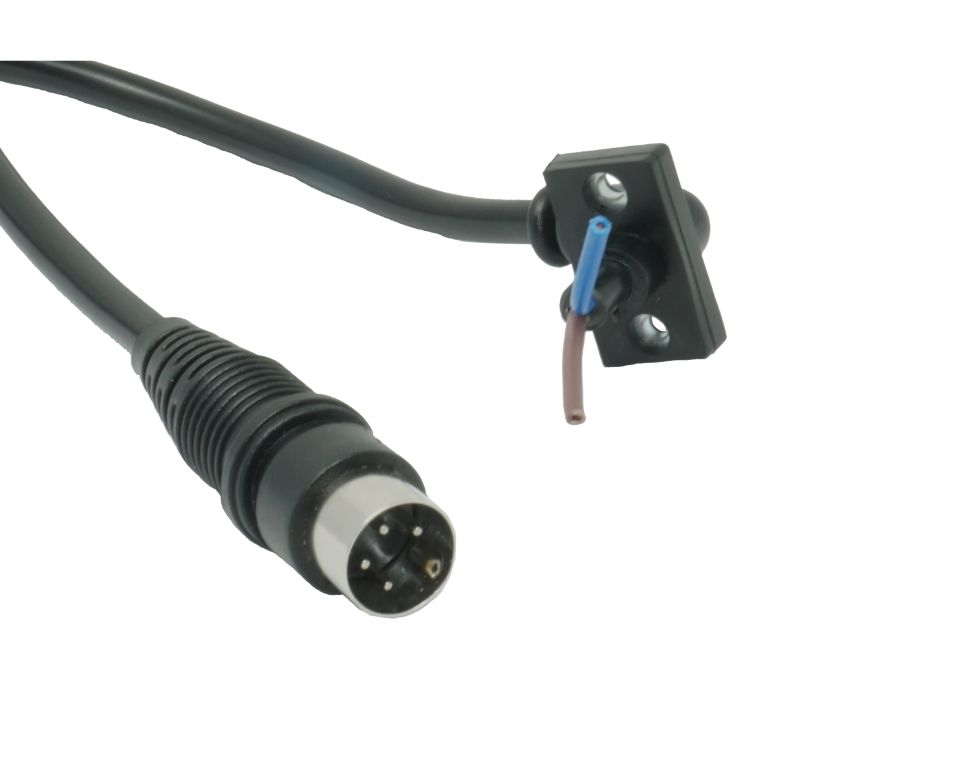

This control box set comes with a detachable wire lock to prevent wire disconnections, 4x AC-06-2 actuator cables, an AC adapter, and a large hand remote complete with a coiled cable and a handle that helps provides a secure grip as well as keeping the cable well organized.

This control box allows for momentary up/down controls.

* Only compatible with 12 VDC (24VDC) brushed DC motors. Individually controls up to 4 Actuators. (1 Operational Per Use).

Specifications
Specifications

The PA-CB1-4 is a four-channel control box that is a plug-and-play solution to individually control up to 4 actuators on a single remote. Featuring an AC input voltage, an additional power supply is not needed to control your 12/24 VDC linear actuators. Mount the control box to your application by using the mounting holes on either side of the control box. Equipped with overcurrent protection that triggers when any channel exceeds 11A.

This control box set comes with a detachable wire lock to prevent wire disconnections, 4x AC-06-2 actuator cables, an AC adapter, and a large hand remote complete with a coiled cable and a handle that helps provides a secure grip as well as keeping the cable well organized.

This control box allows for momentary up/down controls.

* Only compatible with 12 VDC (24VDC) brushed DC motors. Individually controls up to 4 Actuators. (1 Operational Per Use).

Product Specifications
Control Ability:
Up to 4 Actuators (1 Operational Per Use)
Input Voltage:
120 VAC
Unit Weight:
1.84 lbs
Current:
8.3A (12VDC), 4.2A (24VDC) Per Channel
Kit Includes:
1x Control Box, 1x Wired Hand Remote, 4x AC-06-2 Wire Adapters, 1x AC Cable
Remote Functions:
Up and Down (Momentary)
18 Months
Data Sheet
120 VAC - 12/24 VDC CONTROL BOX - 4 CHANNEL - WIRED REMOTE

Data Sheet

Media
Videos
Dimensional Drawing
Dimensional Drawing
