Mini Industrial Actuator

Mini Industrial Actuator

Model: PA-09

In stock
Ships within 24 hours
Volume Discount
1-6 units $195.00 CAD
7-9 units $185.25 CAD
10–19 units $175.50 CAD
20–49 units $136.50 CAD
Regular price $195.00 CAD
Regular price Sale price $195.00 CAD
Sale Sold out
Voltage - 12 VDC
Stroke - 2 inch
Force - 330 lbs
  • Linear Actuator Calculator
  • Get Free Actuator Guide
View full details
Description
PA-09 Specifications

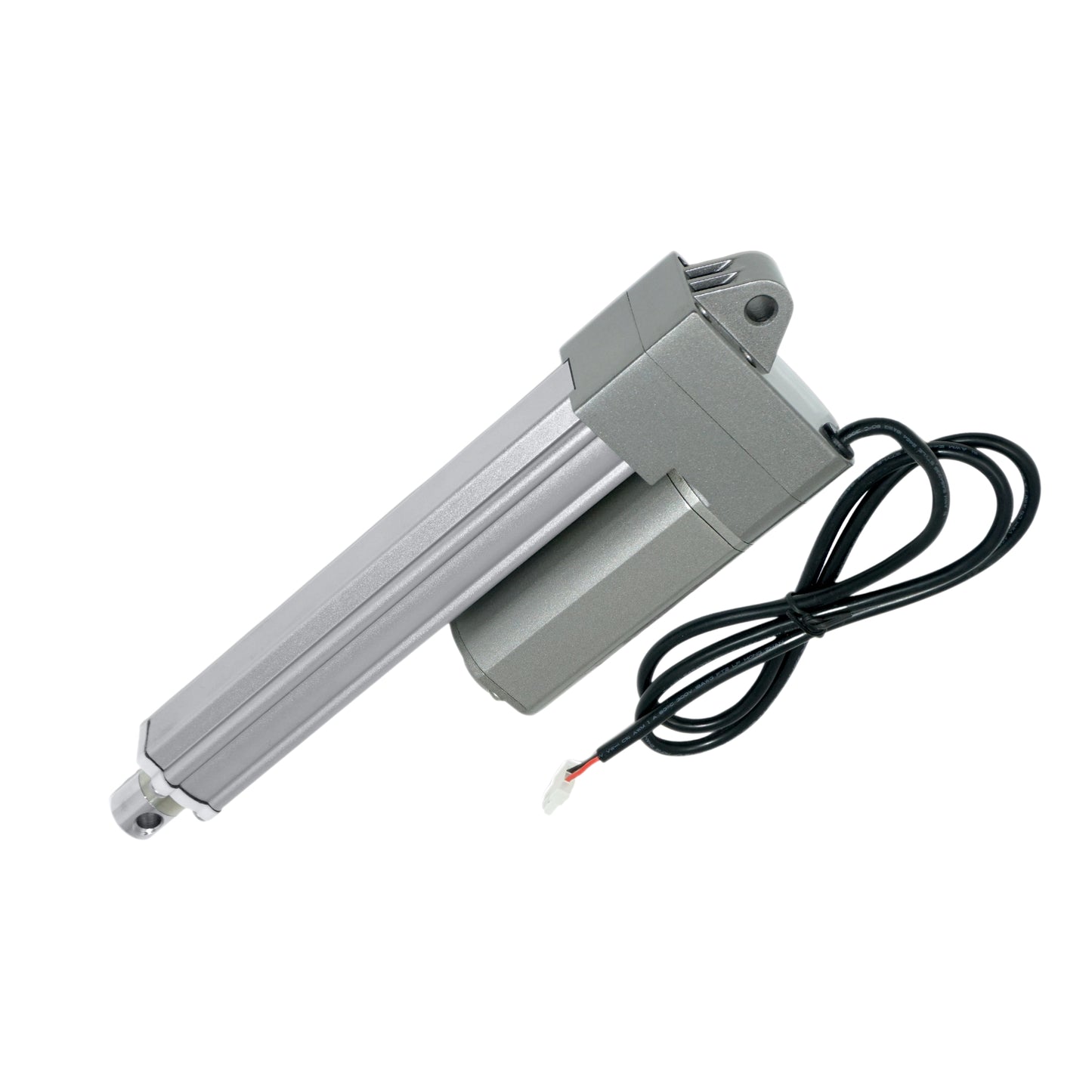

The PA-09 Mini Industrial Linear Actuator enhances the compact features of our PA-14 linear actuator with a stainless steel rod, high force, and an increased environmental protection rating. At max load, the low current draw allows this unit to easily integrate into most low voltage control system.

Some examples of the key industries that use this actuator include the automotive, home automation, and marine industries. For a full list of specifications, customization options, and dimensional drawings, please see our PA-09 Data Sheet.

Actuators Comparison Chart

MOUNTING OPTIONS:

The BRK-09 bracket, designed for the Mini Industrial Actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.

CONTROL SYSTEMS:

The low current draw allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.

Browse More Actuators

Custom options

Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!

Overview
PA-09 Specifications

The PA-09 Mini Industrial Linear Actuator enhances the compact features of our PA-14 linear actuator with a stainless steel rod, high force, and an increased environmental protection rating. At max load, the low current draw allows this unit to easily integrate into most low voltage control system.

Some examples of the key industries that use this actuator include the automotive, home automation, and marine industries. For a full list of specifications, customization options, and dimensional drawings, please see our PA-09 Data Sheet.

Actuators Comparison Chart

MOUNTING OPTIONS:

The BRK-09 bracket, designed for the Mini Industrial Actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.

CONTROL SYSTEMS:

The low current draw allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.

Browse More Actuators

Custom options

Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!

Force, Speed & Current
Product Specifications
Length & Weight
Brackets Compatibility
Control Boxes Compatibility
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Read More

Data Sheets

PA-09 User Manual

User Manual for PA-09

View

2D/3D models

Different stroke lengths of CAD models are available upon request, please email us at: sales@progressiveautomations.com

Video & Articles
Videos
Related blog articles:
Photo of an agricultural machine builder

Fluid Power South Success Story Using Heavy Duty Linear Actuators

Nathan Bong

Fluid Power South is a distributor and seller of automation components. They have been serving Ge...

Learn more
Support
FAQ
How Can I Determine Which Progressive Automations Linear Actuator is Best Suited for My Application?

Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.

What Is Duty Cycle and How Is It Calculated?

Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)

For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.

What Does Stroke Mean? How Am I Supposed to Know Which Size to Choose?

Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.

How Do I Know Which Force Rating Is Right for My Application?

We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator

Can I Synchronize My Linear Actuators?

Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.

Controlling Multiple Linear Actuators at the Same Time

How To Utilize FLTCON-2 & FLTCON-4 Control Boxes?

What Are the Control Box Options For My Actuator?

The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.

Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.

What Is Backdriving? -- What Does Dynamic and Static Load Ratings Mean? -- What Is Lateral Loading?
What Is Backdriving?

Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.

What Does Dynamic and Static Load Ratings Mean?

Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
