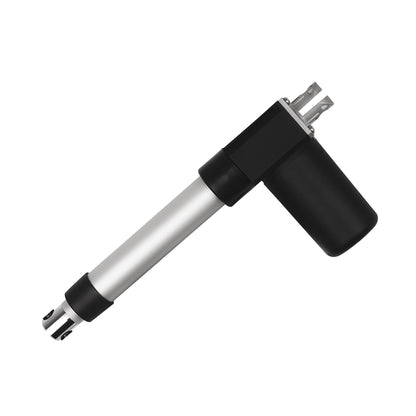

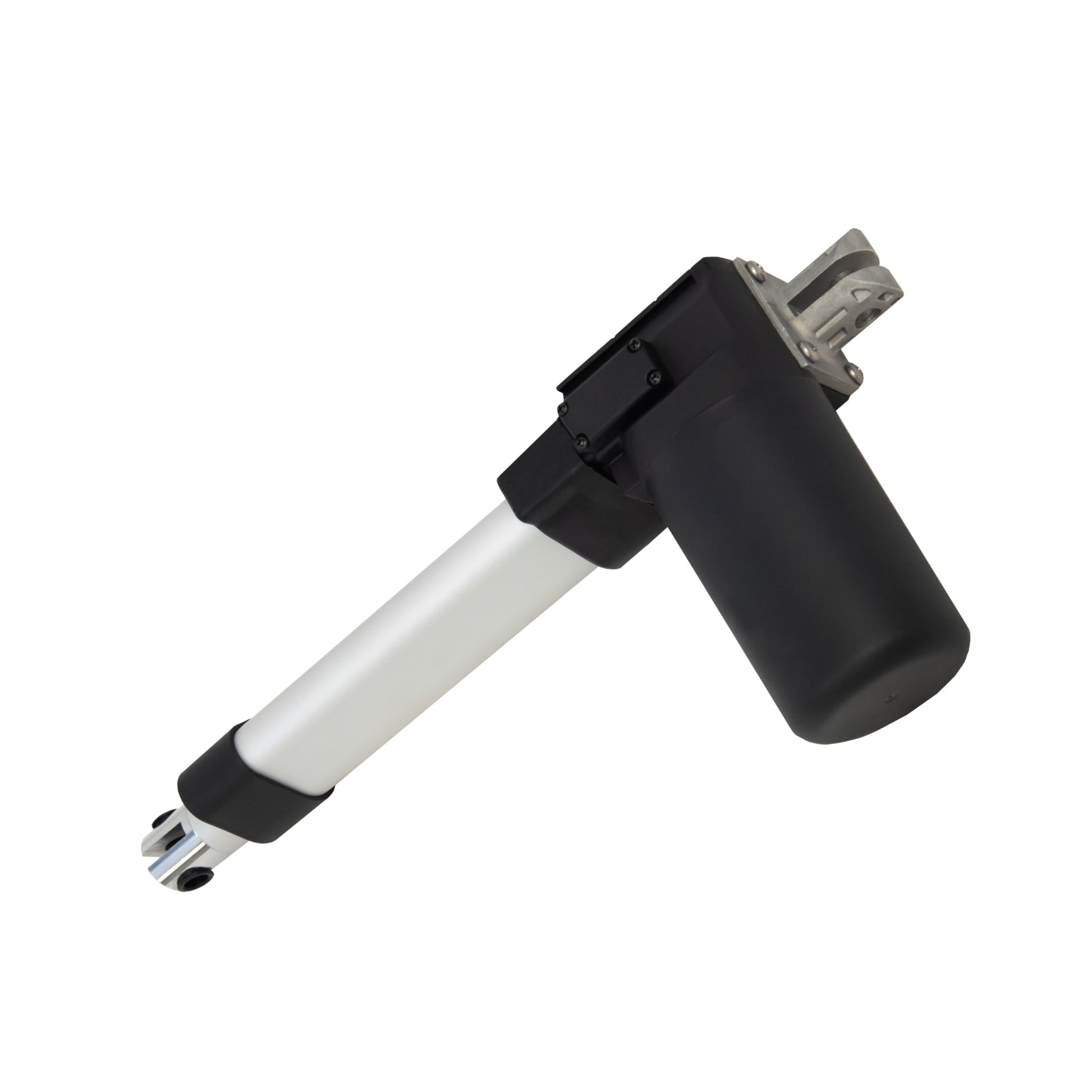

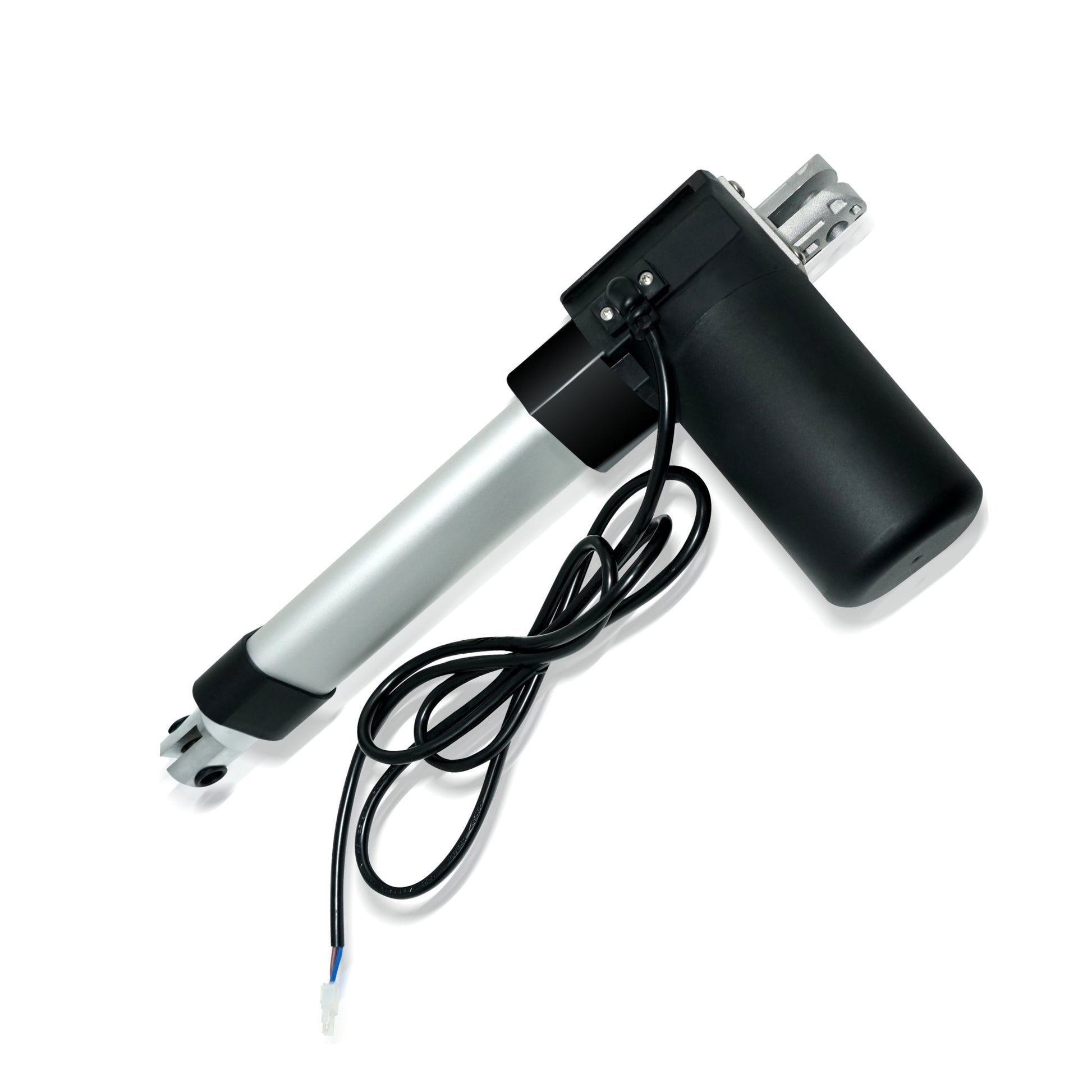

Linear Actuator IP66 - Optional Feedback
Model: PA-04

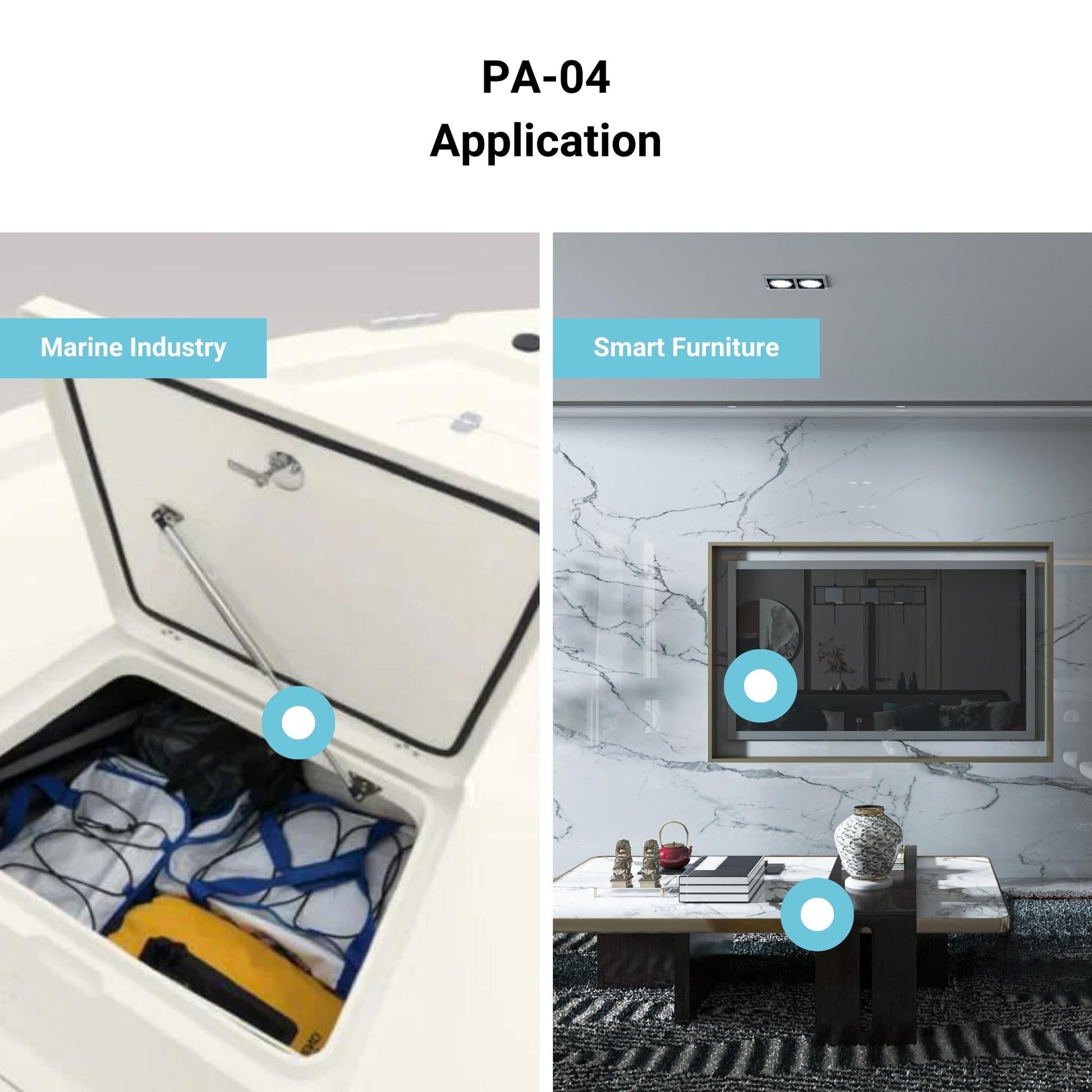

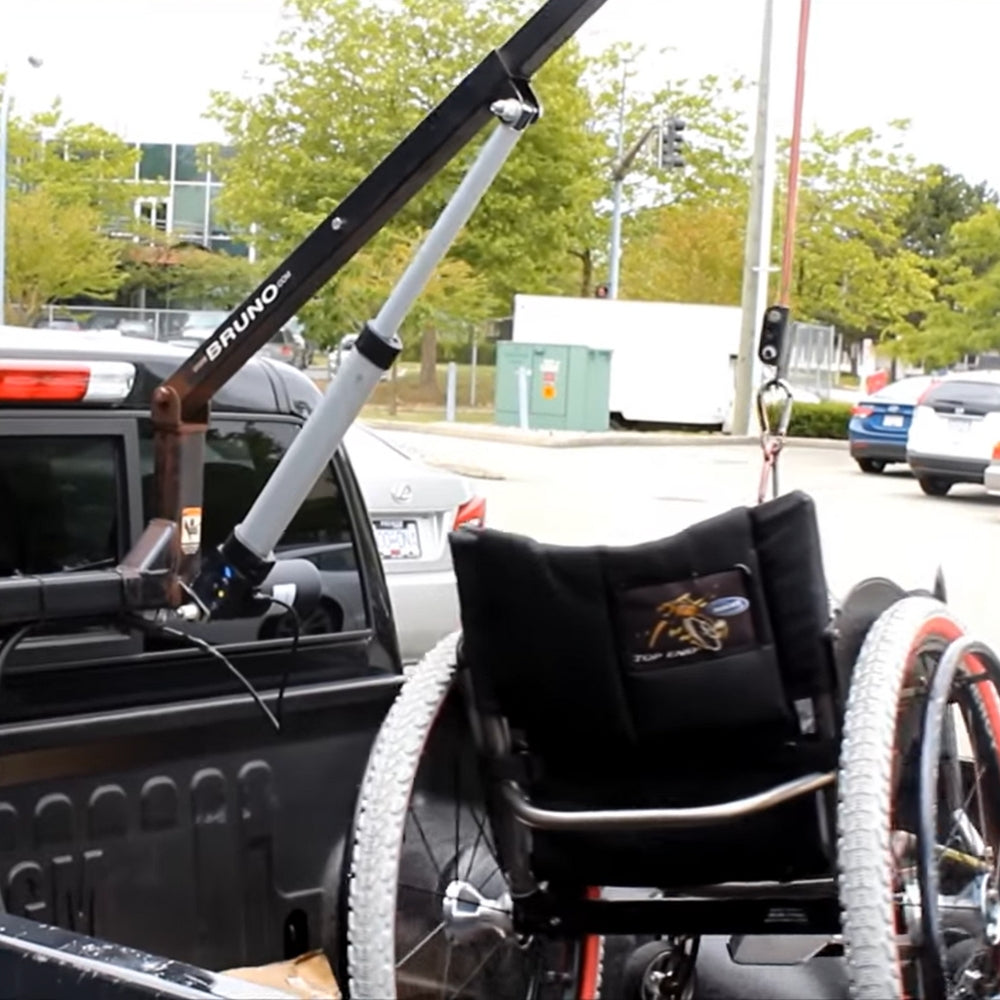

The PA-04 is a versatile waterproof linear actuator with IP66 sealing against dust and powerful water jets, delivering 100–400 lbs over a 2–40" stroke. Proven in marine, automotive, industrial, and home automation.
Couldn't load pickup availability
Overview
[PA-04]

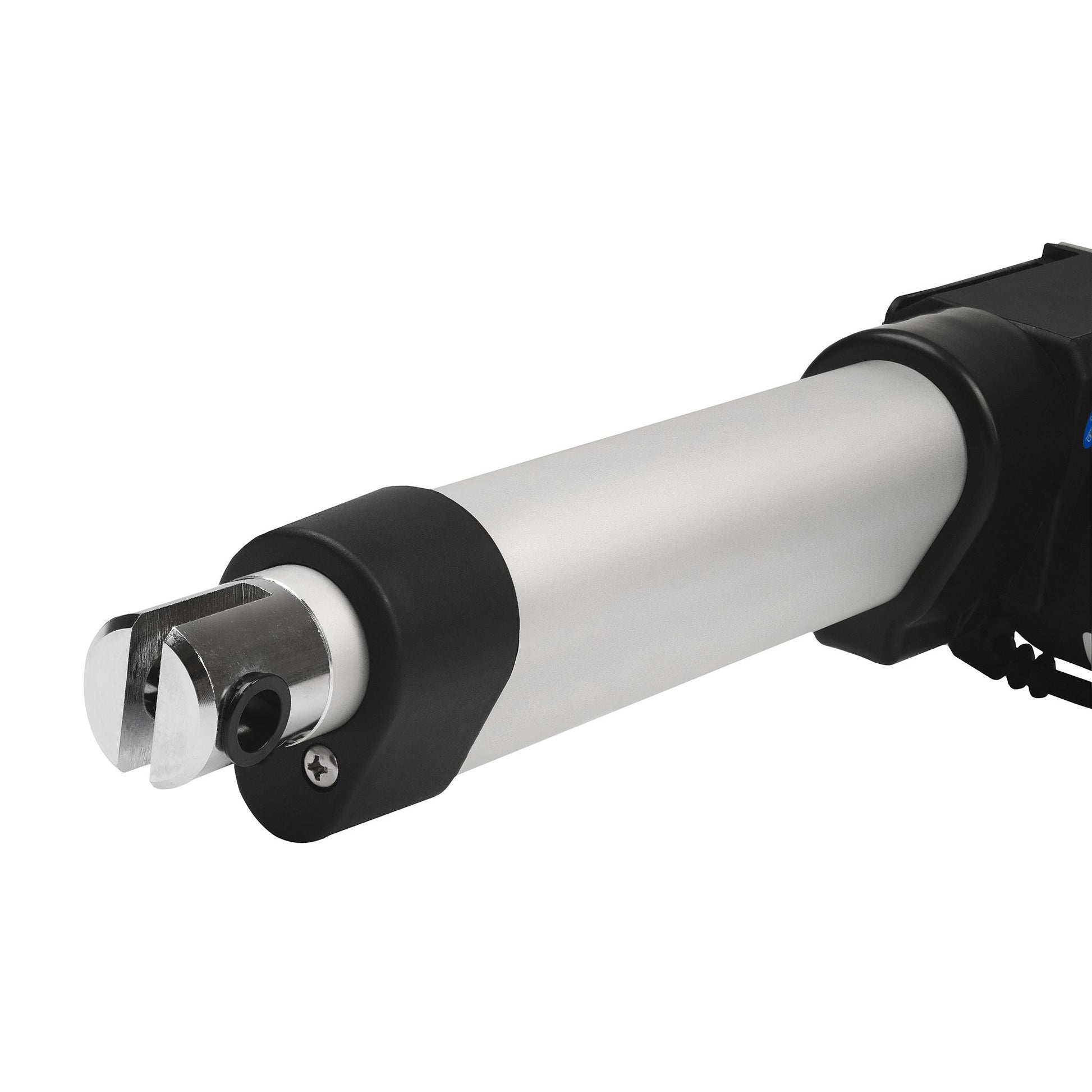

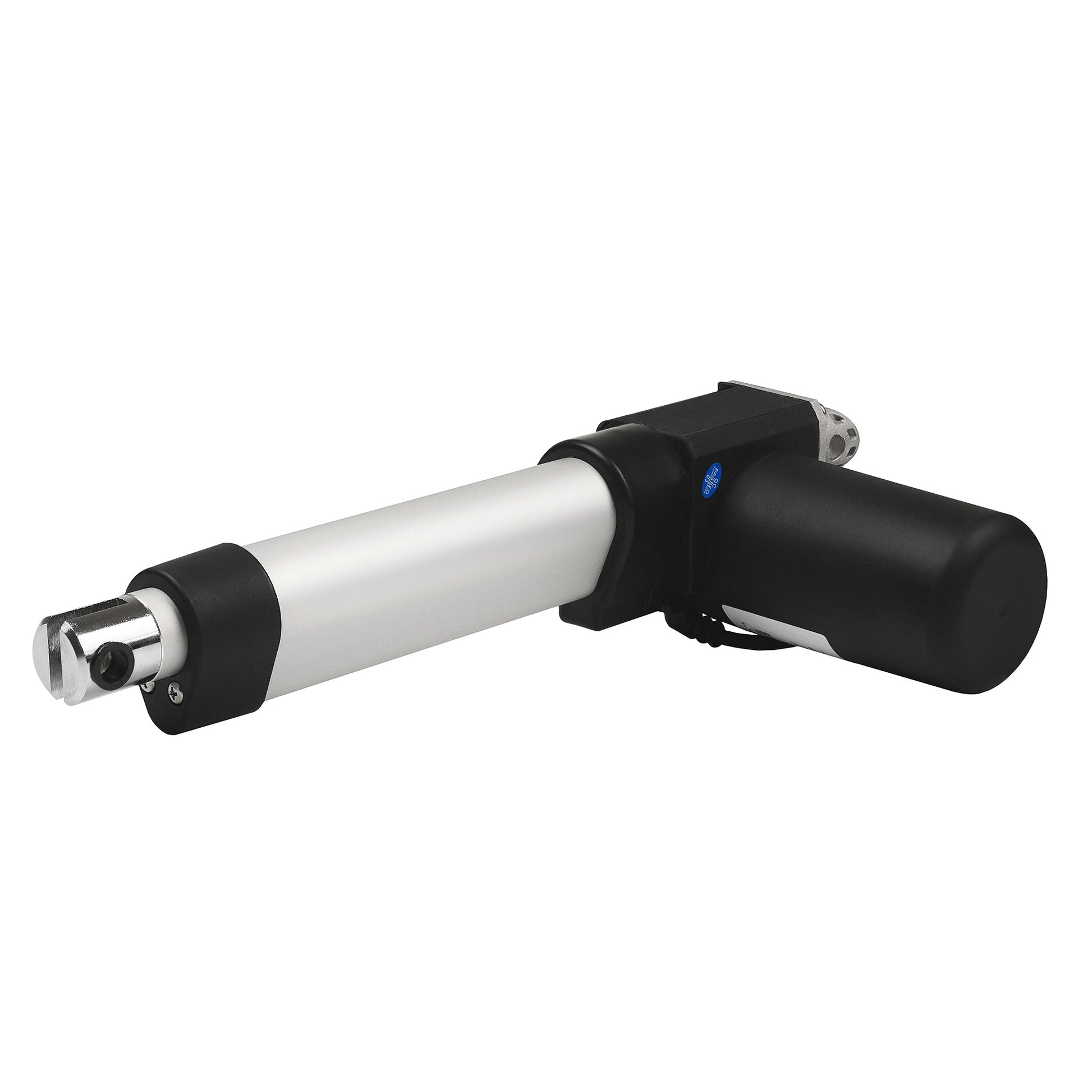

The PA-04 Linear Actuator is designed for applications that require a combination of high speed, low noise, and dependable environmental protection. Its IP66 rating provides protection against complete dust ingress and powerful water exposure, making this electric linear actuator well suited for demanding indoor and outdoor automation projects. For more information about ingress protection ratings, please see our IP Rating Guide.
Technology
Specifications

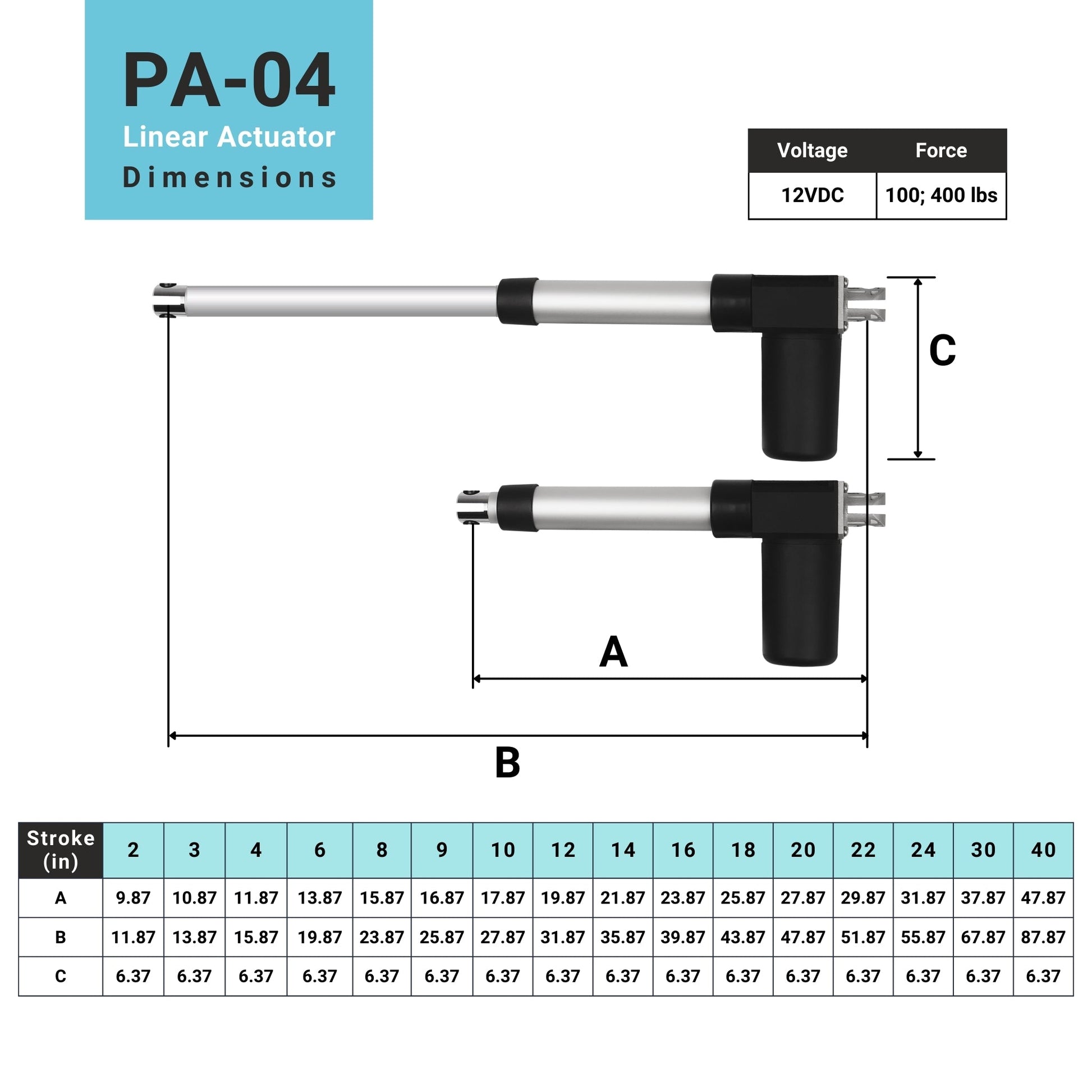

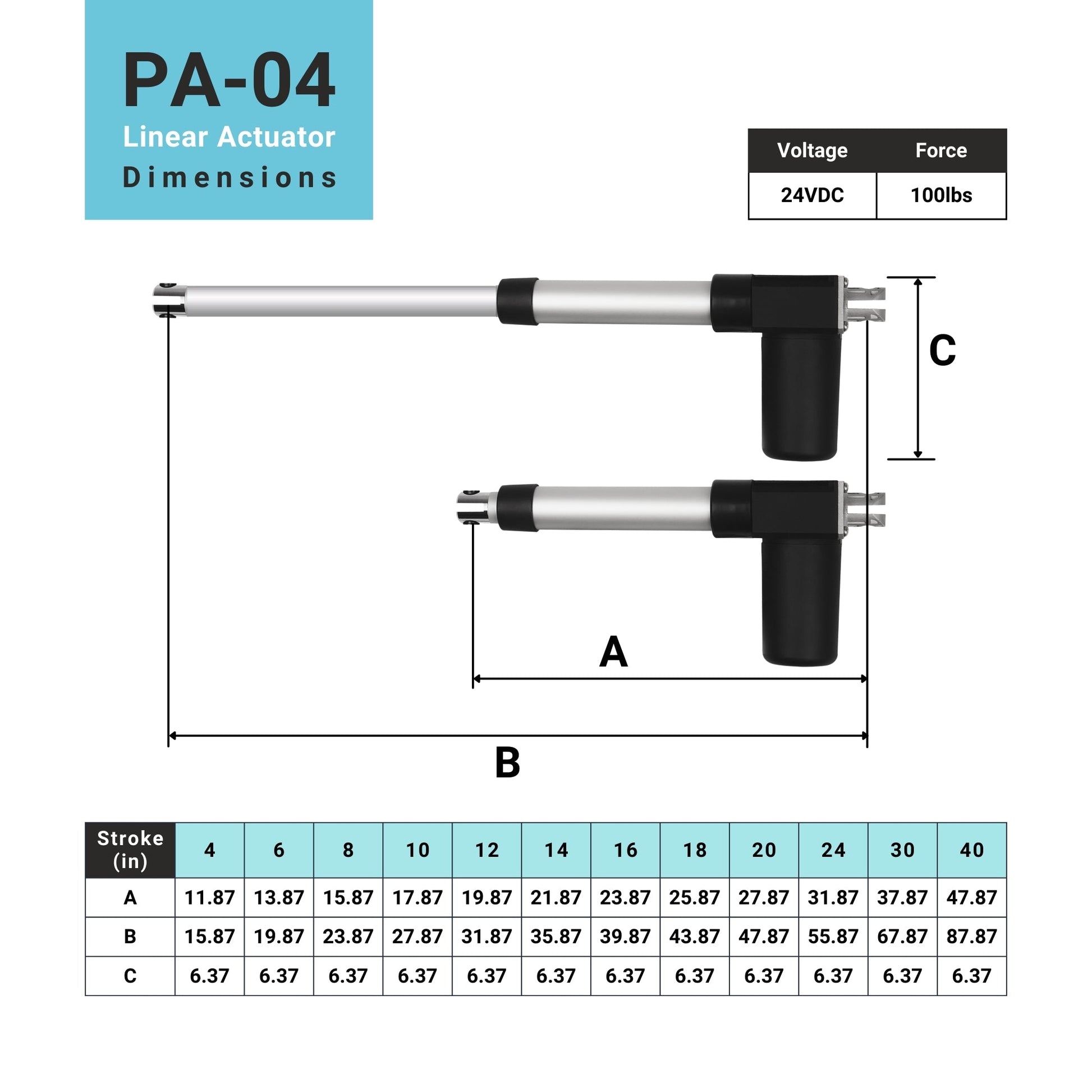

The PA-04 Linear Actuator combines high-speed performance, low operating noise, and multiple force configurations to support a wide range of applications. Its IP66-rated housing and versatile performance make it popular in manufacturing, automotive, home automation, and marine industries. Refer to the Force, Speed & Current table to compare available performance configurations. For complete specifications, customization options, and dimensional drawings, please see the PA-04 Data Sheet.
| Voltage | 12 VDC | 12 VDC | 24 VDC | |
| Dynamic Force | 100 lbs | 400 lbs | 100 lbs | |
| Static Force | 100 lbs | 400 lbs | 100 lbs | |
| Speed - No Load | 2.80 "/sec | 0.98 "/sec | 2.80 "/sec | |
| Speed - Full Load | 2.16 "/sec | 0.78 "/sec | 2.16 "/sec | |
| Current - No Load | 4.0 A | 4.0 A | 2.0 A | |
| Current - Full Load | 12.0A | 12.0 A | 6.0 A |
The PA-04 Linear Actuator is designed for straightforward integration into new and existing systems. Its compact construction, IP66-rated housing, and standardized mounting and electrical connections support dependable performance in demanding environments. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, materials, and other technical specifications.
Complete your PA-04 Linear Actuator system with compatible mounting brackets and control components. Refer to the compatibility tables to identify accessories suitable for your selected actuator configuration.
MOUNTING BRACKETS:
The PA-04 Linear Actuator is compatible with the BRK-01 T-shaped mounting bracket and the BRK-02 U-shaped mounting bracket. Refer to the corresponding product pages for detailed specifications and installation information.
CONTROL SYSTEMS:
The PA-04 Linear Actuator is compatible with a range of Progressive Automations control systems. Refer to the compatibility tables to select the appropriate control box and supporting components for your actuator configuration, or visit our control systems page for additional information.
