T-Shape Mounting Bracket for PA-04, PA-03, PA-18, PA-TS1
T-Shape Mounting Bracket for PA-04, PA-03, PA-18, PA-TS1
Model: BRK-01
Couldn't load pickup availability

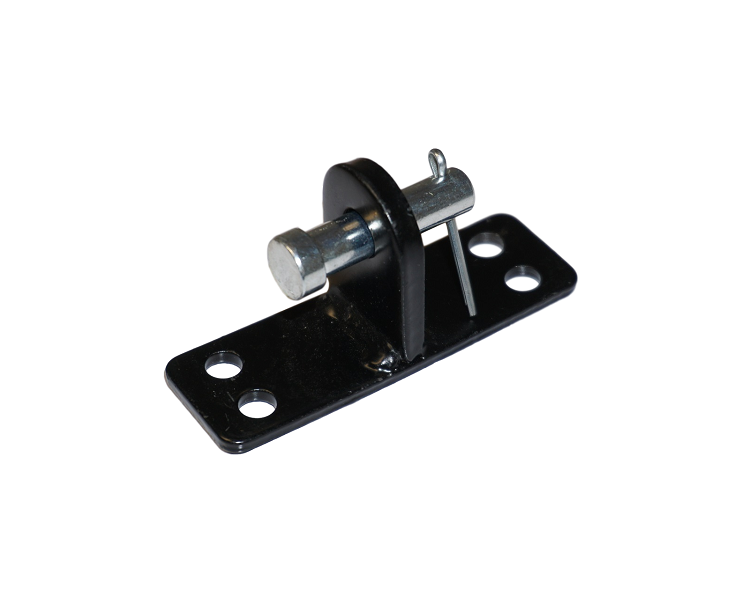

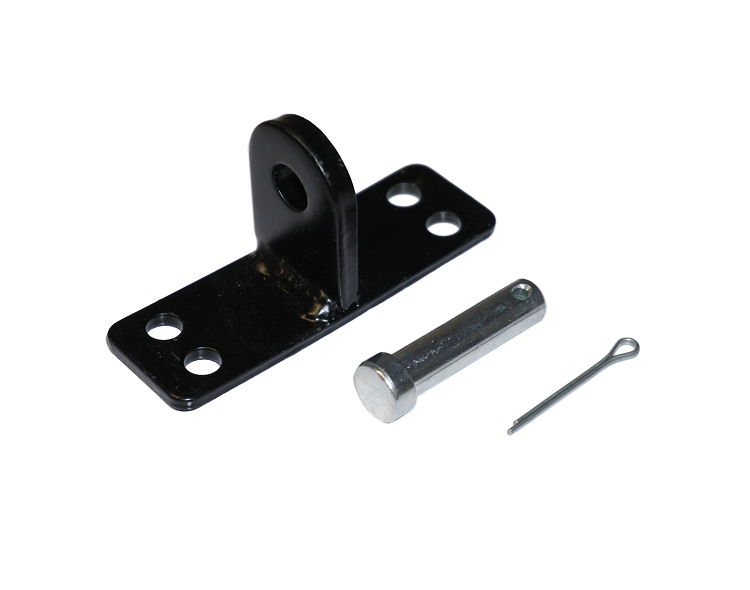

The T-shape mounting bracket will fit both ends of our PA-04 and PA-TS1 actuator models and the motor end only of our PA-03 and PA-18 actuator models. The light weight and small design can add 180 degree rotation to your application without adding a significant amount of overall length. The price listed is for a single bracket (including the pins).

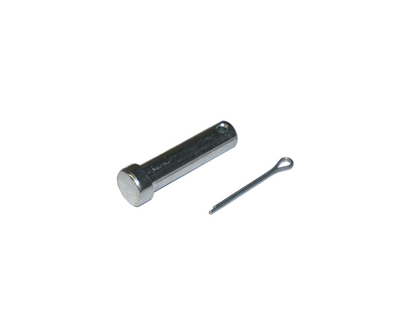

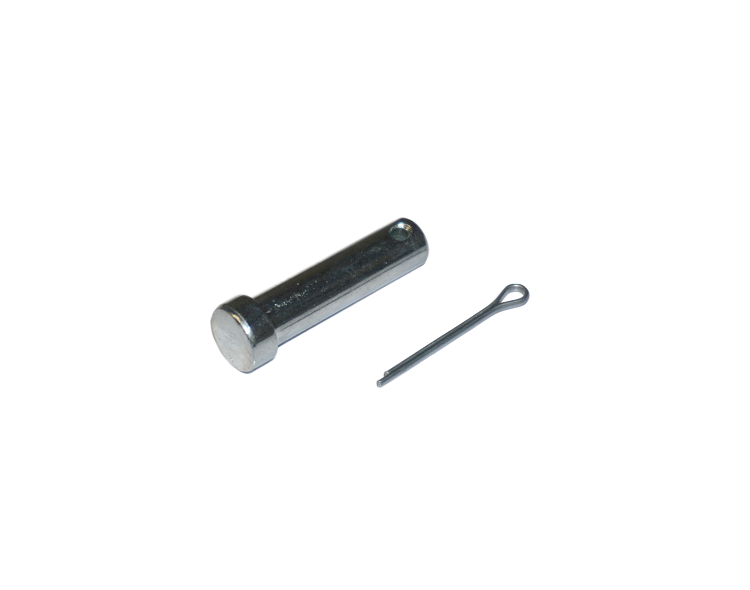

Each mounting bracket comes with all required pins to attach to the actuator as well as to your application.
The T-shape mounting bracket will fit both ends of our PA-04 and PA-TS1 actuator models and the motor end only of our PA-03 and PA-18 actuator models. The light weight and small design can add 180 degree rotation to your application without adding a significant amount of overall length. The price listed is for a single bracket (including the pins).
Each mounting bracket comes with all required pins to attach to the actuator as well as to your application.
