High Precision
Compact size
Low Current Draw

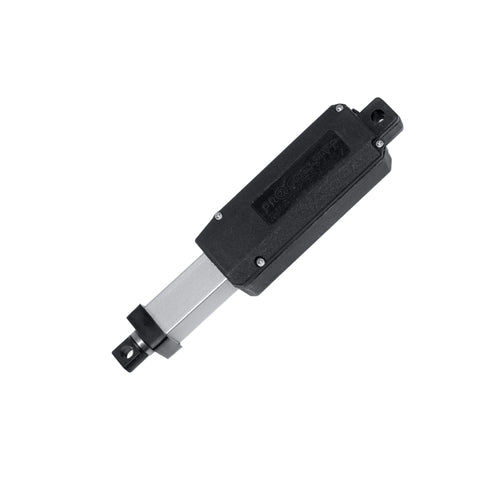

Micro Linear Actuator

Model PA-07
Voltage 12 VDC
Stroke 0.5-12 inch
Force 5 lbs
$88.00 CAD

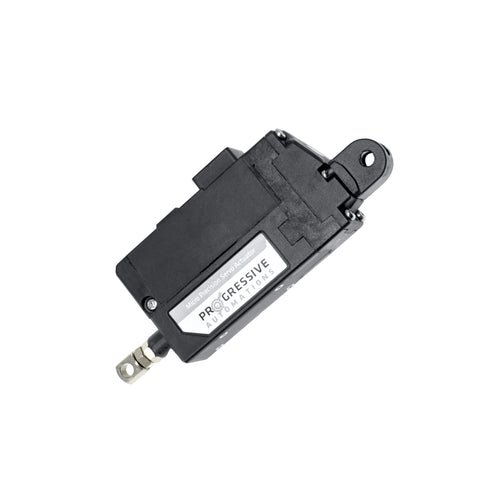

Micro Precision Servo Actuator - TTL/PWM

Model PA-12-T
Voltage 7.4 VDC, 12 VDC
Stroke 1.06 inch
Force 1.34-2.69 lbs
$103.00 CAD

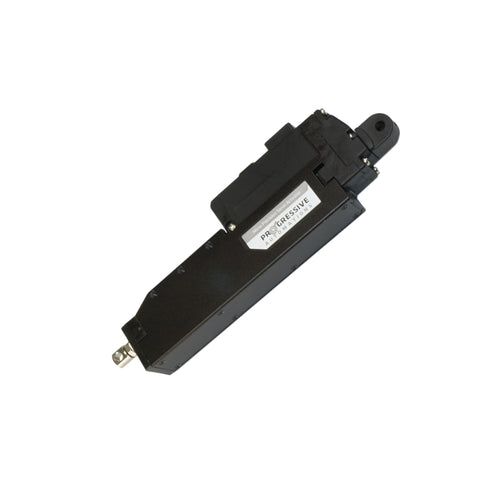

Micro Precision Servo Actuator - RS-485

Model PA-12-R
Voltage 12 VDC
Stroke 1.06-2.2 inch
Force 3.82-22.48 lbs
Starting from i PricingThe final pricing depends on the product specifications and the quantity ordered. The more you buy, the cheaper it is. See details at the product page. $229.00 CAD
New

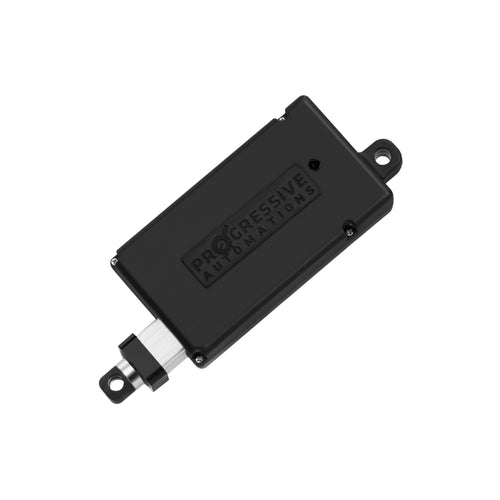

IP65 Micro Linear Actuator

Model PA-MC1
Voltage 12 VDC
Stroke 0.5-8 inch
Force 8-39 lbs
$81.00 CAD
Voltage
Voltage
Stroke
Stroke
Force
Force
IP Rating
IP Rating
Feedback
Feedback
Micro Linear Actuator

PA-07

12 VDC
0.5 - 12 inch
5 lbs
IP66
Micro Precision Servo Actuator - TTL/PWM

PA-12-T

7.4 VDC , 12 VDC
16 inch
1.34 - 2.69 lbs
IP54
Micro Precision Servo Actuator - RS-485

PA-12-R

12 VDC
16- 2.20 inch
3.82 - 22.48 lbs
IP54
IP65 Micro Linear Actuator

PA-MC1

12 VDC
0.5 - 8 inch
8 - 39 lbs
IP65

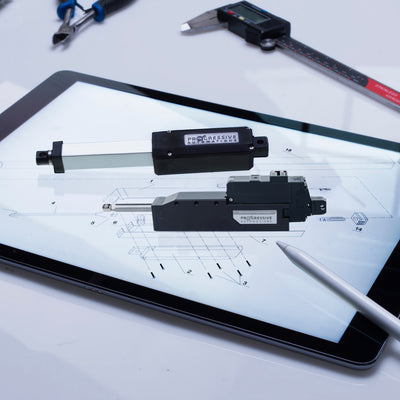

Our micro linear actuators are defined by their small design, which makes them ideal for projects with limited spacing. They are quite popular thanks to their versatility and the range of applications they are suited to. Our micro actuators are known for their precision control options and force capabilities which, while impressive compared to their size, are perfect for those who require it minimally. Popular applications of micro linear actuators include the robotics and automotive industry, where these actuators can be seamlessly integrated into their interior and exterior systems. Most of our products are extremely easy to install and maintain as plug-and-play solutions, with our PA-07 micro linear actuators being no exception. For communicating with our PA-12 micro linear actuators, we offer RS-485 and TTL/PWM communication options to ensure high precision through feedback.

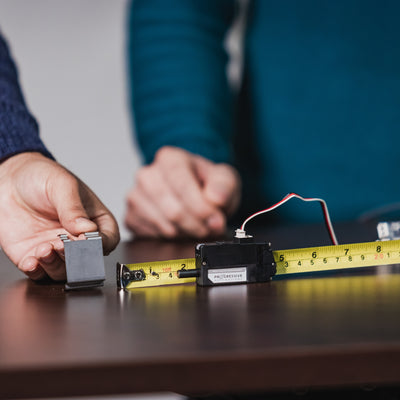

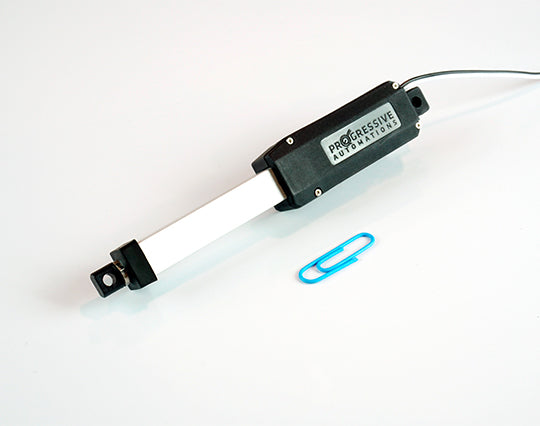

Compact Size

With stroke length options measuring from 0.5” to 12” our micro actuators can fit into the most limited of spaces without compromising on performance. Our servo motor options have dynamic force ratings that can reach up to 22.48lbs

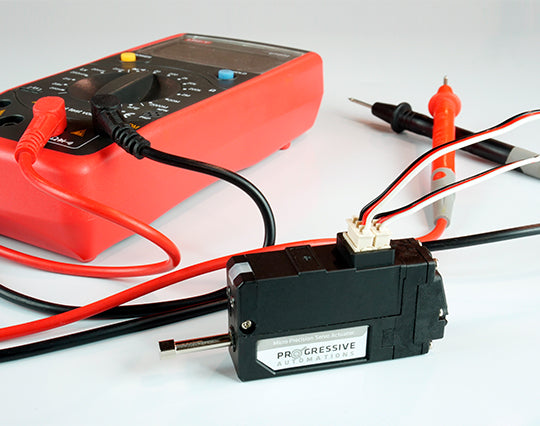

Low Current Draw

These actuators have a low current draw, allowing users to install more units to a single control box without any additional equipment.

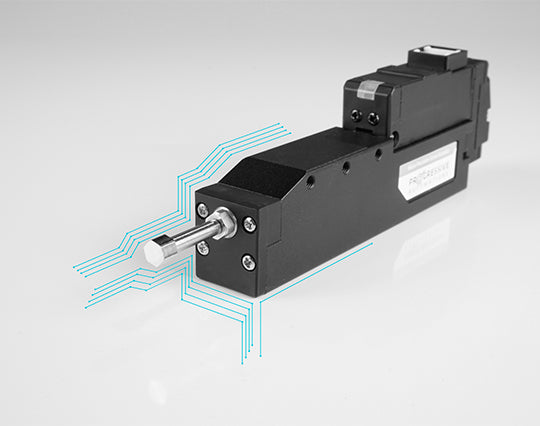

High Precision

Thanks to the servo motor inside the PA-12-R and PA-12-T, their precision accuracy goes up to 100um. Communications such as RS-485 or TTL/PWM give you full control over their position, speed, and synchronized movement.

Where Can I Find Additional Information on Your Products?

We have data sheets, user manuals, 3D models, wiring diagrams and more in our Resources and Learning Center sections.

Can I Use Your Actuators to Replace The One That I Already Have?

Yes, our actuators can be seamless replacements for most applications. Please contact us if you are unsure of which actuator to opt for. You will need to know the voltage rating, force rating, and stroke length needed before we can give a recommendation for a replacement actuator.

Can I Use My Own Power Supply as a Source For My Actuators?

Yes. However, it is important to have sufficient voltage and current to be applied to your actuator. Here is an article that may help you further: How to Choose the Right Power Supply for your Linear Actuator

Do You Have Sample Coding I Could Use?

As we are primarily manufacturers and distributors, we have a limited amount of sample codes available. While we cannot provide specific coding for your application, we do have a growing list of sample Arduino codes. To access these sample codes, please click here.

Are All of Your Control Boxes Compatible With All Of Your Linear Actuators?

No. However, we have a large variety of control boxes to choose from for each actuator. Alternatively, you may also use rocker switches as a form of motion control.

Can I Use My Own Control Box?

Yes, however, you need to ensure your control box can provide sufficient current draw and compatible voltage. Otherwise, you risk damaging your actuator(s).

Can I Get 3D CAD Models for My Linear Actuator?

Please click here for a list of 3D CAD models available.
