110 VAC - 24 VDC - 3-Sync Hall Effect Control Box with Presets

110 VAC - 24 VDC - 3-Sync Hall Effect Control Box with Presets

Model: FLTCON-3

Low stock
Ships within 24 hours
Volume Discount
1-6 units $256.25 CAD
7-9 units $243.44 CAD
10–19 units $230.63 CAD
20–49 units $205.00 CAD
Regular price $256.25 CAD
Regular price Sale price $256.25 CAD
Sale Sold out
IMPORTANT: You must fill out this form if you're purchasing an FLTCON, in order to confirm your programming requirements. Failure to complete this form may result in a delay to your order.
  • Linear Actuator Calculator
  • Get Free Actuator Guide
View full details
Description
FLTCON-3 Specifications

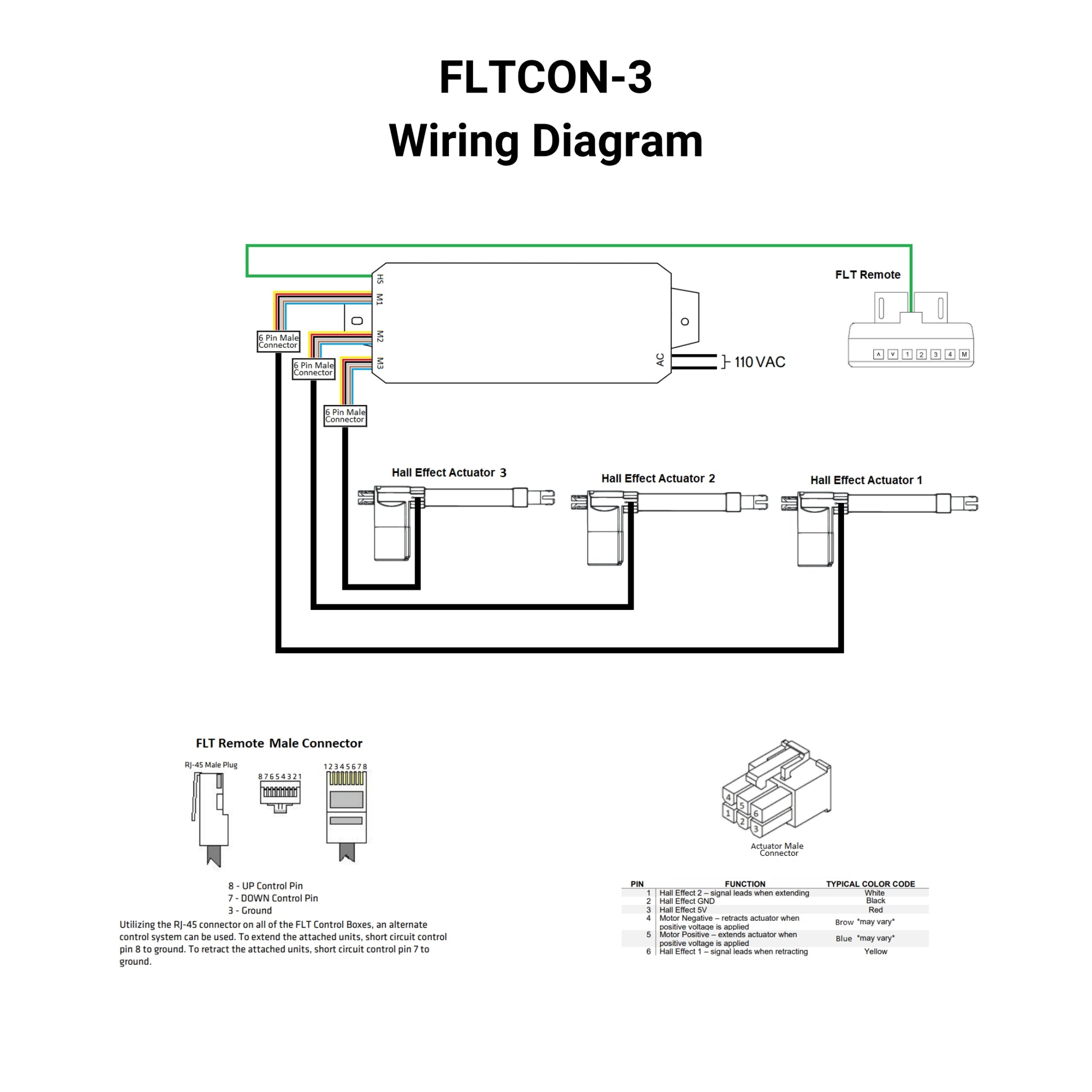

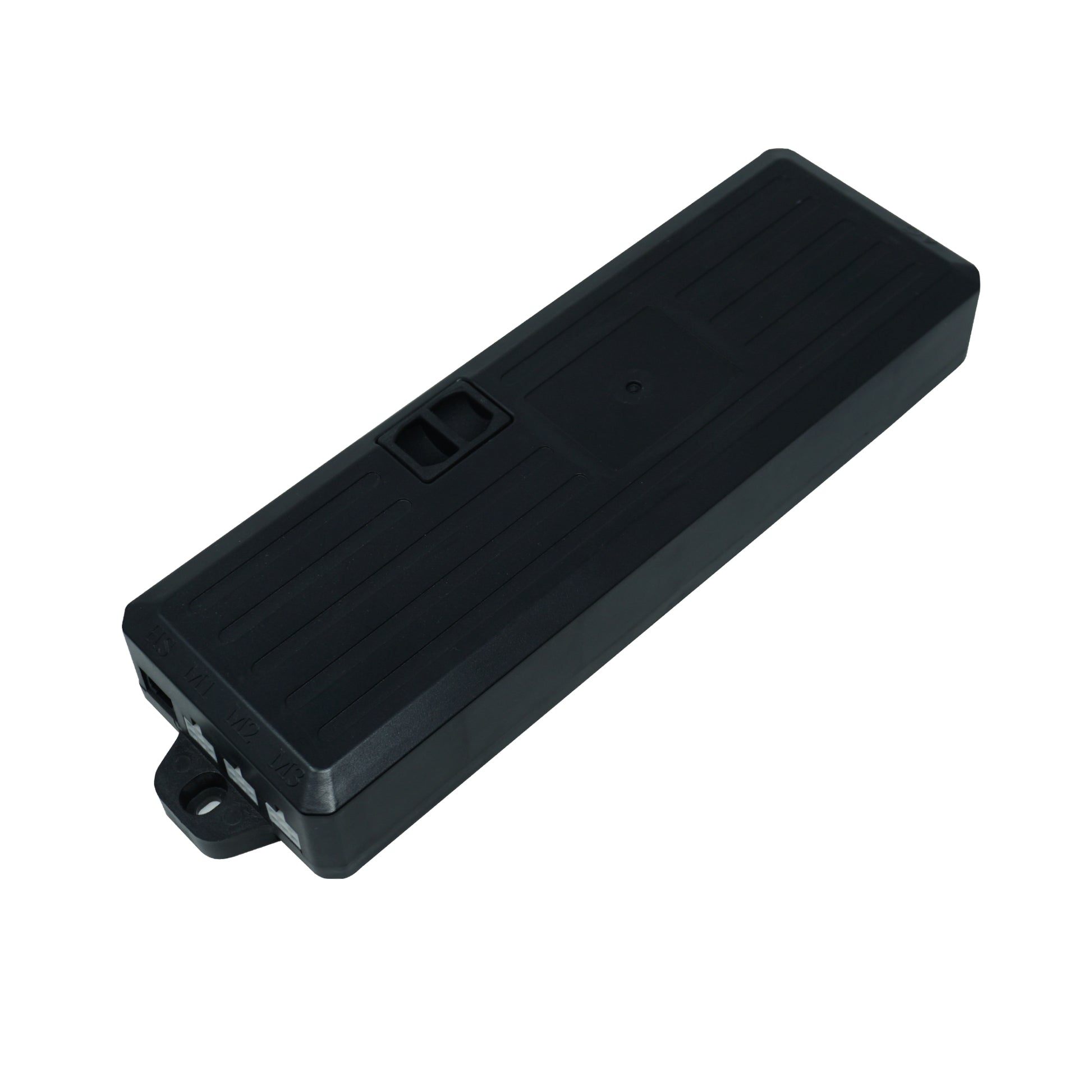

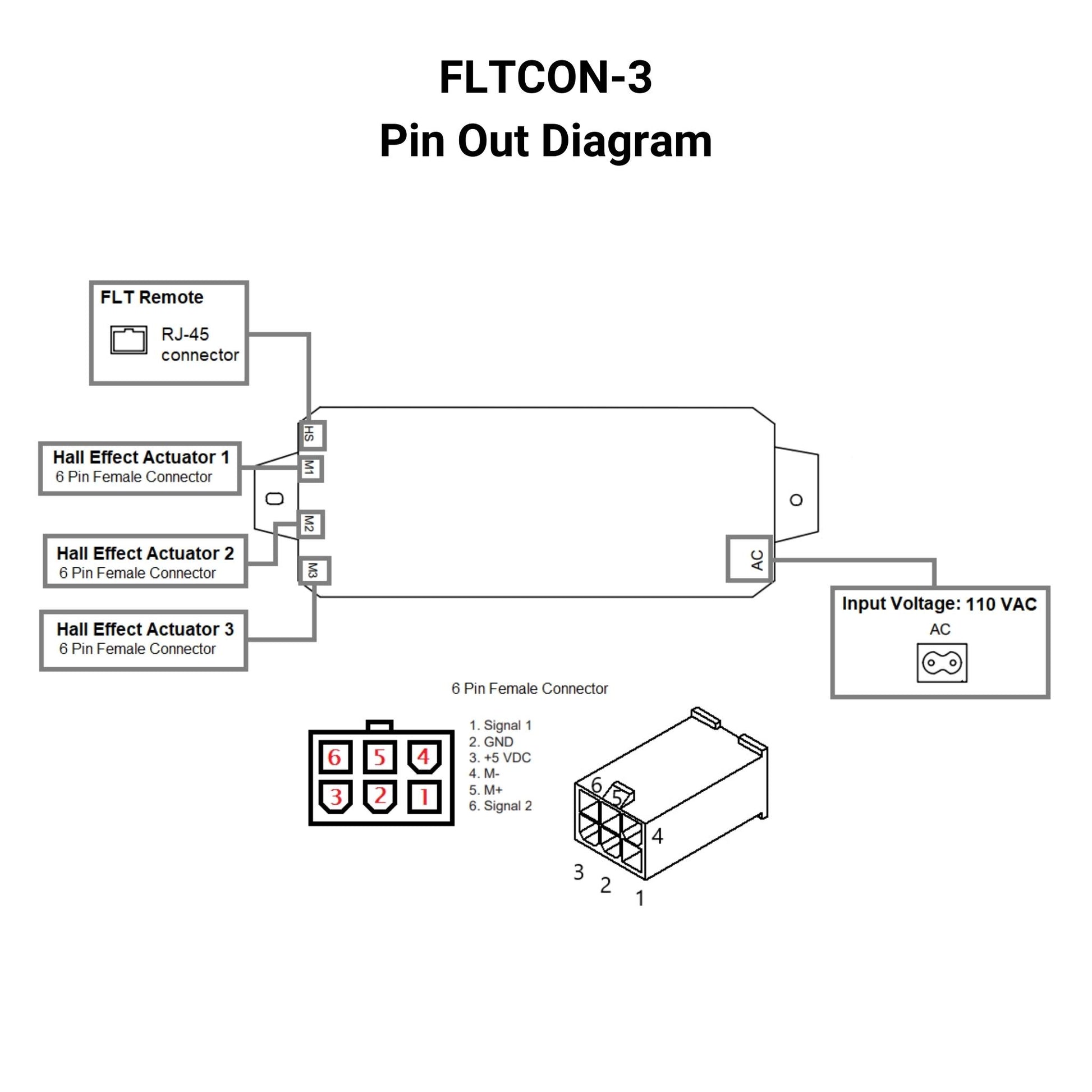

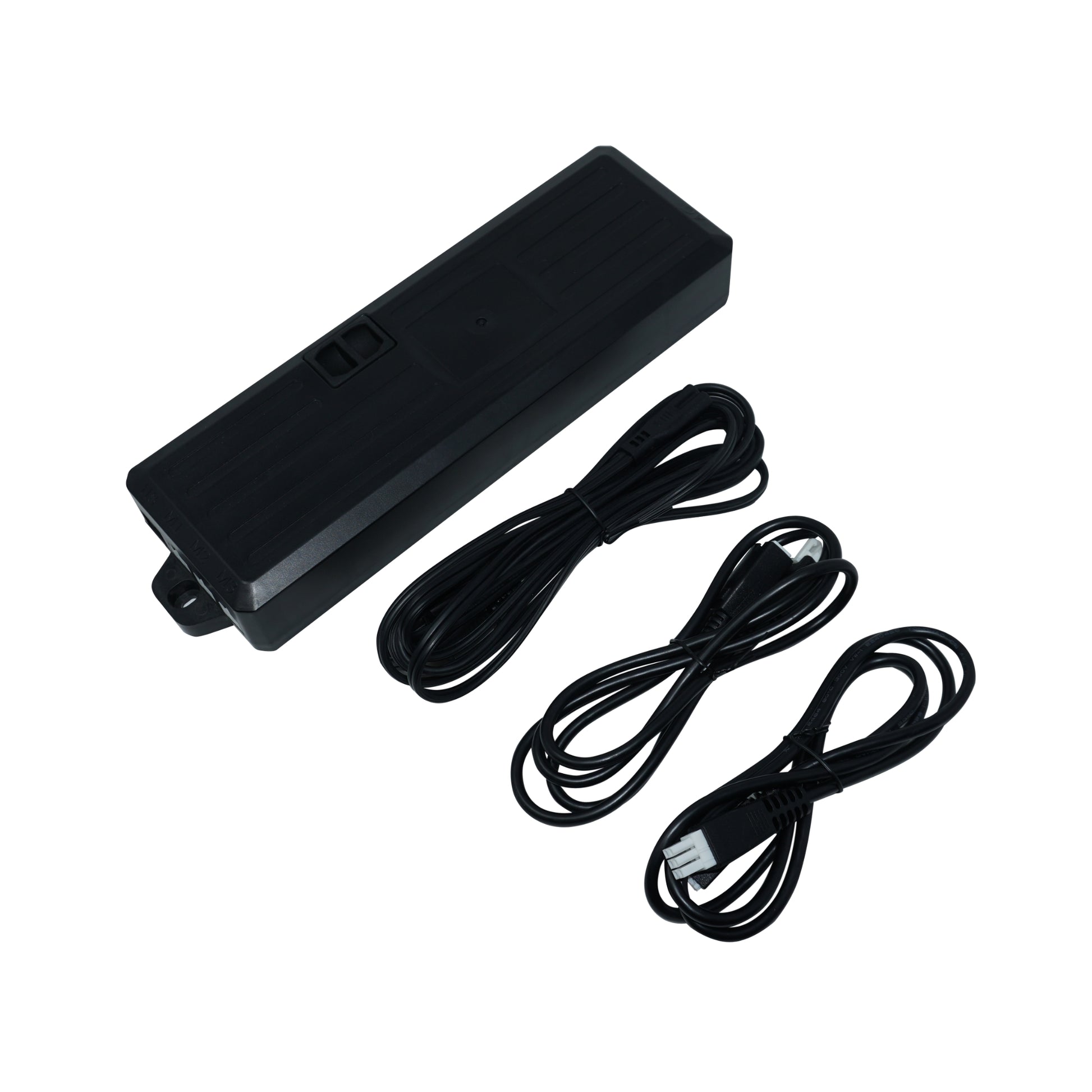

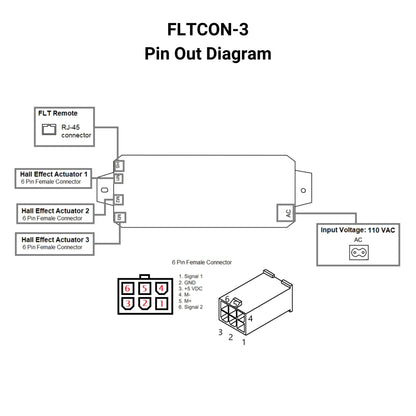

The FLTCON-3 is a hall effect control box designed to function with three identical 24 VDC hall effect linear actuators or lifting columns. Our PA-03, PA-04, and PA-18 linear actuators can be customized to have a hall effect feedback sensor as well as a 24VDC motor. Our PA-04-HS units are readily available in 24VDC and come standard with the hall effect sensor required for the FLTCON series control boxes.

Using the wired remote with presets, the user can extend, stop, and retract the linear actuators in sync, as well as program up to 4 preset positions with the RT-11 handset remote (sold separately). It can also act as a replacement control box for our FLT-05 and FLT-09 table lifts. Please contact our sales representatives on how to replace an existing control box for these models.

The FLTCON series does not include a wired remote, please see our Hand Remote section to choose the most suitable remote for the application.

Please contact sales@progressiveautomations.ca for programming requirements for this product.
Overview
FLTCON-3 Specifications

The FLTCON-3 is a hall effect control box designed to function with three identical 24 VDC hall effect linear actuators or lifting columns. Our PA-03, PA-04, and PA-18 linear actuators can be customized to have a hall effect feedback sensor as well as a 24VDC motor. Our PA-04-HS units are readily available in 24VDC and come standard with the hall effect sensor required for the FLTCON series control boxes.

Using the wired remote with presets, the user can extend, stop, and retract the linear actuators in sync, as well as program up to 4 preset positions with the RT-11 handset remote (sold separately). It can also act as a replacement control box for our FLT-05 and FLT-09 table lifts. Please contact our sales representatives on how to replace an existing control box for these models.

The FLTCON series does not include a wired remote, please see our Hand Remote section to choose the most suitable remote for the application.

Please contact sales@progressiveautomations.ca for programming requirements for this product.
Product Specifications
Input Voltage:
110 VAC
Unit Weight:
2.05 lbs
Output Power:
24 VDC
Current:
8A
Size:

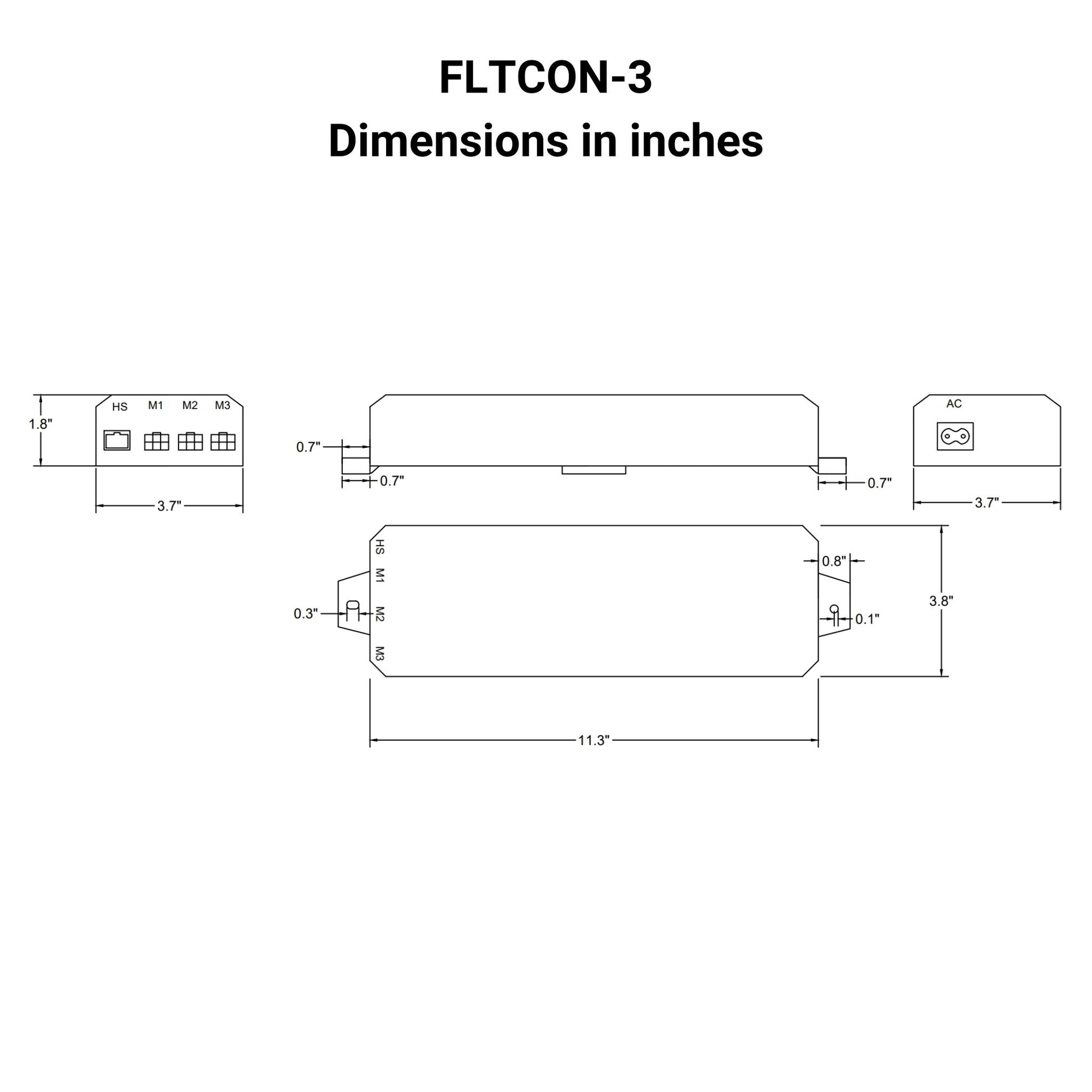

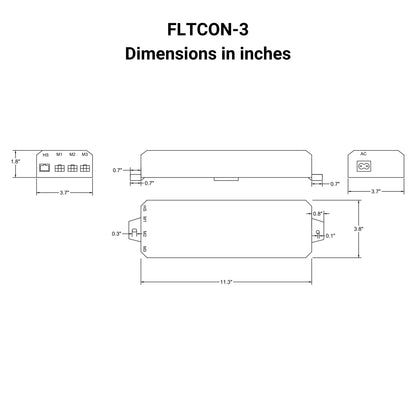

11.3" x 1.8" x 3.8"
18 Months
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Read More

Data Sheets

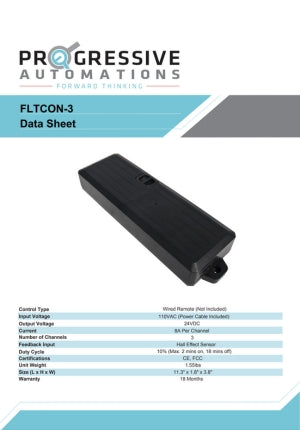

FLTCON-3 Manual

User Manual for FLTCON-3

View
Video & Articles
Videos
Support
FAQ
How Can I Determine Which Progressive Automations Linear Actuator is Best Suited for My Application?

Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.

What Is Duty Cycle and How Is It Calculated?

Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)

For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.

What Does Stroke Mean? How Am I Supposed to Know Which Size to Choose?

Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.

How Do I Know Which Force Rating Is Right for My Application?

We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator

Can I Synchronize My Linear Actuators?

Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.

Controlling Multiple Linear Actuators at the Same Time

How To Utilize FLTCON-2 & FLTCON-4 Control Boxes?

What Are the Control Box Options For My Actuator?

The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.

Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.

What Is Backdriving? -- What Does Dynamic and Static Load Ratings Mean? -- What Is Lateral Loading?
What Is Backdriving?

Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.

What Does Dynamic and Static Load Ratings Mean?

Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.

What Is Lateral Loading?

Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
