Mini Industrial Linear Actuator with Hall Effect Feedback
Model: PA-09-HALL
The PA-09-HALL is an IP66 mini industrial linear actuator (330 lbs) with a stainless steel rod and a Hall effect sensor for positional feedback — synchronization, memory presets, and precise control in rugged installations.
Couldn't load pickup availability
Overview
[PA-09-HALL]

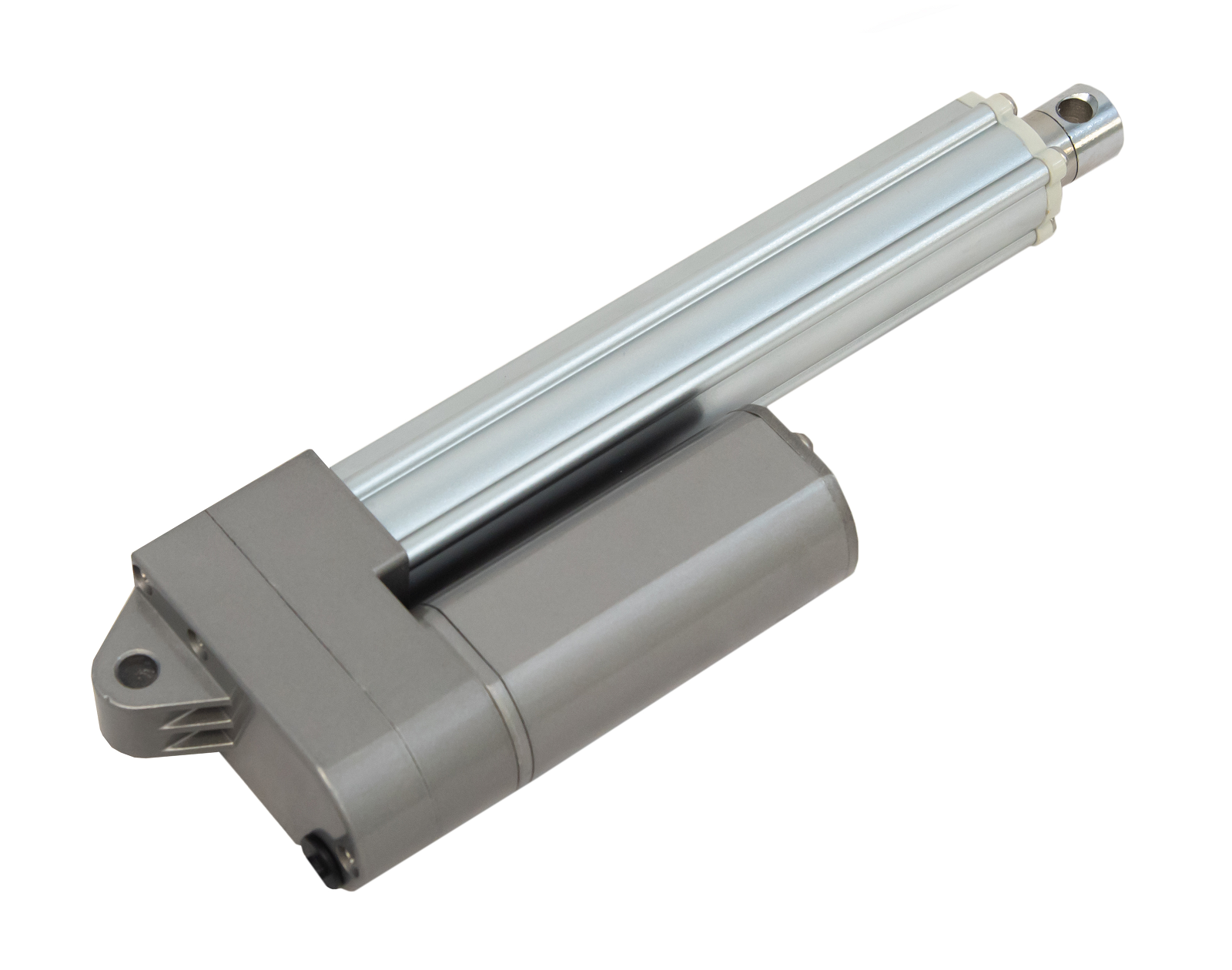

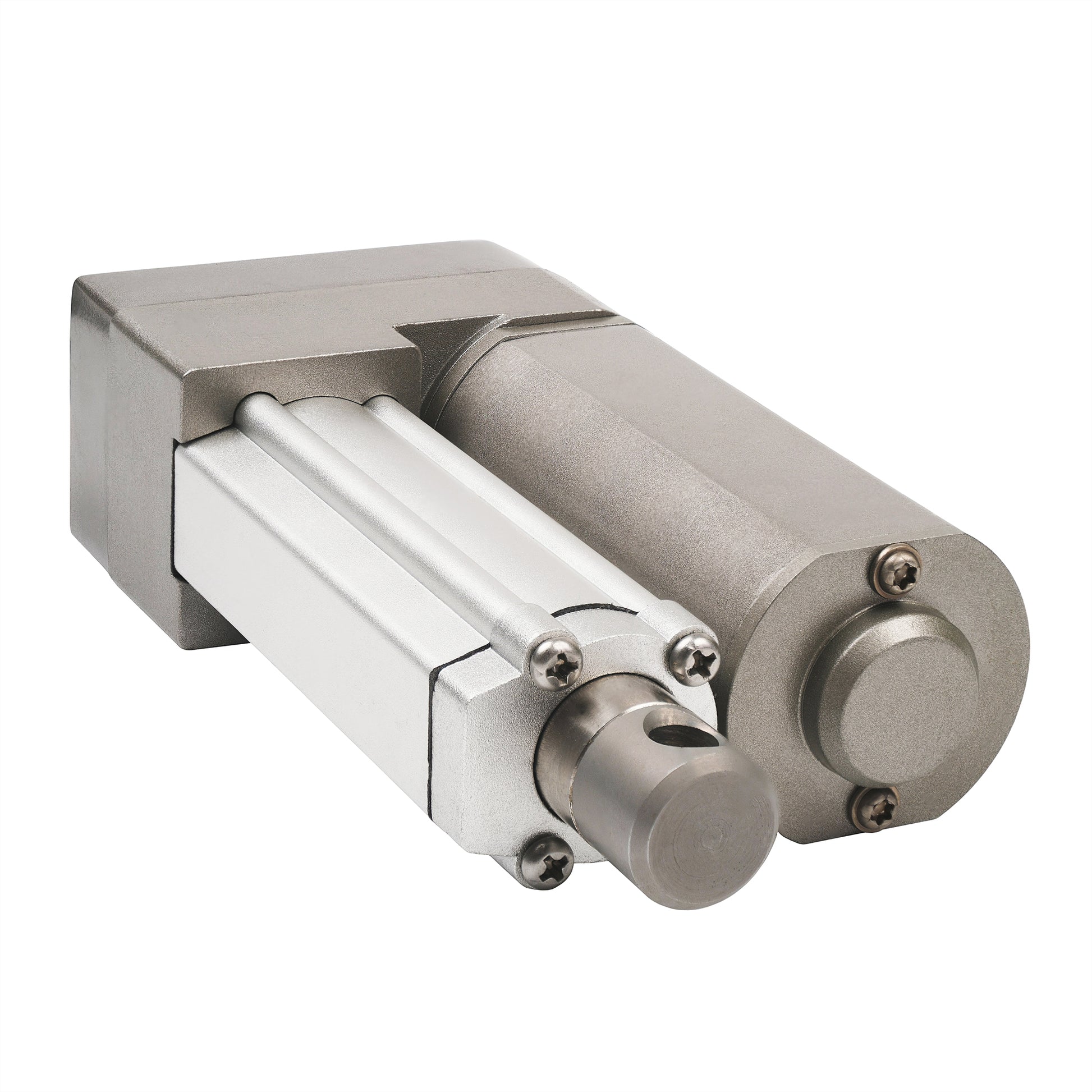

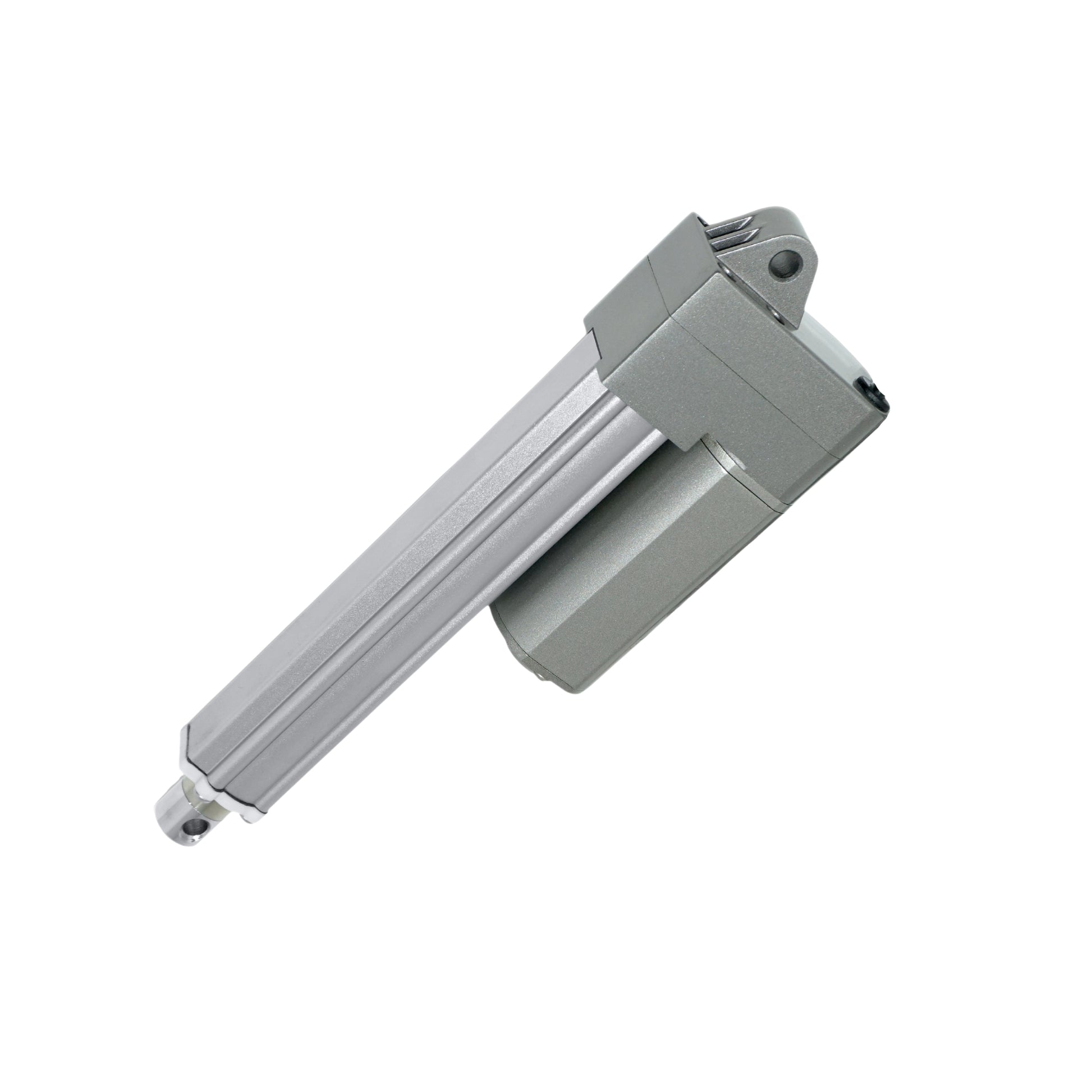

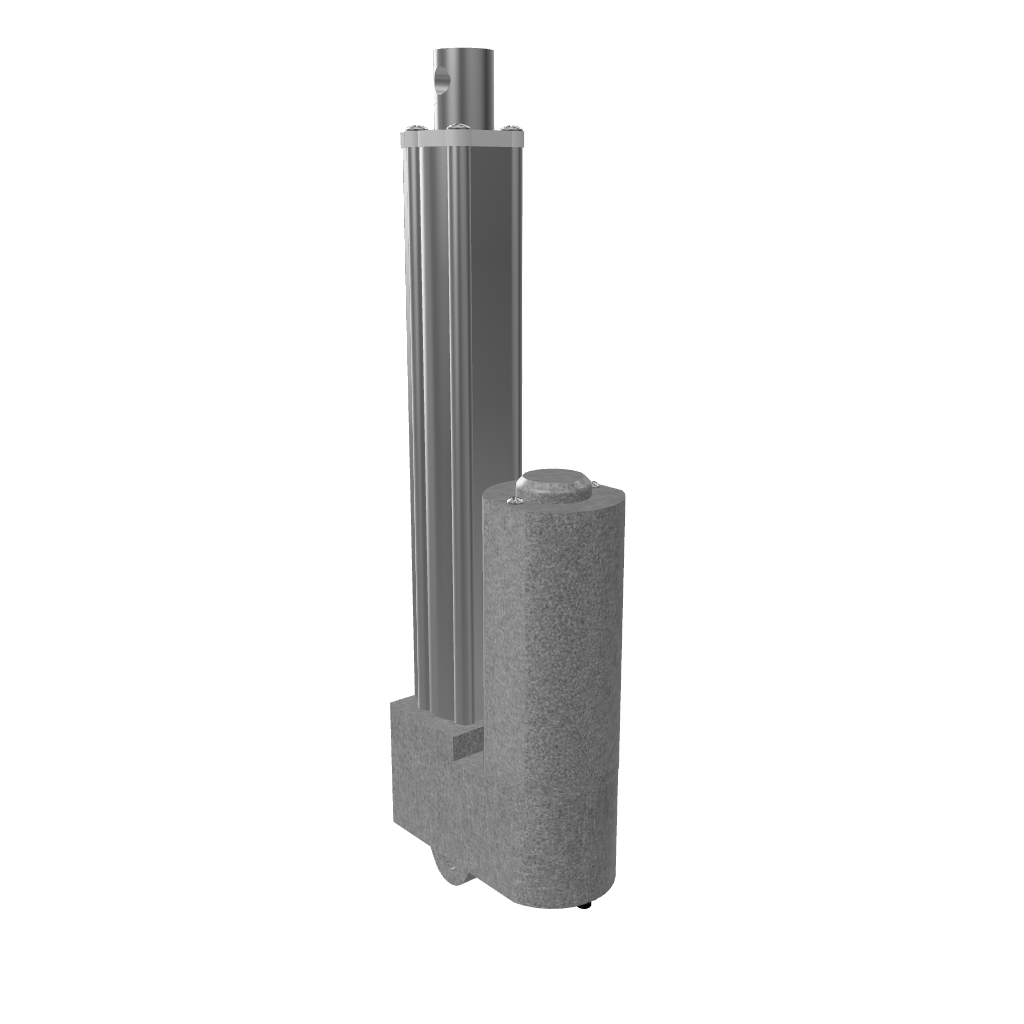

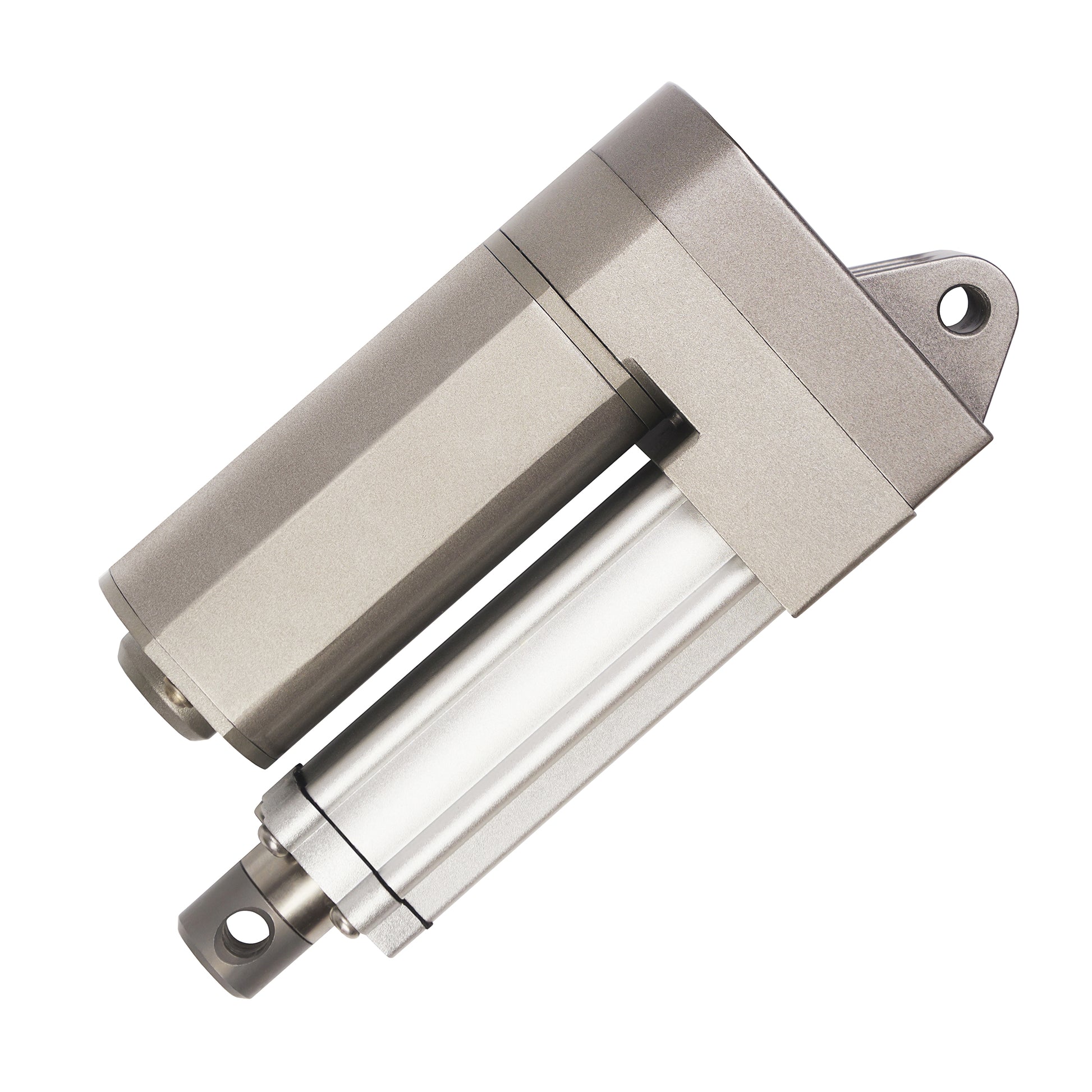

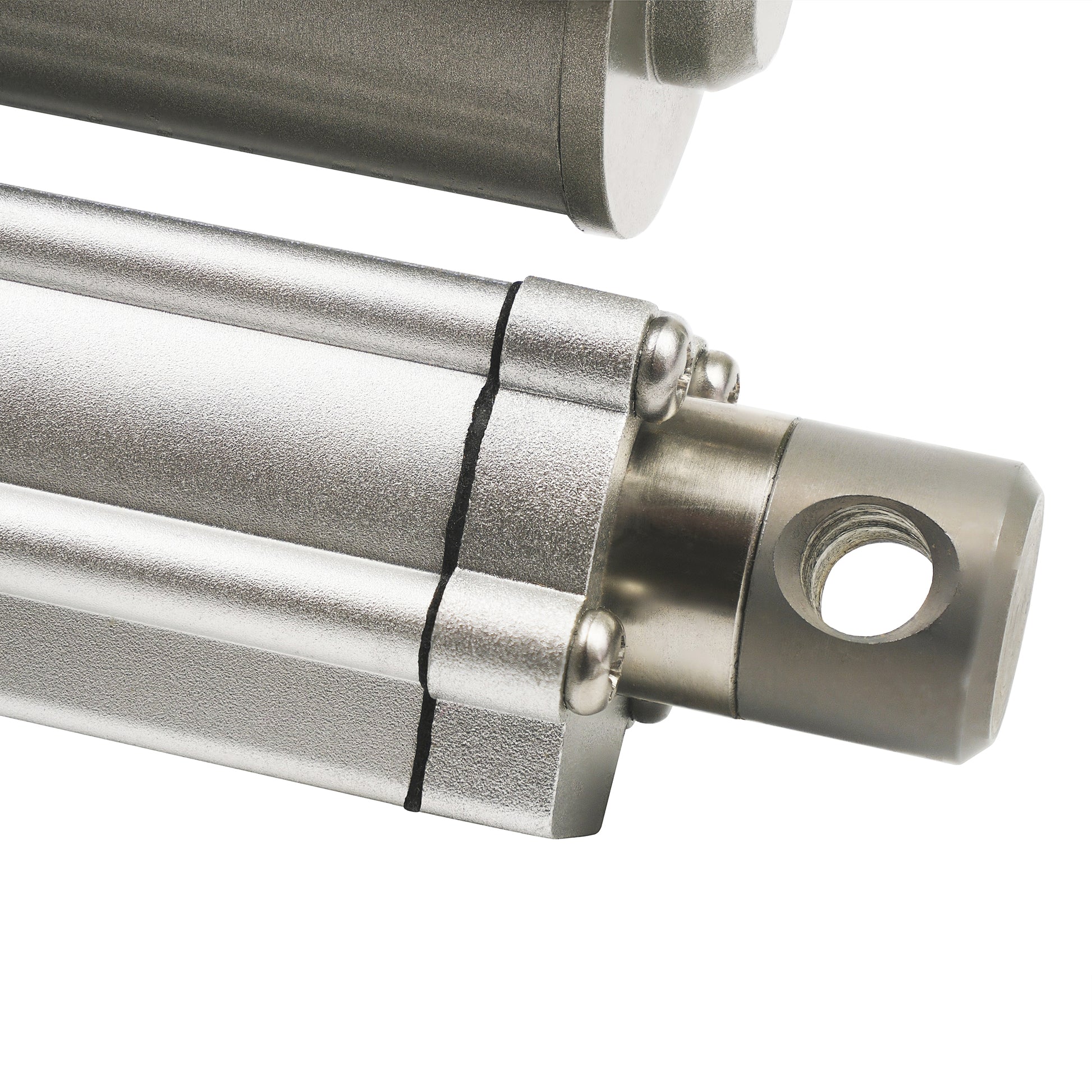

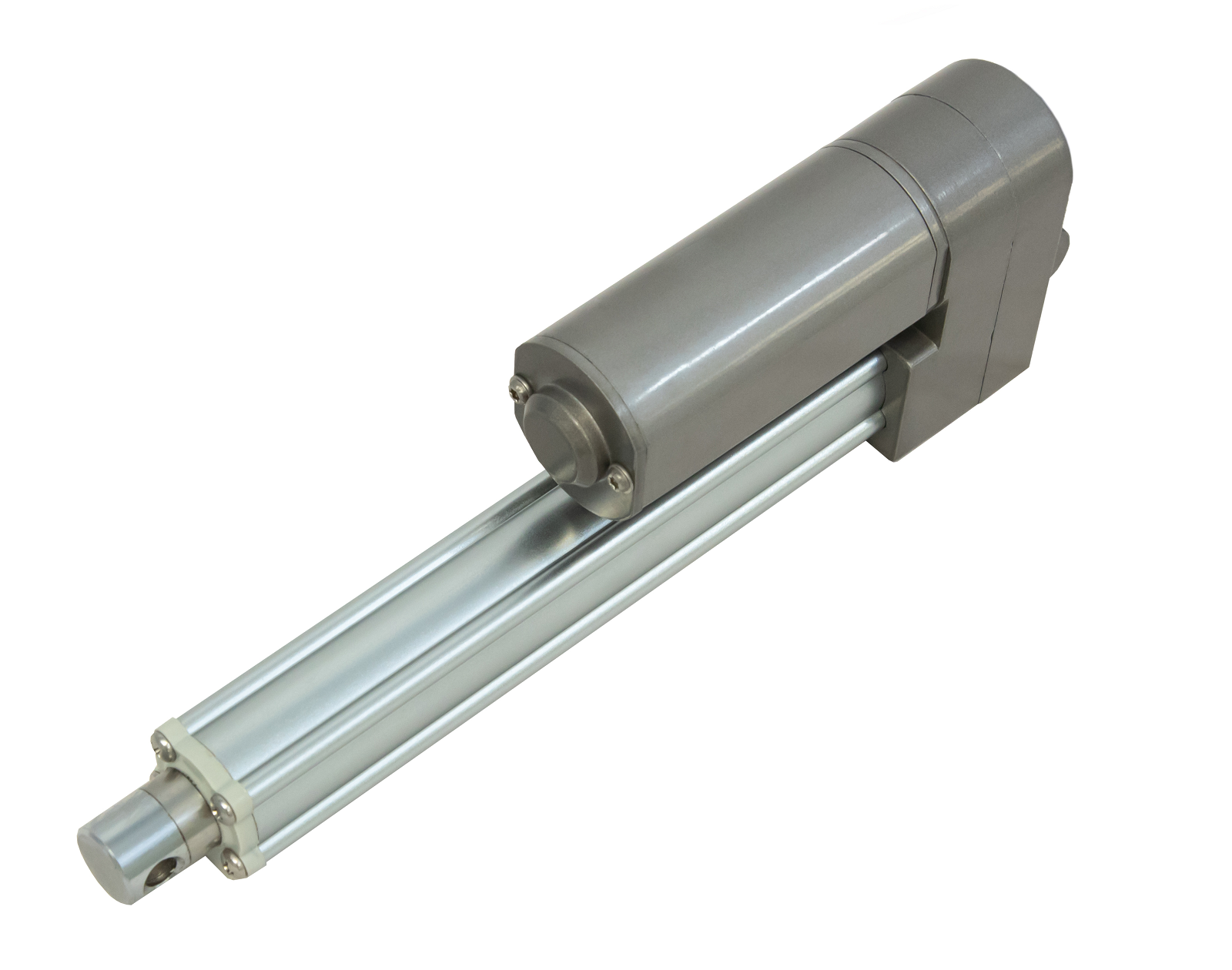

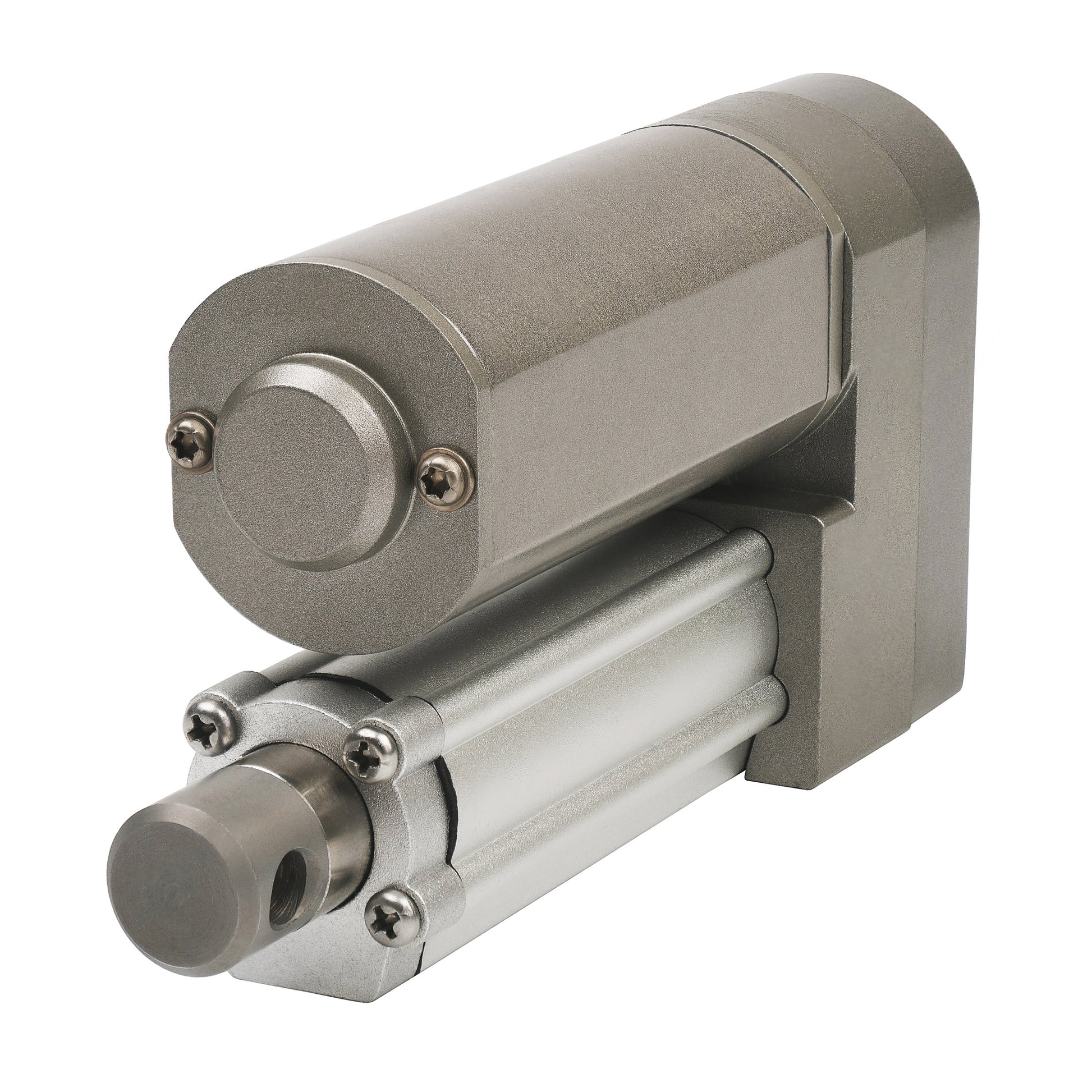

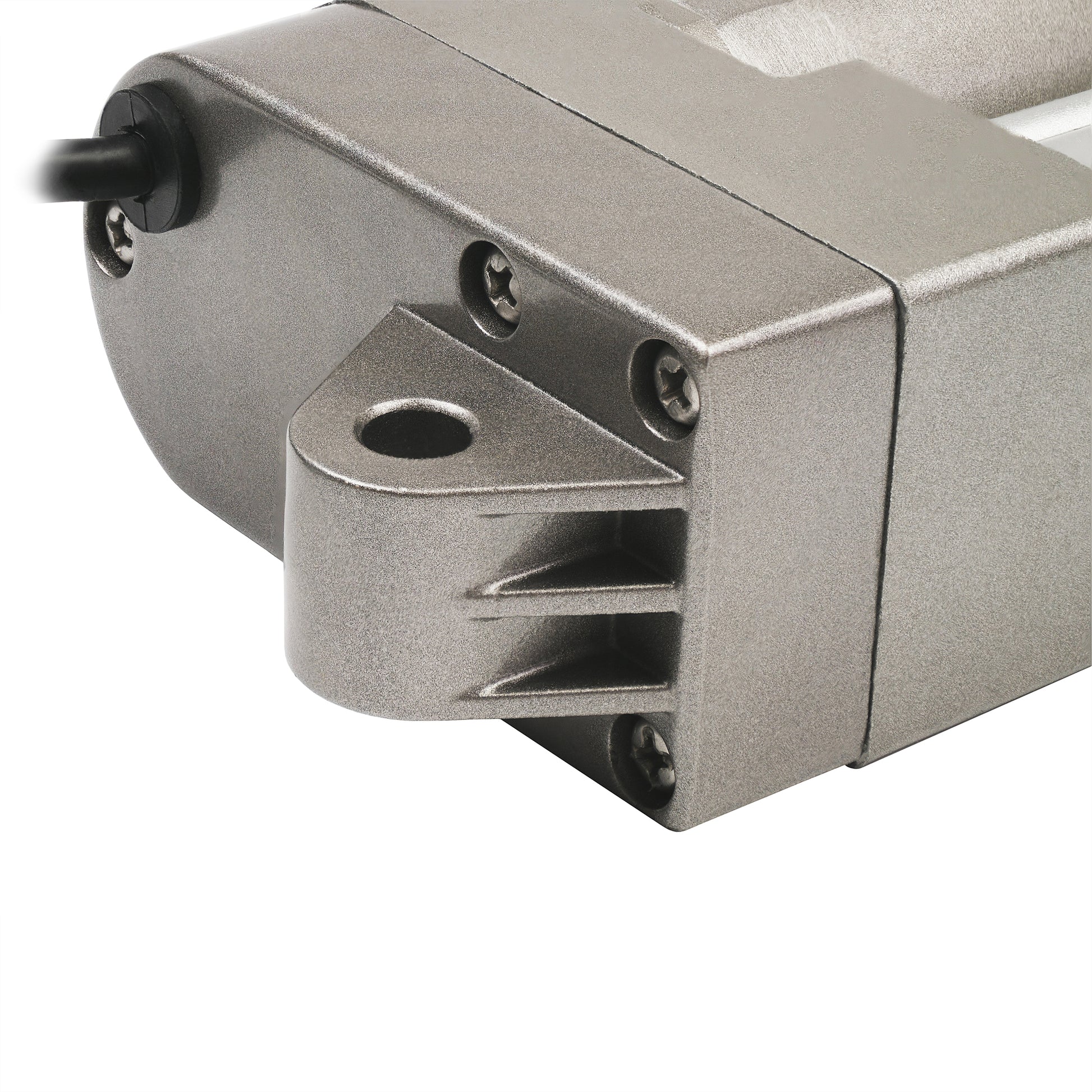

The PA-09-HALL Linear Actuator with Position Feedback combines the compact, high-force design of the PA-09 with integrated Hall Effect feedback for applications that require position-aware motion and synchronized control. A 6-Pin connector simplifies electrical integration, while the stainless steel stroke rod, aluminum alloy housing, and IP66 ingress protection provide durable performance in environments exposed to dust and water.
Technology
Specifications
The PA-09-HALL combines medium-force capabilities, low current draw, and Hall Effect position feedback in a compact electric linear actuator. This makes it well suited for automotive, home automation, and marine applications where compact size and position control are important.
Â
| Voltage | 12 VDC | 24 VDC |
| Dynamic Force | 330 lbs | 330 lbs |
| Static Force | 330 lbs | 330 lbs |
| Speed - No Load | 0.39"/sec | 0.39"/sec |
| Speed - Full Load | 0.27"/sec | 0.27"/sec |
| Current - No Load | ≤ 1.5 A | ≤ 0.6 A |
| Current - Full Load | ≤ 4 A | ≤ 3 A |

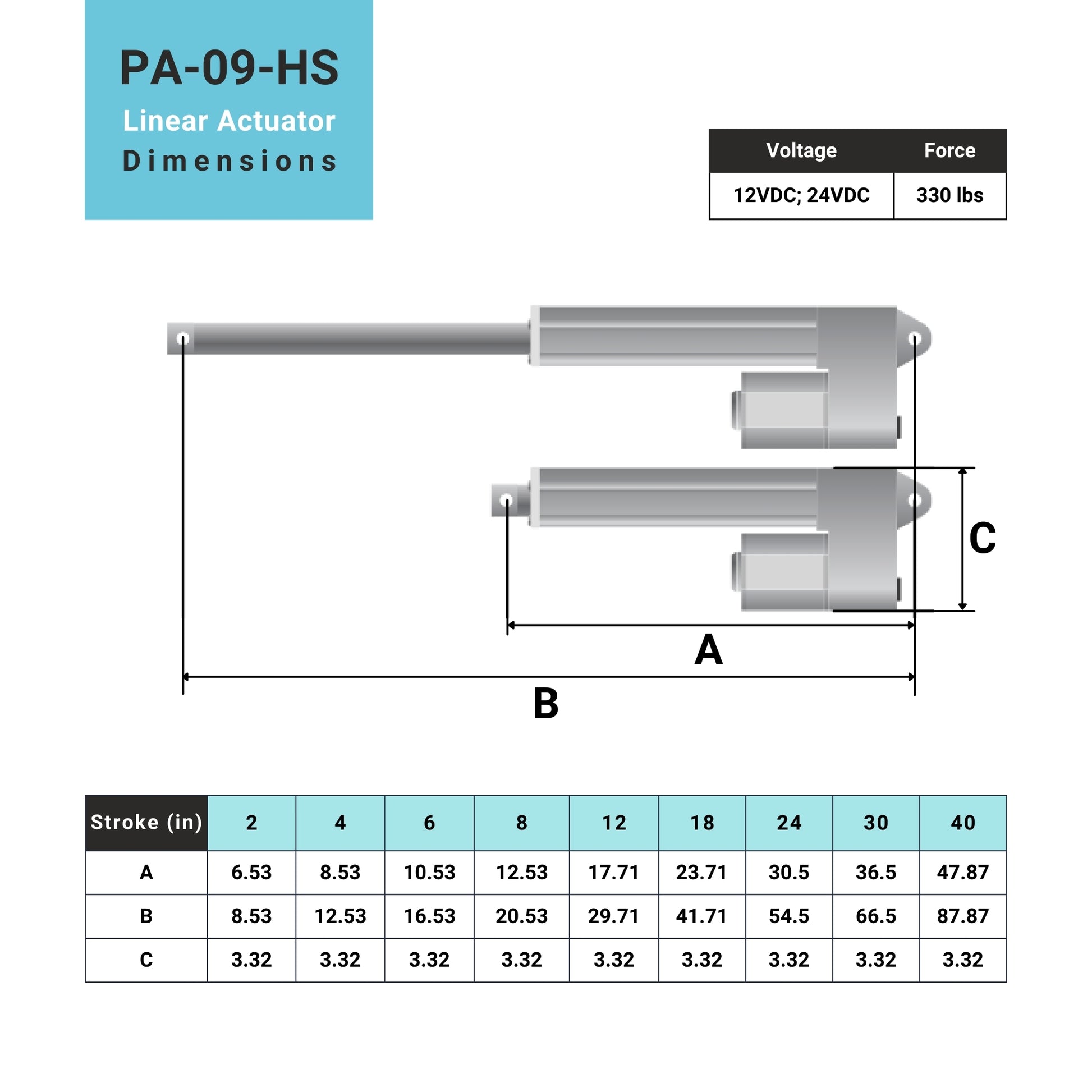

The PA-09-HALL Linear Actuator with Position Feedback is designed for straightforward integration into new and existing systems. Its 6-Pin connector, stainless steel stroke rod, aluminum alloy housing, IP66-rated construction, and integrated Hall Effect sensor support reliable operation across compact automation applications. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, feedback type, materials, stroke options, and other technical specifications.
Complete your PA-09-HALL system with compatible mounting brackets and Hall Effect control components. Refer to the compatibility tables to identify accessories suitable for your selected actuator configuration.
MOUNTING BRACKETS:
The PA-09-HALL is compatible with the BRK-09 and BRK-21 mounting brackets for the actuator ends. The BRK-10 is also available to provide additional mounting support on the stroke housing. Refer to the corresponding product pages for additional specifications and installation information.
CONTROL SYSTEMS:
The PA-09-HALL can be paired with compatible Progressive Automations Hall Effect sensor control boxes. These control systems can support synchronized movement for multiple actuators when properly configured. Refer to the compatibility tables to select the appropriate Hall Effect control box for your application, or visit our control systems page for additional options.
*For applications requiring multiple PA-09-HALL actuators to move synchronously at the same speed, please confirm compatibility with Progressive Automations before installation. Contact sales@progressiveautomations.com for additional support.
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Quality AssuredData Sheets

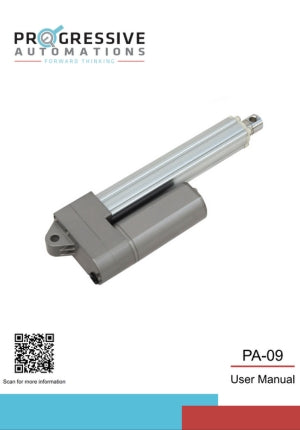

PA-09 User Manual

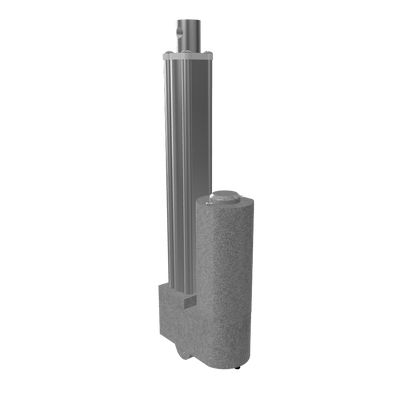

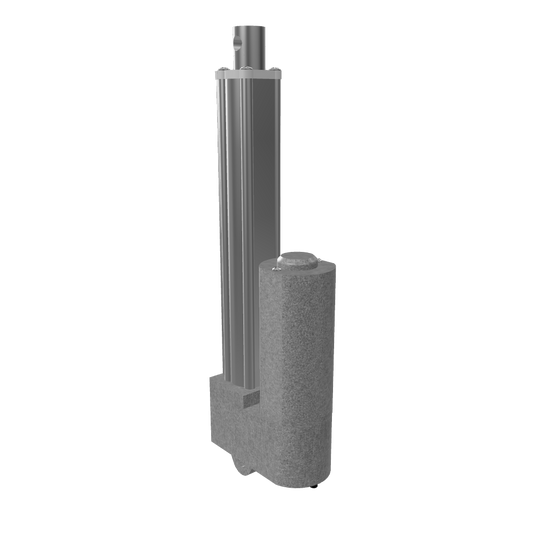

2D/3D models
Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.
Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)
For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.
Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.
We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator
Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.
The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.
Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.
Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.
What Does Dynamic and Static Load Ratings Mean?Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
What Is Lateral Loading?Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
