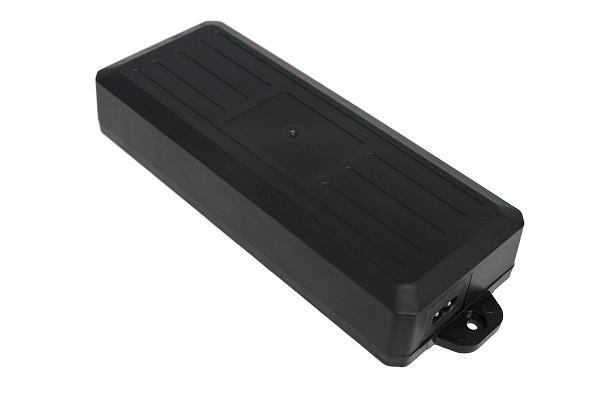

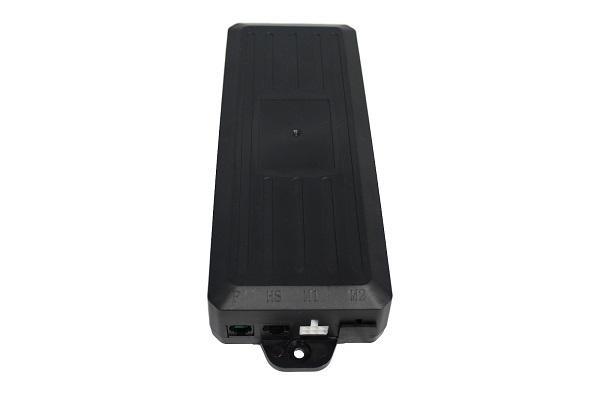

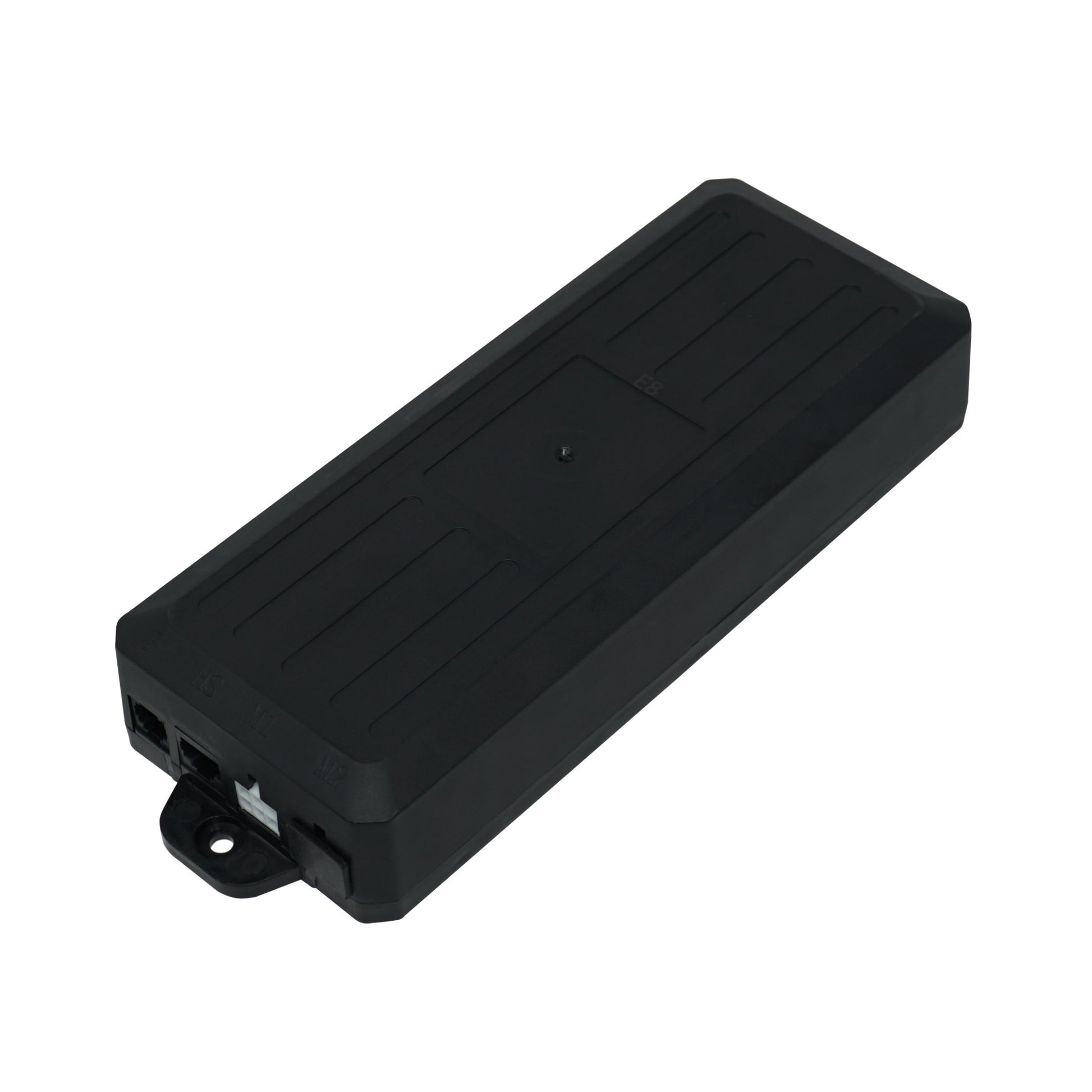

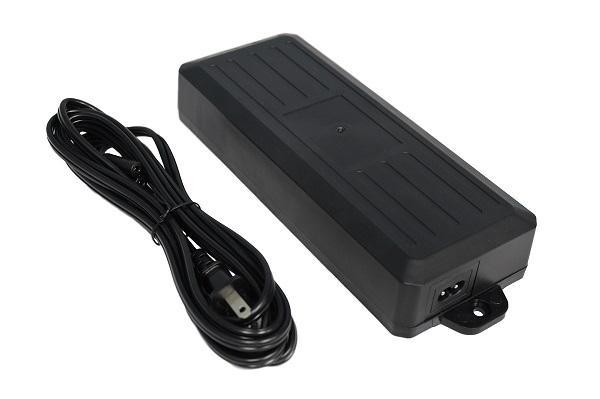

FLTCON-1 Hall Effect Lifting Column Control Box - 110 VAC Input, 24 VDC Output, 1 Channel

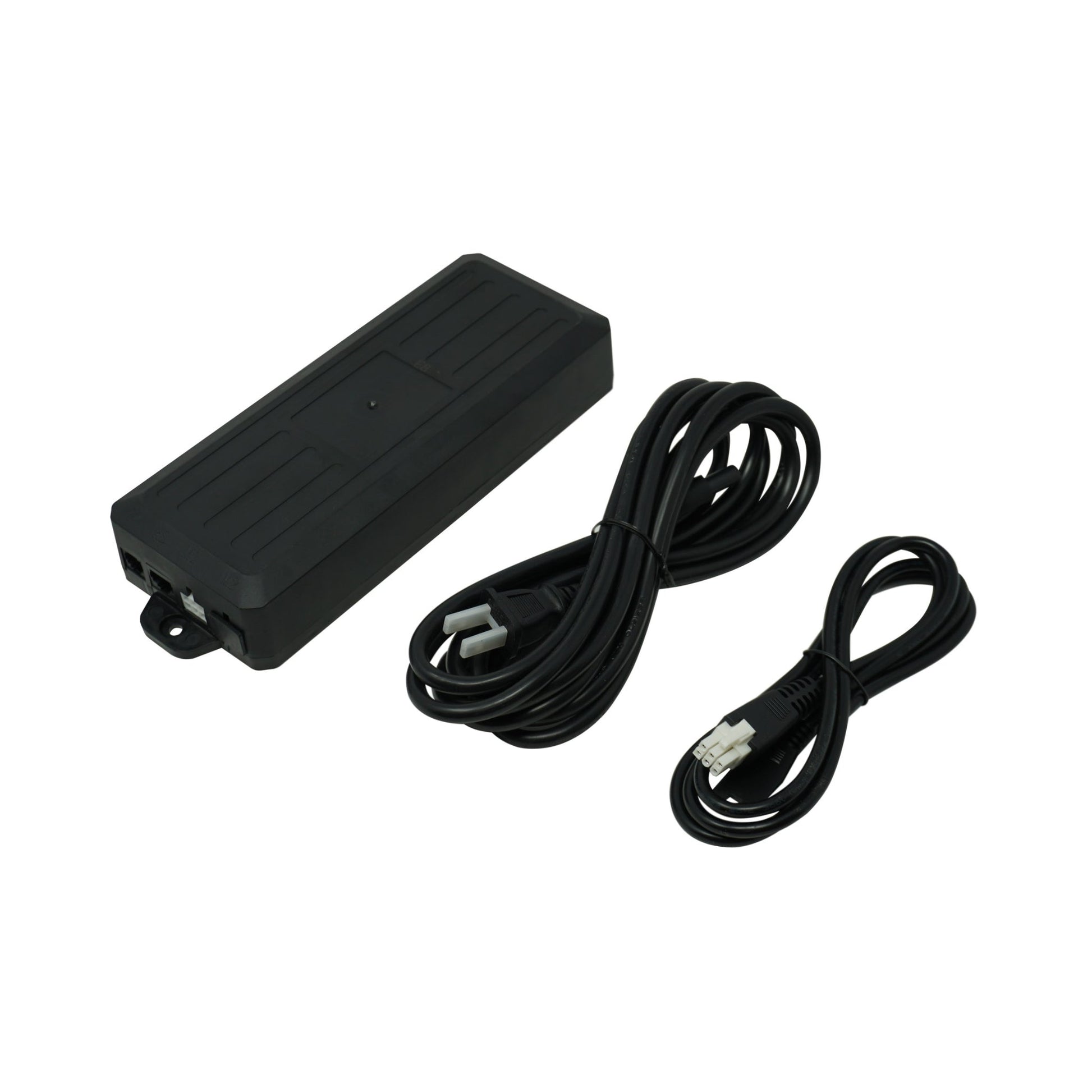

  • 110 VAC - 24 VDC - 1 Channel Hall Effect Control Box with Presets
  • 110 VAC - 24 VDC - 1 Channel Hall Effect Control Box with Presets
  • 110 VAC - 24 VDC - 1 Channel Hall Effect Control Box with Presets

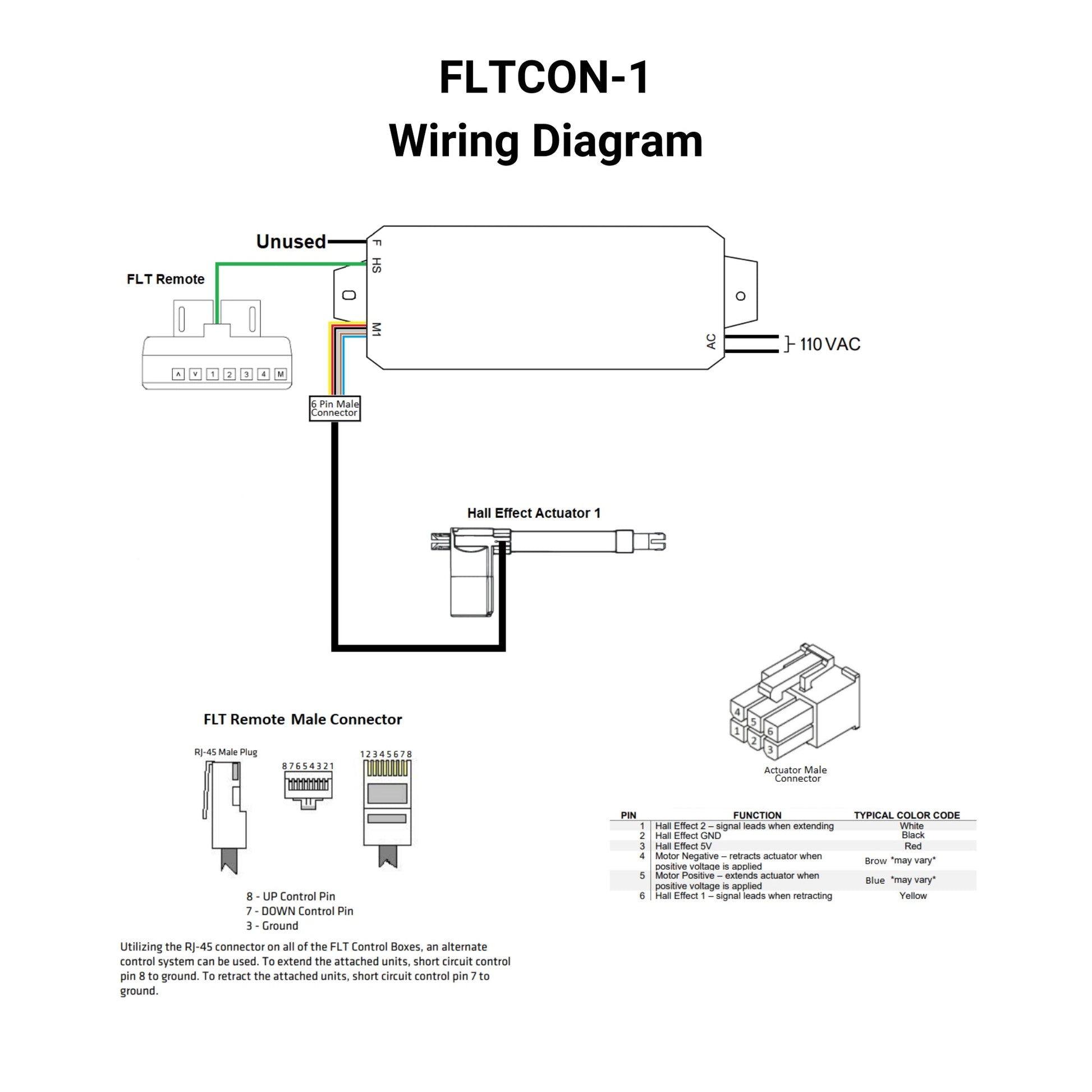

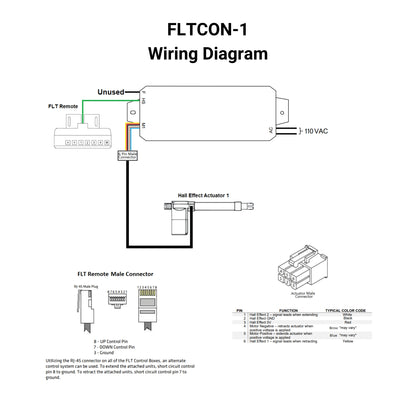

  • 110 VAC - 24 VDC - One Channel Hall Effect Control Box with Presets Wiring Diagram

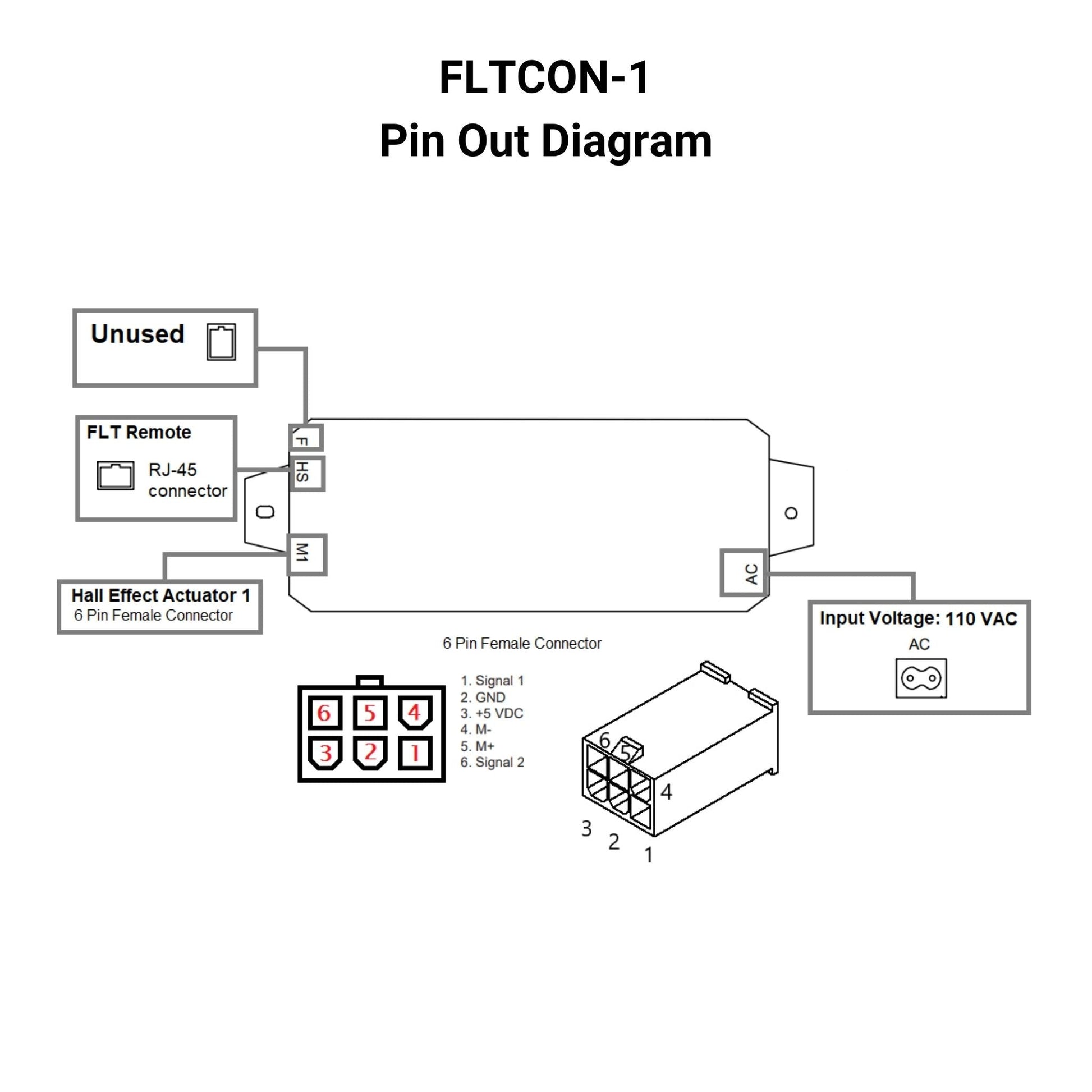

  • 110 VAC - 24 VDC - 1 Channel Hall Effect Control Box with Presets pin out diagram

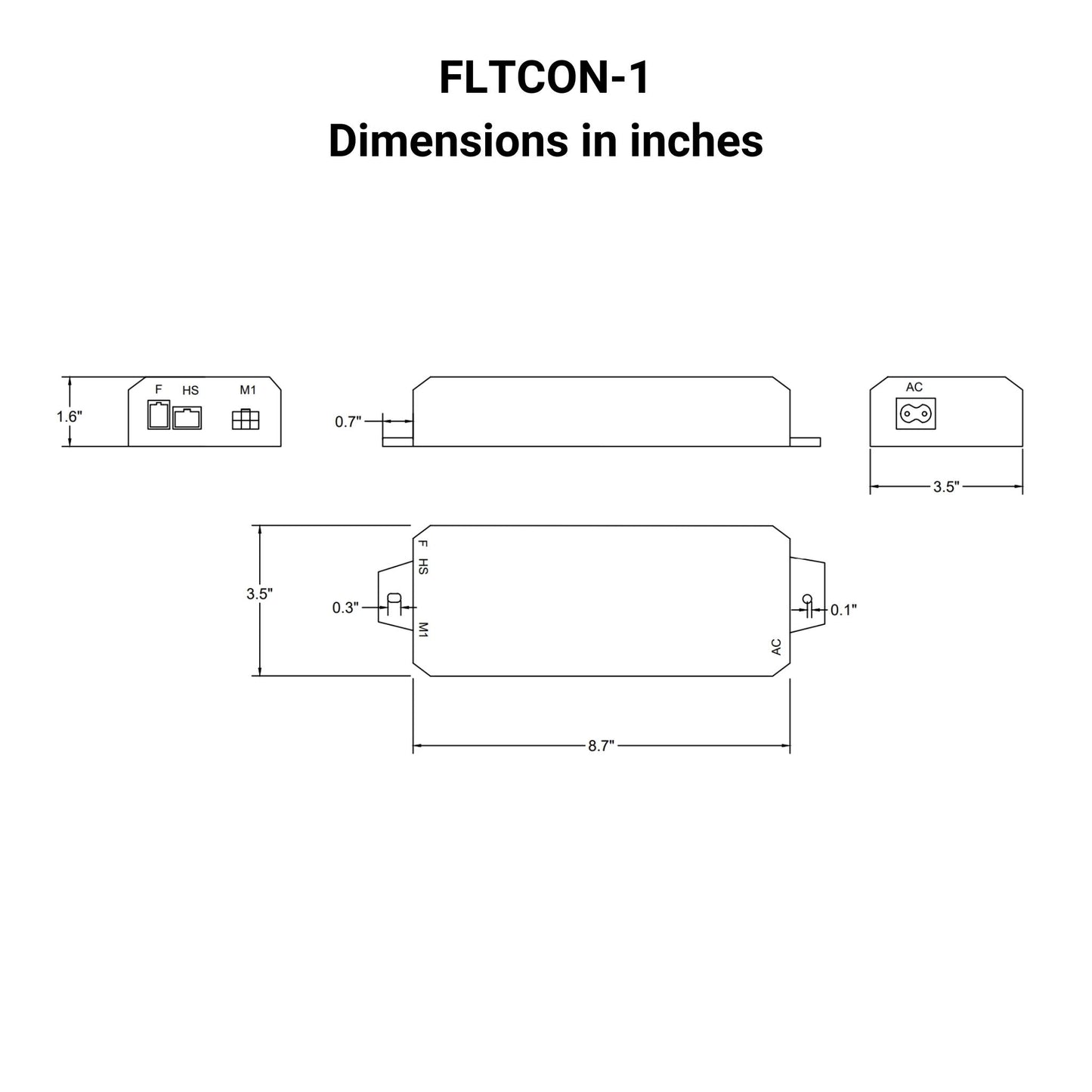

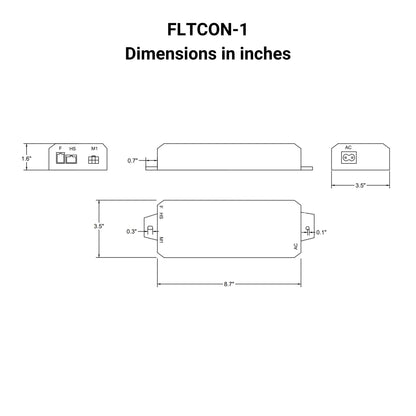

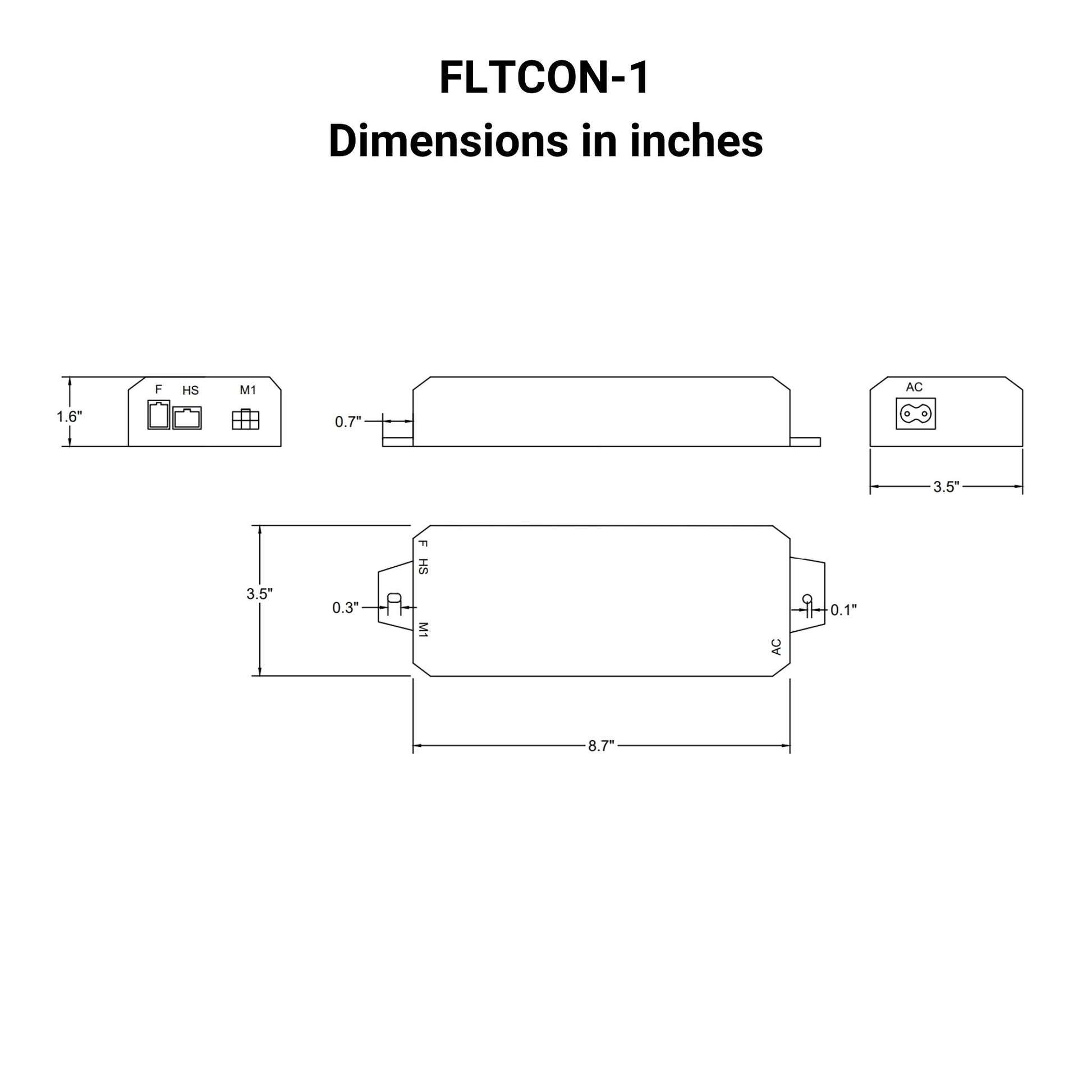

  • 110 VAC - 24 VDC - 1 Channel Hall Effect Control Box with Presets dimensions
1 6

FLTCON-1 Hall Effect Lifting Column Control Box - 110 VAC Input, 24 VDC Output, 1 Channel

FLTCON-1 Hall Effect Lifting Column Control Box - 110 VAC Input, 24 VDC Output, 1 Channel

Model: FLTCON-1

In stock
Ships within 24 hours
Volume Discount
1-6 units $218.75 CAD
7-9 units $207.99 CAD
10-19 units $196.99 CAD
20+ units $174.99 CAD
50+ Get a Quote
$218.75 CAD
$218.75 CAD
Sale Sold out
IMPORTANT: You must fill out this form if you're purchasing an FLTCON, in order to confirm your programming requirements. Failure to complete this form may result in a delay to your order.

Select Your Protection Plan

Price per Unit --
Note: Guarantee is not available for quantities over 49. contact us for bulk orders.
  • Datasheet
  • Replacement chart
Position Feedback
Position Feedback
Memory Presets
Memory Presets
Plug & Play
Plug & Play
Programmable
Programmable
View full details
Description
FLTCON-1 Specifications

Adjust one compatible lifting column or Hall effect actuator with the FLTCON-1 lifting column control box. It uses 110 VAC input and provides 24 VDC output. Programming must match the connected model. Save and recall positions with a compatible preset remote, sold separately.

One control channel operates a compatible Hall effect actuator or lifting column. Confirm the connected model and required programming before ordering. Saved positions depend on the selected remote; RT-11 supports up to four memory positions and is sold separately.

The wired remote is sold separately. Select the handset required for your application. No separate external DC power supply is required for AC input operation.

Power input: 110 VAC, with 24 VDC output.

View the FLTCON-1 datasheet for setup, wiring and operating limits.

Compatible Hall effect actuators: PA-04-HS-24VDC, PA-TS1, PA-09-HS, PA-10-HS, PA-01-HS. Use the appropriate 24V versions and model-specific controller programming.

Lifting columns: LG-02, LG-03, LG-07, LG-11, LG-12, LG-13, LG-14. Select the controller channel count to match the number of columns.

Preset remote option: RT-11, sold separately.

Please contact sales@progressiveautomations.ca for programming requirements for this product.
FLTCON-1 Compatibility Chart
Overview
FLTCON-1 Specifications

Adjust one compatible lifting column or Hall effect actuator with the FLTCON-1 lifting column control box. It uses 110 VAC input and provides 24 VDC output. Programming must match the connected model. Save and recall positions with a compatible preset remote, sold separately.

One control channel operates a compatible Hall effect actuator or lifting column. Confirm the connected model and required programming before ordering. Saved positions depend on the selected remote; RT-11 supports up to four memory positions and is sold separately.

The wired remote is sold separately. Select the handset required for your application. No separate external DC power supply is required for AC input operation.

Power input: 110 VAC, with 24 VDC output.

View the FLTCON-1 datasheet for setup, wiring and operating limits.

Compatible Hall effect actuators: PA-04-HS-24VDC, PA-TS1, PA-09-HS, PA-10-HS, PA-01-HS. Use the appropriate 24V versions and model-specific controller programming.

Lifting columns: LG-02, LG-03, LG-07, LG-11, LG-12, LG-13, LG-14. Select the controller channel count to match the number of columns.

Preset remote option: RT-11, sold separately.

Please contact sales@progressiveautomations.ca for programming requirements for this product.
FLTCON-1 Compatibility Chart
Product Specifications
Input Voltage110 VAC
Unit Weight1.56 lbs
Current8A
Size8.7" x 1.6" x 3.5"
Warranty18 Months
Number of Channels1
Output Voltage24 VDC
RemoteSold separately
Control Boxes Compatibility
Technical Documentation

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality Assured

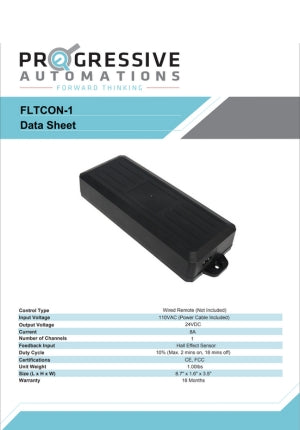

Data Sheets

FLTCON-1 Manual
FLTCON-1 Manual

User Manual for FLTCON-1

View

2D/3D models

Knowledge base
Video & Articles
Videos
Related blog articles:
Bluetooth dongle and progressive motion app

Ultimate Control at Your Fingertips: The Bluetooth Dongle and Progressive Motion App

Nataliia Borysko
Imagine transforming your workspace or industrial setup with just a tap on your smartphone! Progressive Automations has made this possible with two...
Learn more
FAQ
What types of actuators and lifting columns are compatible with the FLTCON-1, and how do I ensure plug-and-play connectivity?

Ensure FLTCON-1 compatibility by selecting actuators and lifting columns that have hall effect sensor feedback, 24 VDC operation, and current draw no higher than 8A. For plug-and-play lifting columns and actuators, ensure they have the matching 6-pin Molex connectors that mate with the FLTCON-1 output port. For more information, check our Control Boxes Compatibility Chart.

How do the memory presets work when using a smart remote like the RT-11, and how many positions can be stored?

With an RT-11 remote, move to a desired position using the UP and DOWN buttons, and then press a preset key to save; tap this preset key to recall the desired position. The FLTCON control boxes can store up to four actuator memory presets.

How do I enable Bluetooth functionality with the FLTCON-1 and which mobile devices or apps are supported?

Use our RT-BT1 Bluetooth Dongle to connect compatible FLTCON control boxes to your smartphone via the Progressive Motion app, available for both Android and iOS platforms.

What are the power requirements for the FLTCON-1 and does it provide surge protection for the actuator system?

The FLTCON-1 power input accepts 110 VAC and outputs 24 VDC (up to 8A) to a hall effect compatible unit; however, it does not have built-in surge protection.

Does the FLTCON-1 come with a remote, and what are the recommended remotes for full functionality and memory control?

We offer a wide range of compatible hand remotes that offer various unique features, sold separately. The RT-11 is the most popular of our FLTCON-1 remote options that offer four actuator memory presets, basic up/down keypads, and an LED display.
