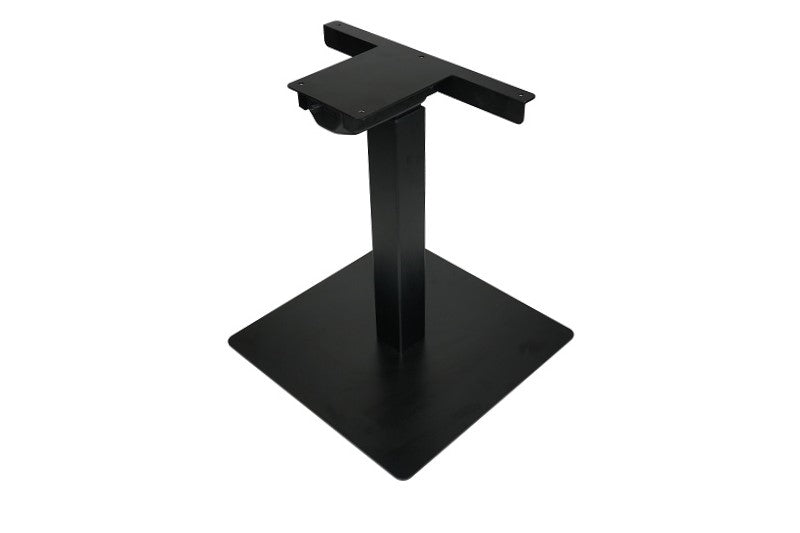

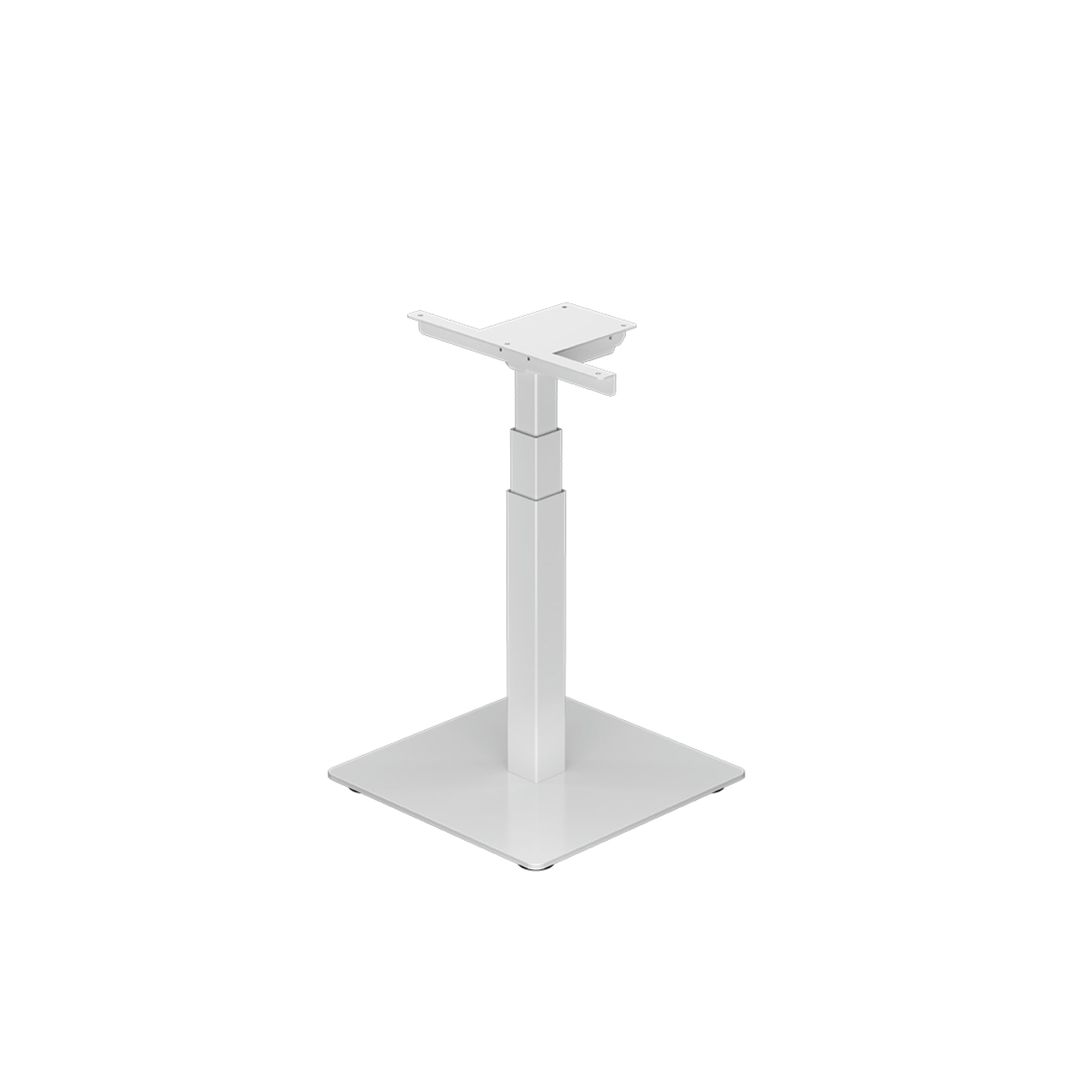

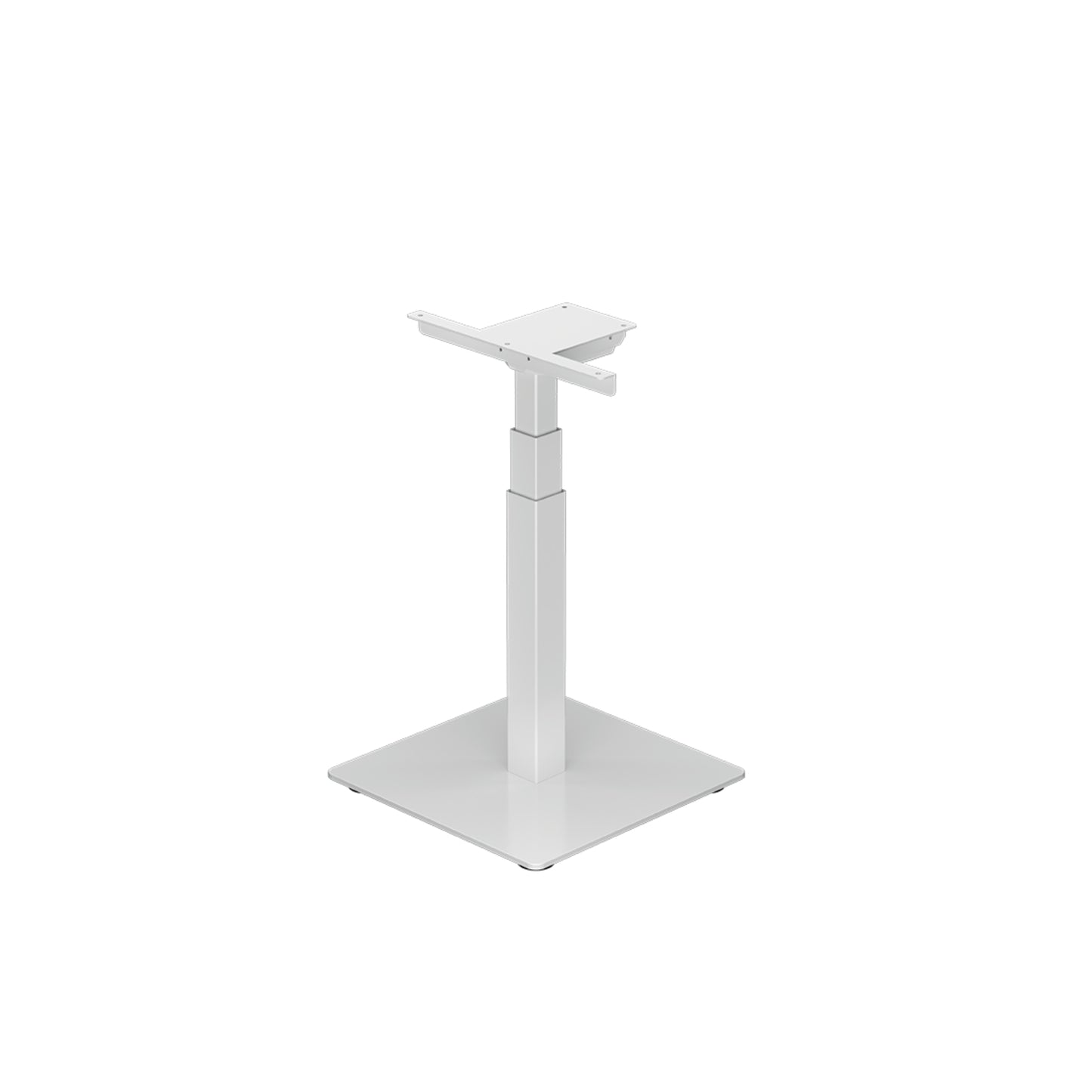

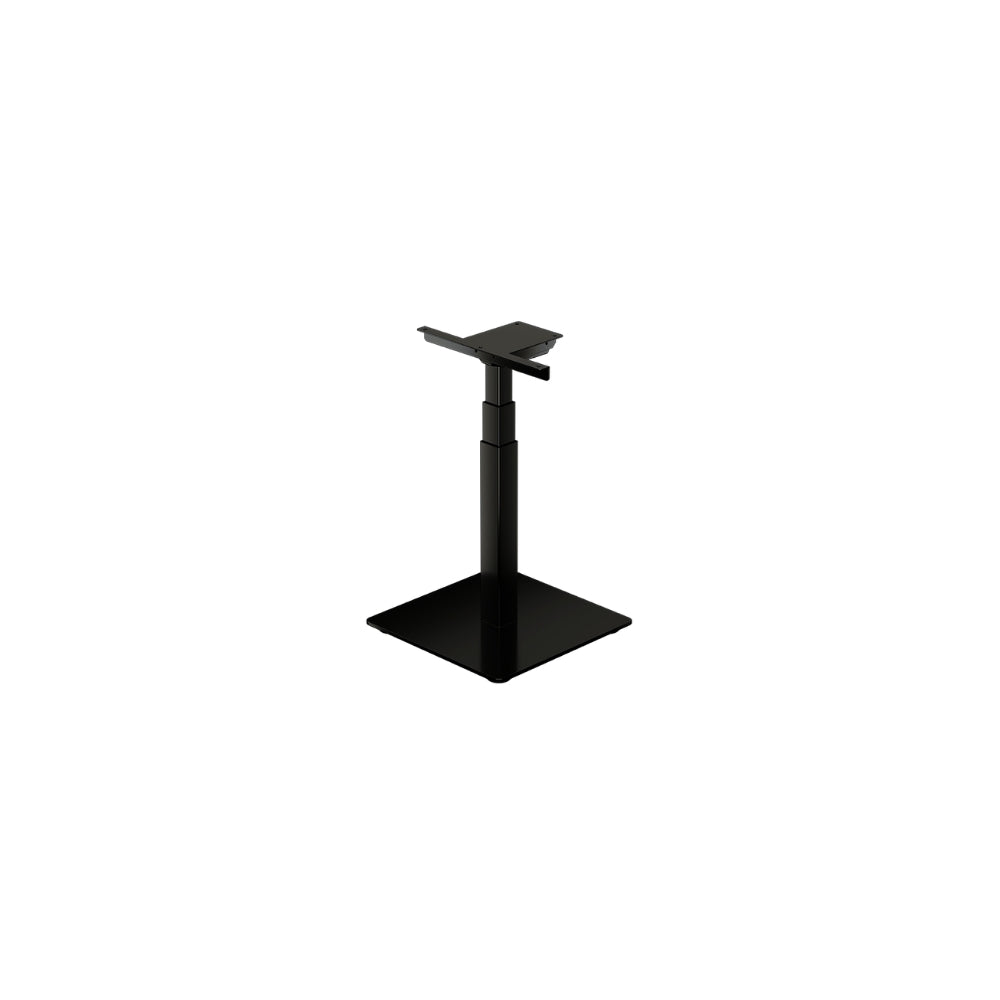

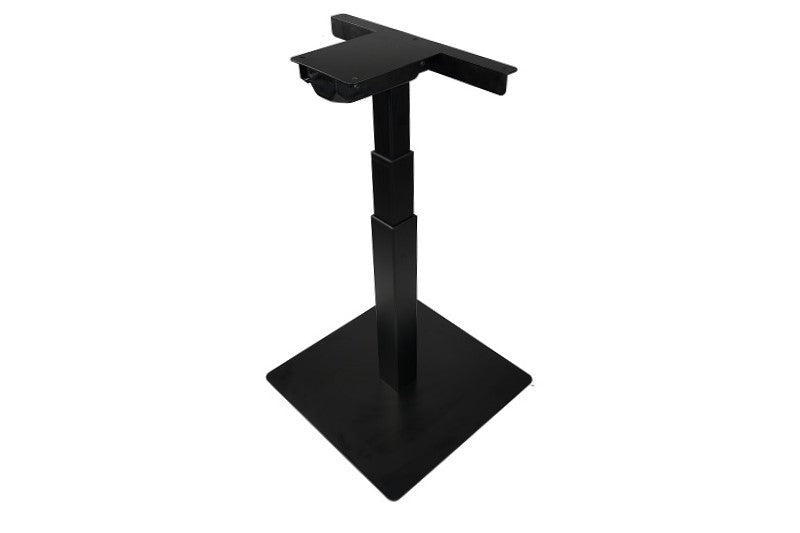

Single Table Lift w/ Base - 180 lbs - Stroke Size 25.5" - Various Colors
Model: FLT-01

Single Table Lift w/ Base - 180 lbs - Stroke Size 25.5" - Various Colors

Model: FLT-01
Instant Quote
Regular price
$337.49
Sale price
$337.49
7-9 units
10-19 units
20–49 units
Color *
Quantity
-
+

Description
FLT-01 Specifications

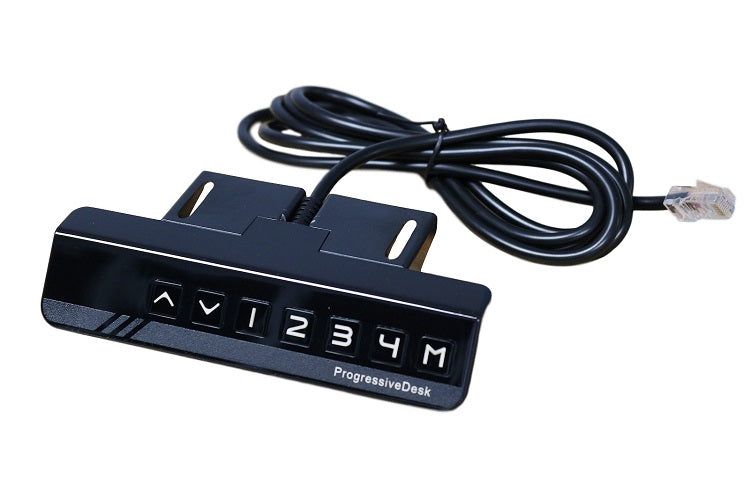

The FLT-01 Single Table Lift is a complete one-leg lifting system. It comes with all the necessary components to build a personal automated standing workstation; all you need is a tabletop. The one-leg model is perfect for any smaller types of desks or tabletops as long as they fit the single table lift. It includes a wired remote with up/down motion control, the ability to save up to four preset height positions and a 5V USB charging port. Raise your table/desk with the press of a button then lower it back down when you’re comfortable.

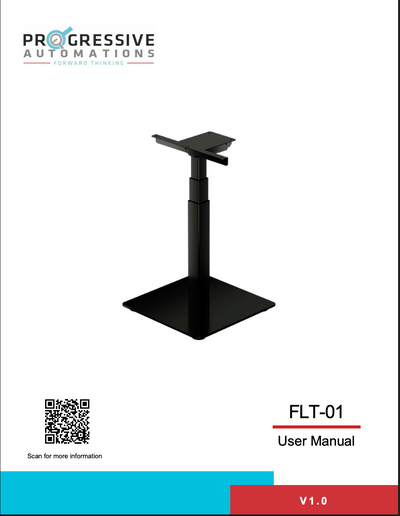

Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes important technical information such as the reset procedure and as well as the operational procedure.

FLT-01 Data Sheet
Specifications
FLT-01 Specifications

The FLT-01 Single Table Lift is a complete one-leg lifting system. It comes with all the necessary components to build a personal automated standing workstation; all you need is a tabletop. The one-leg model is perfect for any smaller types of desks or tabletops as long as they fit the single table lift. It includes a wired remote with up/down motion control, the ability to save up to four preset height positions and a 5V USB charging port. Raise your table/desk with the press of a button then lower it back down when you’re comfortable.

Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes important technical information such as the reset procedure and as well as the operational procedure.

FLT-01 Data Sheet
Product Specifications
Input Voltage:
120 VAC
Travel Distance:
25.5"
Height Range:
23.1" - 48.6"
Lifting Capacity:
180 lbs
Speed:
1.57"/sec
Remote Functions:
Program Up to 4 Preset Positions, 5V USB Charging Port
Duty Cycle: i
10%
Anti-Collision Function:
Yes
Certifications:
UL and BIFMA United Certificate
Protection Class: i
IP51
Unit Weight:
71.88 lbs
96 Months
Data Sheet
SINGLE TABLE LIFT W/ BASE - 180 LBS - STROKE SIZE 25.5" - VARIOUS COLORS

FLT-01 Data Sheet

Media
Videos
Dimensional Drawing
Dimensional Drawing
