Table Lift Set - 330 lbs - 90° - Stroke Size 25.5" - Various Colors
Model: FLT-05

Table Lift Set - 330 lbs - 90° - Stroke Size 25.5" - Various Colors

Model: FLT-05
Instant Quote
Regular price
$687.50
Sale price
$687.50
7-9 units
10-19 units
20–49 units
Color *
Quantity
-
+

Description
FLT-05 Specifications

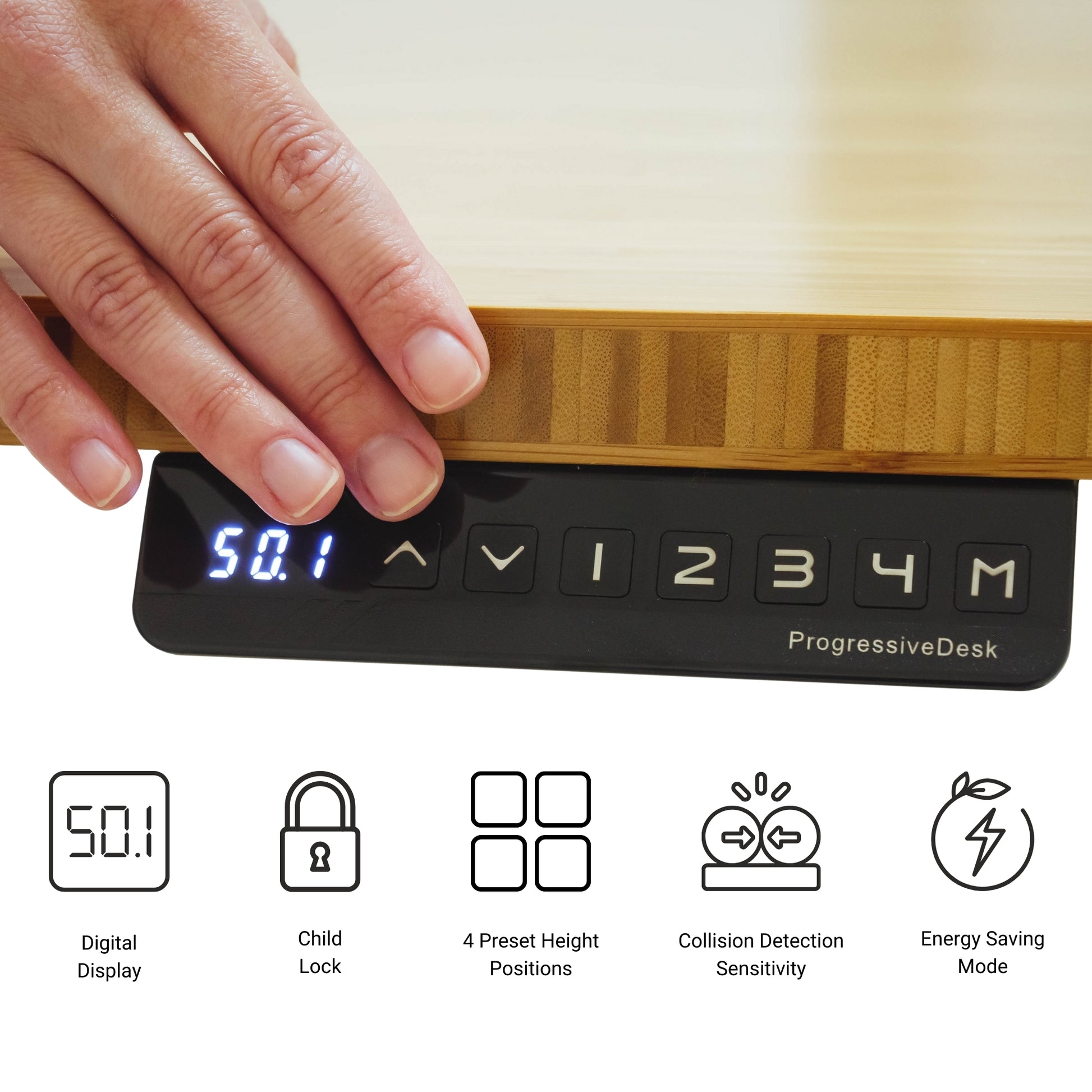

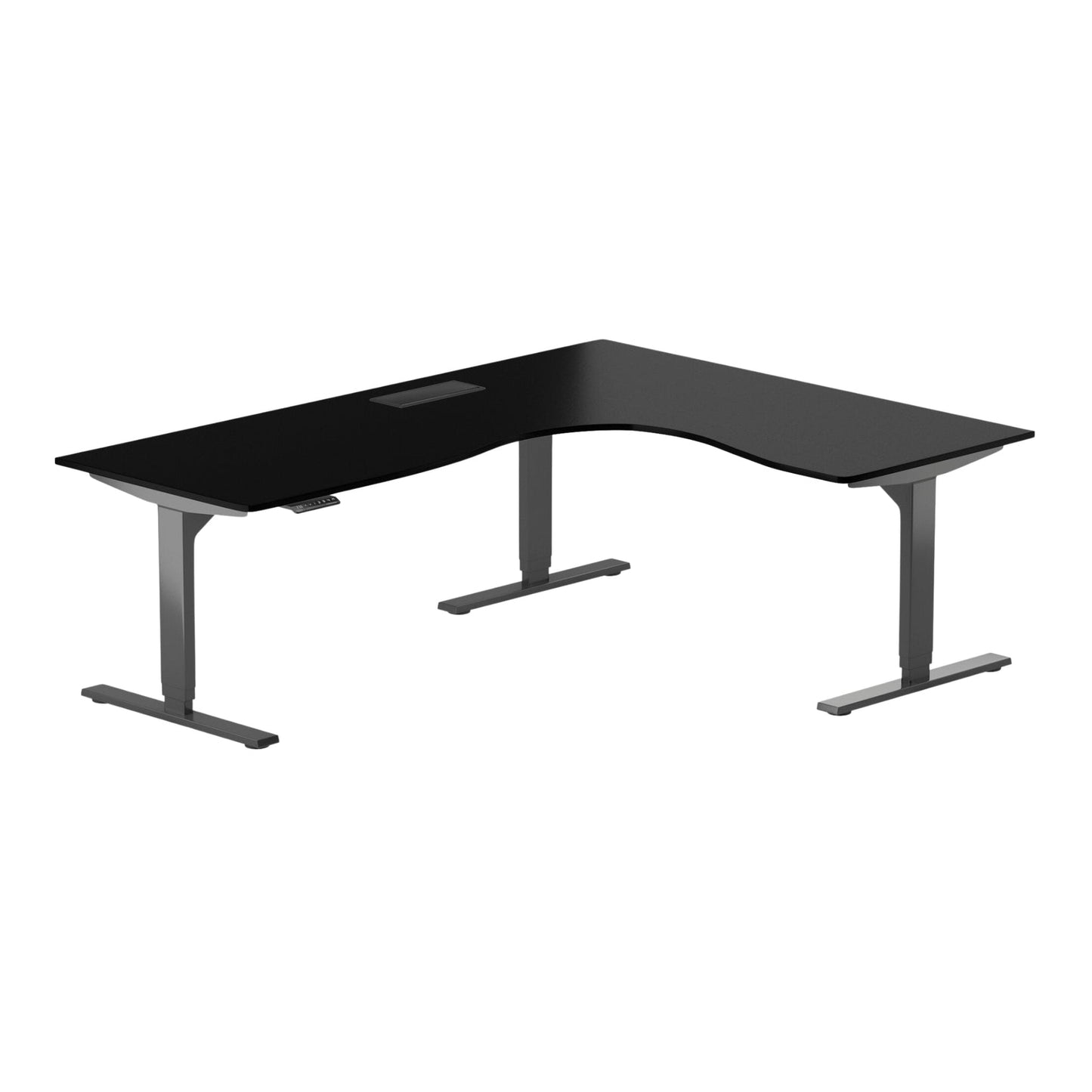

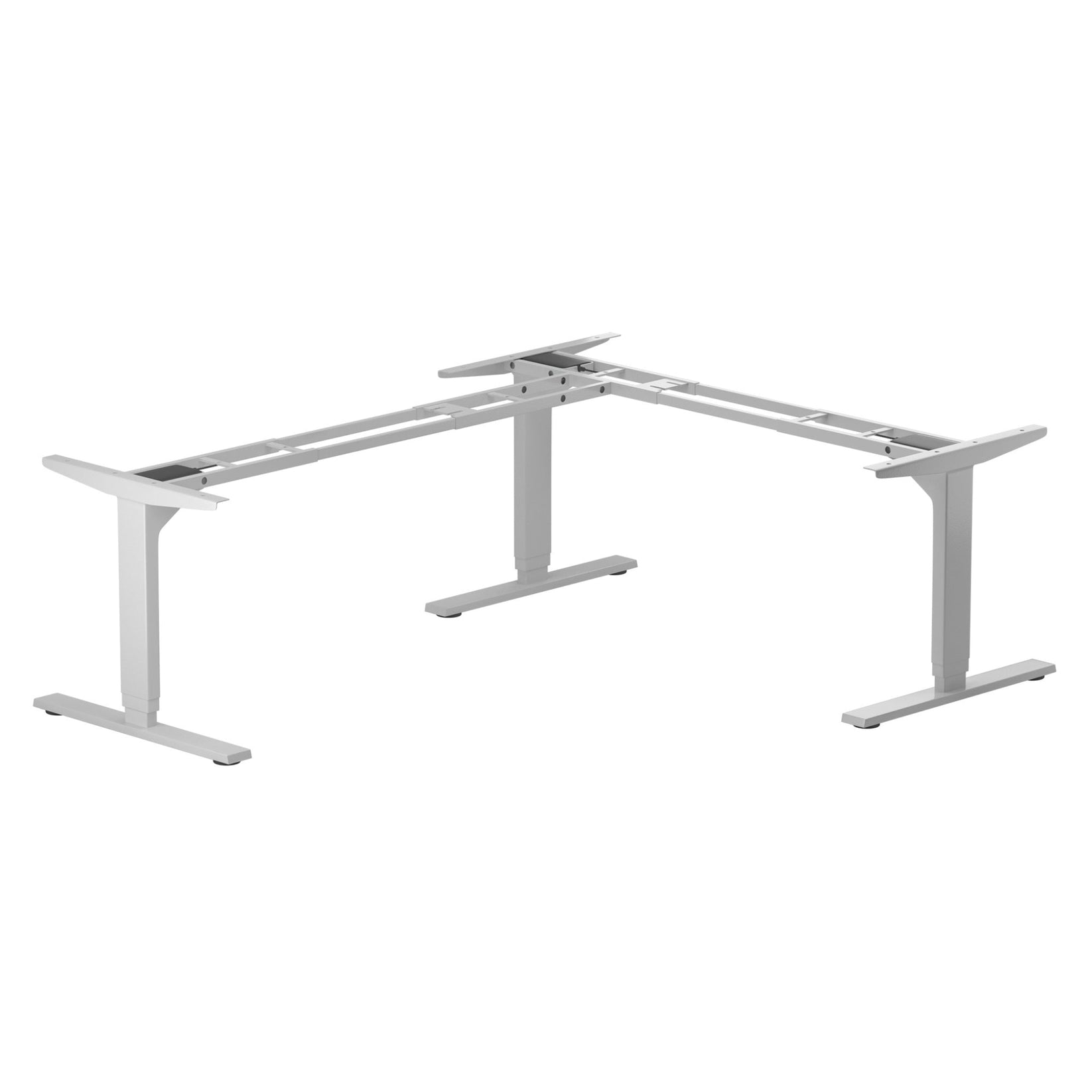

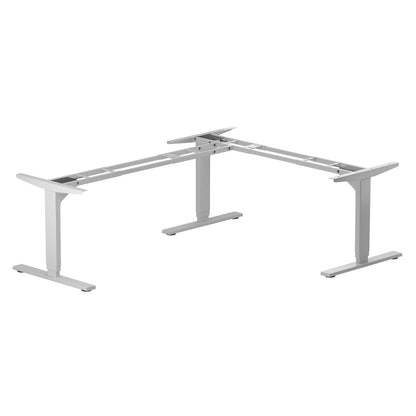

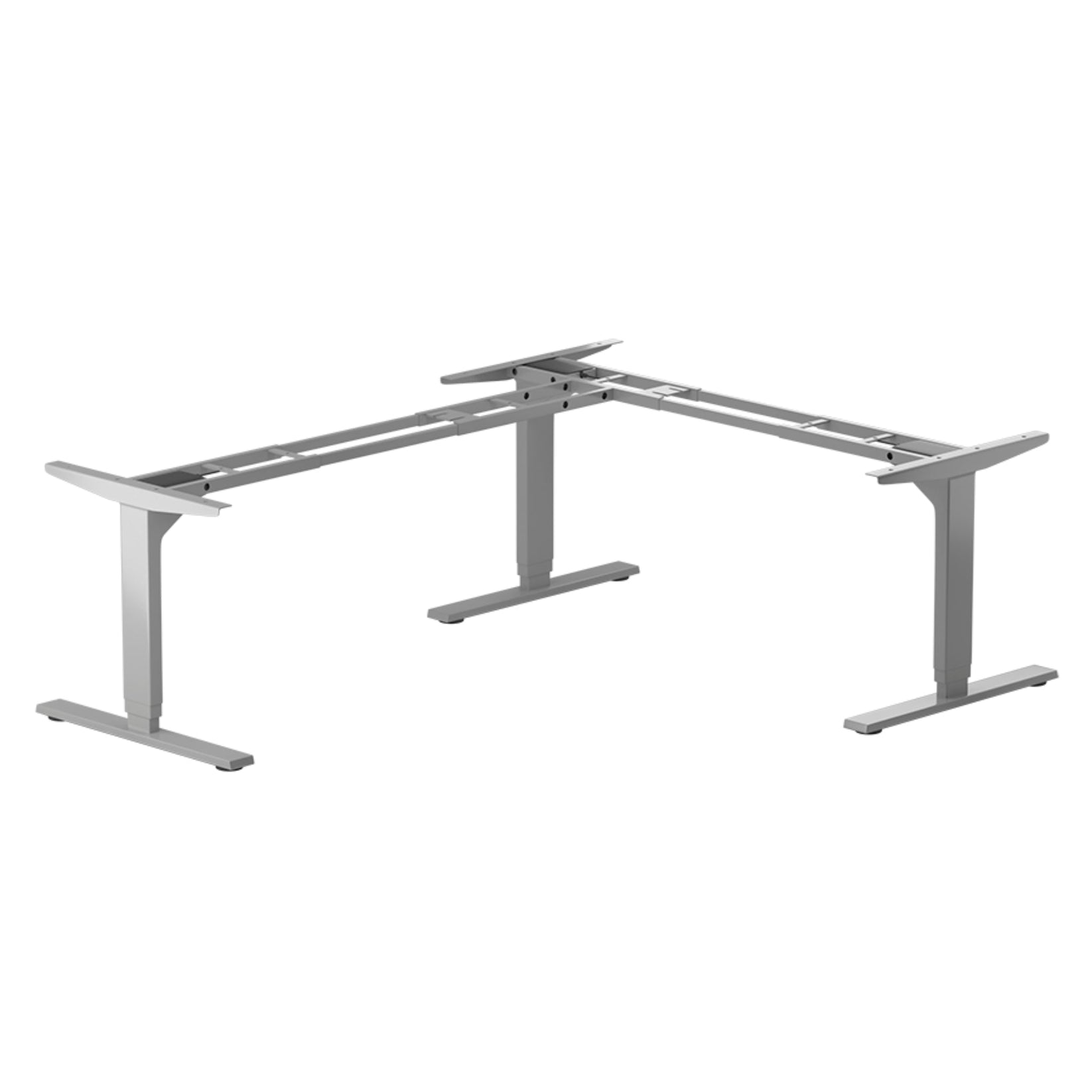

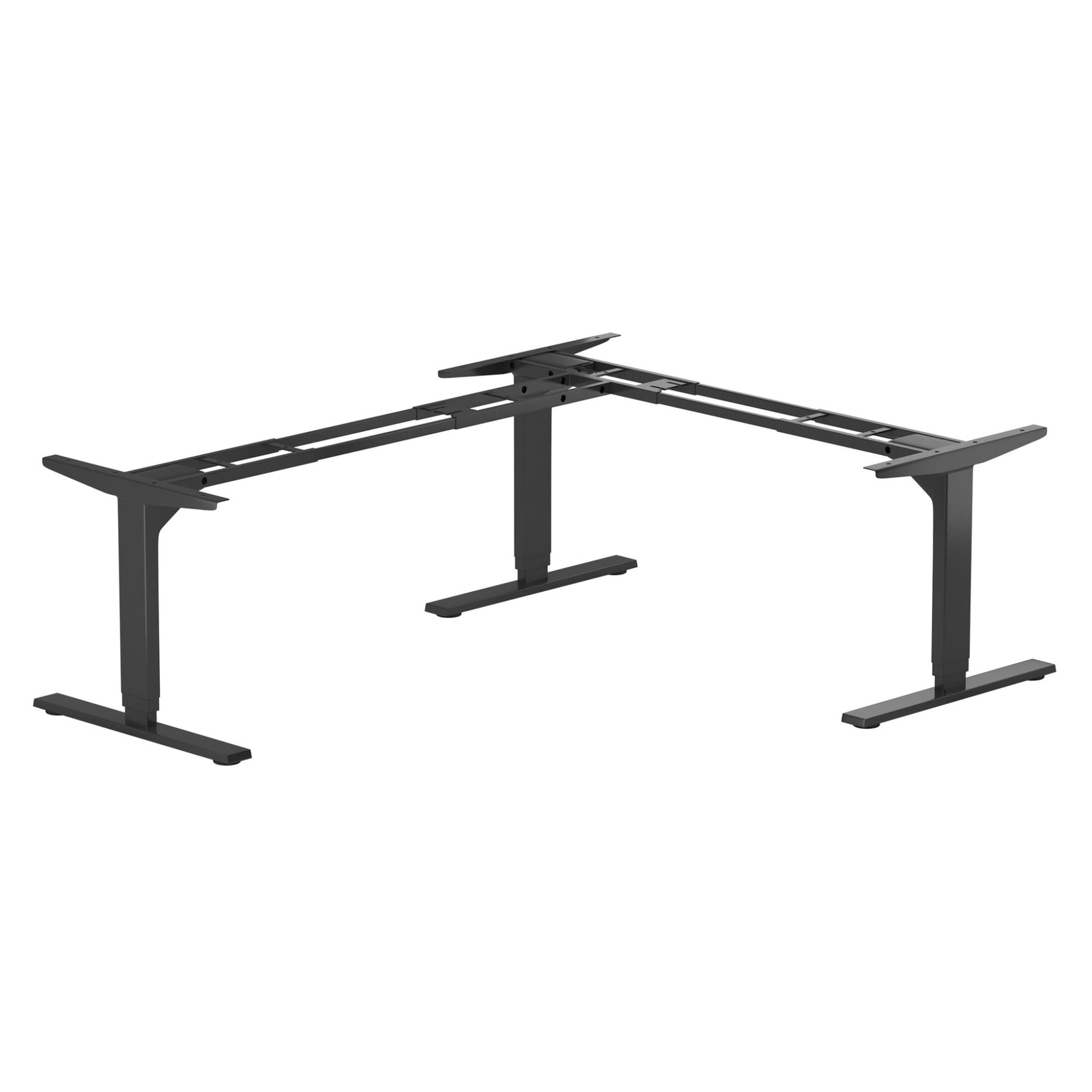

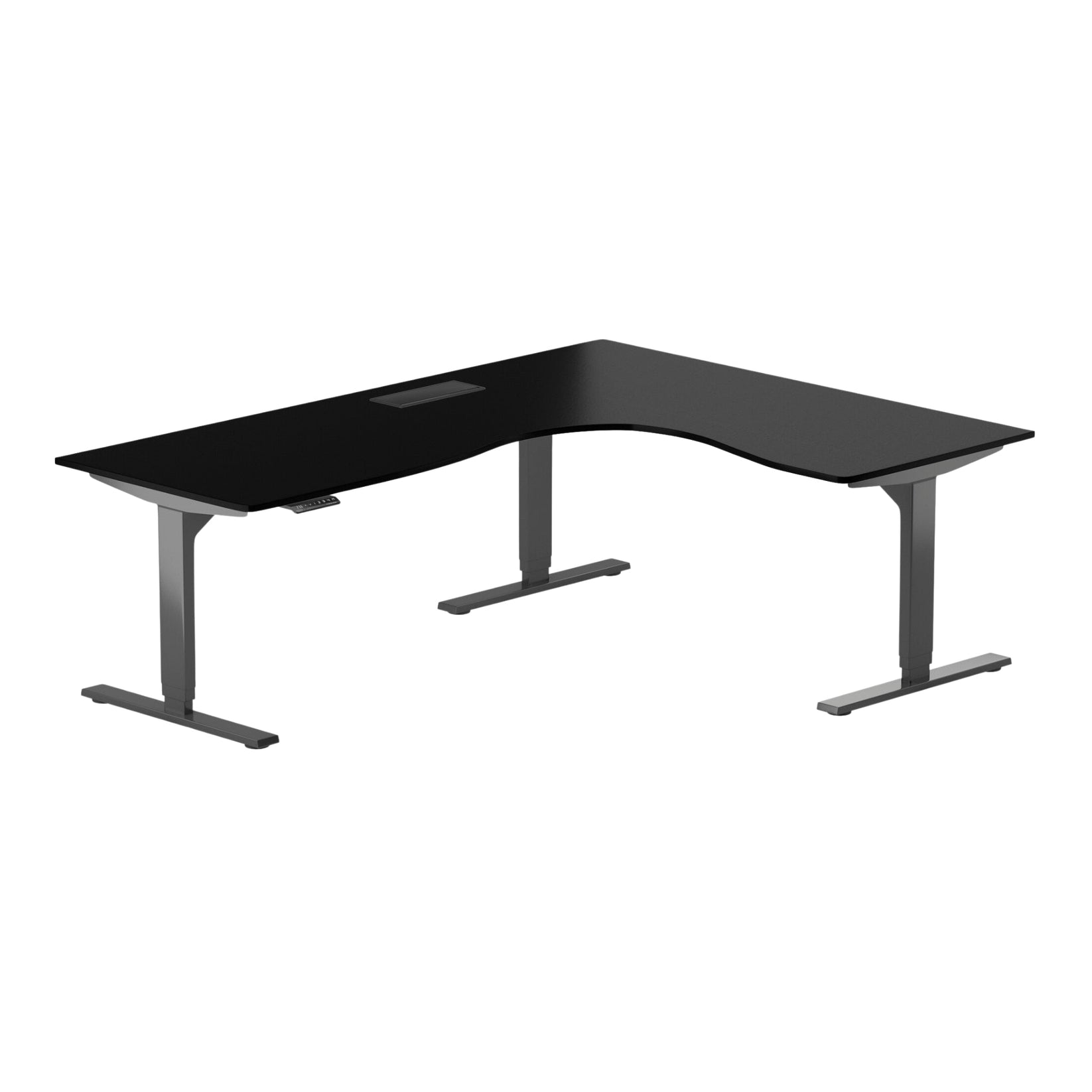

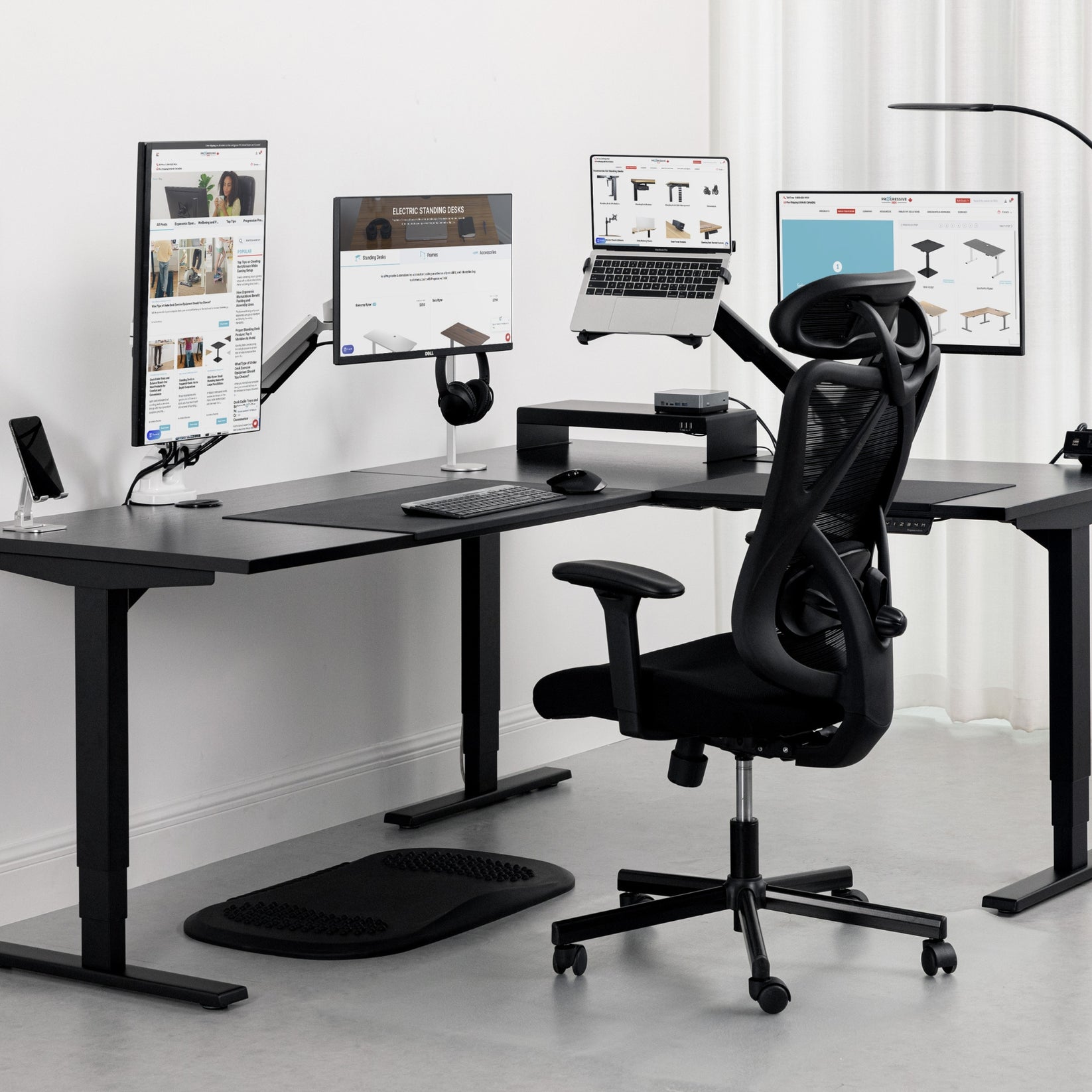

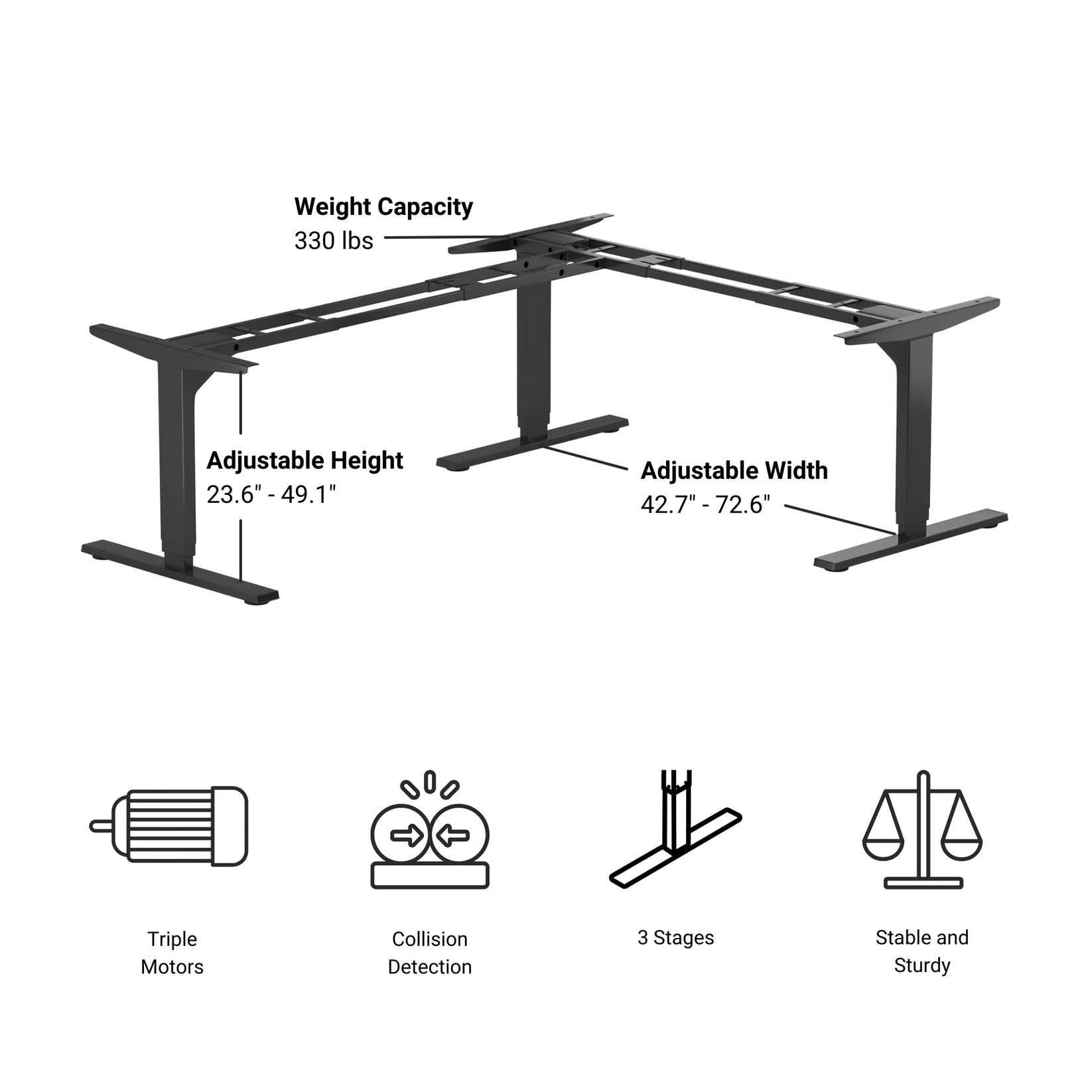

The FLT-05 Table Lift Set is a complete three-leg lifting system. It comes with all the necessary components to build an automated standing workstation; all you need is a tabletop. The 90 degree three-leg model is perfect for larger workstations, a great example being a corner desk in an office. It includes a wired remote with up/down motion control, the ability to save up to four preset height positions and a 5V USB charging port. Give yourself a break from sitting all day and raise your workstation with the press of a button then lower it back down when you’re ready to sit again.

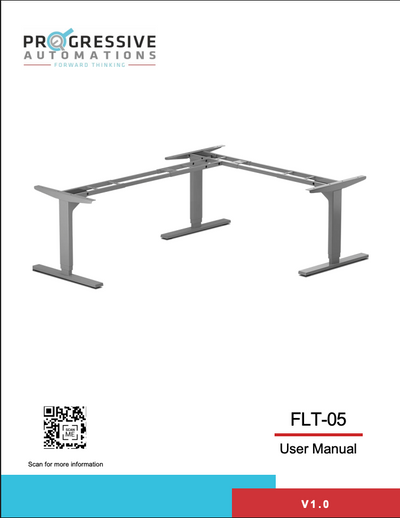

Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes a step by step guide on how to install and attach the table lift set to your own custom desktop as well as important technical information like the reset procedure and how to operate it.

FLT-05 Data Sheet
Specifications
FLT-05 Specifications

The FLT-05 Table Lift Set is a complete three-leg lifting system. It comes with all the necessary components to build an automated standing workstation; all you need is a tabletop. The 90 degree three-leg model is perfect for larger workstations, a great example being a corner desk in an office. It includes a wired remote with up/down motion control, the ability to save up to four preset height positions and a 5V USB charging port. Give yourself a break from sitting all day and raise your workstation with the press of a button then lower it back down when you’re ready to sit again.

Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes a step by step guide on how to install and attach the table lift set to your own custom desktop as well as important technical information like the reset procedure and how to operate it.

FLT-05 Data Sheet
Product Specifications
Input Voltage:
120 VAC
Travel Distance:
25.5"
Height Range:
23.6" - 49.1"
Lifting Capacity:
330 lbs
Speed:
1.5"/sec
Remote Functions:
Program Up to 4 Preset Positions, 5V USB Charging Port
Duty Cycle: i
10%
Anti-Collision Function:
Yes
Certifications:
UL and BIFMA United Certificate
Protection Class: i
IP51 Legs & IP20 Remote Control
Unit Weight:
97.3 lbs
96 Months
Data Sheet
TABLE LIFT SET - 330 LBS - 90° - STROKE SIZE 25.5" - VARIOUS COLORS

FLT-05 Data Sheet

Dimensional Drawing
Dimensional Drawing
