Mounting Brackets Set - 2 Brackets for PA-07
Model: BRK-07
BRK-07 Specifications

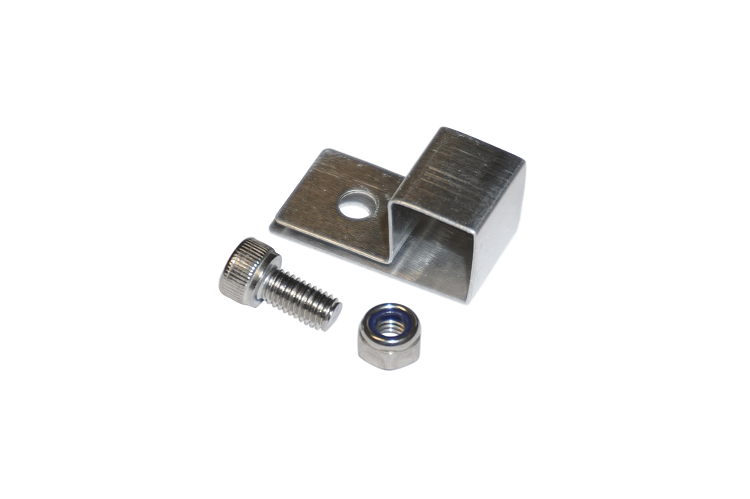

This mounting bracket set is designed for the PA-07 micro actuator models. The brackets are lightweight and versatile. Using the 2 end mounted brackets allow 180 degrees of movement. Adding the shaft bracket provides extra support should the actuator need to fixed at a certain angle. The shaft bracket is not meant to support the load of the actuator by itself.
BRK-07 Specifications
This mounting bracket set is designed for the PA-07 micro actuator models. The brackets are lightweight and versatile. Using the 2 end mounted brackets allow 180 degrees of movement. Adding the shaft bracket provides extra support should the actuator need to fixed at a certain angle. The shaft bracket is not meant to support the load of the actuator by itself.
Product Specifications
Material Type:
Iron Steel
Actuator Model:
PA-07
Kit Includes:

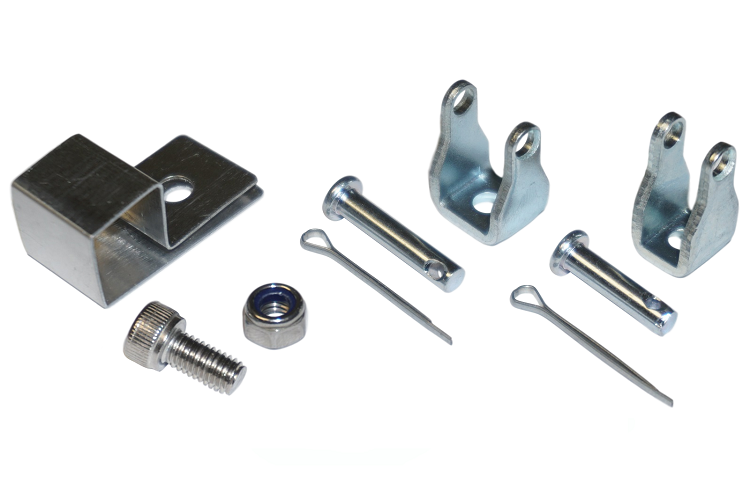

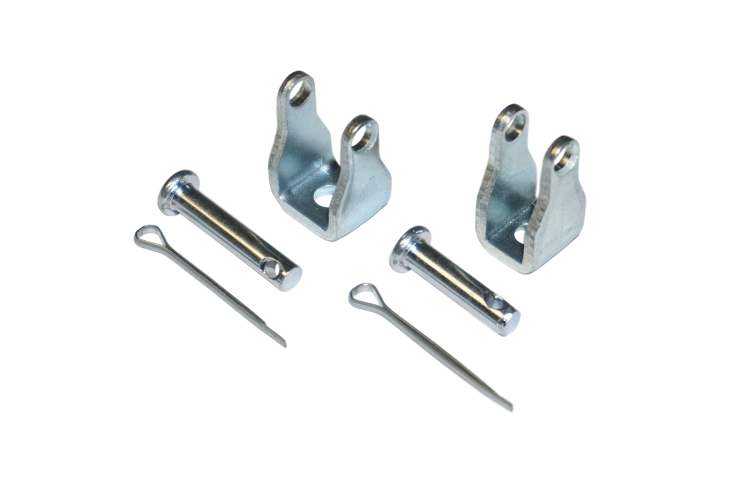

1x Front end mounting bracket, 1x Rear end mounting bracket, 2x Mounting pin and coter pin set, 1x Shaft mounting bracket, 1x Shaft mounting nut and bolt set
Unit Weight:
0.12 lbs
60 Months
