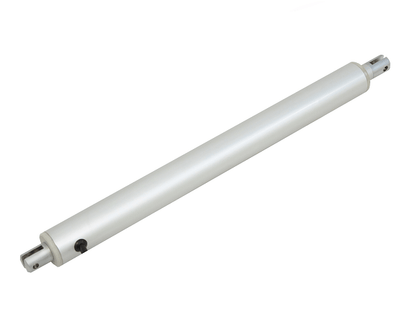

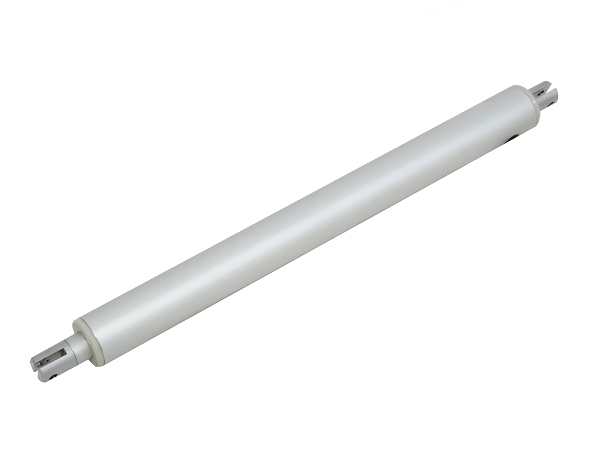

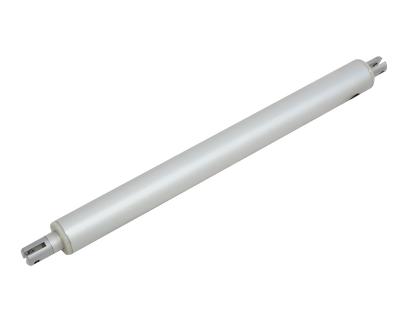

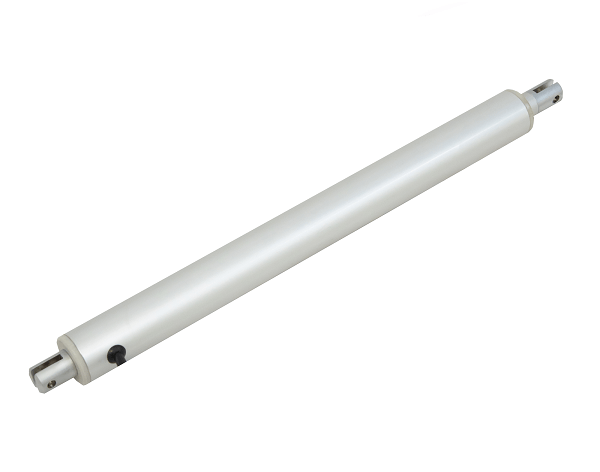

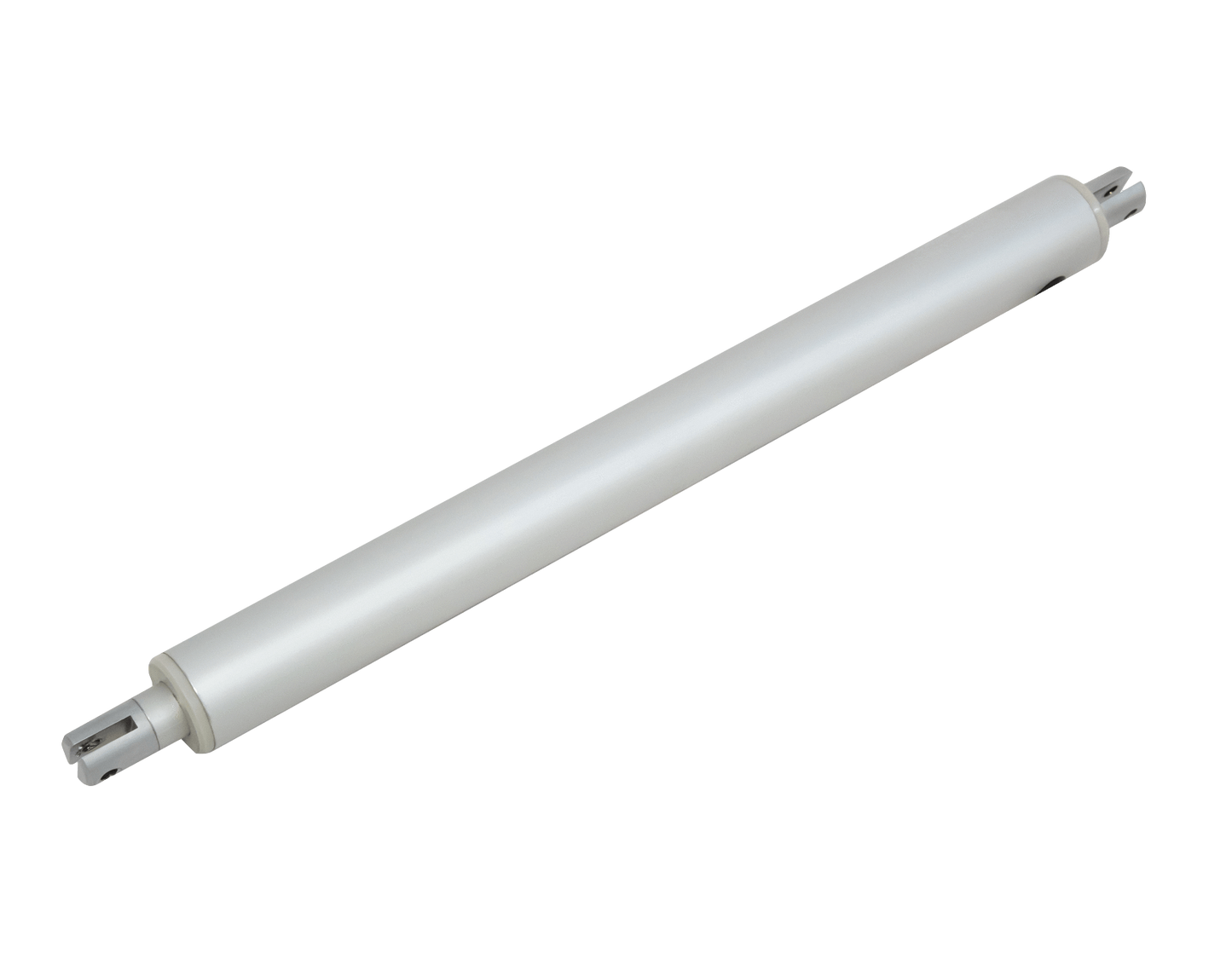

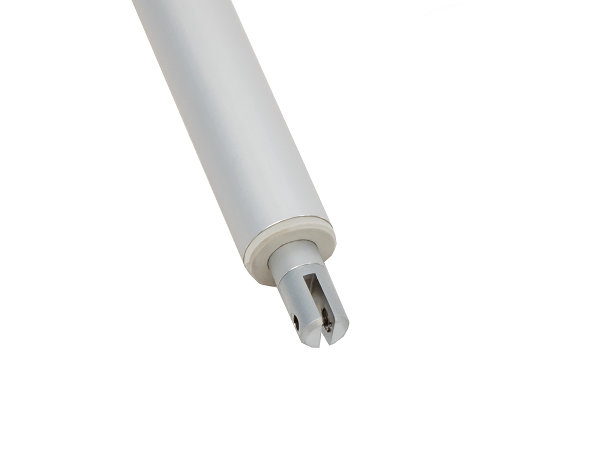

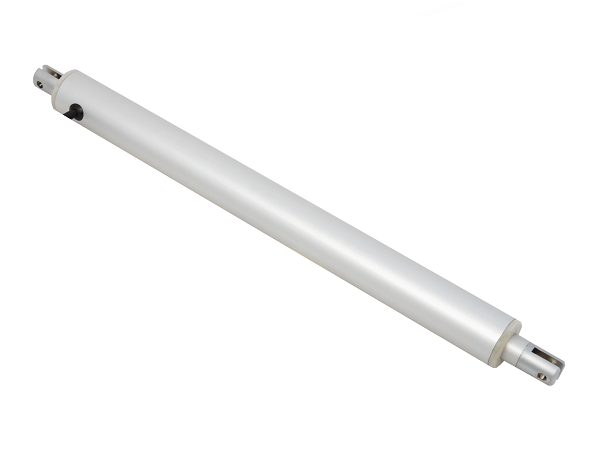

Mini Tube Linear Actuator
Model: PA-11-D30
In stock
Ships within 24 hours
Mini Tube Linear Actuator
Mini Tube Linear Actuator
Mini Tube Linear Actuator
Mini Tube Linear Actuator
Mini Tube Linear Actuator
Mini Tube Linear Actuator
Mini Tube Linear Actuator
Mini Tube Linear Actuator
Mini Tube Linear Actuator
Mini Tube Linear Actuator
In stock
Ships within 24 hours

Mini Tube Linear Actuator

Model: PA-11-D30
Instant Quote
Regular price
$187.49
Sale price
$187.49
7-9 units
10-19 units
20โ€“49 units
Stroke *
Force *
Speed *
Quantity
-
+

Specifications

The PA-11-D30 Mini Tube Linear Actuator utilizes a slim in-line motor design. Combined with a low current rating, this unit can be integrated into most low voltage control systems. The small outer-diameter shaft housing and actuator rod creates an ideal unit for applications where space is limited. Industries such as automotive, robotics, and home automation benefit from the in-line motor design. For a full list of specifications, customization options, and dimensional drawings, please see our PA-11-D30 Data Sheet.

MOUNTING OPTIONS:

The BRK-11 bracket, designed for the Mini tube Actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.

CONTROL SYSTEMS:

The low current draw allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.

BROWSE MORE ACTUATORS

PA-11-D30 Specifications
Input Voltage:
12V DC
Stroke:
2-24 inches
Force:
33 lbs
Speed:
0.44"/sec
Protection Class: i
IP56
Feedback:
No
Operational Temperature:
-25C~+65C
Noise: i
db<52(A)
Duty Cycle: i
20%
Limit Switch:
Built In, Non-Adjustable
Current (full load):
0.17 A
Mounting Holes:
0.20"
Motor Type:
Brushed DC Motor
Screw Type:
ACME
Housing Type:
Aluminum Alloy
Fully Retracted:
8.19" + stroke
Fully Extended:
8.19" + stroke + stroke
Certifications:
CE and RoHS
Unit Weight:
0.7 lbs
Warranty:
18 Months
Data Sheet
3D Models
Video
Video
Custom Options
Custom Options
  • Customize force to 880 lbs
  • Customize voltage to 24V, 36V or 48V
  • Customize stroke length from 1-40"
  • Customize tube diameter up to 1.987"
  • Customize actuator mounting holes
  • Customize internal limit switches
  • Customize the wired connector
  • ยท Customize actuator dimensions
Dimensional Drawing
Dimensional Drawing

Warranty
Warranty

We at Progressive Automations are committed to manufacturing and selling products of the highest quality. Each of our products are manufactured at our state-of-the-art facility and undergo rigorous quality control procedures and checks throughout the production process and prior to being shipped to the customer.

Depending on the product you purchase the warranty period may vary. Our Mounting Brackets and Table Lifts come with a 60-month warranty, while the rest of our products are available for an 18-month warranty period. If a product becomes defective within the warranty period and is used within its rated parameters and environmental conditions, we will replace or repair the product at no cost.

For more information on our Warranty terms click here.
