This article is the first part of our “Linear Actuator Control" series. We will be discussing everything from the most basic control methods that utilize limit switches to accomplishing sequential control with the use of relays. In this first article we will cover how to limit a linear actuator’s extension and retraction stroke using the AC-24 external limit switch.

Using one of our external limit switches will give you extra actuator control!

All of the Progressive Automations linear actuators have built-in limit switches. This ensures that the actuator will stop once it fully extends or retracts. In some cases, you may need the actuator to stop once it reaches a certain length. This is done to ensure that the object that the actuator is moving will reach its target length and not go any further. Some common applications for this would be:

  • Closing or opening a door, window or attic hatch.

    • Closing or opening a car hood or trunk.

      The AC-24 is designed specifically for this purpose. The following are the 3 simple configurations for installing the AC-24 that we will cover:

      • Limiting extension.
        • Limiting retraction.
          • Limiting both extension and retraction.

            To begin we will discuss the parts and tools needed for this project and then we will move onto the wiring instructions.

            Parts needed

            • Crimp connectors or solder (optional).

            Tools needed

            • Wire stripper.
              • Crimping tool or soldering iron (optional).

              Wiring instructions

              1. The first step when wiring the AC-24 external limit switch to a linear actuator is to label the wires on the AC-24. One would be “Male Connector" while the other is “Female Connector". After you have labeled the wires, you can cut both connectors on the AC-24 as well as the connector on the actuator.

              Photo of wires with label “Male Connector" while the other is “Female Connector"

              2. The second step is to strip the ends of the wires bare on both the AC-24 and the actuator.

              Photo of wires with strip the ends of the wires

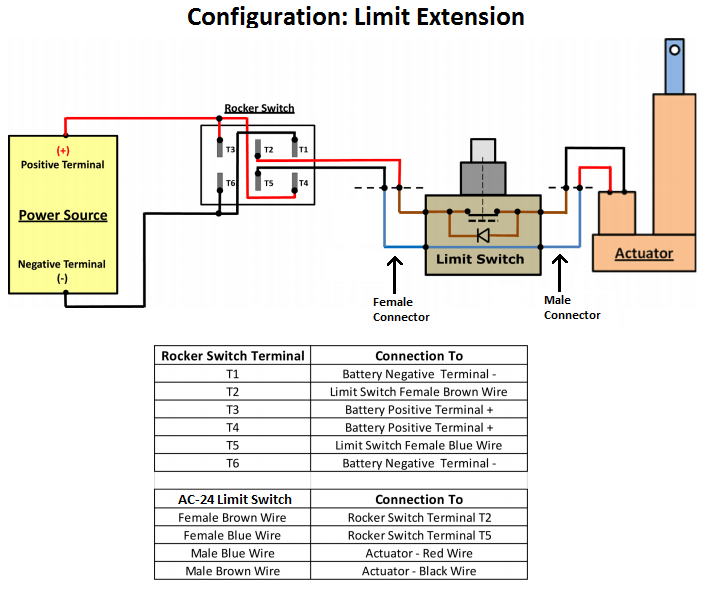

              3. The third step is to connect the AC-24 to the actuator based on the wiring diagrams we have displayed below that correspond to the control method that you wish to achieve. We have a rocker switch in these illustrations but these limit switch wiring diagrams can be used with any control method, including our control boxes. Please take extra care to note the color codes of the components as they determine the direction of the actuators movement.

              Diagram for is to connect the AC-24 to the actuator

              A wiring diagram is to connect the AC-24 to the actuator

              A wiring diagram is to connect the AC-24 to the actuator

              This concludes part 1 of our “Linear Actuator Control" series. We will be covering more methods of how to control your actuator in upcoming articles so stay tuned for more in the near future. Please feel free to contact us if you have any suggestions on what you would like us to cover in the future.
