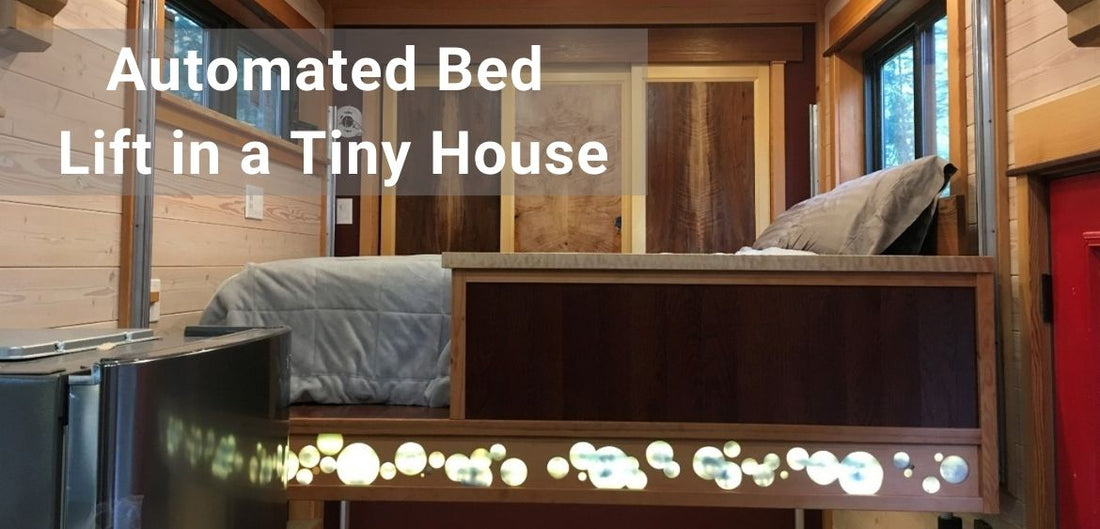

An electric lift bed is one of the most useful upgrades in a tiny house, van conversion, skoolie, RV, or compact studio. Instead of dedicating permanent floor space to a bed, a motorized bed lift lets the sleeping platform move upward when it is not in use, opening the area below for seating, storage, working, or walking space. In this customer project, Sam built a tiny house bed lift using four Progressive Automations linear actuators. The bed raises vertically above head height, then lowers when it is time to sleep. The project used PA-04-HS linear actuators because Hall effect feedback allows multiple actuators to move in sync, helping keep the bed level during travel. This article explains how a linear actuator bed lift works, what parts are needed, how to think about actuator sizing, and what to check before building your own electric lift bed.
Why Use an Electric Lift Bed in a Tiny House?
Tiny houses are all about flexible space. A fixed bed can take up a large portion of the floor plan, while a loft bed may reduce headroom or create accessibility issues. An electric lift bed solves that problem by turning one area into a multi-use space.
A motorized bed lift can help you:
- Raise the bed during the day to free floor space.
- Lower the bed at night without climbing into a loft.
- Use the area below as a couch, workspace, dining space, or storage zone.
- Create a cleaner layout in tiny homes, vans, RVs, and skoolies.
- Avoid bulky hydraulic or pneumatic equipment.
The right bed lift design depends on the available wall structure, ceiling height, bed size, mattress weight, mounting points, guide system, and control setup.
How a Linear Actuator Bed Lift Works
A linear actuator creates straight-line motion. In a vertical bed lift, actuators extend or retract to move the bed platform up and down. The actuators provide the motion, while the frame, guide rails, wall structure, and mechanical supports help keep the bed aligned and stable. For a four-actuator bed lift, one actuator is usually mounted near each corner of the bed platform.
When integrated with the compatible control box and accessories, the four actuators can move together so the bed remains level through its full travel. This is where feedback matters. The PA-04-HS uses Hall effect feedback, which is useful for synchronization, speed control, and position control. Hall effect feedback is especially important when multiple actuators must travel in sync.
Design Considerations: Load, Stroke, Guides, & Safety
Calculate the Moving Load
Do not size actuators based only on mattress weight. Include the mattress, bed frame, platform, bedding, hardware, brackets, moving panels, and any additional structure that travels with the bed.
A simple starting point is:
Load per actuator = total moving load/number of actuators
This only gives a rough baseline. Mounting angle, friction, uneven loading, guide rail resistance, and dynamic forces can increase the force each actuator must handle. If the bed will carry people while moving, or if the load path is unclear, it is important to confirm these design considerations before placing an order.
Choose the Stroke Length
Stroke length determines how far the bed can travel. Measure the distance between the lowered sleeping position and the raised storage position. Leave enough clearance for the mattress, bedding, ceiling, lights, cabinets, and any furniture below the bed.
Use Guide Rails
Guide rails are not optional in most vertical bed lift designs. Rails help keep the bed square and reduce side loading on the actuators. The actuators should move the bed; they should not be forced to correct racking, twisting, or binding. If rails are too tight or misaligned, the motors can stall or wear prematurely. The bed should move smoothly by hand along the guide path before the actuators are mounted.
Plan Mechanical Support
An actuator system should not be treated as the only structural support for a sleeping platform. Consider mechanical stops, lock pins, support ledges, or another secure support method for the raised and lowered positions.
What Was Used in This Project?
Sam’s tiny house bed lift used:
- 4 x 24 VDC PA-04-HS linear actuators
- FLTCON-4 Control Box
-
RT-11 remote
- BRK-01 mounting brackets
- Guide rails
- Bed frame and platform
- Wall-mounted supports
- Cabling routed through the wall
- Tools, fasteners, and project-specific hardware
The PA-04-HS is a feedback linear actuator with optional 12 VDC and 24 VDC configurations, 400 lbs and 900 lbs dynamic force options, 6" to 40" stroke options, IP66 ingress protection, and Hall effect feedback. Confirm the exact voltage, force, stroke, control box, and current requirements before ordering.
The PA-18 track actuator may also be useful for certain bed lift designs where the application benefits from a track-style motion path. Verify current PA-18 specifications and mounting fit before choosing it for a bed lift.
Step-by-Step Bed Lift Build Overview
1. Measure the Space
Start with the lowered bed position, raised bed position, ceiling height, wall distance, and usable floor space below the bed. Confirm that the bed can travel without hitting lights, ceiling fixtures, cabinets, windows, or trim.
2. Build and Test the Bed Frame
Build a bed frame that fits between the guide rails and wall structure. The frame should be rigid enough to resist twisting. Before installing actuators, manually test the platform travel to confirm that the bed does not bind.
3. Install Guide Rails
Mount the guide rails so the bed travels straight up and down. The rails should guide the motion, not clamp the bed so tightly that the actuators must fight friction.
4. Mount the Actuators
Mount the four actuators near the bed corners or other load-sharing points specified by the design. Keep the actuators aligned with the direction of travel. Avoid side loading. Use compatible mounting brackets and confirm that the extended and retracted lengths match the intended positions.
5. Route Wiring Safely
Route actuator wiring, control box wiring, and power cables away from pinch points and moving parts. In the original project, cabling was routed through the wall to keep the space clean and reduce trip hazards.
6. Connect the Control System
Connect the actuators to a compatible Hall effect control box and power supply. Confirm voltage and current requirements before powering the system. The existing project used RT-11 remote control for bed height adjustment and preset positions.
7. Test Slowly and Adjust
Test the bed without people on it. Watch for racking, uneven movement, rubbing, loose brackets, cable tension, or motor strain. Stop immediately if the bed binds or moves unevenly.
8. Add Final Supports and Stops
Add the final support system, stops, or locking method required by the build. The bed should have a secure resting position, and the lift path should remain clear during operation.
Choosing the Right Linear Actuator for a Bed Lift
| Design Need | Recommended Direction | Why |
|---|---|---|
| Four-corner vertical bed lift | PA-04-HS with compatible synchronized control | Feedback helps multiple actuators move together. |
| Heavier bed platform | Higher-force actuator option after load calculation | Load must include mattress, frame, bedding, hardware, and friction. |
| Long vertical travel | Longer stroke option or alternate lift mechanism | Stroke determines total bed travel. |
| Narrow or hidden mechanism | Track actuator or custom design review | Track-style motion may fit some layouts better. |
| Non-standard tiny house, van, or RV layout | Contact Progressive Automations | Custom geometry needs verification. |
Controls, Power, and Synchronization
For a bed lift with four actuators, synchronization is one of the most important requirements. Even a small difference in actuator speed can cause the bed platform to tilt or bind.
A complete electric bed lift system may include:
- Feedback actuators
- Compatible synchronized control box
- Power supply
- Wired or wireless remote
- Mounting brackets
- Guide rails
- Cable routing
- Mechanical stops or supports
Common Bed Lift Design Mistakes
- Choosing actuators before calculating the full moving load.
- Forgetting to include the weight of the frame and hardware.
- Using guide rails that are too tight or misaligned.
- Expecting actuators to carry side loads.
- Mixing actuator models or stroke lengths in a synchronized system.
- Using a control box that is not compatible with feedback actuators.
- Failing to plan cable routing.
- Skipping mechanical supports or stops.
- Not allowing access for maintenance.
- Moving the bed with people, pets, or objects in the travel path.
Frequently Asked Questions
Can linear actuators lift a bed?
Yes. Linear actuators can lift a bed when the system is designed with the correct force rating, stroke length, mounting geometry, guide rails, controls, and support structure. The actuator should move the bed, while the frame and guides keep the platform stable.
How many actuators do I need for a bed lift?
Many vertical bed lift designs use four actuators so the load can be shared near the bed corners. Smaller or hinged designs may use fewer actuators, but the correct number depends on bed size, weight, mechanism type, and support structure.
How do I calculate actuator force for a bed lift?
Start by calculating the total moving load, including the mattress, bed frame, platform, bedding, hardware, brackets, weight of the users (if needed), and any moving panels. Divide that by the number of actuators for a rough load-per-actuator estimate, then account for mounting angle, friction, guide resistance, and safety margin.
Do I need guide rails for a linear actuator bed lift?
For most vertical bed lifts, yes. Guide rails help keep the bed square and prevent binding. Without guides, the actuators may experience side loading or uneven movement.
Do I need Hall effect feedback?
Hall effect feedback is recommended when multiple actuators must move together. Feedback allows a compatible control system to monitor actuator position and help keep the lift synchronized.
Can I use one actuator for a bed lift?
One actuator may work for some hinged or lift-assist bed designs, but it is usually not ideal for a full vertical platform lift. A single actuator can create uneven loading unless the structure and mechanism are designed to distribute force correctly.
What voltage should I choose for a bed lift actuator?
Voltage depends on the actuator model, control box, and power supply. This customer project used 24 VDC PA-04-HS actuators, but the correct voltage should be selected from the product specifications and control system requirements.
In Summary
A tiny house electric lift bed can turn a small room into a flexible multi-use space. Electric linear actuators are a practical solution because they are compact, controllable, and easier to integrate than hydraulic or pneumatic systems. For Sam’s build, four PA-04-HS actuators were used because Hall effect feedback supports synchronized movement and helps keep the bed level during vertical travel.
