24 VDC - Synchronized Dual Hall Effect Actuator Control - 20A - Wireless Remotes
Skip to product information
1 of 7

24 VDC - Synchronized Dual Hall Effect Actuator Control - 20A - Wireless Remotes

24 VDC - Synchronized Dual Hall Effect Actuator Control - 20A - Wireless Remotes

Model: PA-40-24VDC

Low stock
Ships within 24 hours
Volume Discount
1-6 units $384.00 CAD
7-9 units $372.48 CAD
10–19 units $364.80 CAD
20–49 units $357.12 CAD
Regular price $384.00 CAD
Regular price Sale price $384.00 CAD
Sale Sold out
  • Linear Actuator Calculator
  • Get Free Actuator Guide
View full details
Description
PA-40-24VDC Specifications

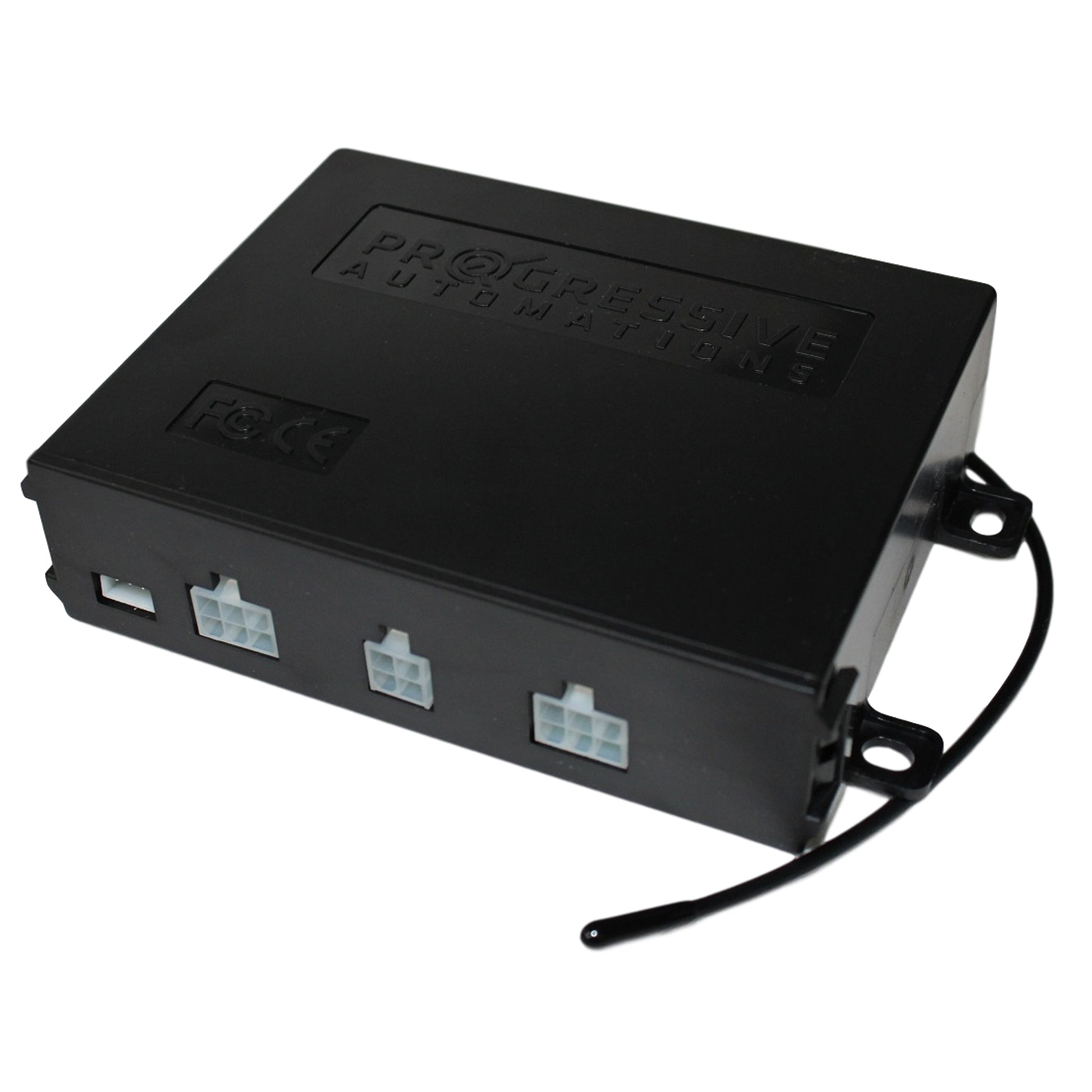

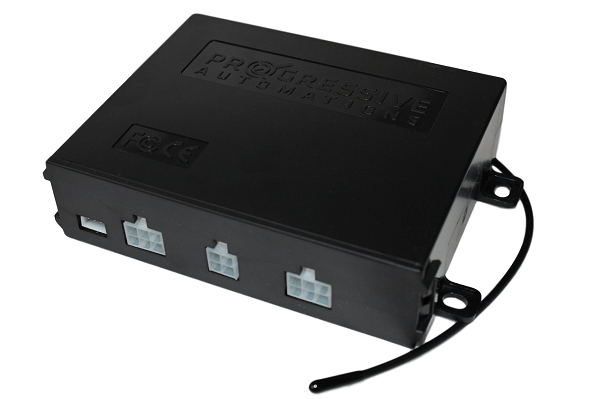

The PA-40-24VDC control box allows for synchronous control of two 24 VDC linear actuators with hall effect feedback. Like its 12 VDC counterpart, using the RF remote provided, users have the ability to extend, stop, and retract their synchronized actuators from up to 30-50 feet away (open-air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

Using the included wire harness, connect the linear actuators to the control box. Apply 24 VDC to the power wires, and the system will be ready to use. It's also important to ensure that the power supply has a sufficient amperage rating to control your linear actuators - the PA-40 is designed to handle a maximum of 10A per channel.

Pair with the PA-VC1 to use a 12VDC power source on applications such as cars, boats, or tractors!

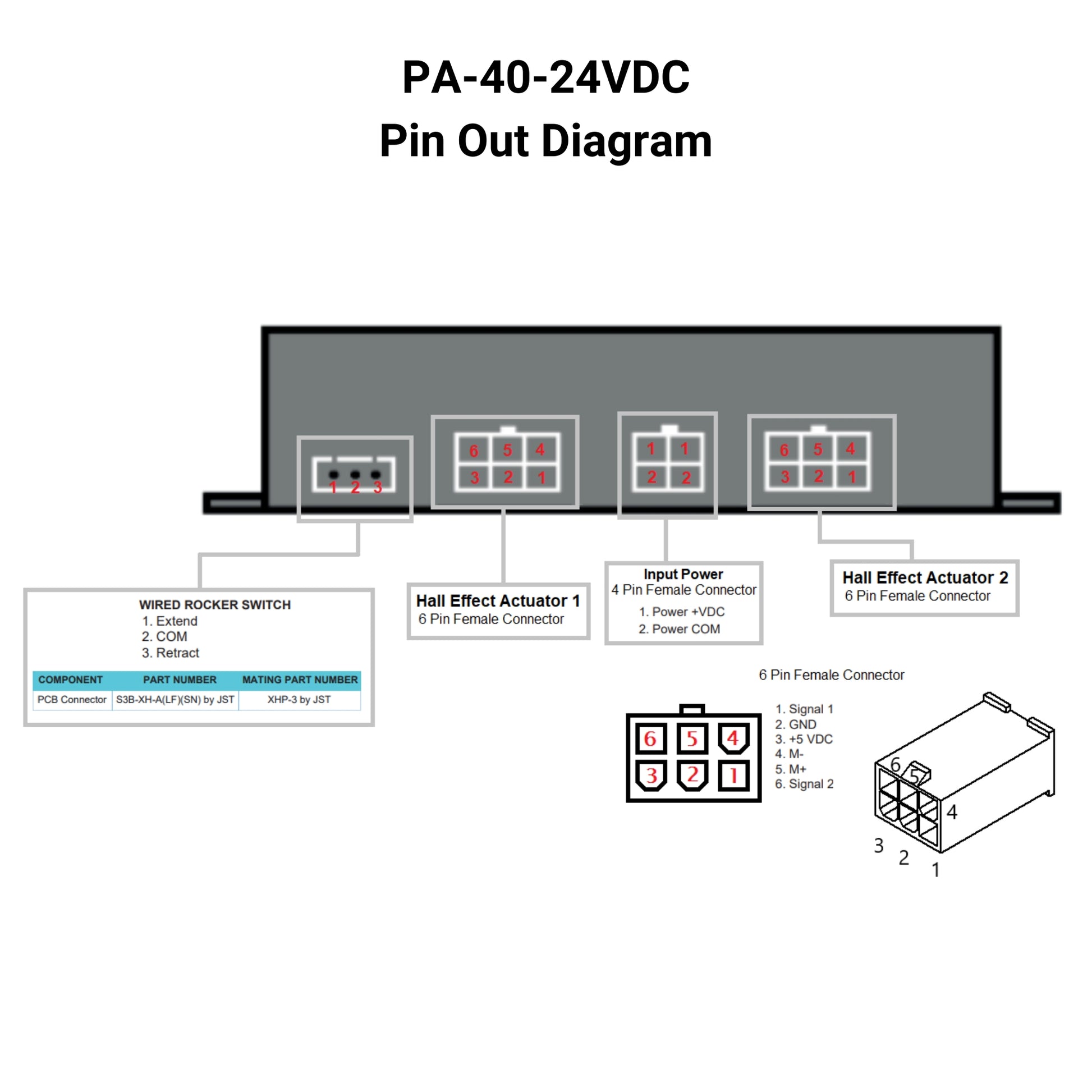

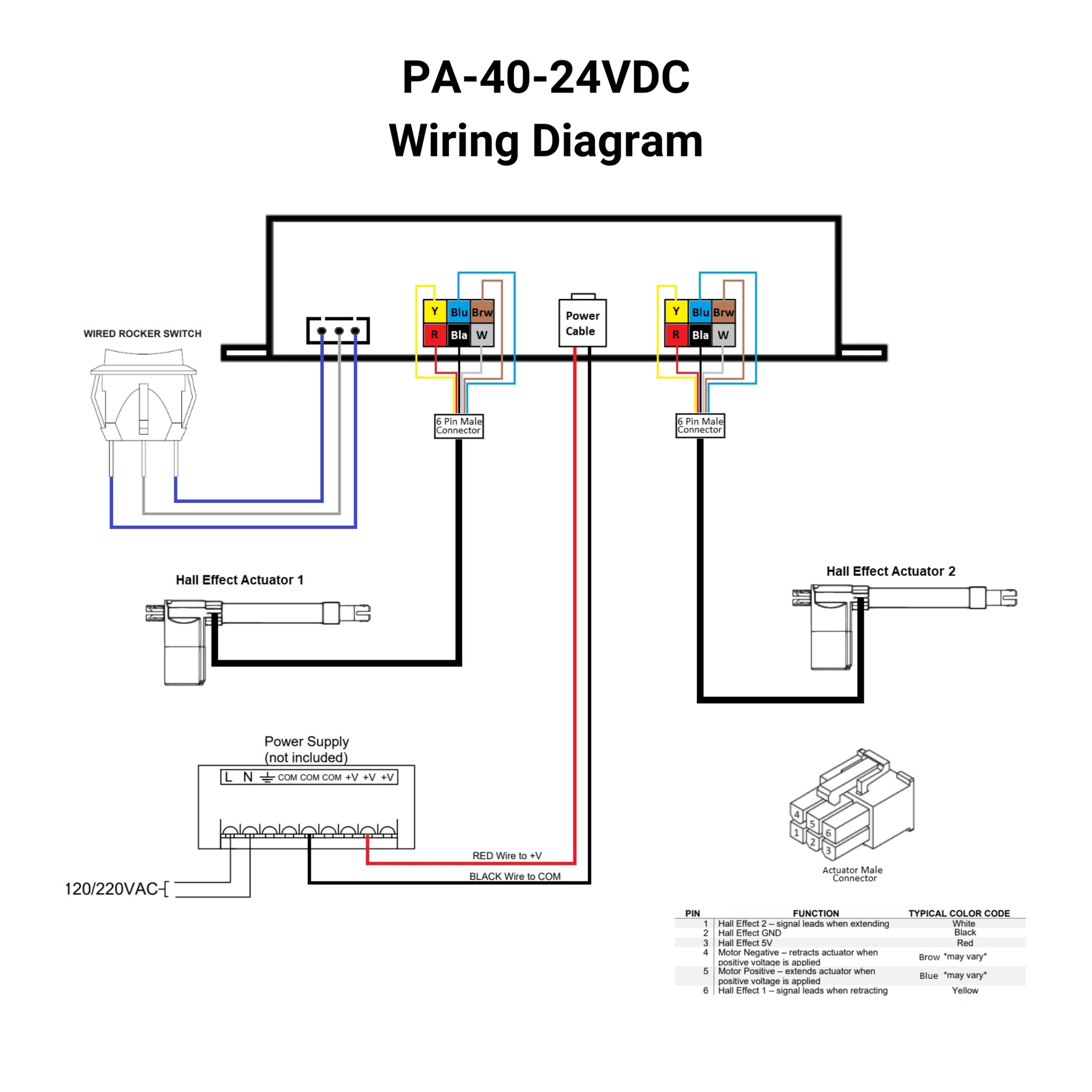

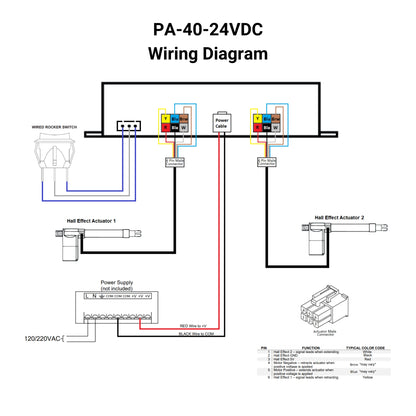

Please see the PA-40-24VDC Data Sheet for information about controls, wiring, and troubleshooting!

*The PA-40-24VDC is not compatible with actuators that have no limit switches

* Only compatible with 24 VDC hall effect type actuators. Controls 2 matching Hall Effect actuators simultaneously to travel the same speed together in the same direction.

Overview
PA-40-24VDC Specifications

The PA-40-24VDC control box allows for synchronous control of two 24 VDC linear actuators with hall effect feedback. Like its 12 VDC counterpart, using the RF remote provided, users have the ability to extend, stop, and retract their synchronized actuators from up to 30-50 feet away (open-air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

Using the included wire harness, connect the linear actuators to the control box. Apply 24 VDC to the power wires, and the system will be ready to use. It's also important to ensure that the power supply has a sufficient amperage rating to control your linear actuators - the PA-40 is designed to handle a maximum of 10A per channel.

Pair with the PA-VC1 to use a 12VDC power source on applications such as cars, boats, or tractors!

Please see the PA-40-24VDC Data Sheet for information about controls, wiring, and troubleshooting!

*The PA-40-24VDC is not compatible with actuators that have no limit switches

* Only compatible with 24 VDC hall effect type actuators. Controls 2 matching Hall Effect actuators simultaneously to travel the same speed together in the same direction.

Product Specifications
Control Ability:
2 matching Hall Effect actuators simultaneously
Input Voltage:
24 VDC
Unit Weight:
0.6 lbs
Output Power:
24 VDC
Current:
20A (10A Per Channel)
Kit Includes:

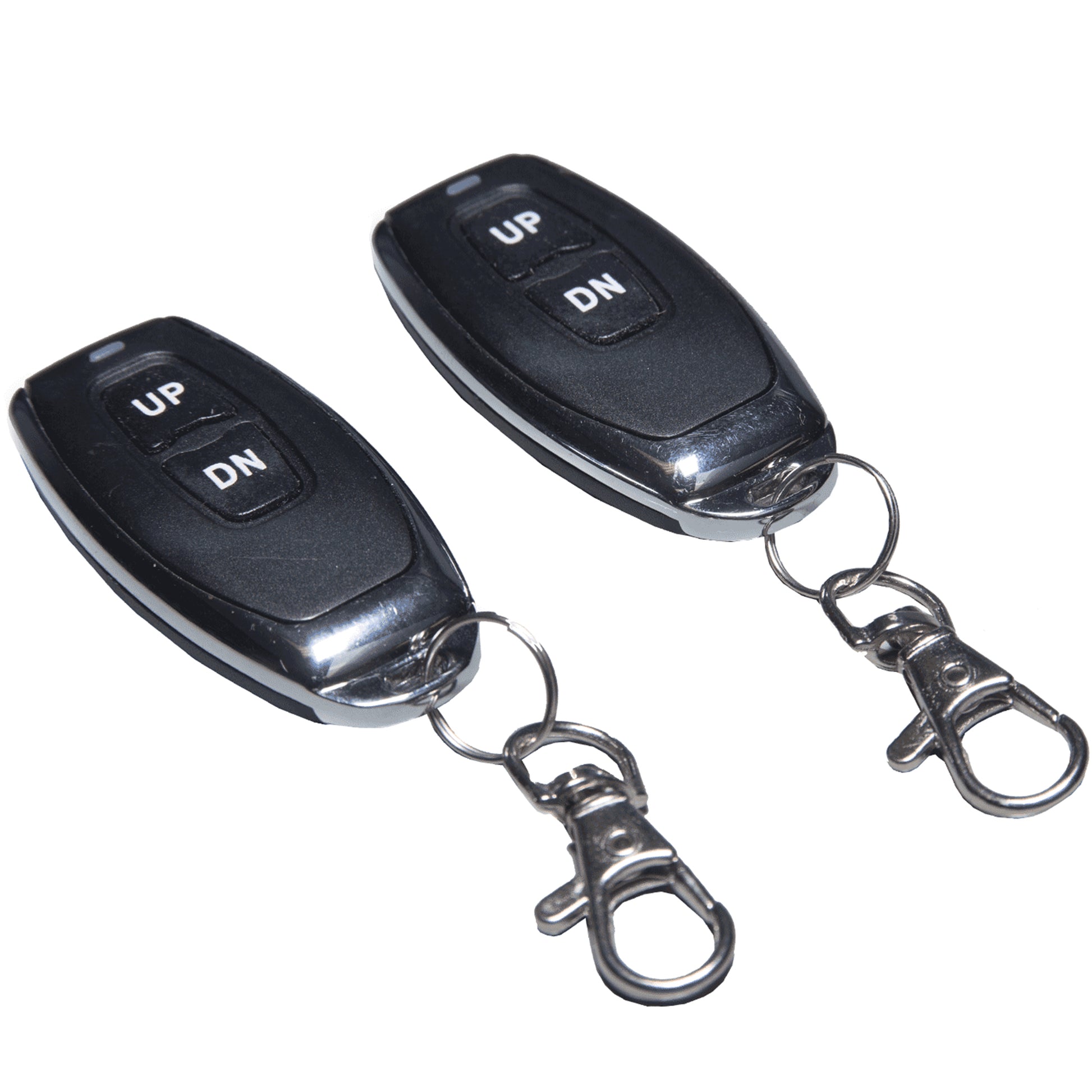

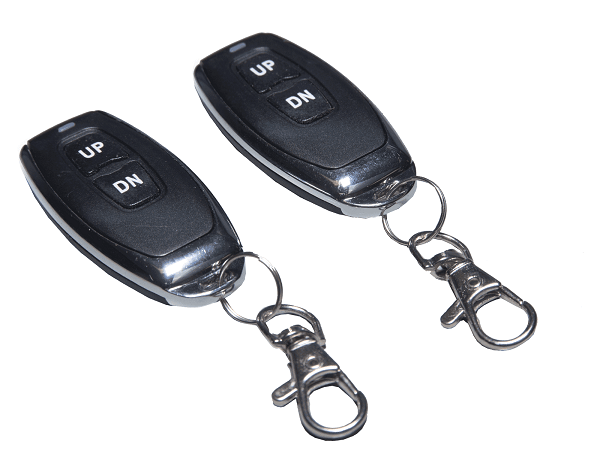

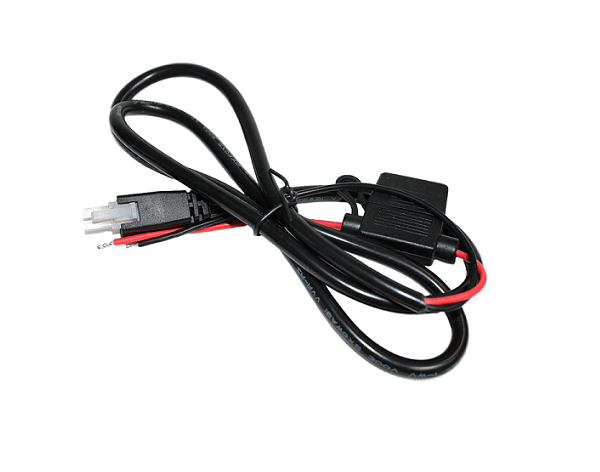

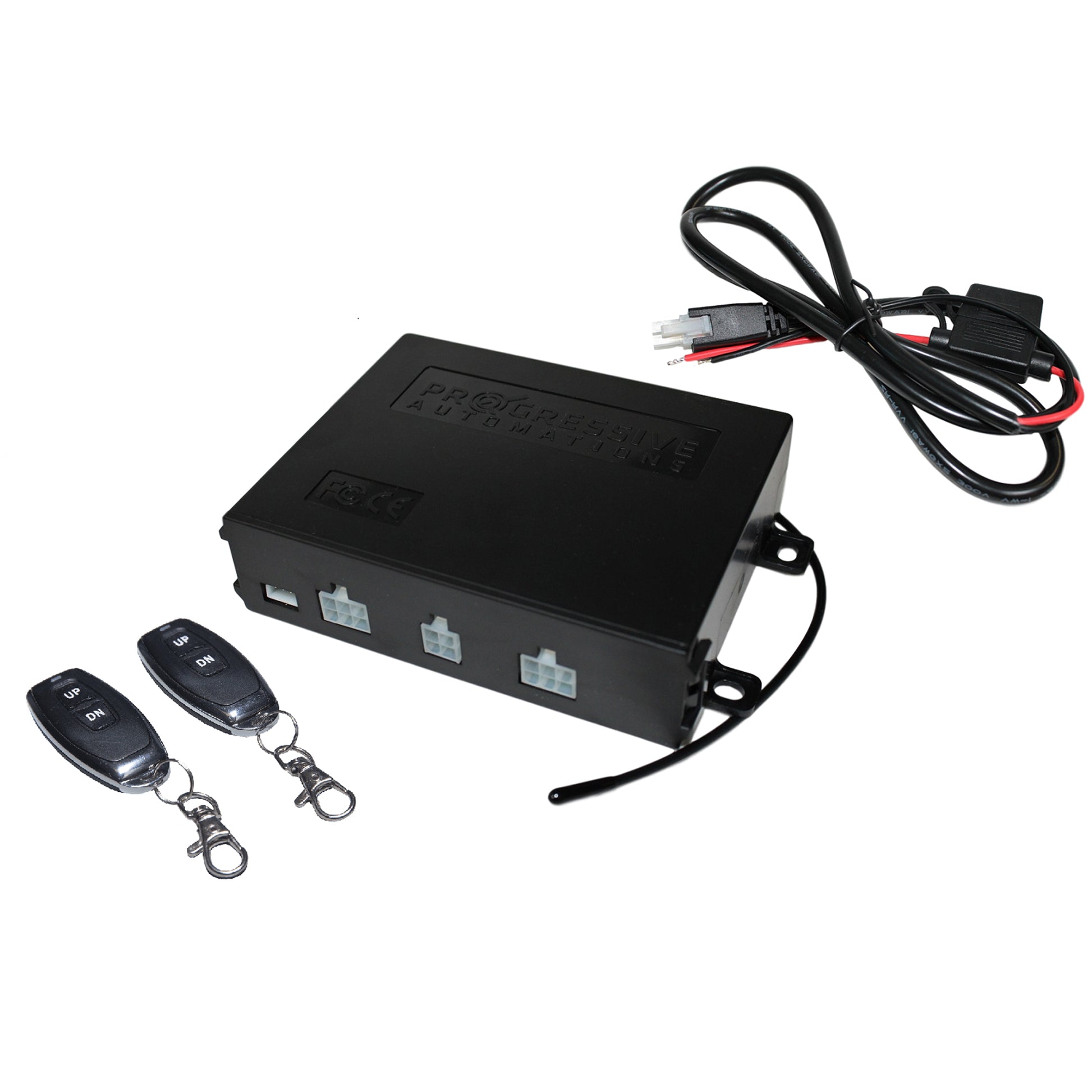

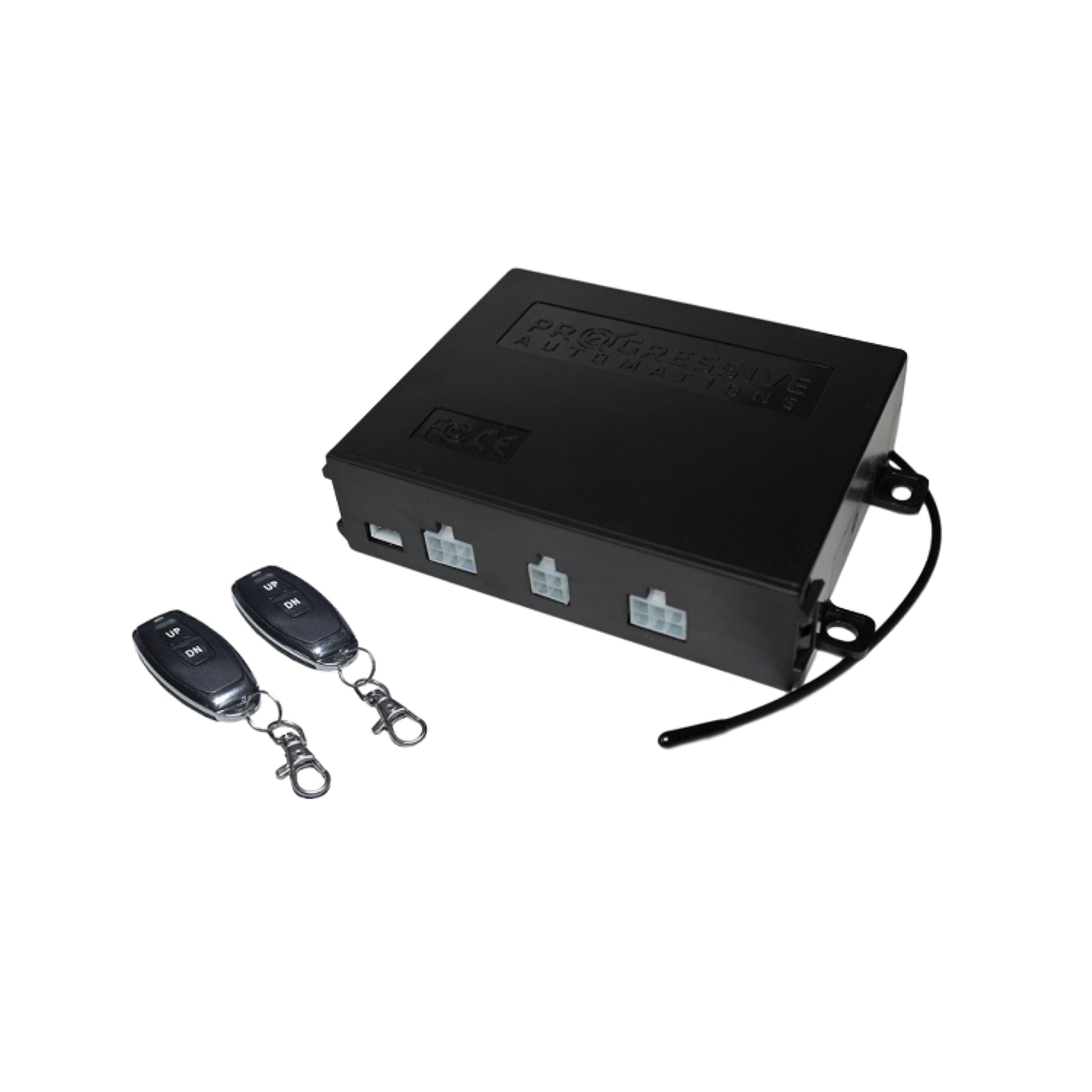

1 Control box, 2 Wireless remotes, 1 Power wire harness w/ in-line 30A fuse
Remote Functions:
Up, Down, Pause (momentary/non-momentary)
Remote Battery Type:
2 x CR2016 3V Lithium cell
Size:

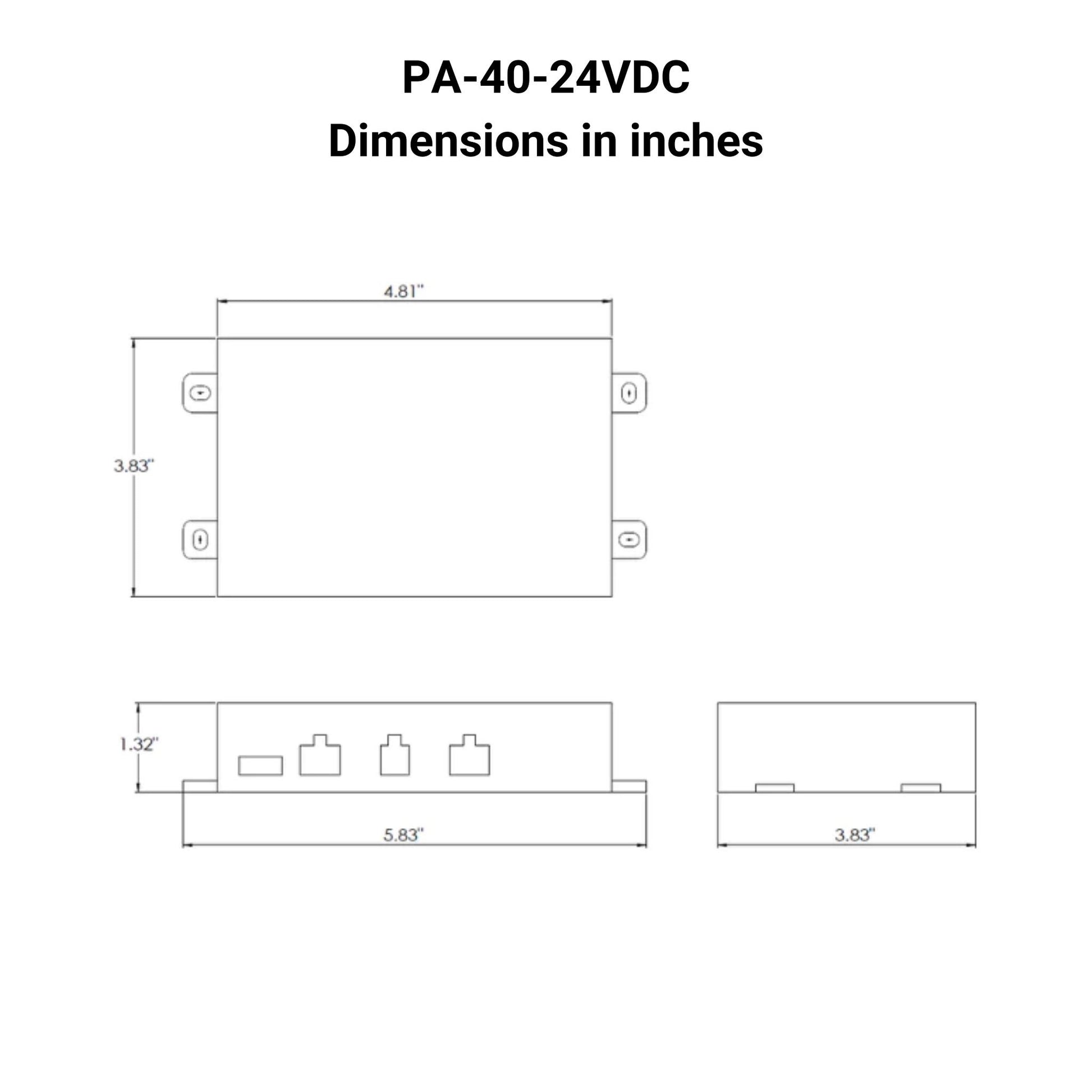

5.83" x 3.83" x 1.32"
AC Power Option:
with PS-20-24, PA-VC1
18 Months
Control Boxes Compatibility
