12-24 VDC - Synchronized Dual Potentiometer Actuator Control - 15A - Wired Remote

12-24 VDC - Synchronized Dual Potentiometer Actuator Control - 15A - Wired Remote

Model: PA-39

Low Stock
Ships within 24 hours
Volume Discount
1-6 units 190.00
7-9 units 180.50
10–19 units 171.00
20–49 units 161.50
Regular price $190.00 CAD
Regular price Sale price $190.00 CAD
Sale Sold out
  • Linear Actuator Calculator
  • Get Free Actuator Guide
  • Created with Fabric.js 1.7.22 You may also need these
View full details
Description
PA-39 Specifications

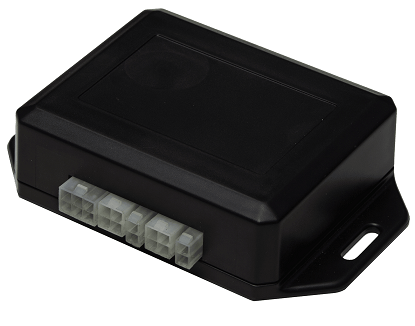

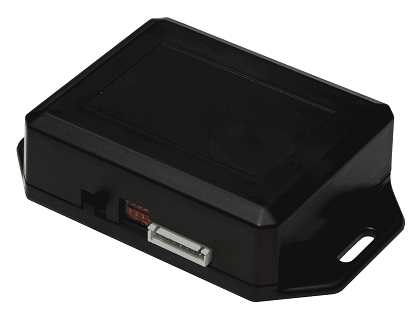

The PA-39 control box allows for individual or synchronous control of linear actuators with potentiometer feedback. The control box has the ability to save 3 preset locations, control linear actuators in sequential motion, and extend, stop, and retract movement.

*The PA-39 is the ideal 2-actuator control box if synchronization is essential to your application. It is important to ensure that the 12VDC power supply has a sufficient current rating to support all connected units. If you are in need of actuators to use with the PA-39, the PA-14P Feedback Linear Actuators are compatible with slight modification of the connectors.

For a more in-depth guide on the programming, please see the PA-39 User Manual.

* 30A (15A per channel) is possible provided you upgrade the supply wires to a thicker gauge. The fuse must be upgraded to 30A as well.

* Only compatible with potentiometer feedback actuators at 12 or 24 VDC. Controls 2 actuators with potentiometer feedback in sync or in sequence (one after the other). The PA-14P actuators are compatible with slight modifications to their connectors.

Specifications
PA-39 Specifications

The PA-39 control box allows for individual or synchronous control of linear actuators with potentiometer feedback. The control box has the ability to save 3 preset locations, control linear actuators in sequential motion, and extend, stop, and retract movement.

*The PA-39 is the ideal 2-actuator control box if synchronization is essential to your application. It is important to ensure that the 12VDC power supply has a sufficient current rating to support all connected units. If you are in need of actuators to use with the PA-39, the PA-14P Feedback Linear Actuators are compatible with slight modification of the connectors.

For a more in-depth guide on the programming, please see the PA-39 User Manual.

* 30A (15A per channel) is possible provided you upgrade the supply wires to a thicker gauge. The fuse must be upgraded to 30A as well.

* Only compatible with potentiometer feedback actuators at 12 or 24 VDC. Controls 2 actuators with potentiometer feedback in sync or in sequence (one after the other). The PA-14P actuators are compatible with slight modifications to their connectors.

Product Specifications
Control Ability:
Controls 2 actuators with POT in sync or in sequence (one after the other)
Input Voltage:
12-24 VDC
Unit Weight:
0.8 lbs
Output Power:
12-24 VDC
Current:
7.5 Amps (each channel)
Kit Includes:

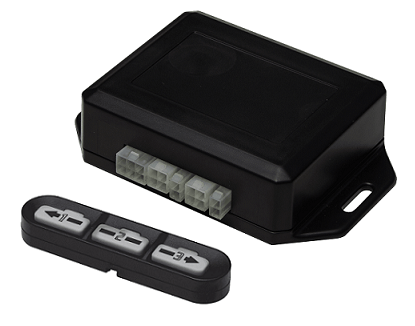

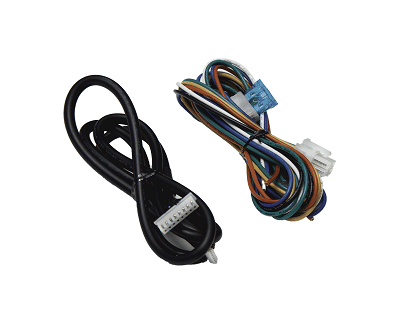

1 hand remotes, 1 control box, wire harness, mounting hardware

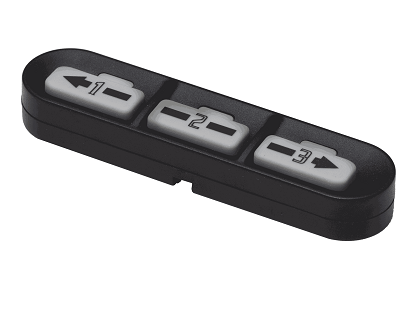

Remote Functions:
up, down, pause (momentary)
Size:
4.9" x 1.3" x 3.7"
AC Power Option:
with AC-15, PS-13-12, PS-20-12, PS-20-12-67, PS-40-12
18 Months
Control Boxes Compatibility
Data Sheet
12-24 VDC - SYNCHRONIZED DUAL POTENTIOMETER ACTUATOR CONTROL - 15A - WIRED REMOTE

PA-39 Data Sheet

Media
Videos

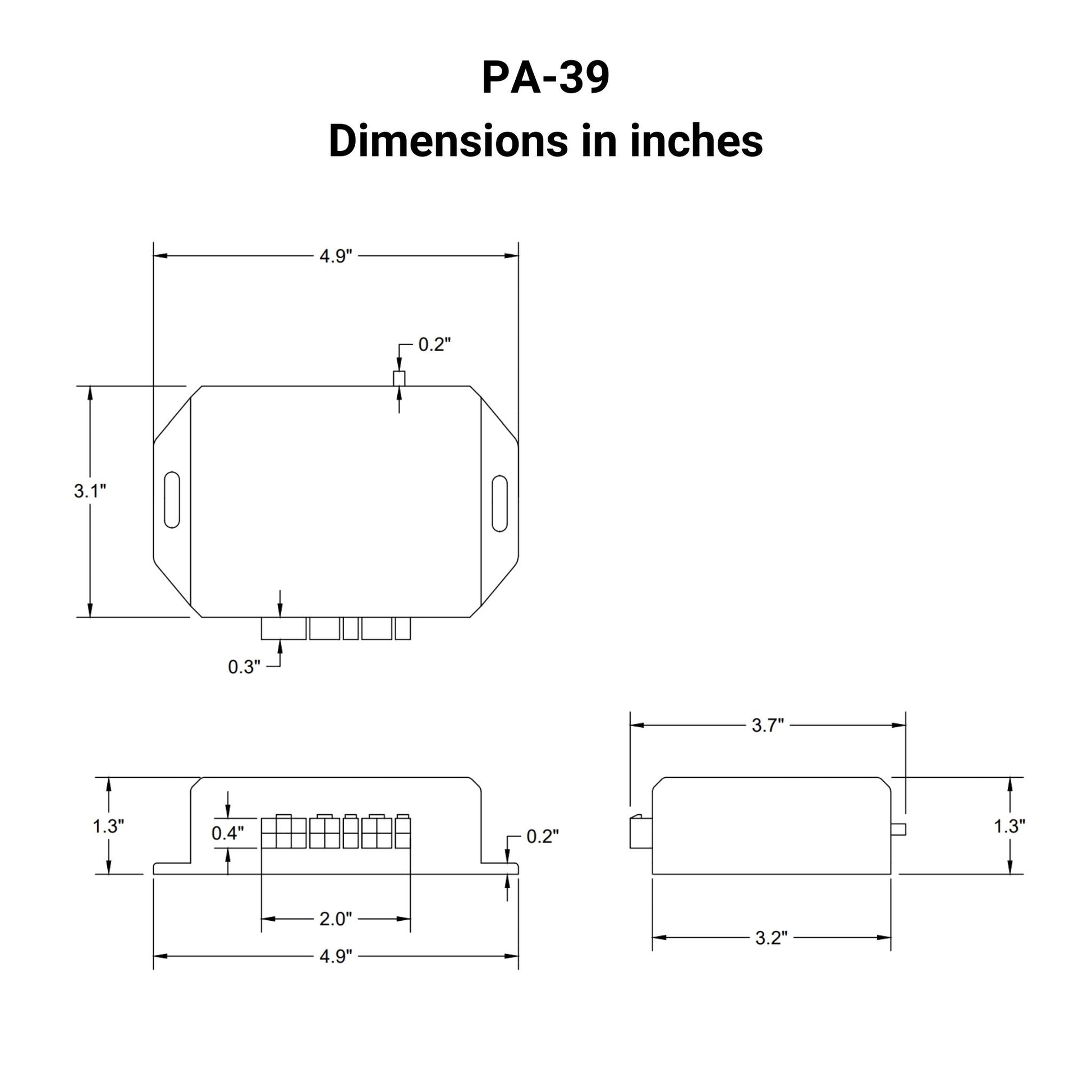

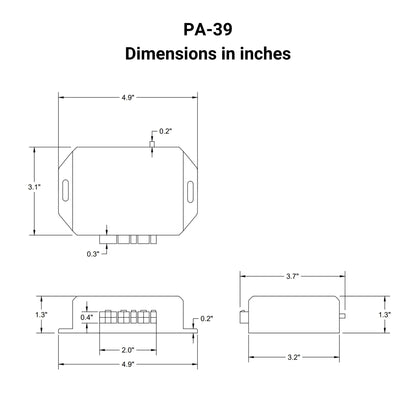

Dimensional Drawing
Dimensional Drawing
