Waterproof Linear Actuator - IP66 Rated for Harsh Environments

Q: What makes the PA-10 actuator suitable for outdoor and harsh environment applications?

The PA-10 water-resistant actuator offers an IP66 linear actuator ingress protection rating, making it dust-tight and resistant to powerful water jets. This weatherproofing ensures it can be used in harsh conditions where exposure to the elements is common.

Q: What is the Salt Spray rated version of the PA-10 and when should it be used?

The PA-10 salt spray actuator is a version that includes a porcelain-plated housing to resist corrosion from salt exposure. It is ideal for applications requiring a marine actuator or corrosion-resistant actuator in installations near coastal environments.

Q: How does the low power draw of the PA-10 benefit battery-operated systems?

The PA-10 low current actuator is designed for efficient low power operation, which helps extend battery life in 12VDC applications. This makes it suitable for off-grid systems, vehicles, or solar-powered setups that require low actuator power consumption.

Q: What mounting options are available for the PA-10 and how does the 180° rotation feature work?

The PA-10 is compatible with the BRK-09 bracket, which allows for actuator mounting flexibility and full 180° rotation through the included pivoting cotter and clevis pin. This rotation provides greater installation versatility, particularly in tight or angled spaces.

Q: Can the PA-10 be customized for stroke length, force, or feedback?

Yes, the PA-10 has actuator customization options to meet specific application requirements, including various stroke length options, force ratings, and optional Hall effect sensor feedback.

$233.99 CAD

Overview

[PA-10]

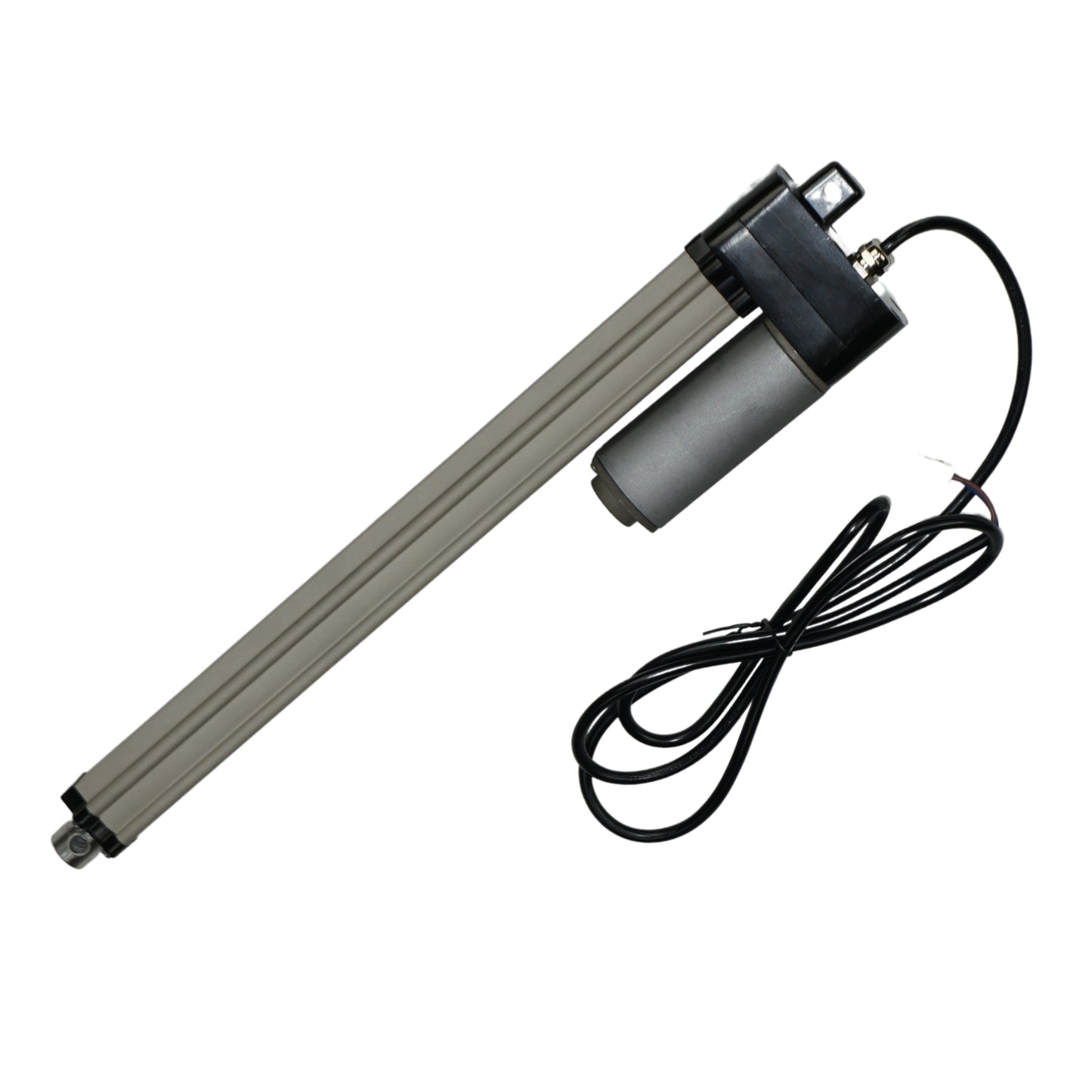

The PA-10 Water-Resistant Electric Linear Actuator is designed for demanding outdoor applications that require compact size, high force, and dependable environmental protection. Its IP66 weather protection rating helps protect against dust and powerful water exposure, making the PA-10 well suited for marine, automotive, and agricultural applications. For applications requiring additional corrosion resistance, the PA-10 is also available in a Salt Spray-rated version with a specialized porcelain-plated housing tested for up to 400 hours of salt spray exposure. For more information about environmental protection ratings, please see our IP Rating Guide.

Technology

Easier installs, less wiring

60 inches of cable built in — cleaner installs, less extension wiring.

At home outdoors

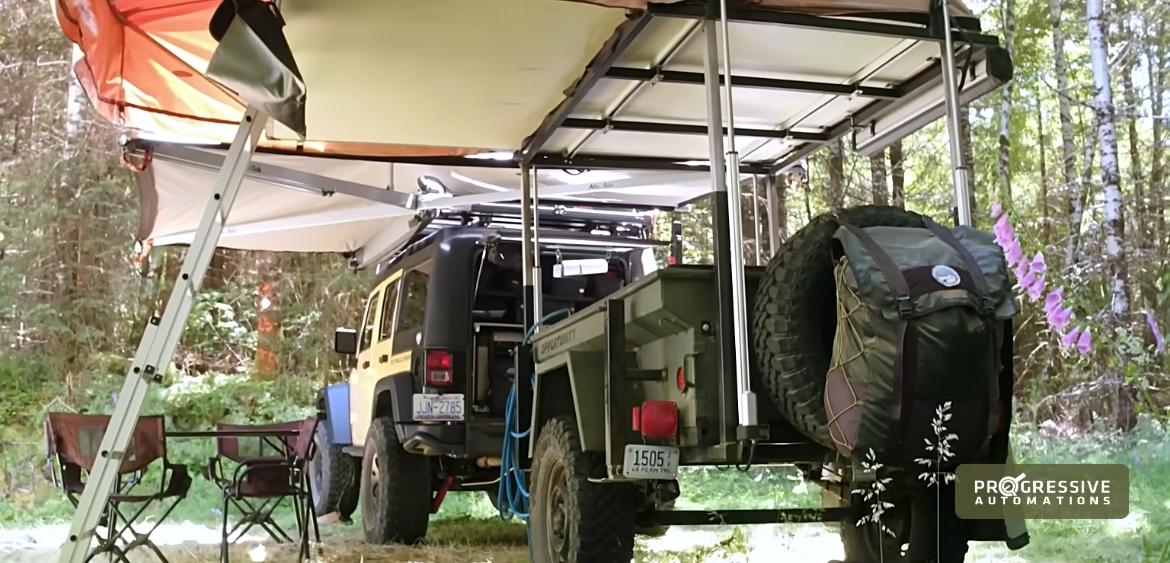

Sealed to IP66 — made for trailers, boats, and farm gear.

Will not rust out on you

Plated and anodized finishes — with a salt-spray version tested to 400 hours.

Built for vehicles and boats

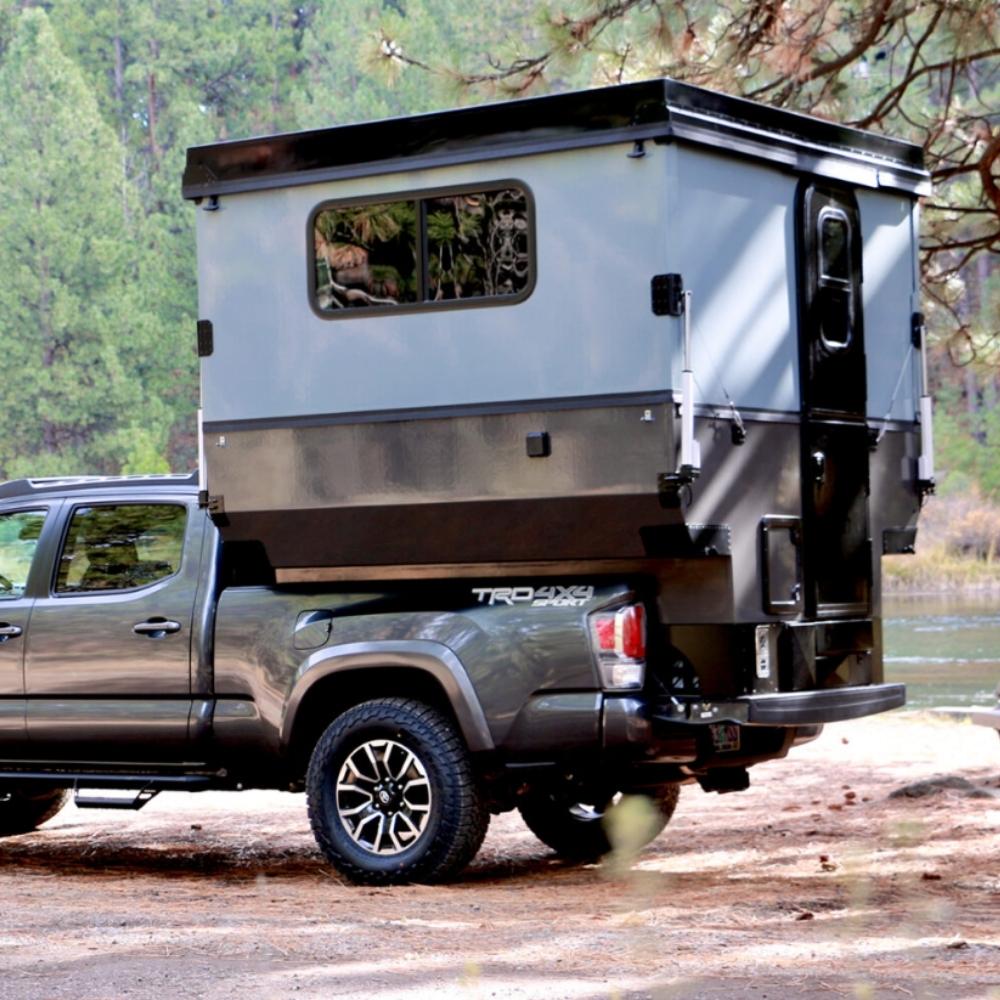

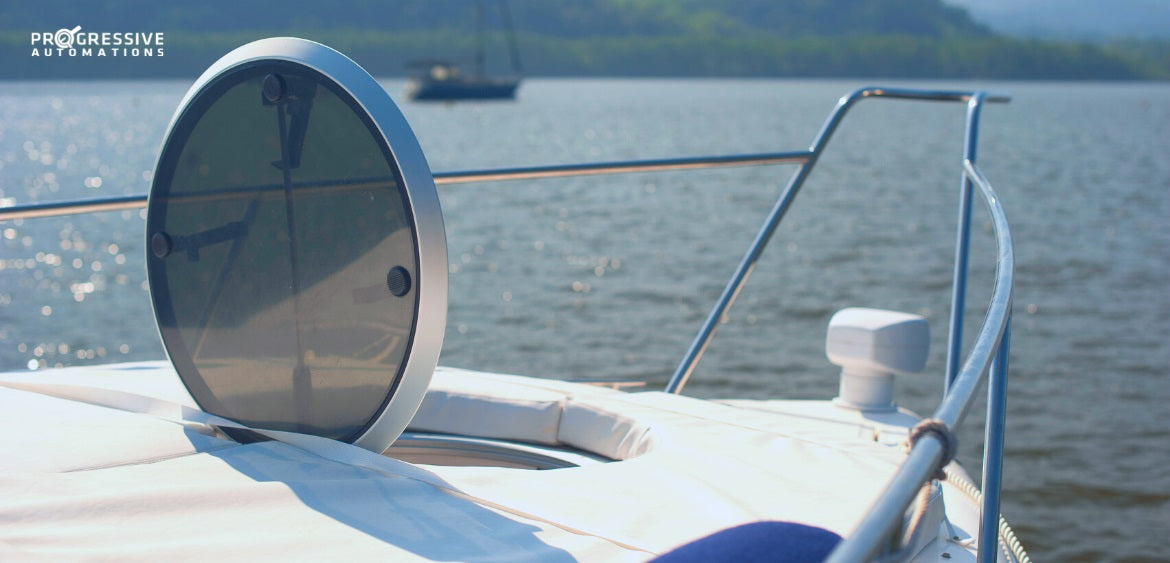

Automates covers, hatches, and doors — on machines that live outside.

Same position, every time

Control position, speed, and sync — with the Hall effect version.

Specifications

Force, Speed & Current

The PA-10 Water-Resistant Electric Linear Actuator combines high-force performance, compact construction, and IP66 protection for automation projects exposed to harsh environments. Its efficient drive system and multiple performance configurations allow you to select the force, speed, and current requirements that best match your application. Refer to the Force, Speed & Current table to compare available configurations. For complete specifications, customization options, and dimensional drawings, please see the PA-10 Data Sheet.

Voltage	12 VDC	24 VDC
Dynamic Force	450 lbs	450 lbs
Static Force	450 lbs	450 lbs
Speed - No Load	0.28"/sec	0.56"/sec
Speed - Full Load	0.16"/sec	0.33"/sec
Current - No Load	1.5 A	1.5 A
Current - Full Load	6.0 A	4.0 A

Product Specifications

The PA-10 Water-Resistant Electric Linear Actuator is designed for straightforward integration into new and existing systems. Its compact footprint, durable construction, IP66-rated housing, and optional Salt Spray-rated configuration support dependable operation in outdoor and corrosive environments. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, materials, and other technical specifications.

Product Specifications

Input Voltage:

12 VDC, 24 VDC

Stroke:

2" to 36"

Features:

400-hour Salt Spray Rating (Salt Spray Rating Unit Only)

Feedback:

Yes

Duty Cycle:

20%

Overload Protection:

None

Operational Temperature:

-20°C to 70°C

Operating Noise:

<45 dBA

Limit Switch:

Built-In (Non-Adjustable)

Cable Length:

60"

Connector:

Molex Mini-Fit Jr 2-Pin

Front Mounting Hole Size:

0.32"

Rear Mounting Hole Size:

0.32"

Actuator Type:

Mini, Industrial

Motor Type:

Brushed DC Motor

Screw Type:

ACME

Stroke Rod Material:

Stainless Steel

Housing Material:

Anodic Oxidation (Standard), Porcelain Plating (Salt Spray Rating)

Gear Material:

Polyoxymethylene

Certifications:

CE, UL (optional)

Compatible Mounting Brackets:

BRK-09

Warranty:

18 Months

Length & Weight

Compatible Accessories

Complete your PA-10 Water-Resistant Electric Linear Actuator system with compatible mounting brackets and control components. Refer to the compatibility tables to identify accessories suitable for your selected actuator configuration.

MOUNTING BRACKETS:

The PA-10 is compatible with the BRK-09 mounting bracket, which can be installed at either the stroke rod or motor-end mounting location and allows for over 180° of rotation. Refer to the corresponding product page for additional specifications and installation information.

CONTROL SYSTEMS:

The PA-10 features an efficient drive system with low power requirements. At maximum load, the 12 VDC model draws less than 6.0 A, making this high-force linear actuator suitable for battery-powered applications and easier to integrate with compatible control systems. Refer to the compatibility tables to select the appropriate controller for your application, or visit our control systems page for additional options.

Brackets Compatibility

Control Boxes Compatibility

Model	Subcategory	Control Boxes Compatibility	Integration Requirements
Model PA-10	Subcategory Input 12 VDC	Control Boxes Compatibility PA-25, PA-33, PA-CB1-4-12VDC (With AC-33-06), CBK-PA-CB30-2-I, CBK-PA-CB30-2-P, PA-CB31-1-12V24V (With AC-57-06), PA-CB20-1-12V24V	Integration Requirements Please pay attention to the current draw and refer to the product datasheet of each model for the voltage and current rating. For more information, feel free to contact our team of engineers and we'll be happy to assist you.
Model PA-10	Subcategory Input 24 VDC	Control Boxes Compatibility PA-CB1-4-24VDC, (With AC-33-06), CBK-PA-CB30-2-I, CBK-PA-CB30-2-P, PA-CB31-1-12V24V (With AC-57-06), PA-CB20-1-12V24V	Integration Requirements Please pay attention to the current draw and refer to the product datasheet of each model for the voltage and current rating. For more information, feel free to contact our team of engineers and we'll be happy to assist you.

Technical Documentation

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality Assured

Data Sheets

PA-10 User Manual

User Manual for PA-10

View

2D/3D models

2D/3D models

Different stroke lengths of models are available upon request, please email us at: sales@progressiveautomations.com

Knowledge base

ISO Quality

FAQ

What makes the PA-10 actuator suitable for outdoor and harsh environment applications?

The PA-10 water-resistant actuator offers an IP66 linear actuator ingress protection rating, making it dust-tight and resistant to powerful water jets. This weatherproofing ensures it can be used in harsh conditions where exposure to the elements is common.

What is the Salt Spray rated version of the PA-10 and when should it be used?

The PA-10 salt spray actuator is a version that includes a porcelain-plated housing to resist corrosion from salt exposure. It is ideal for applications requiring a marine actuator or corrosion-resistant actuator in installations near coastal environments.

How does the low power draw of the PA-10 benefit battery-operated systems?

The PA-10 low current actuator is designed for efficient low power operation, which helps extend battery life in 12VDC applications. This makes it suitable for off-grid systems, vehicles, or solar-powered setups that require low actuator power consumption.

What mounting options are available for the PA-10 and how does the 180° rotation feature work?

The PA-10 is compatible with the BRK-09 bracket, which allows for actuator mounting flexibility and full 180° rotation through the included pivoting cotter and clevis pin. This rotation provides greater installation versatility, particularly in tight or angled spaces.

Can the PA-10 be customized for stroke length, force, or feedback?

Yes, the PA-10 has actuator customization options to meet specific application requirements, including various stroke length options, force ratings, and optional Hall effect sensor feedback.

Industry Insights

Blog Post

Download The Testing Guide

This guide will outline essential steps and the process of evaluating a sample actuator. We include a checklist to ensure all the requirements are met.

Top 10 Questions We Get from Our OEM Customers

Blog Post

Discover with Experts

Check out our videos showcasing our full range of linear actuators, presented by our team of expert engineers

Stroke Length	Retracted Hole-to-Hole Length	Extended Hole-to-Hole Length	Weight
2"	6.70"	8.70"	3.10 lbs
4"	8.70"	12.70"	3.40 lbs
6"	10.70"	16.70"	3.68 lbs
8"	12.70"	20.70"	3.94 lbs
10"	14.70"	24.70"	4.24 lbs
12"	16.70"	28.70"	4.54 lbs
14"	18.70"	32.70"	4.82 lbs
16"	20.70"	36.70"	5.10 lbs
24"	29.90"	53.90"	5.98 lbs
30"	35.90"	65.90"	6.75 lbs
36"	41.90"	77.90"	7.60 lbs

Product name	Actuator Model	Compatible Mounting Brackets	Optional Accessories
Water-resistant Linear Actuator IP66 - Optional Feedback	PA-10	BRK-09
