Lifting Column Set - 2600 lbs - Stroke Size 16"
Model: FLT-12
In stock
Ships within 24 hours

Lifting Column Set - 2600 lbs - Stroke Size 16"

Model: FLT-12
Instant Quote
Regular price
$799.99
Sale price
$799.99
7-9 units
10-19 units
20–49 units
Quantity
-
+

Description
FLT-12 Specifications

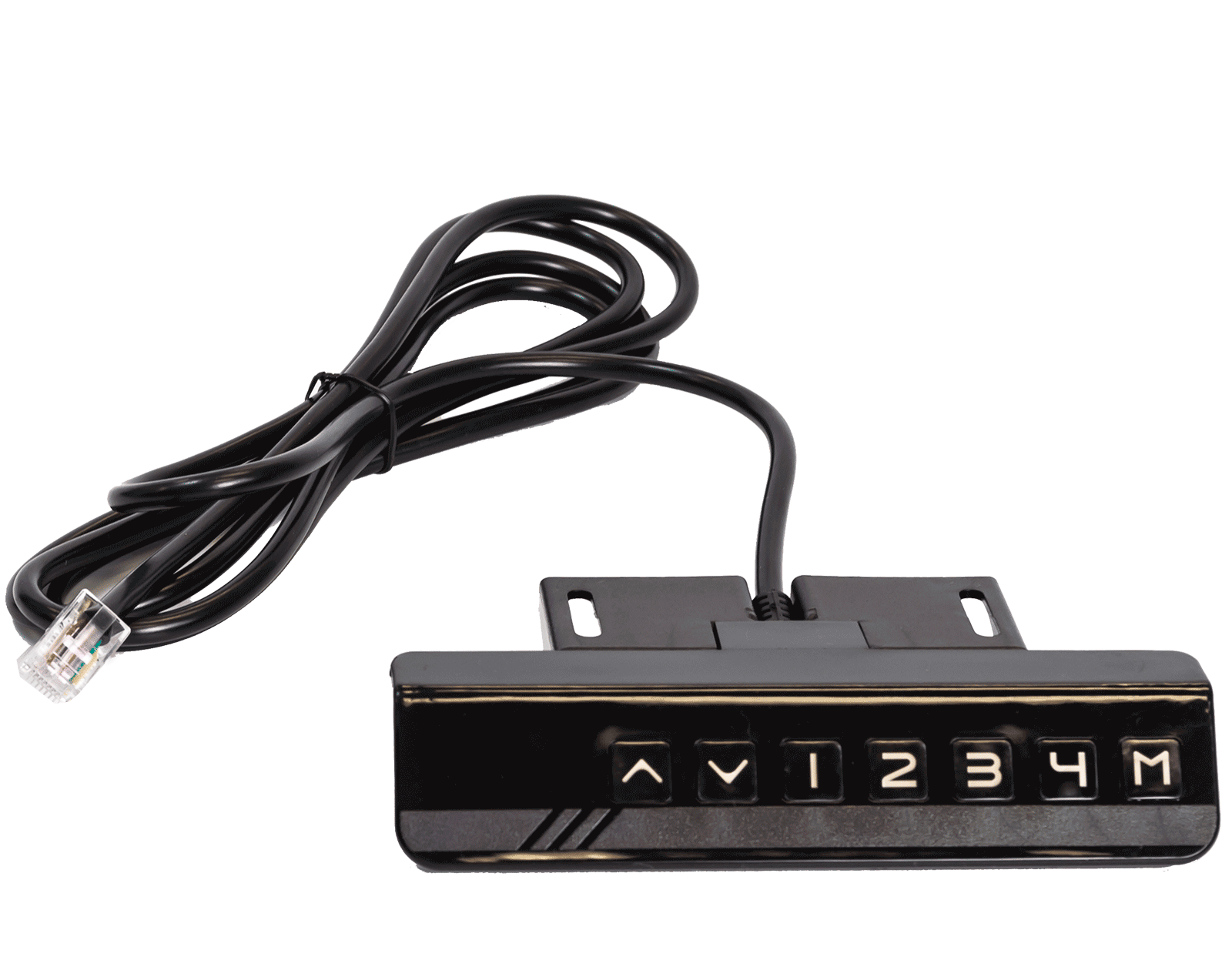

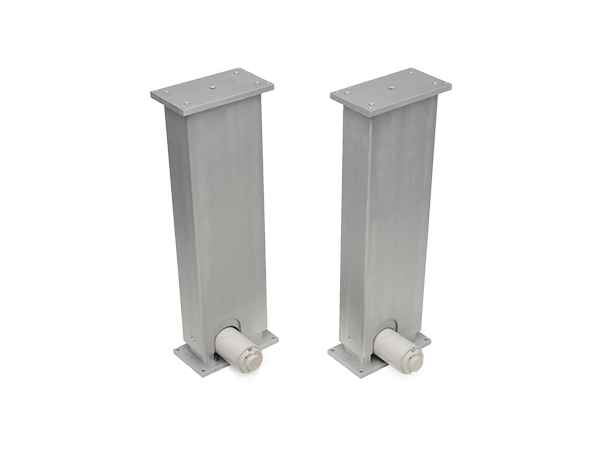

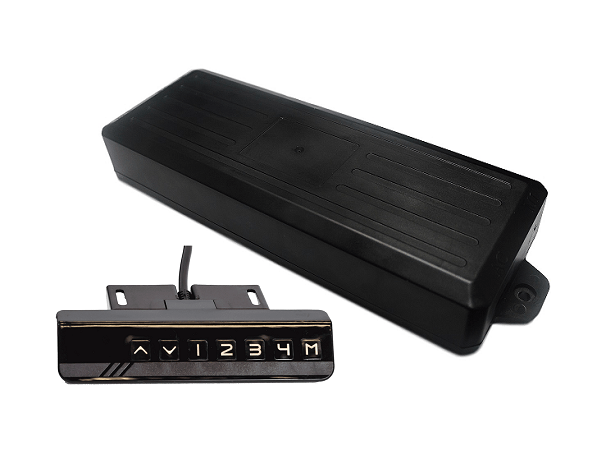

The FLT-12 Lifting Column Set is a two-column lifting system. It comes with two lifting columns, a power supply and a wired remote with the ability to save up to four preset positions. The remote also has a 5V USB charging port. These are the strongest lifting columns we have, able to lift over 2500 lbs, making them the ideal lifting system for those applications that require huge amounts of force output.

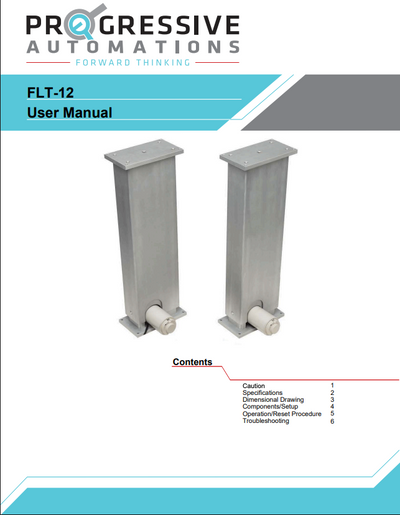

Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes important technical information like the reset procedure and how to operate it as well as a set-up diagram.

Custom Options

Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!

FLT-12 Data Sheet
Specifications
FLT-12 Specifications

The FLT-12 Lifting Column Set is a two-column lifting system. It comes with two lifting columns, a power supply and a wired remote with the ability to save up to four preset positions. The remote also has a 5V USB charging port. These are the strongest lifting columns we have, able to lift over 2500 lbs, making them the ideal lifting system for those applications that require huge amounts of force output.

Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes important technical information like the reset procedure and how to operate it as well as a set-up diagram.

Custom Options

Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!

FLT-12 Data Sheet
Product Specifications
Input Voltage:
120 VAC
Travel Distance:
16"
Height Range:
22.8" - 37.9"
Lifting Capacity:
2600 lbs
Speed:
0.24"/sec
Remote Functions:
Program Up to 4 Preset Positions, 5V USB Charging Port
Duty Cycle: i
10%
Anti-Collision Function:
Yes
Certifications:
UL
Protection Class: i
IP43
Unit Weight:
46.61 lbs
84 Months
Data Sheet
LIFTING COLUMN SET - 2600 LBS - STROKE SIZE 16"

FLT-12 Data Sheet

Dimensional Drawing
Dimensional Drawing
