Rocker Switch - Momentary/Non-Momentary - 10A
Rocker Switch - Momentary/Non-Momentary - 10A
Model: RC-01 / RC-03
Couldn't load pickup availability

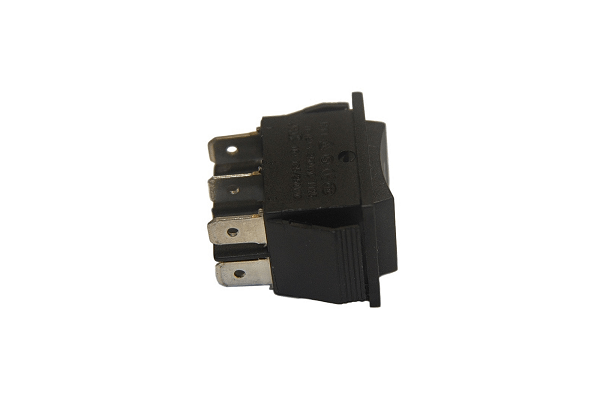

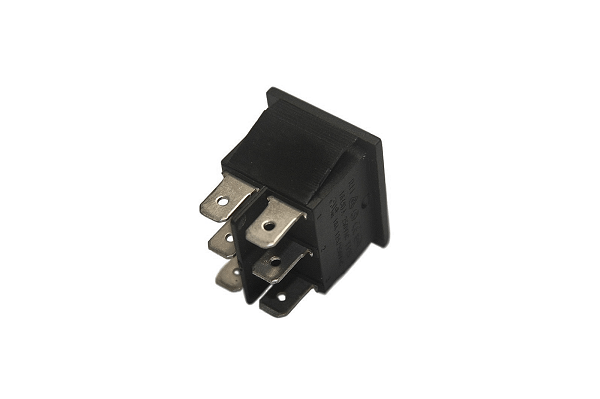

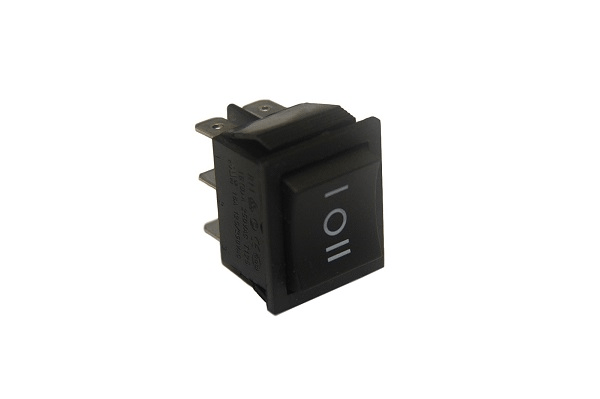

This rocker switch is ideal to control linear actuators at a low cost. It is available in two models, one with momentary and one with non-momentary functionality. The momentary switch is spring-loaded, just press a button to extend or retract actuator. When the button is released the switch will spring back to off position. For the non-momentary switch, press a button and the actuator will fully extend and will stop once fully extended. Push the button in the opposite direction and the actuator will fully retract. In addition, it has a middle position that can stop a linear actuator at any point.
Use our wiring diagram to wire a rocker switch to the actuator(s).
This rocker switch is ideal to control linear actuators at a low cost. It is available in two models, one with momentary and one with non-momentary functionality. The momentary switch is spring-loaded, just press a button to extend or retract actuator. When the button is released the switch will spring back to off position. For the non-momentary switch, press a button and the actuator will fully extend and will stop once fully extended. Push the button in the opposite direction and the actuator will fully retract. In addition, it has a middle position that can stop a linear actuator at any point.
Use our wiring diagram to wire a rocker switch to the actuator(s).
