Lifting Column Set - 880 lbs - Stroke Size 16"
Skip to product information
1 of 3

Lifting Column Set - 880 lbs - Stroke Size 16"

Lifting Column Set - 880 lbs - Stroke Size 16"

Model: FLT-03-2-2

Out of stock
Back in stock soon
Volume Discount
1-6 units 761.00
7-9 units 722.95
10–19 units 684.90
20–49 units 646.85
Regular price $761.00 CAD
Regular price Sale price $761.00 CAD
Sale Sold out
  • Linear Actuator Calculator
  • Get Free Actuator Guide
  • Created with Fabric.js 1.7.22 You may also need these
View full details
Description
FLT-03-2-2 Specifications

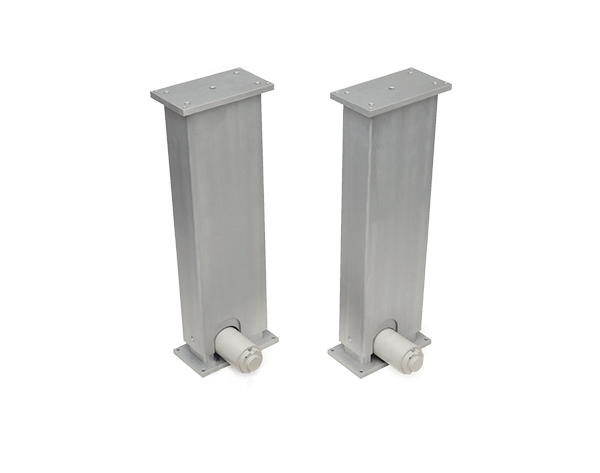

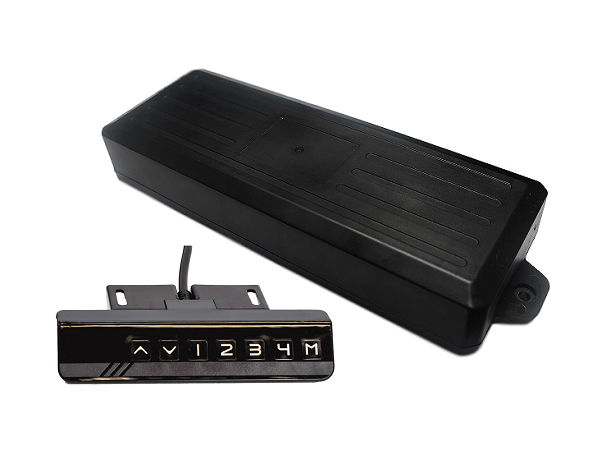

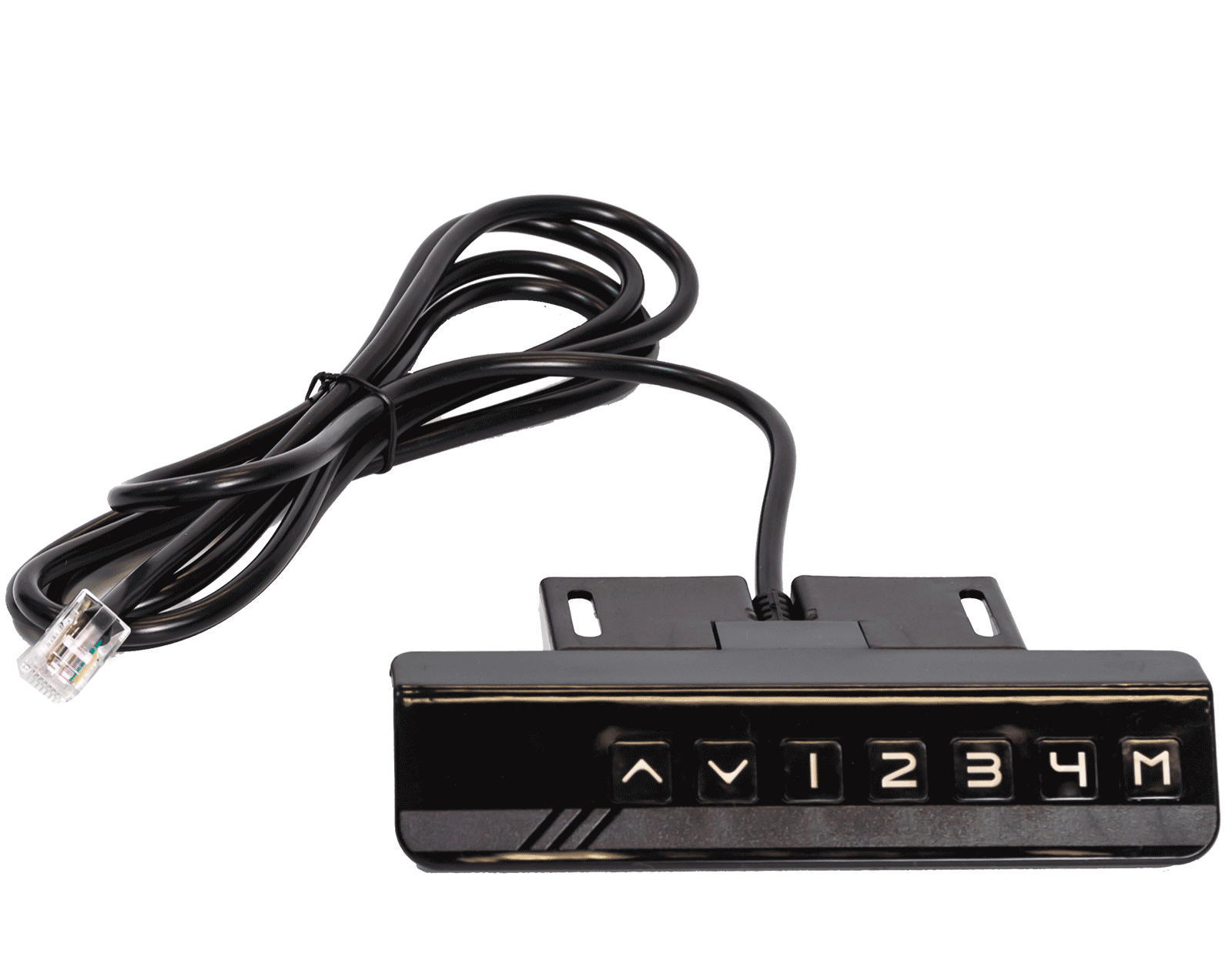

The FLT-03-2-2 Lifting Column Set is a two-column lifting system. It comes with two lifting columns, a power supply and a wired remote for simple up/down motion control. These columns are perfect for industrial style workstations because of their large amount of force output.

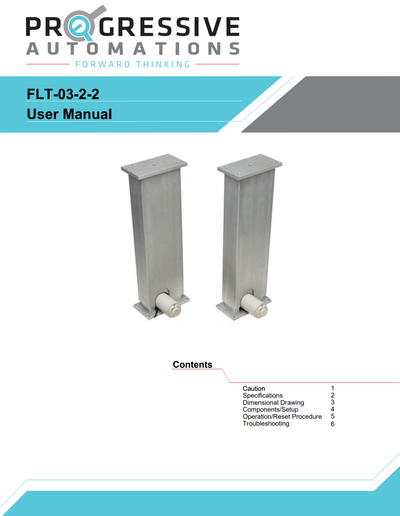

Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes important technical information like the reset procedure and how to operate it as well as a set-up diagram.

Specifications
FLT-03-2-2 Specifications

The FLT-03-2-2 Lifting Column Set is a two-column lifting system. It comes with two lifting columns, a power supply and a wired remote for simple up/down motion control. These columns are perfect for industrial style workstations because of their large amount of force output.

Installation is a simple procedure with the help of our instructional PDF manual which you can find here. It includes important technical information like the reset procedure and how to operate it as well as a set-up diagram.

Product Specifications
Speed:
0.5"/sec
Protection Class: i

Protection Class: An International Protection Marking, also known as IP Rating/Code, is the rating of a product’s ability to withstand liquid and dust intrusion.


Learn more from the article in our blog: What is an IP Rating?

IP43
Voltage Input:
120 VAC
Weight:
47.0 lbs
Travel Distance:
16"
Height Range:
22.8" - 37.8"
Lifting Capacity:
880 lbs
Remote Functions:
Program Up to 4 Preset Positions, 5V USB Charging Port
Duty Cycle: i

Duty Cycle: The ratio of on time to off time, usually expressed as a percentage.


Learn more from the article in our blog: Understanding Duty Cycle.

10%
Unit Weight:
47.0 lbs
84 Months
Data Sheet
LIFTING COLUMN SET - 880 LBS - STROKE SIZE 16"

FLT-03-2-2 Data Sheet

3D Models
Media
Videos
Dimensional Drawing
Dimensional Drawing
