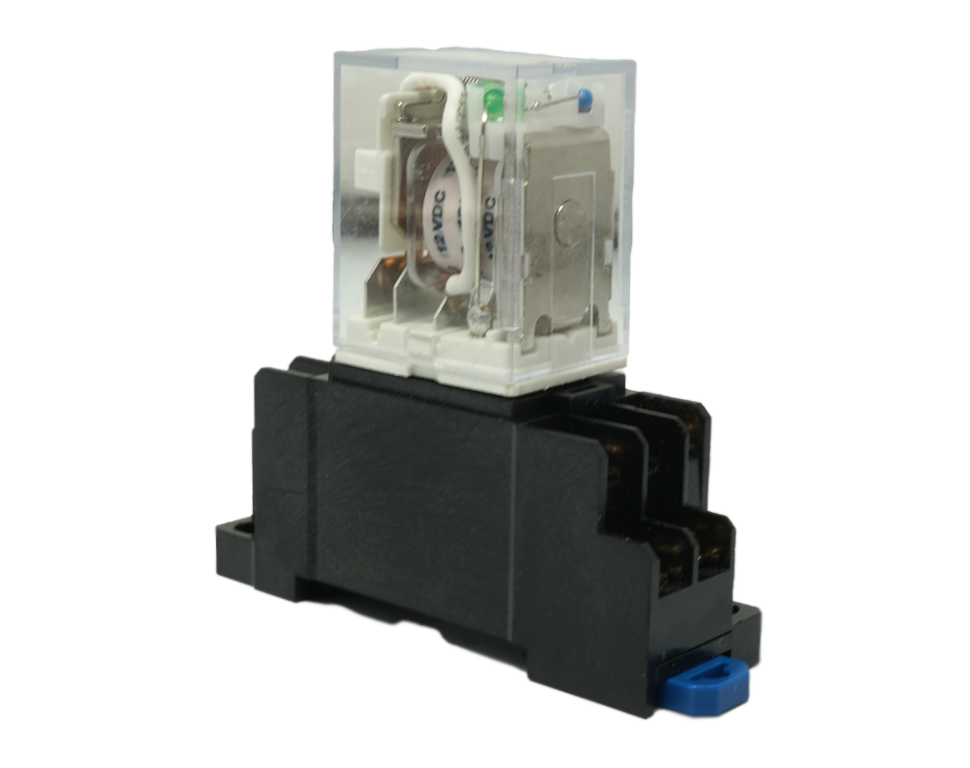

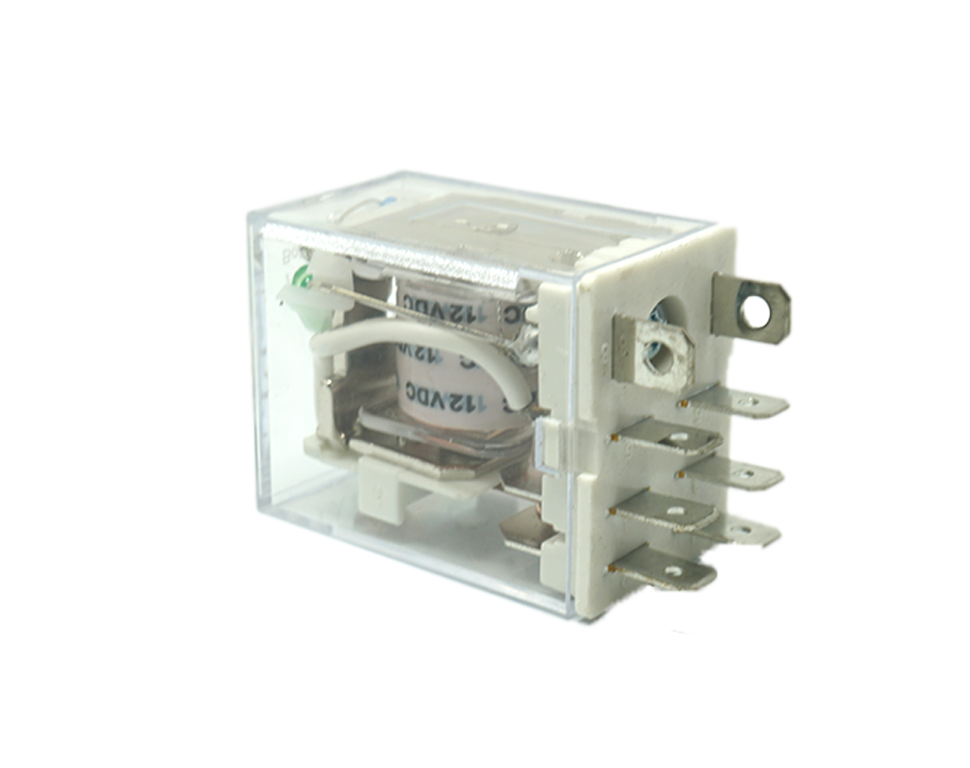

Relay -12 VDC - DPDT - 10A
Model: AC-27-10-12
In stock
Ships within 24 hours

Relay -12 VDC - DPDT - 10A

Model: AC-27-10-12
Instant Quote
Regular price
$21.24
Sale price
$21.24
7-9 units
10-19 units
20–49 units
Quantity
-
+

Description
AC-27-10-12 Specifications

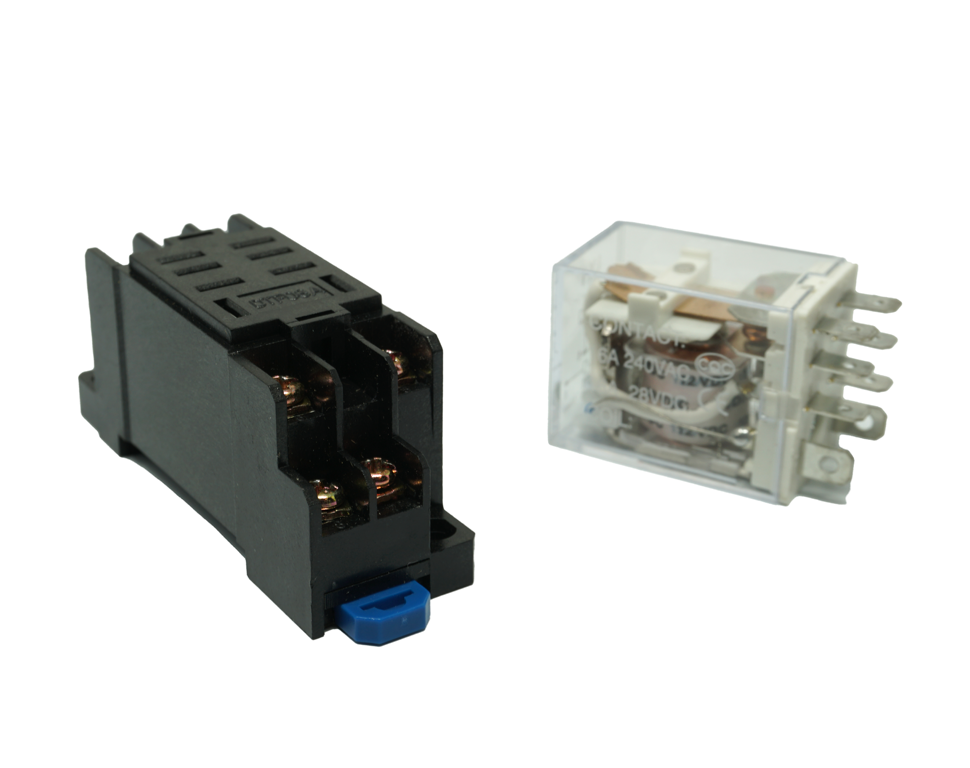

Relays are very popular in the actuator and automations projects.  They are small in size and allow for various control options.  DPDT (double pole double throw) relay is an electromagnetic device that is used to separate two circuits electrically and attached/connect them magnetically. Some of the actuator control scenarios would require the use of relay.  Please refer to our wiring diagrams to find out what control setups would require the use of relays. Each relay comes with a relay socket to make wiring of the relay much simpler.

  • Four Contact Arrangements
  • No. of Electrical Pins: 8
  • Enclosure: Plastic
  • Contact Material: Silver Cadmium Oxide
Specifications
AC-27-10-12 Specifications

Relays are very popular in the actuator and automations projects.  They are small in size and allow for various control options.  DPDT (double pole double throw) relay is an electromagnetic device that is used to separate two circuits electrically and attached/connect them magnetically. Some of the actuator control scenarios would require the use of relay.  Please refer to our wiring diagrams to find out what control setups would require the use of relays. Each relay comes with a relay socket to make wiring of the relay much simpler.

  • Four Contact Arrangements
  • No. of Electrical Pins: 8
  • Enclosure: Plastic
  • Contact Material: Silver Cadmium Oxide
Product Specifications
Circuitry:
DPDT
Connection Type:
Socket with screws
Current:
10A
Input Voltage:
12 VDC
Unit Weight:
0.15 lbs
Warranty:
18 Months
18 Months
Dimensional Drawing
Dimensional Drawing
