Drop Down TV Lift: Up to 75" TVs
Model: TY-05-40

Drop Down TV Lift: Up to 75" TVs

Model: TY-05-40
In stock
Ships within 24 hours
Instant Quote
Regular price
$718.75
Sale price
$718.75
7-9 units
10-19 units
20–49 units
Quantity
-
+

Description
TY-05-40 Specifications

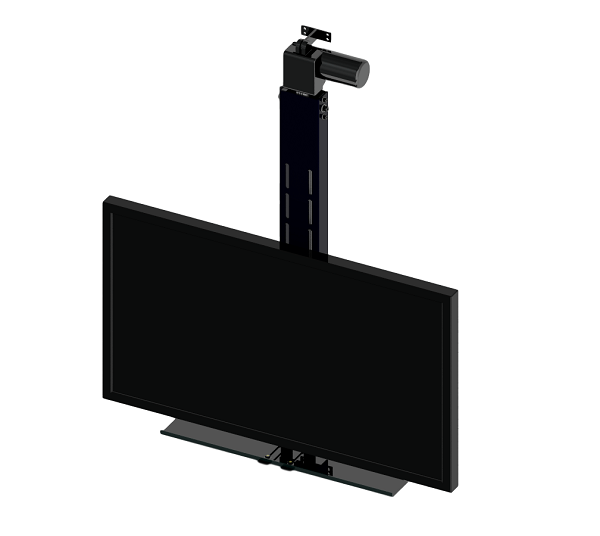

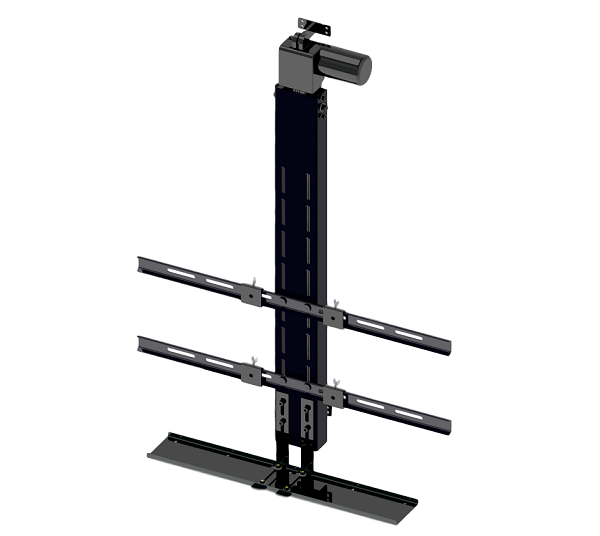

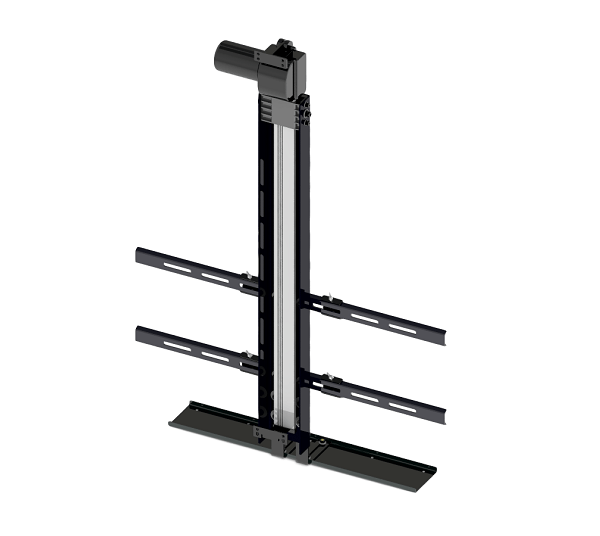

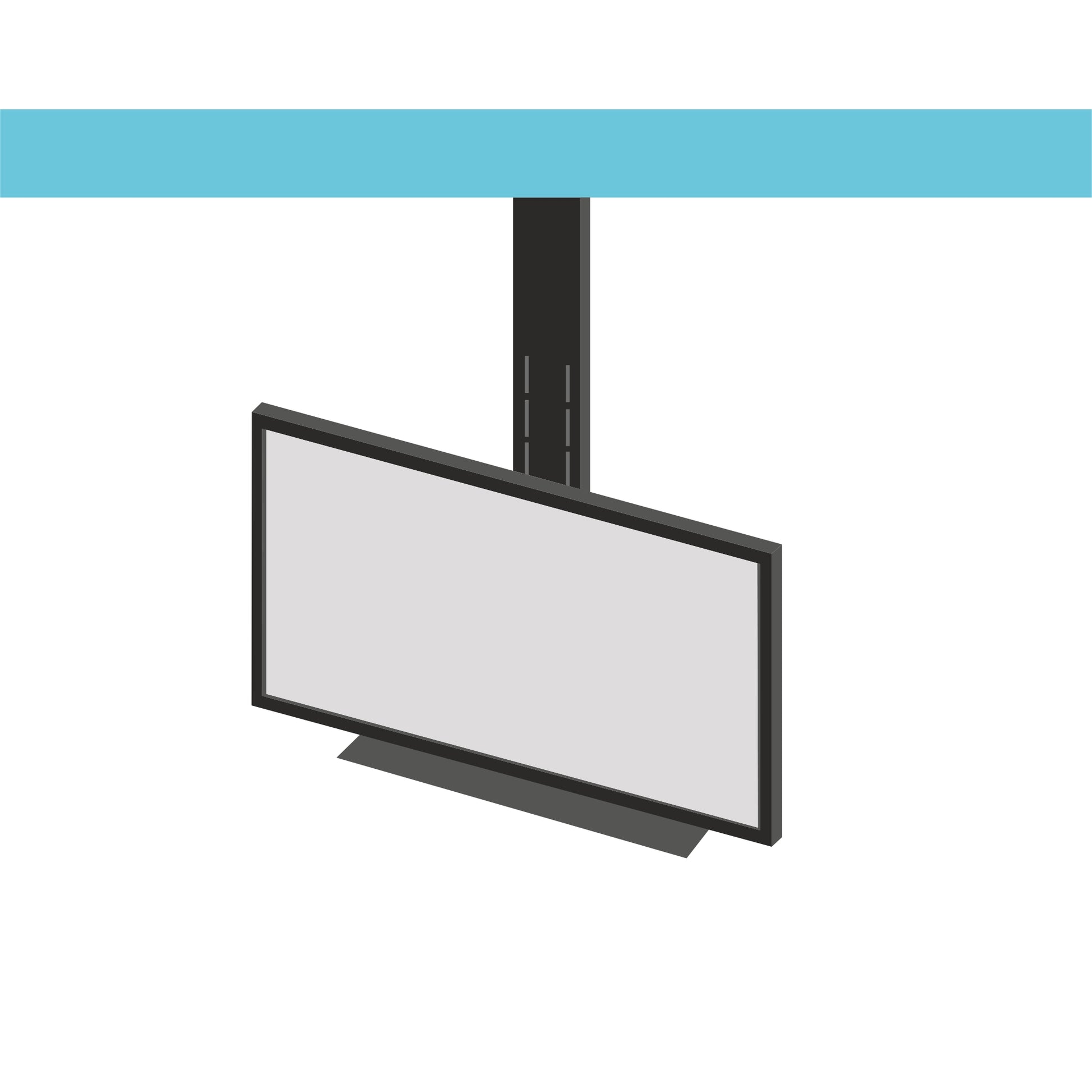

The TY-05-40 Drop Down TV lift easily installs to automate your home entertainment system. With the drop-down design, you can lower your television up to 75" down from the ceiling and raise it back to hide in plain sight when not in use. The TY-05 series was designed to be able to fit into tight spaces such as attics and is easily controlled via wired or wireless remote. The TY-05-40 has a travel distance of 40" and can support up to 140lbs.

For step by step installation instructions be sure to check out our TY-05 Series Datasheet.

TY-05-40 Data Sheet
Specifications
TY-05-40 Specifications

The TY-05-40 Drop Down TV lift easily installs to automate your home entertainment system. With the drop-down design, you can lower your television up to 75" down from the ceiling and raise it back to hide in plain sight when not in use. The TY-05 series was designed to be able to fit into tight spaces such as attics and is easily controlled via wired or wireless remote. The TY-05-40 has a travel distance of 40" and can support up to 140lbs.

For step by step installation instructions be sure to check out our TY-05 Series Datasheet.

TY-05-40 Data Sheet
Product Specifications
Stroke (Movement):
40"
Minimum Height:
52.5"
Maximum Height:
92.5"
TV Size Compatibility:
30" - 75"
VESA Compability:
Yes - Standard FDMI MIS-F
Input Voltage:
120 VAC 60 Hz

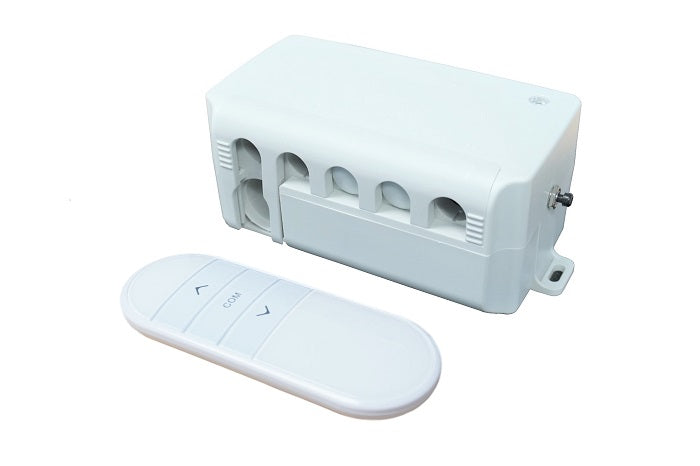

Control Options:
Wired & Wireless Remote
Wireless Remote Range:
Up to 120 ft
Wired Remote Cable Length:
35"
Dynamic Load:
140 lbs
Static Load:
110 lbs
Speed at No Load:
1.54"/sec
Speed at Full Load:
0.9"/sec
Overload Protection:
Fused
Operational Temperature:
-26ºC~+65ºC (-15ºF~150ºF)
Duty Cycle:
10%
IP Rating:
IP20
Frame Material:
Aluminum with Steel Brackets
AC Cable Length:
10 ft
Unit Weight:
38.55 lbs
18 Months
Data Sheet
DROP DOWN TV LIFT: UP TO 75" TVS

TY-05-40 Data Sheet

Dimensional Drawing
Dimensional Drawing
