Drop Down TV Lift: Up to 55" TVs
Model: TY-05-30

Drop Down TV Lift: Up to 55" TVs

Model: TY-05-30
In stock
Ships within 24 hours
Instant Quote
Regular price
$687.50
Sale price
$687.50
7-9 units
10-19 units
20–49 units
Quantity
-
+

Description
TY-05-30 Specifications

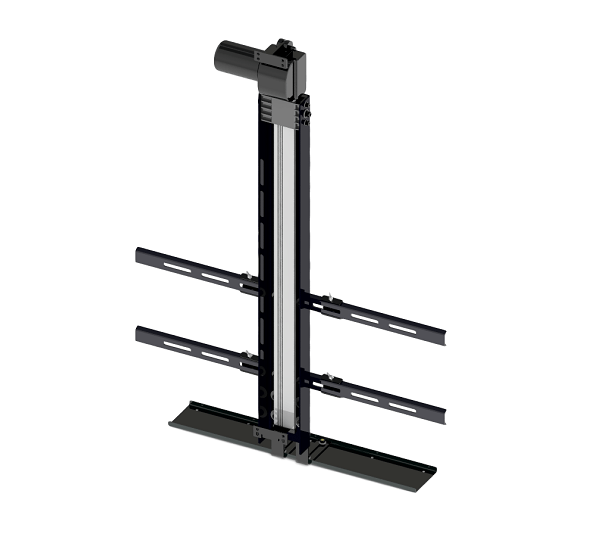

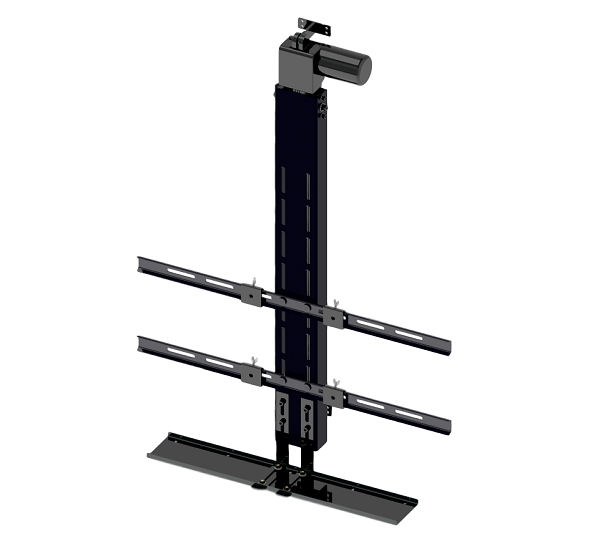

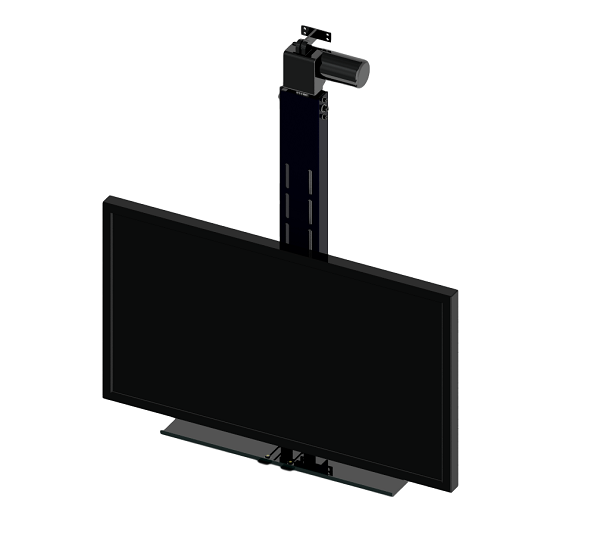

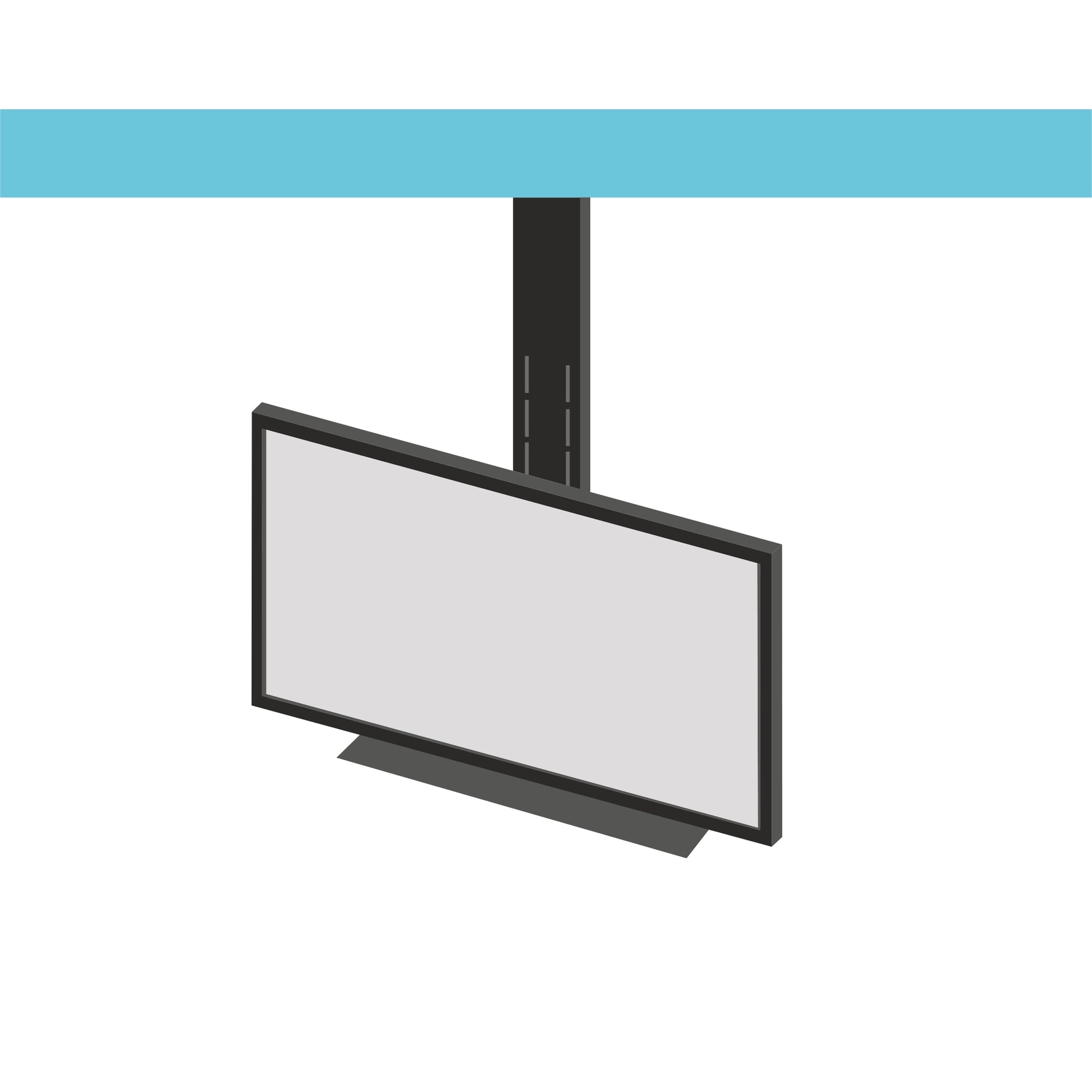

The TY-05 Drop Down TV Lift is the ideal unit to bring your home entertainment system into the future. With the drop down design you are able lower your television down from the ceiling and then raise it back to hide in plain sight when it is not being used. It was designed to be able to fit into tight spaces such as attics and is easily controlled via wireless remote to raise and lower with the press of a button. It can support up to 140 lbs and fits TV sizes up to 55”. For step by step installation instructions make sure to check out our TY-05 Product Info PDF.

For detailed instructions on how to select the correct sized model for your application, click here



TY-05-30 Data Sheet
Specifications
TY-05-30 Specifications

The TY-05 Drop Down TV Lift is the ideal unit to bring your home entertainment system into the future. With the drop down design you are able lower your television down from the ceiling and then raise it back to hide in plain sight when it is not being used. It was designed to be able to fit into tight spaces such as attics and is easily controlled via wireless remote to raise and lower with the press of a button. It can support up to 140 lbs and fits TV sizes up to 55”. For step by step installation instructions make sure to check out our TY-05 Product Info PDF.

For detailed instructions on how to select the correct sized model for your application, click here



TY-05-30 Data Sheet
Product Specifications
Stroke (Movement):
30"
Minimum Height:
42.5"
Maximum Height:
72.5"
TV Size Compatibility:
30" - 55"
VESA Compability:
Yes - Standard FDMI MIS-F
Input Voltage:
120 VAC 60 Hz

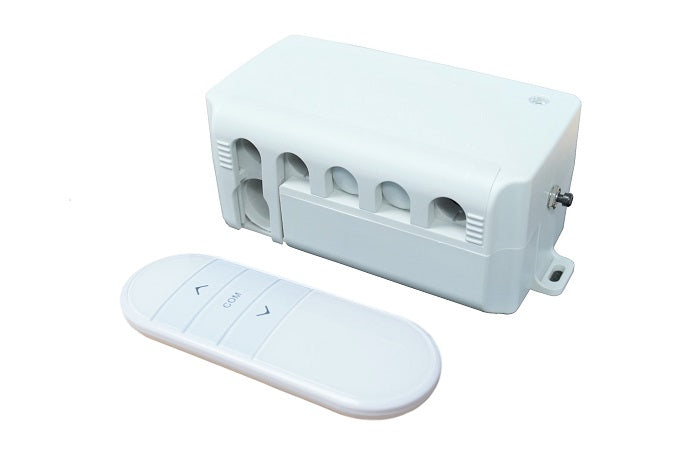

Control Options:
Wired & Wireless Remote
Wireless Remote Range:
Up to 120 ft
Wired Remote Cable Length:
16 ft
Dynamic Load:
140 lbs
Static Load:
110 lbs
Speed at No Load:
1.54"/sec
Speed at Full Load:
0.9"/sec
Overload Protection:
Fused
Operational Temperature:
-26ºC~+65ºC (-15ºF~150ºF)
Duty Cycle:
10%
IP Rating:
IP20
Frame Material:
Aluminum with Steel Brackets
AC Cable Length:
10 ft
Unit Weight:
36.36 lbs
18 Months

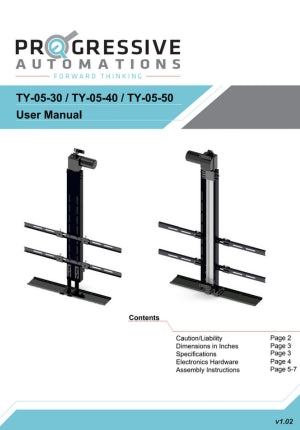

Data Sheet
DROP DOWN TV LIFT: UP TO 55" TVS

TY-05-30 Data Sheet

Dimensional Drawing
Dimensional Drawing
