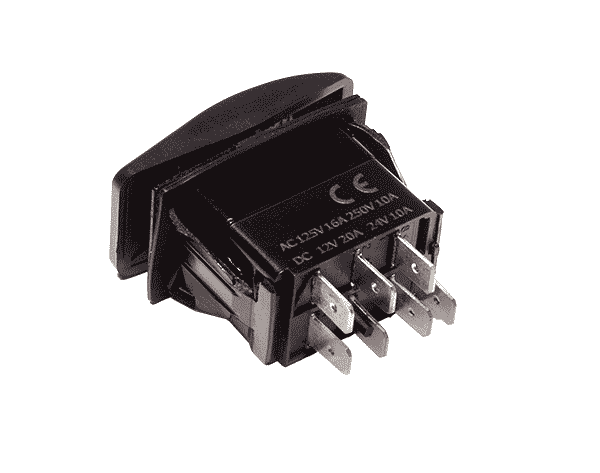

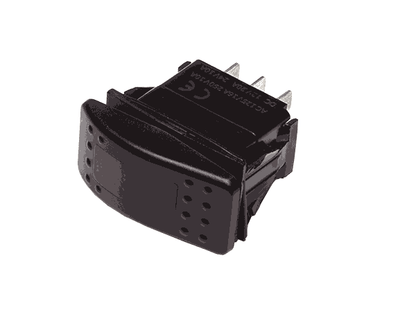

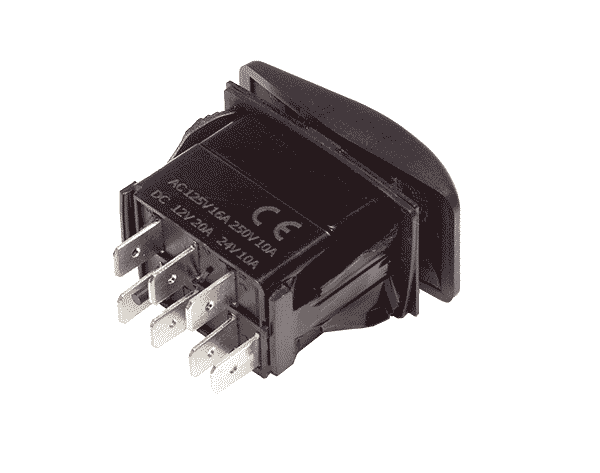

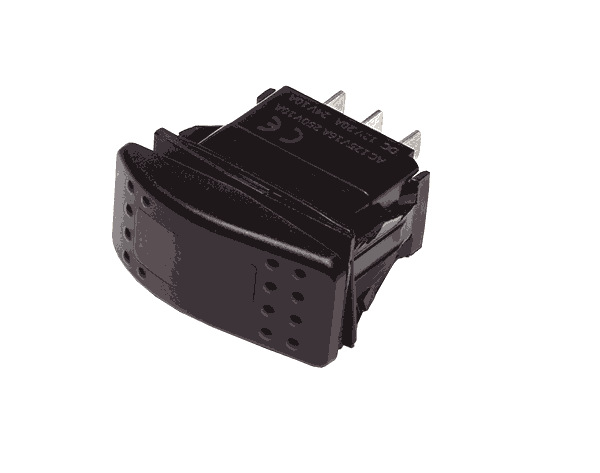

Rocker Switch - Momentary/Non-Momentary - 20A - IP68
Model: RC-10 / RC-11
Waterproof DPDT rocker switch with a red LED. RC-10 is momentary; RC-11 is latching. Rated 20A at 12 VDC or 10A at 24 VDC. For linear actuator systems within the stated voltage and current ratings.
Couldn't load pickup availability
Overview
[RC-10 / RC-11]
The RC-10 Rocker Switch gives direct actuator control in wet or outdoor builds, rated IP68. Choose momentary (spring-return) or non-momentary (stays in position). The red LED can stay on or light only while the switch is pressed.
Specifications
Wire the switch using the wiring diagram tab. LED always on: GND to pin 7, 12 VDC to pin 3. LED on when pressed: GND to pin 7, 12 VDC to pin 2.
| Input Voltage | 12VDC, 24VDC |
| Max Current at 12VDC | 20.0 A |
| Max Current at 24VDC | 10.0 A |
| Max Power | 240 W |
| Switch Operations | On-Off-On (Momentary or Non-Momentary) |
| Circuitry | DPDT |
| IP Rating | IP68 |
| LED | Red |
| Size | 1.9" x 2.0" x 1.0" |
| Warranty | 18 Months |
| Unit Weight | 0.2 lbs |
COMPATIBLE ACCESSORIES:
The RC-10 Rocker Switch works with Progressive Automations 12 VDC and 24 VDC linear actuators drawing up to 20A at 12 VDC or 10A at 24 VDC.
