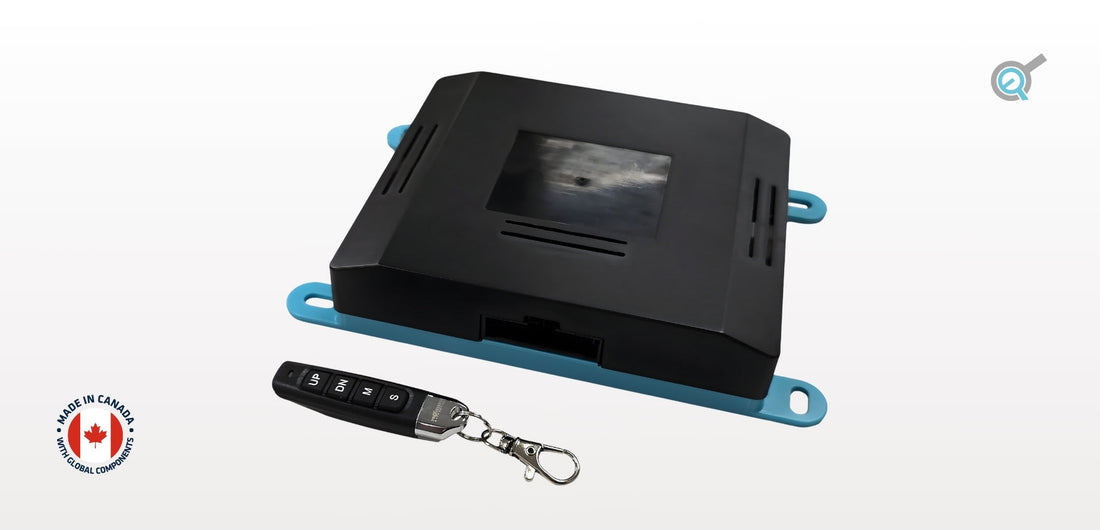

We’re excited to announce the release of our PA-CB41-2 control box, specialized as a high-power actuator controller for dual actuator synchronization. Designed for user-friendly operation, these actuator control boxes, manufactured in Canada, bring more flexibility and intelligence to how you operate your high-load Hall effect actuators. Whether you're working on an industrial actuator system, smart home actuator setups, or custom projects requiring synchronous motion, the PA-CB41-2 dual-channel high-power linear actuator controller delivers power, advanced features, and convenience in a compact plug-and-play package.
Designed for High-Power Linear Actuators
If your application requires perfectly synchronized movement between two high-load actuators, the PA-CB41-2 control box is your go-to dual-channel actuator controller for high-load linear actuators. Designed for use with high-load Hall effect feedback actuators, this high-power linear actuator controller accepts an input voltage of 12 VDC or 24 VDC and high current draws at 25 A per channel at 12 VDC or 12.5 A per channel at 24 VDC.
Precision Control with Hall Effect Feedback
Our PA-CB41-2 control box has dual actuator synchronization capabilities compatible with Hall effect actuator position feedback, engineered to simplify motion control and extend the functionality of high-load actuators. As a dual-channel actuator controller, our PA-CB41-2 control box ensures that two high-load actuators move at the same speed and in the same direction, thanks to its built-in synchronization algorithm.
Built-In Safety and Protection Features
Our PA-CB41-2 control box is built specifically for high-load actuators that have 2-Pin Mega-Fit connectors for the motor and 4-Pin Mini-Fit connectors for the Hall effect feedback compatibility, offering plug-and-play convenience within the matching voltage and current requirements. The suitable wiring harness options with Molex connectors are sold separately and are used to connect your linear actuator and power source to the PA-CB41-2 control box, ensuring a secure and clean connection. With the PA-CB41-2 synchronized motion control system, you gain advanced actuator safety protection features that include real-time sync monitoring and protection against:
- Out of Synchronization
- Output Short Circuit
- Overcurrent / Overload
- Over Duty Cycle
- Out of Range Input Voltage
- Reverse Input Voltage
For more detailed technical information, check out our PA-CB41-2 datasheet.
Smart Power Management and Fast Response
As an upgraded next-generation control box in our control systems lineup, we designed the PA-CB41-2 power-saving actuator controller for efficient actuator power operation while handling extended use. Smart features, including sleep mode, low standby current, and instant wake-up, are also programmed into the PA-CB41-2 control box to enhance efficiency.
|
Efficiency |
99% |
|
Ambient Current Draw |
3mA |
|
Standby Response Time |
60mS |
|
Sleep Mode Response Time |
100mS |
|
Duty Cycle |
25% (Max 5 minutes continuous) |
Wireless, Bluetooth, and System Integration
Our new and improved RF wireless RT-40 controller remotes that come included with each PA-CB41-2 control box have wireless remote pairing and mode selection capabilities. By pairing the wireless actuator control box with the compatible accessories in the table below, the control interface methods can be expanded to include wired and Bluetooth smart controls.
|
Wireless Frequency |
433.92 MHz |
|
Wireless Range |
Minimum 100 Feet |
|
Wireless Remote Functions |
Up, Down, Programming Modes, Stop |
|
Smart Control |
|
|
Maximum Remote Pairing |
Up to 4 Wireless Remotes |
|
Wired Remote Compatibility |
Use Cases and Applications
The PA-CB41-2 high-power actuator controller is perfect for projects and applications that require synchronized movement of two high-load actuators. With enhanced safety mechanisms and various user convenience features, this dual-channel actuator controller for high-load linear actuators is a top-tier choice for advanced linear motion applications found in:
- Smart home actuator setups
- Industrial synchronized actuator systems
- Automotive use cases
- Window and gate automation
FAQ Questions
What types of linear actuators are compatible with the PA-CB41-2 control box?
-Our PA-CB41-2 control box is compatible with high-load Hall effect feedback actuators.
Does the PA-CB41-2 support dual actuator synchronization?
-Yes, our PA-CB41-2 dual-channel actuator controller operates 2 actuators together simultaneously.
What safety protections are built into the PA-CB41-2 control box?
-Safety protection features built into the PA-CB41-2 control box include protection against:
- Out of Synchronization
- Output Short Circuit
- Overcurrent / Overload
- Over Duty Cycle
- Out of Range Input Voltage
- Reverse Input Voltage
Can the PA-CB41-2 be controlled wirelessly or via Bluetooth?
-The PA-CB41-2 control box can be wirelessly controlled using the included wireless remote or via Bluetooth when paired with the additional RT-BT1 Bluetooth Dongle and AC-63-06 wiring harness adapter (sold separately).
Is the PA-CB41-2 suitable for OEM and industrial automation applications?
-Yes, the PA-CB41-2 control box can be paired with high-load actuators that are designed to handle the harsh environments and demanding workloads expected in various OEM and automation applications.
IN SUMMARY
The PA-CB41-2 control box is part of our next-generation control boxes, offering advanced smart and safety features. Compact, efficient, and easy-to-use, our high-power dual-channel actuator controller marks an exciting expansion in our product lineup for synchronous motion control of multiple actuators.
We hope you found this as informative and interesting as we did, especially if you were looking into suggestions for your next high-power actuator controller with synchronization capabilities. If you have any queries or wish to discuss our products further, please do not hesitate to contact us! We are experts in what we do and will be happy to assist however we can.
